Product description - Forget "Blah" Lighting. Experience Endless Creativity with the Genaray Batons

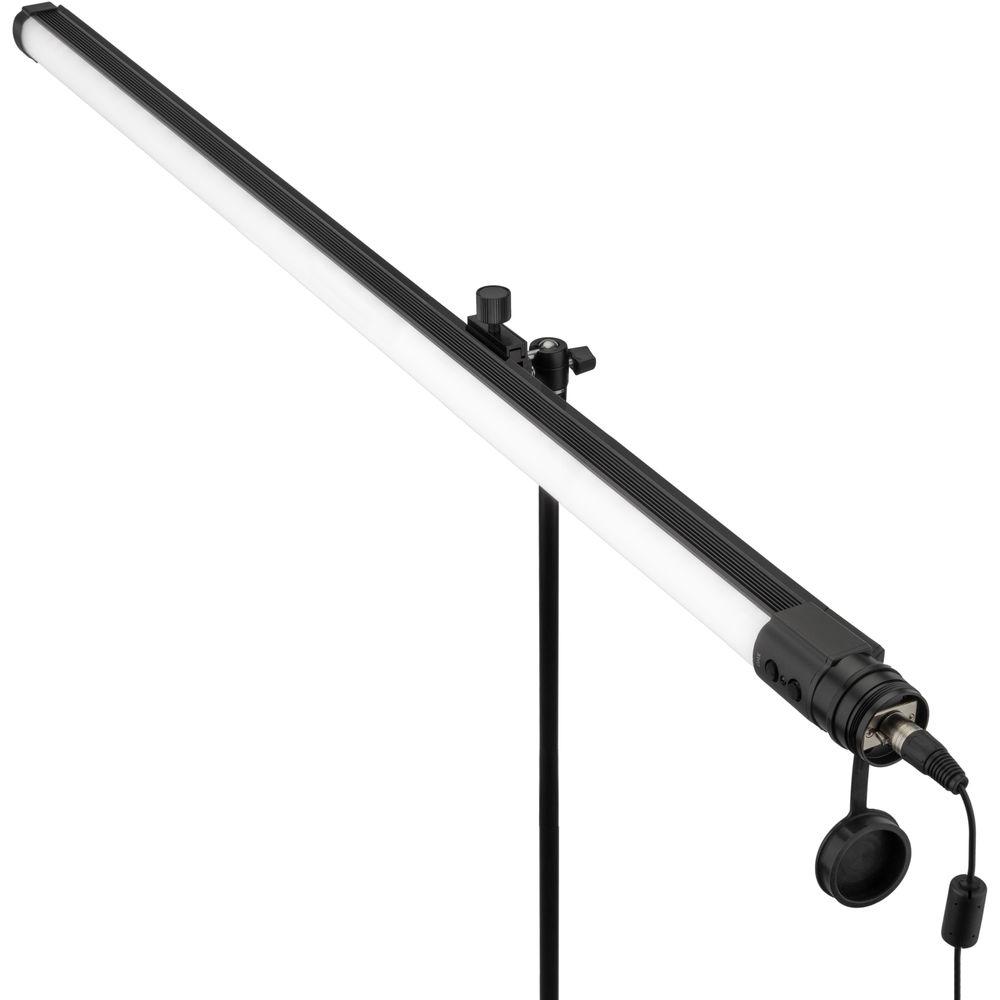

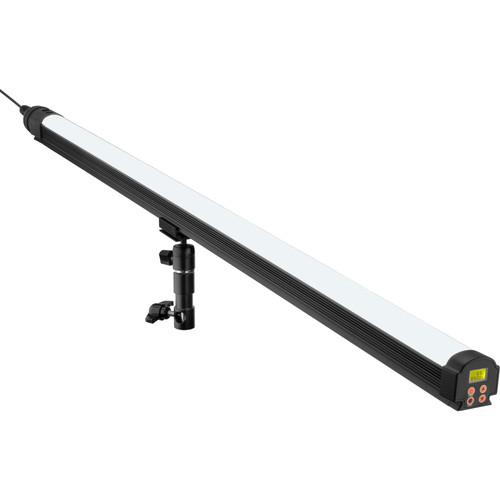

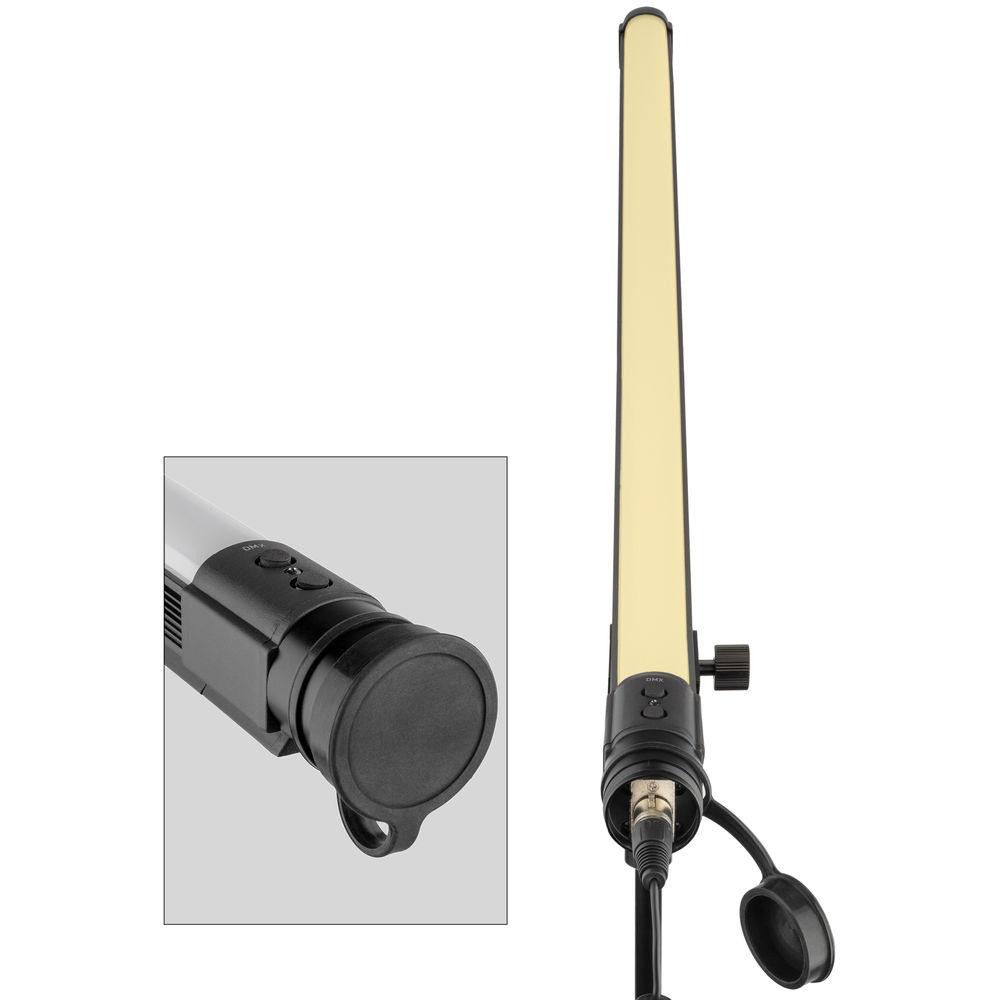

The 53" SpectroLED Baton Stick Light from Genaray has a unique design and advanced technology that not only makes creative expression easy - it makes it fun! The Baton's 110-degree beam spread and long, slim shape provide for dramatic, selective illumination.Color temperature is variable from 2800 to 6500K in 100K increments but for working quickly, you can also use the Preset Buttons to jump to 2800, 3200, 4300, 5600, or 6500K. Anyway you use it though, you'll benefit from the Baton's CRI rating of 95 to 98 and TLCI rating of 95 - indicators of high accuracy in color rendering. Light intensity is also variable from 100 to 10% in 1% increments and like color temperature has Preset Buttons that switch you to 25, 50, 75, or 100% power instantly. While you can make color and dimming adjustments locally on the fixture and see them displayed on the unit's LCD screen, you can also make them on one or on several Batons remotely from a console via onboard DMX.The entire length of the Baton is dovetailed, allowing it to be supported and secured at any point in its intelligently designed Arca-Type Ball Head Mount, which offers 360-degree rotation and 180-degree tilting. The mount has a 5/8" receiver for industry-standard light stands but by removing its tightening knob, the mount can be used as a 1-1/8" pin that inserts into a Junior stand's receiver. Alternatively, the Baton comes with two strong magnetic disks that attach firmly to any metal surface. The Baton is ready for worldwide use via its universal 100 to 240 VAC power supply and comes with a carry case for storage and transport. - Variable Color Temperature and Preset Buttons
- Color temperature is variable from 2800 to 6500K in 100K increments but for working quickly, you can also use the Preset Buttons to jump to 2800, 3200, 4300, 5600, or 6500K. The Baton's CRI rating of 95 to 98 and TLCI rating of 95 are indicators of high accuracy in color rendering.

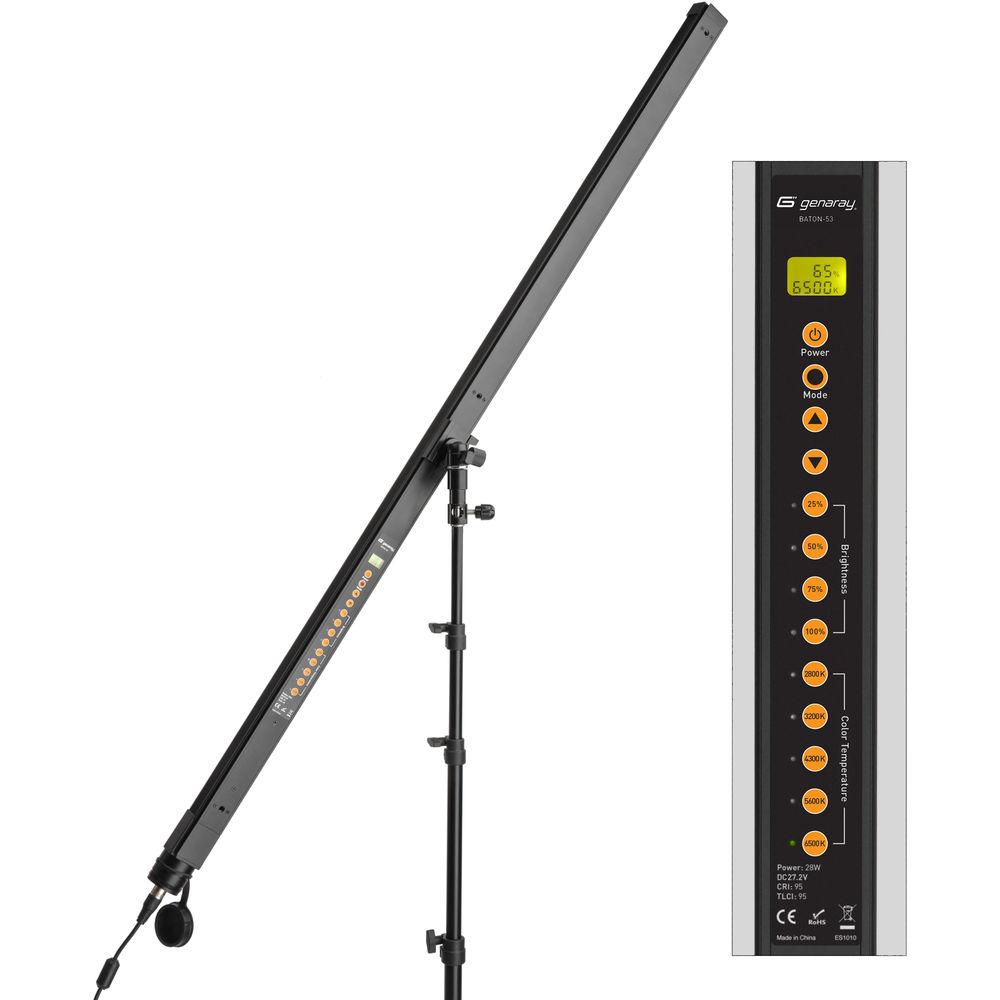

- Brightness Control and Preset Buttons
- Light intensity is also variable from 100 to 10% in 1% increments and like color temperature has Preset Buttons that switch you to 25, 50, 75, or 100% power instantly.
- Magnet Mounts
- Fueling your creativity with even more placement options, the included, strong magnet mounts allow you to attach the Baton to any metal surface without additional support, so you can light tight spaces where a traditional fixture and a light stand can't go.
- DMX Control

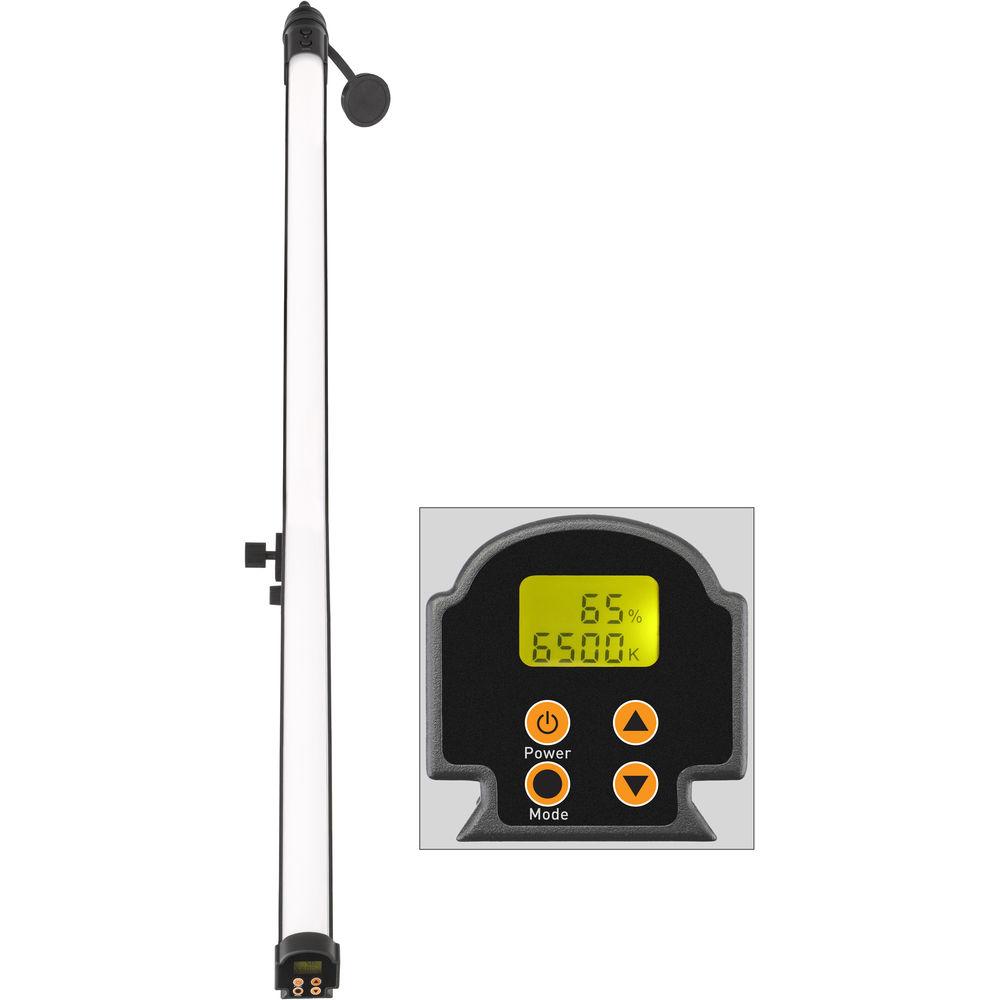

- You can make color and dimming adjustments locally on the fixture and see them displayed on the unit's LCD screen. You can also make them on one or on several Batons remotely from a console via onboard DMX

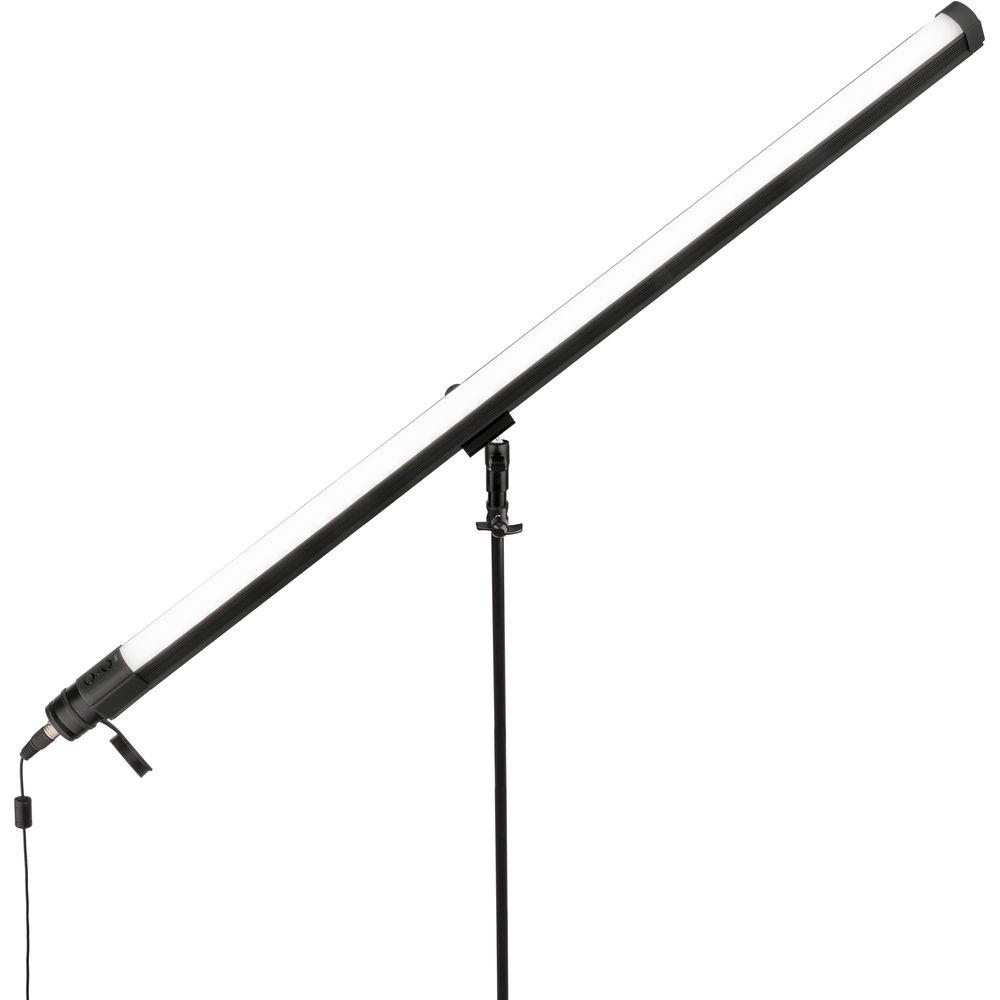

- Intelligently-Designed Arca-Type Ball Head Mount
- The entire length of the Baton is dovetailed, allowing it to be supported and secured at any point in its intelligently-designed Arca-Type Ball Head Mount that offers 360-degree rotation and 180-degree tilting. The mount has a 5/8" receiver for industry-standard light stands but by removing its tightening knob the mount can be used as a 1-1/8" pin that inserts into a Junior stand's receiver.
UPC: 847628014732 In the Box Genaray SpectroLED Baton Stick Light (53") AC Adapter Power Cable DMX Cable Magnet Mounts Arca-Type Ball Head Mount Carrying Case Limited 1-Year Warranty User Manual PDF 729.1kbdsuesvuxfvedxtxvbtbvabvbz Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED Baton Stick Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Baton 53 Specs | | | Beam Angle | 110° | | Color Temperature | 2800 to 6500K (with 300K Shift over Lifetime) 2800K: +/- 150K, 6500K: +/- 300K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Cooling System | Passive | | Dimming | Yes, 100 to 10% (Stepped) | | Housing Material | Metal | | Photometrics | 110° at 5600K:
144.4 fc / 1554 lux at 2.99' / 0.91 m
110° at 4400K:
138.9 fc / 1495 lux at 2.99' / 0.91 m
110° at 3200K:

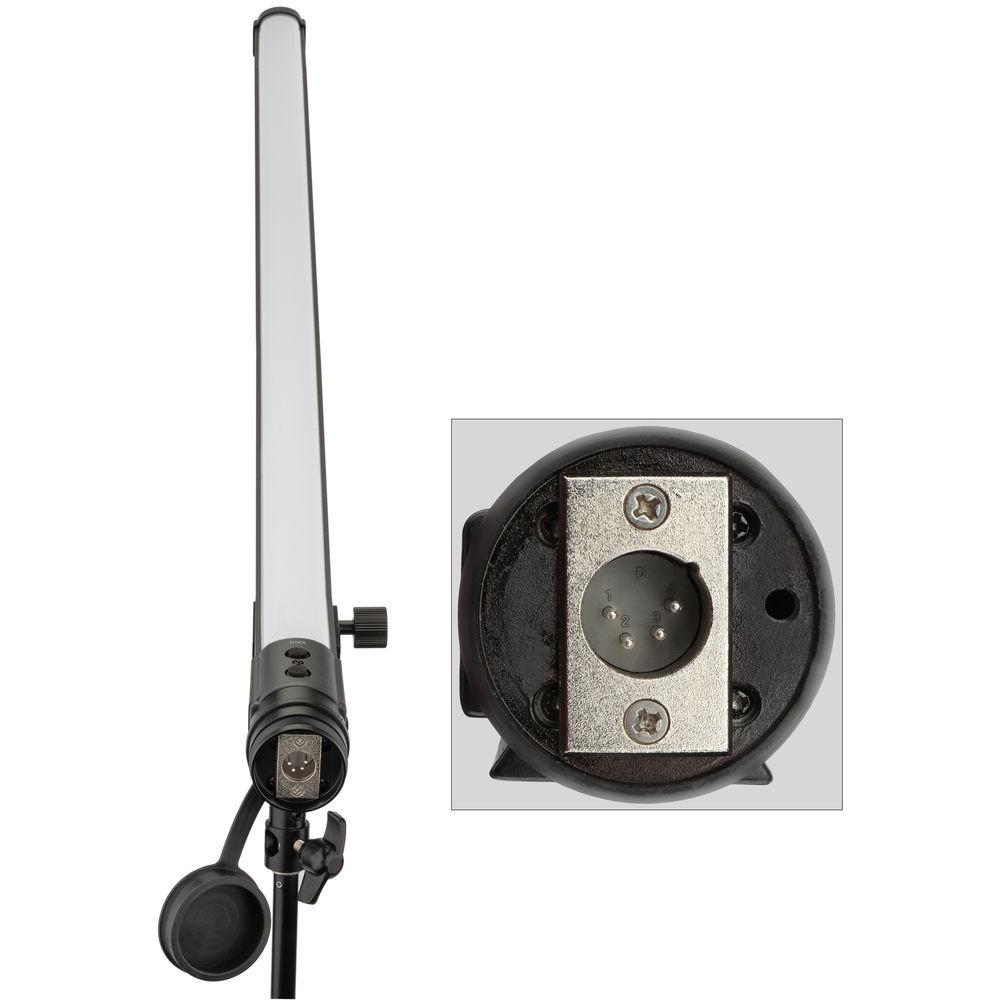

136.3 fc / 1467 lux at 2.99' / 0.91 m | | Number of LEDs | 512 | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | Overall: 2.0 x 2.0 x 55.0" / 5.1 x 5.1 x 139.7 cm | | Fixture Weight | 3.4 lb / 1.54 kg | | | | Battery Plate | None | | Power Input Connector | 4-Pin XLR | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | 5/8" Receiver | | Mount via Included Adapter | 1-1/8" Stud | | Accessory Mount | 1 x Shoe Mount Arca-Type Quick Release | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 27 VDC | | Power Source | AC Adapter | | Max Power Consumption | 88 W | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 60.0 x 7.5 x 7.0" |
