User manual

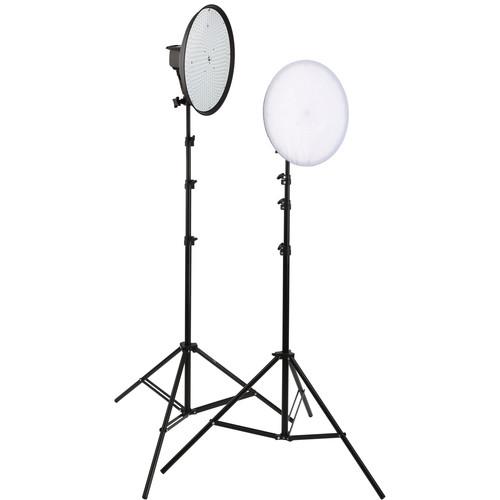

Genaray SpectroLED Daylight 2-Light Interview Kit

User Manual for Genaray SpectroLED Daylight 2-Light Interview Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 2 x Genaray SpectroLED-14 Flood LED Light
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  With a beam angle of 120°, the SpectroLED-14 Flood Light from Genaray is composed of a daylight-balanced fixture equipped with 600 LEDs. The round 14.5" light provides 10-100% dimming with a maximum power output of 120W, featuring a high CRI rating of 96 that helps ensure color accuracy regardless of your subject or dimming settings.In a field dominated by rectangular or square arrays, Genaray has made the wise choice of making their studio lights circular. Not only does the increased surface area have more wrap-around light characteristics but the shape renders pleasing, natural-looking catchlights in your subject's eyes. And if you're doing portraiture, you can soften the SpectroLED-14's output by slipping the included 3/4 stop diffusion sock over the reflector or with an optional Octa softbox that is specifically designed for this product. Heat is never a concern since the cool-running LEDs are barely warm to the touch.Another way to soften the quality of light is to use the umbrella socket that is built into the mount. You can use reflective or translucent umbrellas for bounce or shoot-through effects. The socket accepts 7 or 8 mm shafts and the mount has a 65-degree tilting range for perfect placement.Power is provided by an included multi-voltage power supply and adapter that accepts 100-240 VAC. You can also choose to power the light with an optional V-mount battery or three-stud batteries thanks to a D-tap slot in the back of the fixture. Also located at the back is a dimming knob for on-board control, complete with an LED readout for the brightness. The light mounts to any compatible 5/8" baby pin stand and can be paired with an optional Genaray MB-WRT remote for easy wireless operation.
  • • Round, 14.5" LED fixture with daylight color temperature of 5600K and high CRI of 96
    • Wide beam angle of 120° allows the light to pair with an optional Octa softbox for soft and even illumination
    • Accepts an included 3/4 diffusion sock that goes over the reflector and optional umbrellas via a dedicated socket
    • Can be dimmed from 10 to 100% with on-board control knob, complete with LED readout for viewing brightness setting
    • Wireless dimming possible with optional Genaray MB-WRT remote
    • Runs on 100-240 VAC power with included adapter, or on optional batteries via D-tap connection
    • Mounts to any compatible light stand with standard 5/8" baby pin
  UPC: 855193007202
• 2 x Impact Air-Cushioned Light Stand (Black, 10')
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626

• 2 x SpectroLED-14 Flood LED Light wcvfefydfctxztbveeyedeeyebarxa
• Diffuser Cap
• 3/4 Stop Diffusion Sock
• Power Cord
• AC Adapter
• Limited 1-Year Warranty

• 2 x Impact - Air-Cushioned Light Stand (Black, 10')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED-14 Flood LED Light

  Beam Angle	120°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 96 TLCI 92
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	ABS Plastic
  Photometrics	458.7 fc / 4938 lux at 2.99' / 0.91 m
  Number of LEDs	600
  Fixture Dimensions	14.5 x 14.5 x 7.0" / 37.0 x 37.0 x 17.8 cm
  Fixture Weight	3.5 lb / 1.59 kg

  Battery Plate	None
  Power Input Connector	D-Tap
  DMX Connector	None

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless
  Wireless Range	98.4' / 30 m

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	15 VDC at 10 A
  Power Source	AC Adapter, Cigarette Lighter Adapter, External Battery
  Max Power Consumption	120 W

  Cable Length	13.12' / 4 m

  Box Dimensions (LxWxH)	16.8 x 16.75 x 10.3"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"
