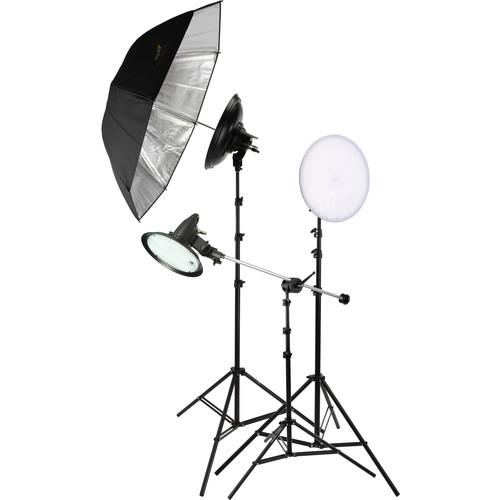

Genaray SpectroLED Daylight 3-Light Interview Kit

User Manual for Genaray SpectroLED Daylight 3-Light Interview Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 2 x Genaray SpectroLED-14 Flood LED Light
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  With a beam angle of 120°, the SpectroLED-14 Flood Light from Genaray is composed of a daylight-balanced fixture equipped with 600 LEDs. The round 14.5" light provides 10-100% dimming with a maximum power output of 120W, featuring a high CRI rating of 96 that helps ensure color accuracy regardless of your subject or dimming settings.In a field dominated by rectangular or square arrays, Genaray has made the wise choice of making their studio lights circular. Not only does the increased surface area have more wrap-around light characteristics but the shape renders pleasing, natural-looking catchlights in your subject's eyes. And if you're doing portraiture, you can soften the SpectroLED-14's output by slipping the included 3/4 stop diffusion sock over the reflector or with an optional Octa softbox that is specifically designed for this product. Heat is never a concern since the cool-running LEDs are barely warm to the touch.Another way to soften the quality of light is to use the umbrella socket that is built into the mount. You can use reflective or translucent umbrellas for bounce or shoot-through effects. The socket accepts 7 or 8 mm shafts and the mount has a 65-degree tilting range for perfect placement.Power is provided by an included multi-voltage power supply and adapter that accepts 100-240 VAC. You can also choose to power the light with an optional V-mount battery or three-stud batteries thanks to a D-tap slot in the back of the fixture. Also located at the back is a dimming knob for on-board control, complete with an LED readout for the brightness. The light mounts to any compatible 5/8" baby pin stand and can be paired with an optional Genaray MB-WRT remote for easy wireless operation.
  • • Round, 14.5" LED fixture with daylight color temperature of 5600K and high CRI of 96
    • Wide beam angle of 120° allows the light to pair with an optional Octa softbox for soft and even illumination
    • Accepts an included 3/4 diffusion sock that goes over the reflector and optional umbrellas via a dedicated socket
    • Can be dimmed from 10 to 100% with on-board control knob, complete with LED readout for viewing brightness setting
    • Wireless dimming possible with optional Genaray MB-WRT remote
    • Runs on 100-240 VAC power with included adapter, or on optional batteries via D-tap connection
    • Mounts to any compatible light stand with standard 5/8" baby pin
  UPC: 855193007202
• Genaray SpectroLED-9 Light (100-240 VAC/12 VDC)
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  The SpectroLED-9 Light (100-240 VAC/12 VDC) by Genaray is built around a 10-100% dimming fixture with a 60° beam angle. 500 LEDs output an impressive brightness equivalent many times its nominal 35W rating. In a field dominated by rectangular or square arrays Genaray has made the wise choice of making studio lights circular. Not only does the increased surface area have more wrap-around light characteristics but the shape renders pleasing, natural-looking catchlights in your subject's eyes. And if you're doing portraiture you can soften the SpectroLED-9's output while widening its native 60-degree coverage by slipping the included 3/4 stop diffusion sock over the reflector. Heat is never a concern since the cool-running SpectroLED-9 is barely warm to the touch. Another way to soften the quality of light is the umbrella socket that's built into the mount. You can use reflective or translucent umbrellas for bounce or shoot-through effects. The socket accepts 7 or 8 mm shafts and the mount has a 65-degree tilting range for perfect placement. Power is provided by the included multi-voltage power supply/adapter. The inclusion of a cigarette lighter adapter cord also gives you the option of using 12V batteries for convenience or location shooting. You can run the SpectroLED-9 for approximately 300 minutes on an average fully charged battery. Not only are you saving money every time you use the SpectroLED-9 due to its low current draw, but with a 50,000-hour lamp life the SpectroLED-9 is virtually maintenance-free. Note: Runtime is approximate depending on battery selected
  AC or DC Operation
  • The SpectroLED-9 comes with a 100-240 VAC power source but if you need to shoot in out of the way locations you'll find its DC (battery) capability handy. A cigarette lighter adapter cord is included. Just add your choice of optional 12V battery.
  Umbrella Mount
  • The SpectroLED-9's stand mount has an umbrella socket built into it giving you additional creative options.
  Optional Remote Dimming
  • Squeezing the SpectroLED-9 into tight spaces is no problem. The optional Remote Dimmer gives you the same 10-100% dimming options that you have on the light's control panel but with a 12.8' cable. Operate 1 or several remote equipped SpectroLEDs from remote or central locations. It's also great for controlling a light that's mounted overhead.
  UPC: 639767567831
• 3 x Impact Air-Cushioned Light Stand (Black, 10')
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626
• Impact Mini Boom Arm - 5' 3"
  • The Genaray SP-AD120 SpectroLED-14 Flood Light
  This Impact Mini Boom Arm is an aluminum lightweight boom arm with a 1 lb counterweight and swivel handle light stand mount. It can hold a small light fixture. UPC: 847628012059

• 2 x SpectroLED-14 Flood LED Light wcvfefydfctxztbveeyedeeyebarxa
• Diffuser Cap
• 3/4 Stop Diffusion Sock
• Power Cord
• AC Adapter
• Limited 1-Year Warranty

• SpectroLED-9 Light (100-240 VAC/12 VDC) wcvfefydfctxztbveeyedeeyebarxa

• 3 x Impact - Air-Cushioned Light Stand (Black, 10')

• Impact - Mini Boom Arm - 5' 3"

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED-14 Flood LED Light

  Beam Angle	120°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 96 TLCI 92
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	ABS Plastic
  Photometrics	458.7 fc / 4938 lux at 2.99' / 0.91 m
  Number of LEDs	600
  Fixture Dimensions	14.5 x 14.5 x 7.0" / 37.0 x 37.0 x 17.8 cm
  Fixture Weight	3.5 lb / 1.59 kg

  Battery Plate	None
  Power Input Connector	D-Tap
  DMX Connector	None

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless
  Wireless Range	98.4' / 30 m

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	15 VDC at 10 A
  Power Source	AC Adapter, Cigarette Lighter Adapter, External Battery
  Max Power Consumption	120 W

  Cable Length	13.12' / 4 m

  Box Dimensions (LxWxH)	16.8 x 16.75 x 10.3"

• Genaray SpectroLED-9 Light (100-240 VAC/12 VDC)

  Beam Angle	60°
  Color Temperature	5600K ± 200K
  Cooling System	None
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	Aluminum, Polycarbonate
  Number of LEDs	500
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	9.5 x 9.5 x 7.0" / 24.0 x 24.0 x 17.8 cm
  Fixture Weight	2.0 lb / 0.90 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, Cigarette Lighter Adapter, External Battery
  Max Power Consumption	35 W

  Cable Length	12.8' / 4 m
  Cable Type	Unspecified to NEMA 5-15

  IP Rating	IP20

  Box Dimensions (LxWxH)	10.0 x 9.95 x 8.55"

• 3 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"

• Impact Mini Boom Arm - 5' 3"

  Extended Length	5.3 ft (1.6 m)
  Closed Length	35" (89 cm)
  Weight	2.25 lb (1.1 kg)
  Maximum Load	1.75 lb (.8 kg)
  Attachment Size	5/8 in male stud with 1/4-20 in screw thread

  Box Dimensions (LxWxH)	36.0 x 8.0 x 3.5"
