User Manual for Genaray SpectroLED Essential 360 Bi-Color LED Light Click to enlarge the picture
Contents of the user manual for the Genaray SpectroLED Essential 360 Bi-Color LED
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
 |
User manual for the Genaray SpectroLED Essential 360 Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

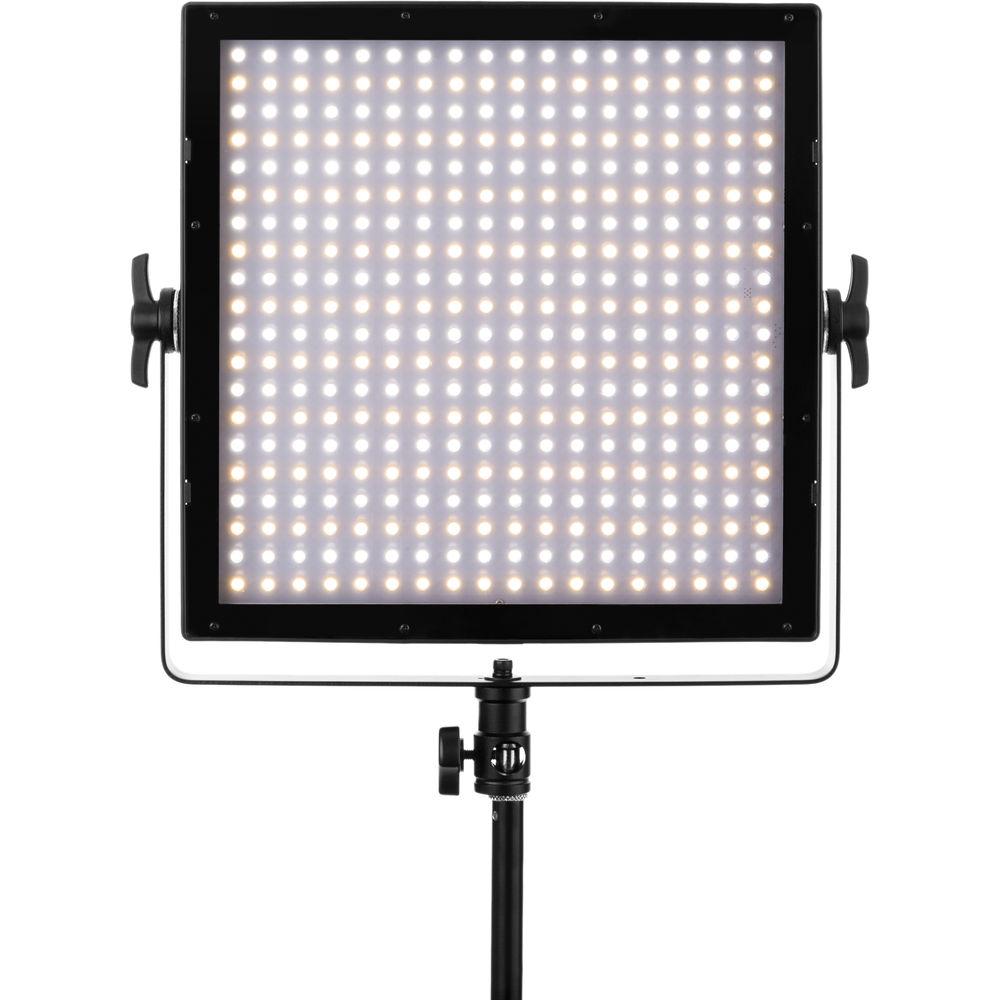

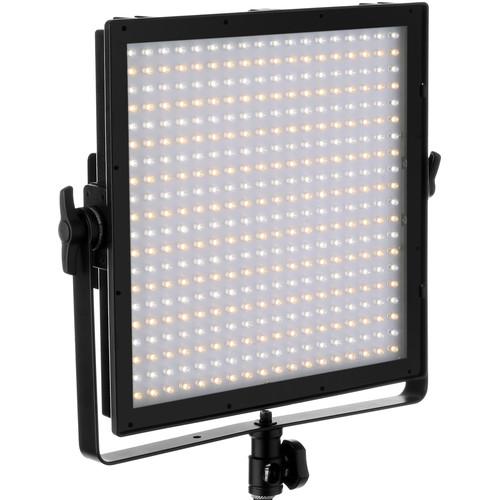

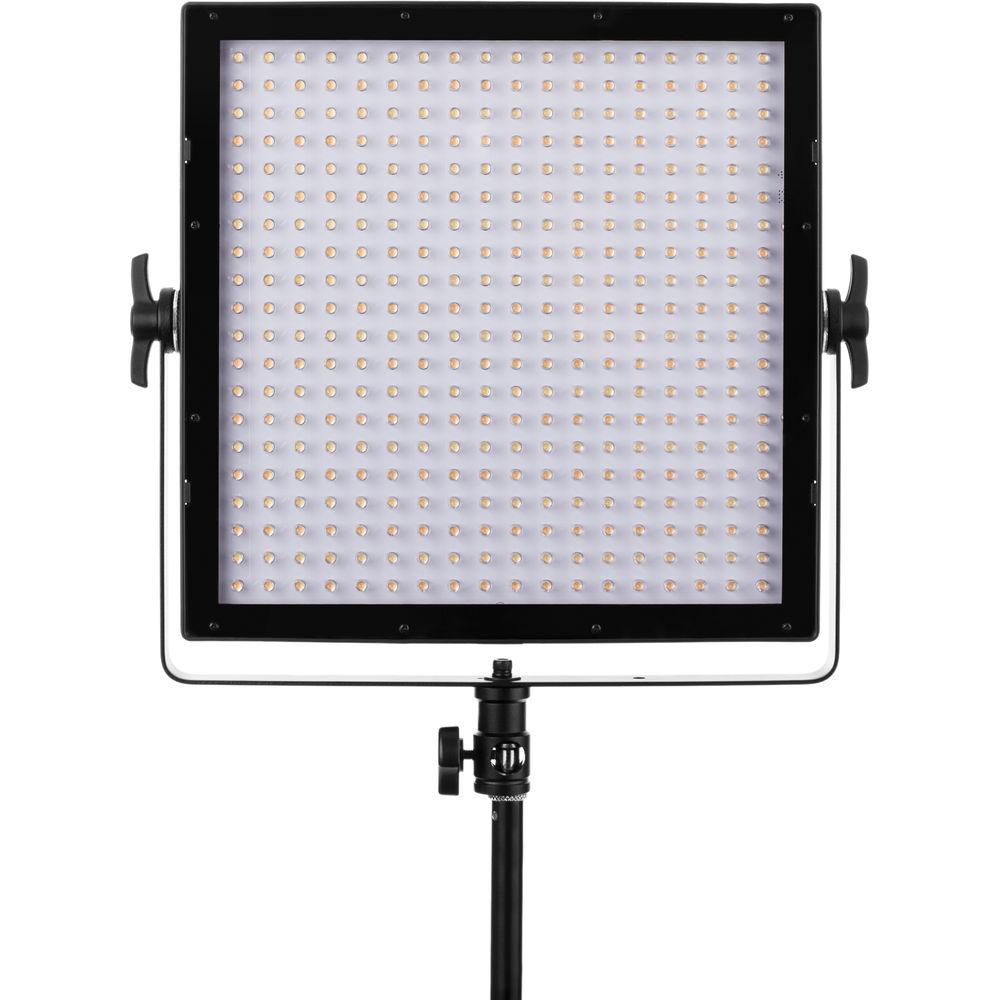

Product description The SpectroLED Essential 360 Bi-Color LED Light by Genaray is a 360 LED panel with color temperature that's variable from tungsten-balanced 3200K to daylight-balanced 5600K or anywhere in between. Instead of fumbling with filters you can match other light sources or ambient light conditions, or just use color creatively. Light intensity is also variable from 100 - 0% without color shift or flickering.The SpectroLED Essential 360 offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 11.75 x 11.75 x 2.6˝ panel weighs just 3.55 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 30W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's included clips allow you to stack up to 3 units for triple the power. You can even daisy-chain several units using the separately purchased SP-E-MLC Multi Link Cable which allows one master unit to control the color and light intensity of the others.Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ optional V-mount batteries or use NP-F type batteries with the separately purchased SP-E-NPBA adapter when mains current is unavailable. - Adjustable Color Temperature
- Variable color output from 3200-5600K allows you to balance color without filters.
- 100-0% Dimming
- The SpectroLED is dimmable from 100 - 0% without color shift and flicker.
- High CRI
- The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
- Battery or AC Power

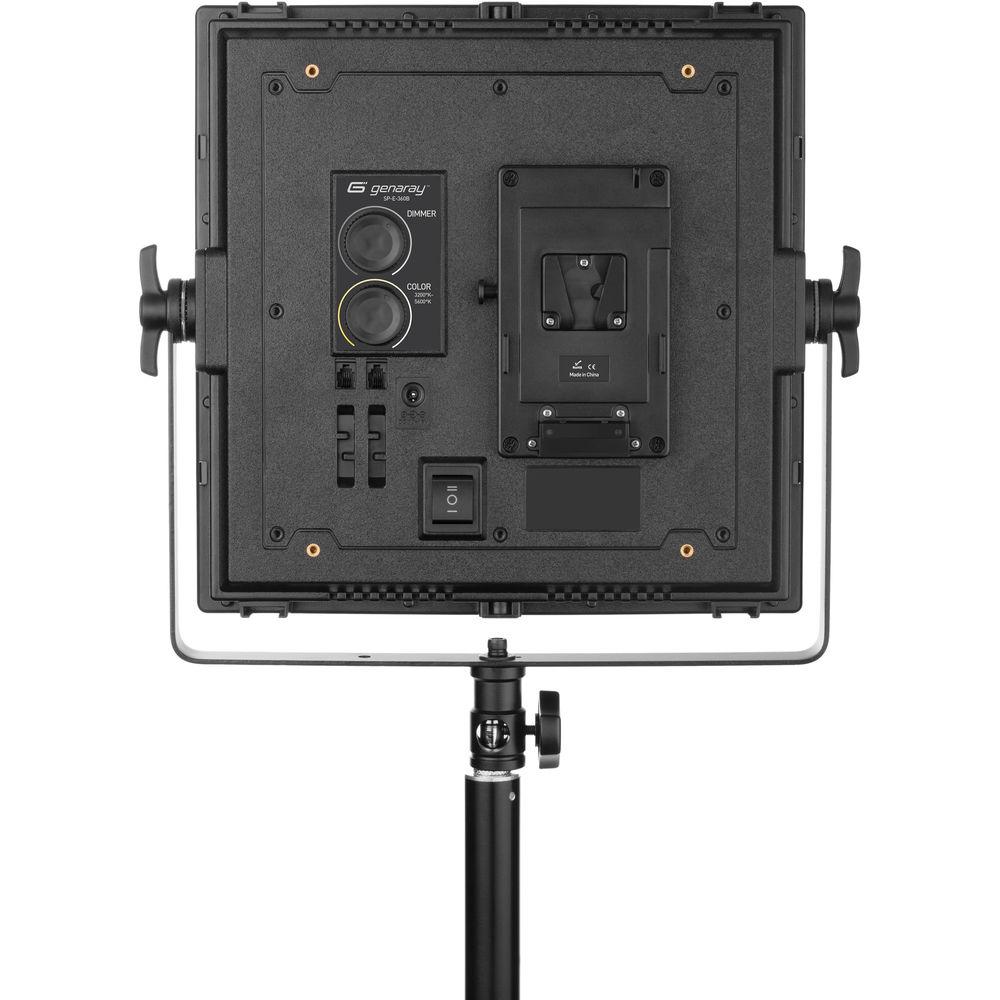

- The SpectroLED Essential 360 LED is powered by an AC adapter, allowing for a wall-socket power supply. The light unit also accepts V-mount batteries, affording you wireless power portability. As an alternative, you can also power the unit using NP-F batteries with the Genaray SP-E-NPBA battery adapter.
- Flexible Mounting
- The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for stacking and supports such as ball heads.
- Daisy-Chain Control
- Using Genaray's SP-E-MLC Multi Link Cable, you can connect multiple SpectroLEDs together and control color and brightness from one master unit.
- Stackable

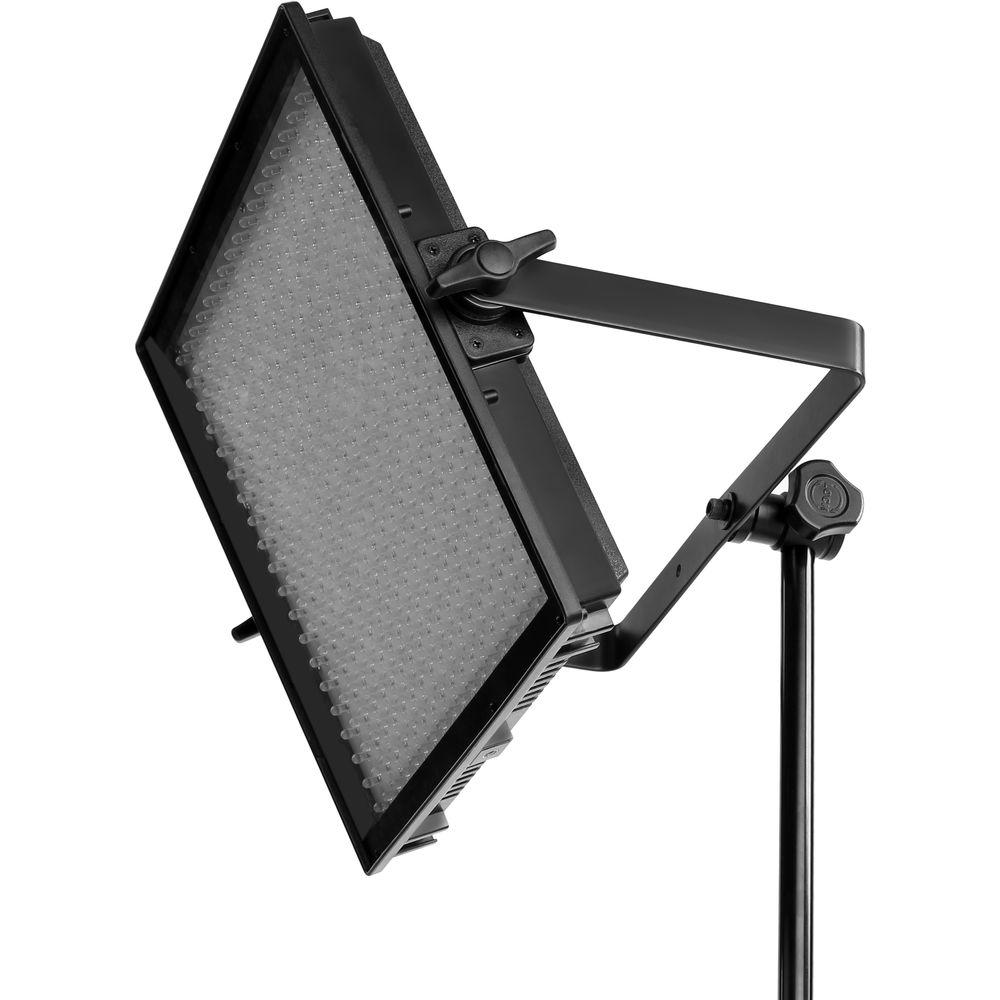

- Thanks to its removable yoke, you can use the included clips to stack up to 3 lights for triple the power.

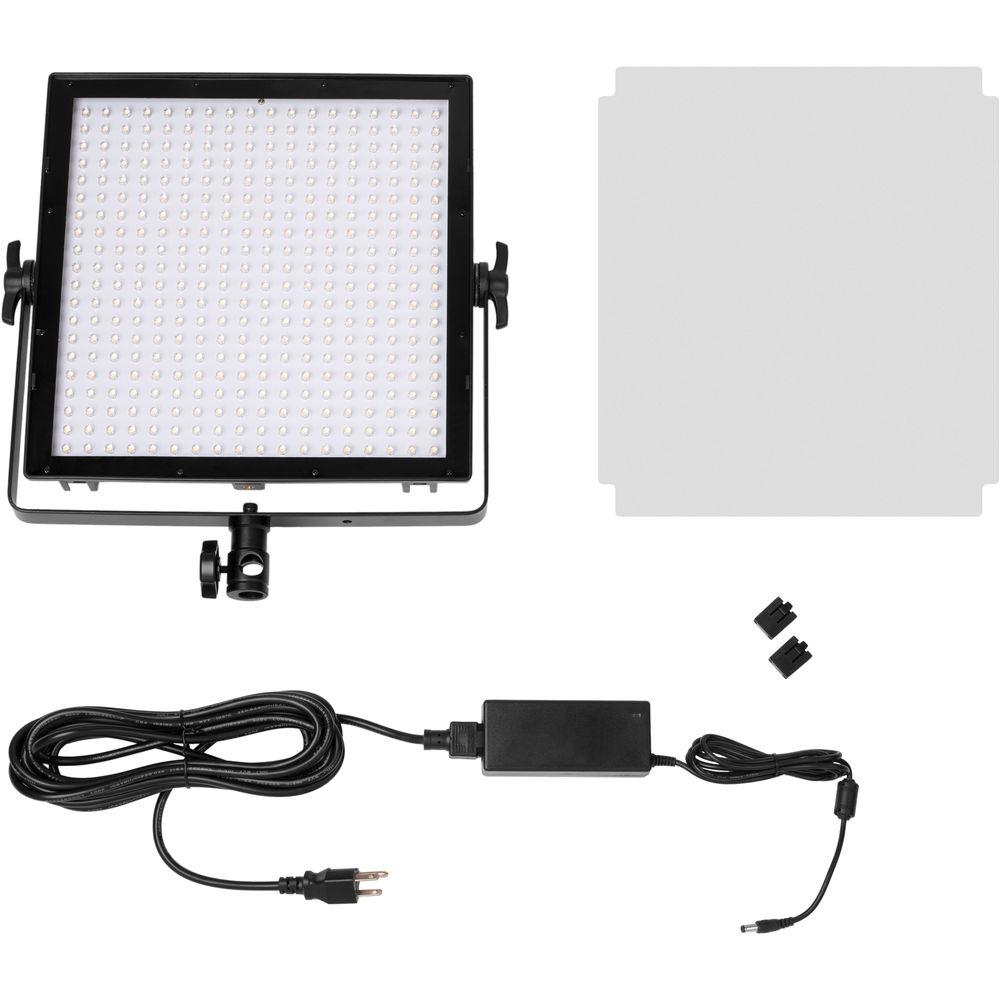

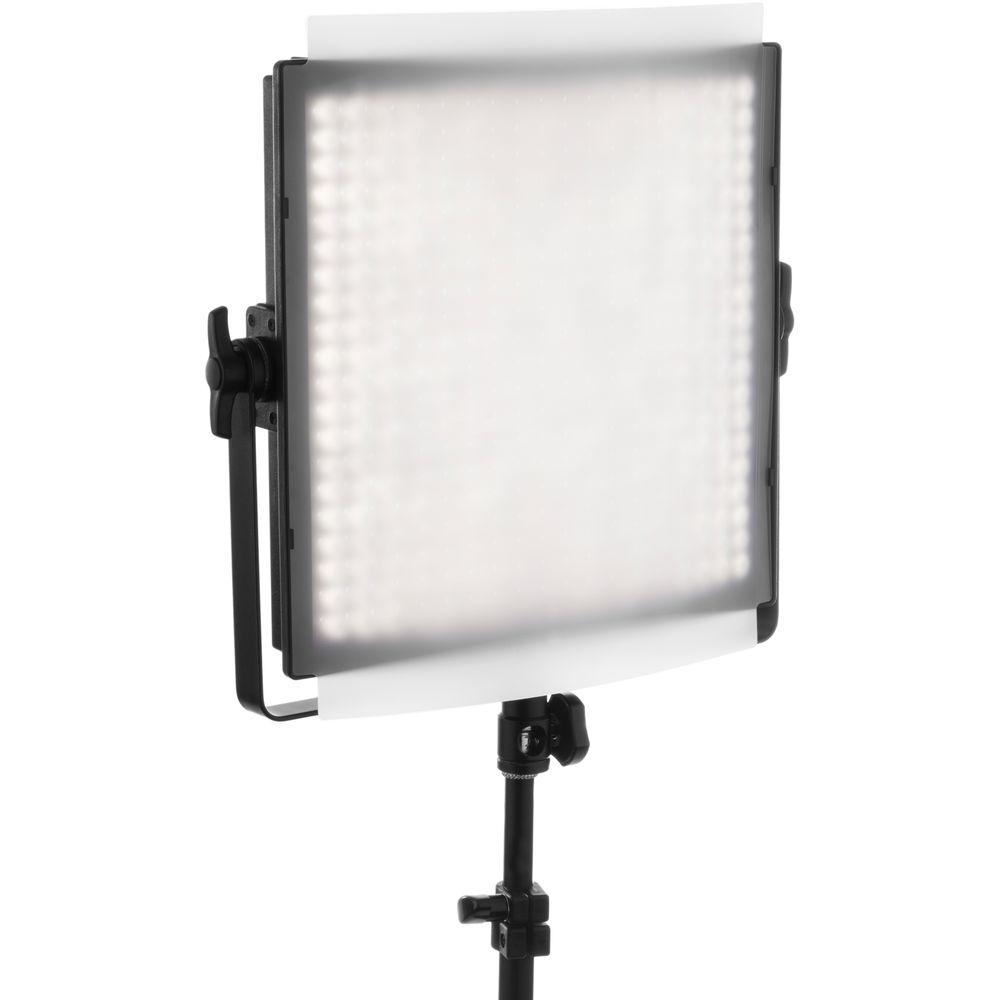

UPC: 639767568227 In the Box Genaray SpectroLED Essential 360 Bi-Color LED Light Yoke AC Adapter AC Power Cord Diffuser 2 x Stacking Clips Limited 1-Year Warranty User Manual PDF 1.3mbxwqsvqtb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED Essential 360 Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Essential 360 Specs | | | Beam Angle | 60° | | Color Temperature | 3200 to 5600K | | Cooling System | None | | Display | None | | Number of LEDs | 360 | | Expected Lamp Life | 30,000 Hours | | Fixture Dimensions | 11.8 x 11.8 x 2.6" / 29.8 x 29.8 x 6.6 cm | | Fixture Weight | 2.5 lb / 1.13 kg
3.5 lb / 1.6 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 16.5 x 15.8 x 4.6" |
