User manual
Genaray SpectroLED Essential 365 Bi-Color 2-Light

User Manual for Genaray SpectroLED Essential 365 Bi-Color 2-Light Kit with Stands

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

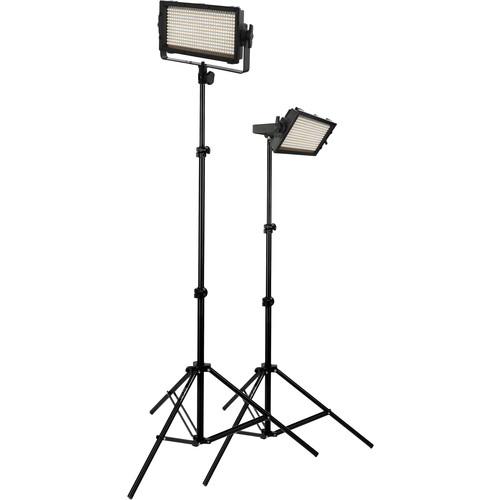

• 2 x Genaray SpectroLED Essential 365 Bi-Color LED Light
  • The Genaray SP-E-365B SpectroLED Essential 365 Bi-Color LED Light
  The SpectroLED Essential 365 Bi-Color LED Light by Genaray is a 360 LED panel with color temperature that's variable from tungsten-balanced 3200K to daylight-balanced 5600K or anywhere in between. Instead of fumbling with filters you can match other light sources or ambient light conditions, or just use color creatively. Light intensity is also variable from 100 - 0% without color shift or flickering.The SpectroLED Essential 365 offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 9.25 x 13.6 x 2.2" panel weighs just 2.5 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 40W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's included clips allow you to stack up to 3 units for triple the power. You can even daisy-chain several units using the separately purchased SP-E-MLC Multi Link Cable which allows one master unit to control the color and light intensity of the others.Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ two optional Sony L-series NP-F type batteries when mains current is unavailable.
  Adjustable Color Temperature
  • Variable color output from 3200-5600K allows you to balance color without filters.
  100-0% Dimming
  • The SpectroLED is dimmable from 100 - 0% without color shift and flicker.
  High CRI
  • The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
  Battery or AC Power
  • Power your light with the included multi-voltage AC adapter or with two optional Sony L-series NP-F batteries when mains power is unavailable.
  Flexible Mounting
  • The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for stacking and supports such as ball heads.
  Daisy-Chain Control
  • Using Genaray's SP-E-MLC Multi Link Cable, you can connect multiple SpectroLEDs together and control color and brightness from one master unit.
  Stackable
  • Thanks to its removable yoke, you can use the included clips to stack up to 3 lights for triple the power.
  UPC: 639767568814
• 2 x Impact Air-Cushioned Light Stand (Black, 8')
  • The Genaray SP-E-365B SpectroLED Essential 365 Bi-Color LED Light
  This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349

• 2 x SpectroLED Essential 365 Bi-Color LED Light xdrsqdqyeudqcbuqrcyayuv
• Yoke
• AC Adapter
• AC Power Cord
• Diffuser
• 2 x Stacking Clips
• Limited 1-Year Warranty

• 2 x Impact - Air-Cushioned Light Stand (Black, 8')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED Essential 365 Bi-Color LED Light

  Beam Angle	60°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 94 at 3200K CRI 95 at 6500K TLCI 91 at 3200K TLCI 95 at 6500K
  Cooling System	None
  Display	None
  Lumens	1325
  Photometrics	60° at 5600K: 174.8 fc / 1882 lux at 3' / 0.91 m 60° at 320K: 165.7 fc / 1784 lux at 3' / 0.91 m
  Number of LEDs	360
  Expected Lamp Life	30,000 Hours
  Fixture Dimensions	9.2 x 13.6 x 2.2" / 23.5 x 34.5 x 5.5 cm
  Fixture Weight	1.6 lb / 0.7 kg 2.5 lb / 1.1 kg (Including Yoke)

  Battery Plate	2 x Sony L-Series (NP-F)

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.8 x 10.1 x 4.6"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"
