Product description

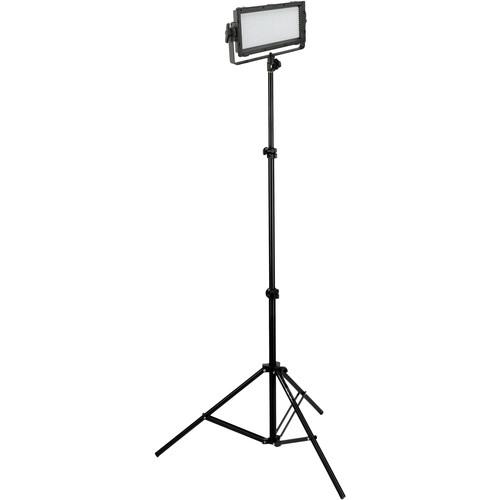

• Genaray SpectroLED Essential 500 Bi-Color LED Light
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  The SpectroLED Essential 500 Bi-Color LED Light by Genaray is a 504 LED panel with color temperature that's variable from tungsten-balanced 3200K to daylight-balanced 5600K or anywhere in between. Instead of fumbling with filters you can match other light sources or ambient light conditions, or just use color creatively. Light intensity is also variable from 100 - 0% without color shift or flickering.The SpectroLED Essential 500 offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 9.25 x 13.6 x 2.2" panel weighs just 2.5 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 40W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's included clips allow you to stack up to 3 units for triple the power. You can even daisy-chain several units using the separately purchased SP-E-MLC Multi Link Cable which allows one master unit to control the color and light intensity of the others.Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ two optional Sony L-series NP-F type batteries when mains current is unavailable.
  Adjustable Color Temperature
  • Variable color output from 3200-5600K allows you to balance color without filters.
  100-0% Dimming
  • The SpectroLED is dimmable from 100 - 0% without color shift and flicker.
  High CRI
  • The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
  Battery or AC Power
  • Power your light with the included multi-voltage AC adapter or with two optional Sony L-series NP-F batteries when mains power is unavailable.
  Flexible Mounting
  • The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for stacking and supports such as ball heads.
  Daisy-Chain Control
  • Using Genaray's SP-E-MLC Multi Link Cable, you can connect multiple SpectroLEDs together and control color and brightness from one master unit.
  Stackable
  • Thanks to its removable yoke, you can use the included clips to stack up to 3 lights for triple the power.
  UPC: 639767568609
• Impact Light Stand, Black (6')
  • The Genaray SP-E-500B SpectroLED Essential 500 Bi-Color LED Light
  This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
  • For small light fixtures or boom arms.
  UPC: 847628011953

• SpectroLED Essential 500 Bi-Color LED Light xfwebazrtwabafvf
• Yoke
• AC Adapter
• AC Power Cord
• Diffuser
• 2 x Stacking Clips
• Limited 1-Year Warranty

• Impact - Light Stand, Black (6')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Genaray SpectroLED Essential 500 Bi-Color LED Light

  Beam Angle	60°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Display	None
  Number of LEDs	504
  Expected Lamp Life	30,000 Hours
  Fixture Dimensions	9.2 x 13.6 x 2.2" / 23.5 x 34.5 x 5.5 cm
  Fixture Weight	1.6 lb / 0.7 kg 2.5 lb / 1.1 kg (Including Yoke)

  Battery Plate	2 x Sony L-Series (NP-F)

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.85 x 10.7 x 4.65"

• Impact Light Stand, Black (6')

  Load Capacity	4 lb / 1.8 kg
  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Maximum Working Height	6' / 1.8 m
  Minimum Working Height	26.3" / 66.8 cm
  Collapsed Height	26.3" / 66.8 cm
  Footprint Diameter	30" / 76.20 cm
  Leg Shape	Round
  Accepts Wheels	Yes
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	26.4 x 3.5 x 3.5"
