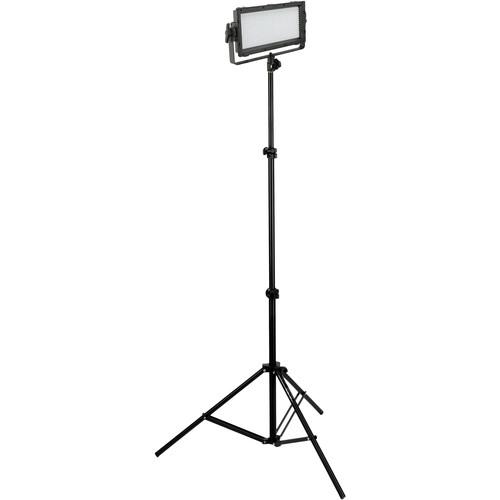

Genaray SpectroLED Essential 500 Daylight Kit

User Manual for Genaray SpectroLED Essential 500 Daylight Kit with Batteries and Stand

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• Genaray SpectroLED Essential 500 Daylight LED Light
  • Genaray SP-E-500D SpectroLED Essential 500 Daylight LED Light
  The SpectroLED Essential 500 Daylight LED Light by Genaray is a 504 LED panel with a daylight-balanced, digital-friendly color temperature of 5600K and 100-0% dimming without color shift or flickering. The SpectroLED offers a 60° flood beam angle and a high CRI for precise and faithful color rendering. The 9.25 x 13.6 x 2.2" panel weighs just 2.5 lb and with its slim profile and barely perceptible warmth can be placed in areas that traditional fixtures just can't go. Another benefit of using LEDs is low power draw; although it uses just 40W of power, it outputs many times that number meaning a rapid return on investment. If you need more power Genaray has got that covered too; the light's removable yoke and included clips allow you to stack up to 3 units for triple the power. You can even "daisy chain" several units using the separately purchased SP-E-MLC Multi-Link Cable which allows 1 "master" unit to control light intensity of the others. Power options are equally versatile. Use the included multi-voltage AC adapter to run the SpectroLED anywhere in the world, or shed the power cord and employ two optional Sony L-series NP-F type batteries when mains current is unavailable.
  Daylight Color Balance
  • The SpectroLED has a digital-friendly, daylight-balanced color temperature of 5600K that facilitates shooting outdoors or in venues with large windows. Filters are easily applied to alter the Kelvin temperature to fit your needs.
  100-0% Dimming
  • The SpectroLED is dimmable from 100-0% without color shift and flicker.
  High CRI
  • The SpectroLED's high CRI rating ensures vibrant, accurate rendition of color.
  Removable Yoke
  • The removable yoke can be mounted horizontally or vertically on a light stand, allowing you to position the fixture so the yoke doesn't cast a shadow.
  Battery or AC Power
  • Power your light with the included multi-voltage AC adapter or with two optional Sony L-series NP-F type batteries when mains power is unavailable.
  Flexible Mounting
  • The light has an industry-standard 5/8" receiver for stand mounting as well as 1/4"-20 top and bottom taps for supports such as ball heads.
  Daisy Chain Control
  • Using Genaray's SP-E-MLC Multi-Link Cable, you can connect multiple SpectroLEDs together and brightness of all of them from one master unit.
  Stackable
  • Thanks to its removable yoke, you can use the included clips to stack up to 3 lights for triple the power.
  UPC: 639767568593
• 2 x Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)
  • Genaray SP-E-500D SpectroLED Essential 500 Daylight LED Light
  The Watson NP-F770 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-F770 and NP-F750. This replacement battery pack features a capacity of 4400mAh and 7.4V of output power. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects.
  Compatible Cameras
  • Sony

    • DCR-SD1000
    • DCR-SR40
    • DCR-TRV900
    • DCR-VX2000
    • DCR-VX2100
    • DCR-VX2200
    • HDR-AX2000
    • HDR-FX1
    • HDR-FX7
    • HDR-FX1000
    • HVR-HD1000
    • HVR-V1
    • HVR-Z1
    • HVR-Z5
    • HVR-Z7
    • HXR-MC1500
    • HXR-MC2000
    • HXR-NX5
    • HXR-NX5R
    • NEX-EA50
    • NEX-FS100
    • NEX-FS700
  UPC: 847628541061
• 2 x Watson Compact AC/DC Charger for L & M Series Batteries
  • Genaray SP-E-500D SpectroLED Essential 500 Daylight LED Light
  This versatile Compact AC/DC Charger from Watson charges all Sony L & M series type lithium-ion batteries via the included dedicated battery plate. The charger runs on 100 to 240 VAC power, allowing for worldwide use. It features a fold-out 2-prong US plug and is supplied with a European plug adapter as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes the charger ideal for use both at home and on the road.

  The Compact AC/DC Charger features a USB power output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input--even while charging your camera or camcorder batteries. With its easily interchangeable plate, the charger can also be used for other battery models via the purchase of an additional battery adapter plate.
  Compatibility
  • Compatible with any Sony NP-F550, NP-F570, NP-F730H, NP-F750, NP-F770, NP-F930, NP-F950, NP-F960, NP-F970, NP-FM30, NP-FM50, NP-FM500H, NP-FM55H, NP-FM70, NP-FM90, NP-FM91, NP-QM71, NP-QM71D, NP-QM91, NP-QM91D type batteries.
  Compact
  • Charger features a fold-out AC plug for easy storage and travel.
  Versatile
  • • Comes with an included Euro plug adapter for charging in Europe.
    • Included DC adapter with car lighter plug lets you charge while on the road.
  USB Output
  • Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input.
  Safety Features
  • The charger features protection against overcharging and overheating.
  UPC: 847628541566
• Impact Light Stand, Black (6')
  • Genaray SP-E-500D SpectroLED Essential 500 Daylight LED Light
  This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
  • For small light fixtures or boom arms.
  UPC: 847628011953

• SpectroLED Essential 500 Daylight LED Light zdczuyvvwfsasxefsuacuavsbfuzaetvwfc
• Yoke
• AC Adapter
• AC Power Cord
• Diffuser
• 2 x Stacking Clips
• Limited 1-Year Warranty

• 2 x Watson - NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)

• 2 x Watson - Compact AC/DC Charger for L & M Series Batteries

• Impact - Light Stand, Black (6')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Genaray SpectroLED Essential 500 Daylight LED Light

  Beam Angle	60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Number of LEDs	504
  Expected Lamp Life	30,000 Hours
  Fixture Dimensions	9.2 x 13.6 x 2.2" / 23.4 x 34.5 x 5.6 cm
  Fixture Weight	1.6 lb / 0.7 kg 2.5 lb / 1.1 kg (Including Yoke)

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	5/8" Receiver
  Accessory Mount	2 x 1/4"-20 Female

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 14.4 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.8 x 10.5 x 4.7"

• 2 x Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)

  Mount / Series Type	Sony L-Series
  Chemistry	Lithium-Ion
  Amp-Hours	4400 mAh
  Output Voltage	7.4 VDC
  Dimensions (W x H x D)	2.8 x 1.5 x 1.6" / 70.0 x 38.0 x 40.0 mm
  Weight	7.2 oz / 204 g

  Box Dimensions (LxWxH)	5.35 x 2.95 x 1.95"

• 2 x Watson Compact AC/DC Charger for L & M Series Batteries

  Compatible Battery Series	Sony L Sony M
  Charging Time	2 to 6 Hours
  USB Output Ports	1 x USB Type-A (5 VDC at 1 A)
  Output Voltage	4.2 to 8.4 VDC at 800 mA
  DC Power Input	Car Adapter: 12 to 24 VDC
  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 100 mA
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Dimensions	2 x 1.3 x 3.5" / 5.1 x 3.3 x 9 cm
  Weight	3.1 oz / 88 g

  Box Dimensions (LxWxH)	7.05 x 4.15 x 2.9"

• Impact Light Stand, Black (6')

  Load Capacity	4 lb / 1.8 kg
  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Maximum Working Height	6' / 1.8 m
  Minimum Working Height	26.3" / 66.8 cm
  Collapsed Height	26.3" / 66.8 cm
  Footprint Diameter	30" / 76.20 cm
  Leg Shape	Round
  Accepts Wheels	Yes
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	26.4 x 3.5 x 3.5"
