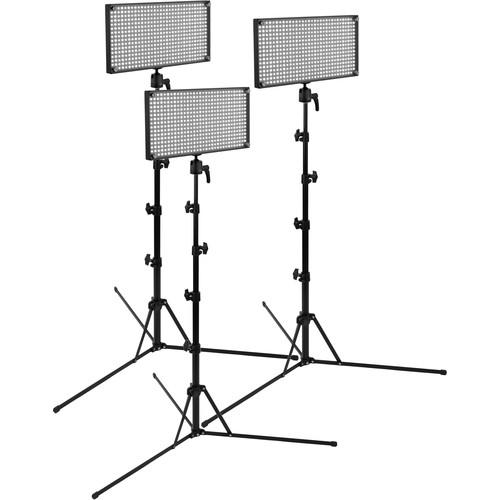

User Manual for Genaray SpectroLED Outfit 500 Daylight LED Three Light Kit Click to enlarge the picture
Contents of the user manual for the Genaray SpectroLED Outfit 500 Daylight LED
- Product category: LED Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray LED Lights
|
User manual for the Genaray SpectroLED Outfit 500 Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|
Product description The Genaray SpectroLED Outfit 500 Daylight LED Three Light Kit from features three Outfit 500 Daylight LED lights and three light stands, everything you need for a 3-point lighting setup. Also included with each LED panel are a ball head with ratchet lock, two NP-F750 batteries, a dual battery charger with AC adapter, a diffusion filter, two cable straps, a tungsten conversion filter, and a carrying case with shoulder strap.
Each 13.0 x 6.75 x 2.6" panel weighs only 2 pounds and is daylight-balanced at 5600K, making it an ideal choice for location work, interviews and small sets where studio quality light in a highly portable form factor is important. The included 3-section light stands can reach heights of 9.5' and are air cushioned to help avoid damage. Dimming is easy via a simple knob that adjusts the light intensity from 100-0% with negligible color shift, as well as turning the fixture on or off.
Supplying power is simple. You can use the included multi-voltage AC adapter with right-angle input or use the twin Sony mounts for the included NP-F750 lithium-ion batteries or cross-purpose camera batteries that you may already own. Additionally, an LED gauge on the back panel of each light facilitates monitoring of remaining power. - 3 x Genaray SpectroLED Outfit 500 Daylight LED Light The SpectroLED Outfit 500 Daylight LED Light by Genaray is built around a 508 LED panel with 100 - 0% dimming and a 60° beam angle. The kit includes the 13 x 6.75 x 2.6" panel, a ratchet-handled ball head stand mount, 2 NP-F750 Lithium-ion batteries, dual charger, AC adapter and 2 cable straps. A diffusion filter to soften the light's output is also included, as is a tungsten-balanced (3200K) conversion filter. It all fits in the provided soft-sided carry case with shoulder strap. At only 2.05 lb the SpectroLED Outfit 500 is an ideal choice for location work, interviews and small sets where studio quality light in a highly portable form factor is of paramount importance. Dimming is easy via a simple knob that adjusts the light intensity from 100-0% with negligible color shift, as well as turning the fixture on or off. Supplying power is equally easy. You can use the included multi-voltage AC adapter with right-angle input virtually anywhere in the world or use the twin Sony mounts for the included NP-F750 Lithium-ion batteries or cross-purpose camera batteries that you may already own while the NP-F750s are charging. An LED gauge on the back panel facilitates monitoring of remaining power. Control, flexibility and portability make the SpectroLED Outfit 500 a savvy choice.
- Produces 5600K daylight-balanced output. Includes a tungsten conversion filter
- Ball head with ratchet handle
- Diffusion filter with advanced light-dispersion characteristics
UPC: 639767568142 - 3 x Impact LS-RL7 7.2' Reverse Legs Light Stand This Impact LS-RL7 7.2' Reverse Legs Light Stand is a lightweight support that's ideal for location work or in the studio for use with a small lights or to hold reflectors. This is one of the few stands to be able to sit completely flush to the floor where they can be taped down or sandbagged to stabilize its load. The LS-RL7's unique design allows the legs to fold up around the central risers somewhat like an inverted umbrella. The result is a 7.2' light stand that breaks down to only 19.5" - short enough to fit in even the smallest light kit bags. The stand is topped with a 5/8" mounting stud with 3/8" threads, a 3/8" 1/4"-20 adapter, and weighs just 2.6 lb. UPC: 847628566576
In the Box - 3 x SpectroLED Outfit 500 Daylight LED Light vyufavdyxzwr
- SpectroLED SP-O-500B Fixture
- Ball Head with Ratchet Lock and Bushing
- 2 x Two NP-F750 Batteries
- Dual Battery Charger with AC Adapter
- DC Power Cord and Adapter
- Diffusion Filter with 4 Mounting Screws
- Tungsten Conversion Filter
- 2 x Cable Strap
- Carry Case with Shoulder Strap
- User Manual
- Limited 1-Year Warranty
- 3 x Impact - LS-RL7 7.2' Reverse Legs Light Stand vyufavdyxzwr
Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED Outfit 500 Daylight LED Three Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Genaray SpectroLED Outfit 500 Daylight LED Light
| | | Beam Angle | 60° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 85 | | Cooling System | None | | Display | None | | Number of LEDs | 508 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 13.0 x 6.8 x 2.6" / 330.0 x 171.0 x 66.0 mm | | Fixture Weight | 2.0 lb / 0.93 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Box Dimensions (LxWxH) | 16.7 x 9.0 x 6.65" | - 3 x Impact LS-RL7 7.2' Reverse Legs Light Stand
| Load Capacity | 3.3 lb / 1.5 kg | | Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Stud | | Number of Sections | 5 | | Column Diameter | 0.98" / 2.5 cm
0.87" / 2.2 cm
0.75" / 1.9 cm
0.63" / 1.6 cm
0.51" / 1.3 cm | | Maximum Working Height | 86" / 218 cm | | Minimum Working Height | 19.3" / 49 cm | | Collapsed Height | 19.5" / 49.5 cm | | Footprint Diameter | 39.4" / 100 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | Material | Aluminum | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 20.8 x 3.85 x 3.15" |
