User manual
Genaray SpectroLED Outfit 500 Daylight LED

User Manual for Genaray SpectroLED Outfit 500 Daylight LED Two Light Kit

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

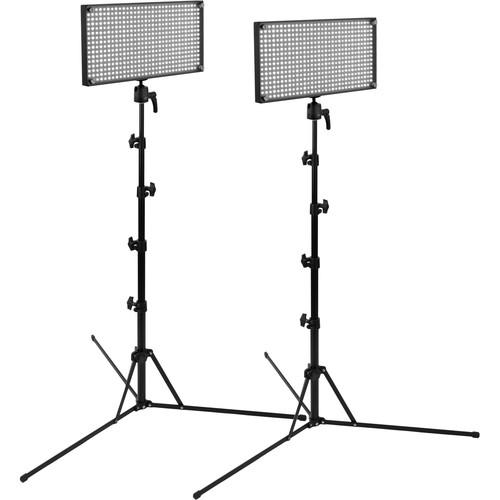

• 2 x Genaray SpectroLED Outfit 500 Daylight LED Light The SpectroLED Outfit 500 Daylight LED Light by Genaray is built around a 508 LED panel with 100 - 0% dimming and a 60° beam angle. The kit includes the 13 x 6.75 x 2.6" panel, a ratchet-handled ball head stand mount, 2 NP-F750 Lithium-ion batteries, dual charger, AC adapter and 2 cable straps. A diffusion filter to soften the light's output is also included, as is a tungsten-balanced (3200K) conversion filter. It all fits in the provided soft-sided carry case with shoulder strap. At only 2.05 lb the SpectroLED Outfit 500 is an ideal choice for location work, interviews and small sets where studio quality light in a highly portable form factor is of paramount importance. Dimming is easy via a simple knob that adjusts the light intensity from 100-0% with negligible color shift, as well as turning the fixture on or off. Supplying power is equally easy. You can use the included multi-voltage AC adapter with right-angle input virtually anywhere in the world or use the twin Sony mounts for the included NP-F750 Lithium-ion batteries or cross-purpose camera batteries that you may already own while the NP-F750s are charging. An LED gauge on the back panel facilitates monitoring of remaining power. Control, flexibility and portability make the SpectroLED Outfit 500 a savvy choice.
  • Produces 5600K daylight-balanced output. Includes a tungsten conversion filter
  • Dimming from 100 to 10%
  • Ball head with ratchet handle
  • Diffusion filter with advanced light-dispersion characteristics
  UPC: 639767568142
• 2 x Impact LS-RL7 7.2' Reverse Legs Light Stand This Impact LS-RL7 7.2' Reverse Legs Light Stand is a lightweight support that's ideal for location work or in the studio for use with a small lights or to hold reflectors. This is one of the few stands to be able to sit completely flush to the floor where they can be taped down or sandbagged to stabilize its load. The LS-RL7's unique design allows the legs to fold up around the central risers somewhat like an inverted umbrella. The result is a 7.2' light stand that breaks down to only 19.5" - short enough to fit in even the smallest light kit bags. The stand is topped with a 5/8" mounting stud with 3/8" threads, a 3/8" 1/4"-20 adapter, and weighs just 2.6 lb. UPC: 847628566576

• 2 x SpectroLED Outfit 500 Daylight LED Light vyufavdyxzwr
• SpectroLED SP-O-500B Fixture
• Ball Head with Ratchet Lock and Bushing
• 2 x Two NP-F750 Batteries
• Dual Battery Charger with AC Adapter
• DC Power Cord and Adapter
• Diffusion Filter with 4 Mounting Screws
• Tungsten Conversion Filter
• 2 x Cable Strap
• Carry Case with Shoulder Strap
• User Manual
• Limited 1-Year Warranty

• 2 x Impact - LS-RL7 7.2' Reverse Legs Light Stand

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genaray SpectroLED Outfit 500 Daylight LED Light

  Beam Angle	60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 85
  Cooling System	None
  Display	None
  Number of LEDs	508
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	13.0 x 6.8 x 2.6" / 330.0 x 171.0 x 66.0 mm
  Fixture Weight	2.0 lb / 0.93 kg

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	60 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	16.7 x 9.0 x 6.65"

• 2 x Impact LS-RL7 7.2' Reverse Legs Light Stand

  Load Capacity	3.3 lb / 1.5 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Stud
  Number of Sections	5
  Column Diameter	0.98" / 2.5 cm 0.87" / 2.2 cm 0.75" / 1.9 cm 0.63" / 1.6 cm 0.51" / 1.3 cm
  Maximum Working Height	86" / 218 cm
  Minimum Working Height	19.3" / 49 cm
  Collapsed Height	19.5" / 49.5 cm
  Footprint Diameter	39.4" / 100 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	20.8 x 3.85 x 3.15"
