Product description Now Available: Genaray SpectroLED Daylight Studio Lights Read More - The Genaray SpectroLED SPS-S-1200D Daylight Studio LED Light

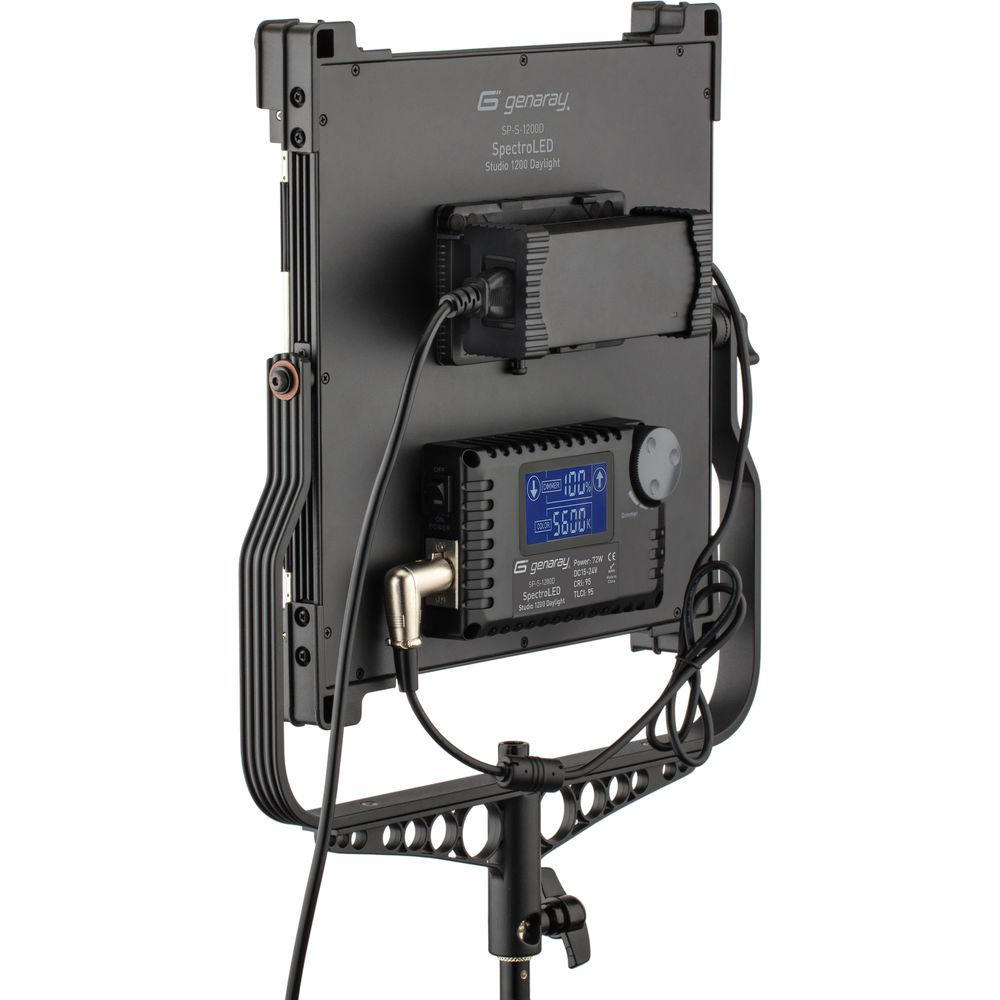

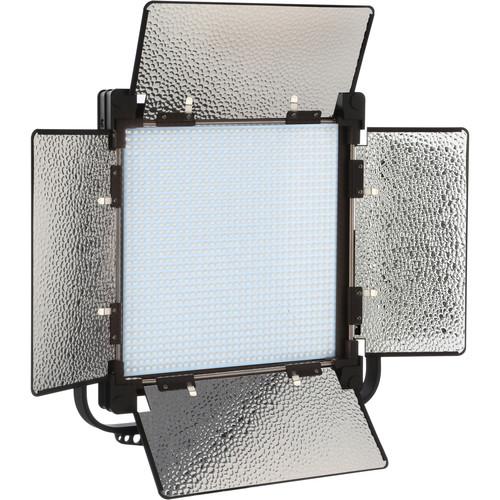

An asset in the studio or on location, the 11 x 11" panel SP-S-1200D SpectroLED Daylight Studio LED Light by Genaray employs 1200 LEDs for output that's 5600K-balanced for daylight shooting or to match other fixtures that are daylight-balanced. A high CRI/TLCI of 95 indicates faithful and accurate rendition of color. The fixture comes with a removable tungsten-conversion filter that allows you to seamlessly blend in with traditional fixtures or for shooting in venues dominated by tungsten light. Light intensity is variable from 100-10% both locally on the SpectroLED SP-S-1200D, or remotely at distances up to 65' with the included wireless remote control. Settings are displayed on the light's back panel LCD screen.The 1200D ships with removable 4-way barndoors that limit spill light and allow you to further control the light's tight 45-degree beam spread to illuminate parts of your subject that you want and keep the light from areas where you don't. The barndoors have removable textured inserts that ensure maximum output while lending a slightly specular, snappy quality of light. Remove the inserts if you prefer a softer look. The SpectroLED SP-S-1200D has a yoke that permits tilting when stand mounting with its 5/8" and 1-1/8" combo receiver/pin. The receiver offers an additional benefit accessed by removing the tightening knob which converts the receiver to a 1-1/8" pin for stands with a Junior receiver.The SpectroLED SP-S-1200D Bi-Color is ready for worldwide use thanks to its included multi-voltage 100-240 VAC adapter but you can also take advantage of the light's V-mount battery plate to operate the light on optional batteries when mains power is unavailable. - Daylight Color Temperature

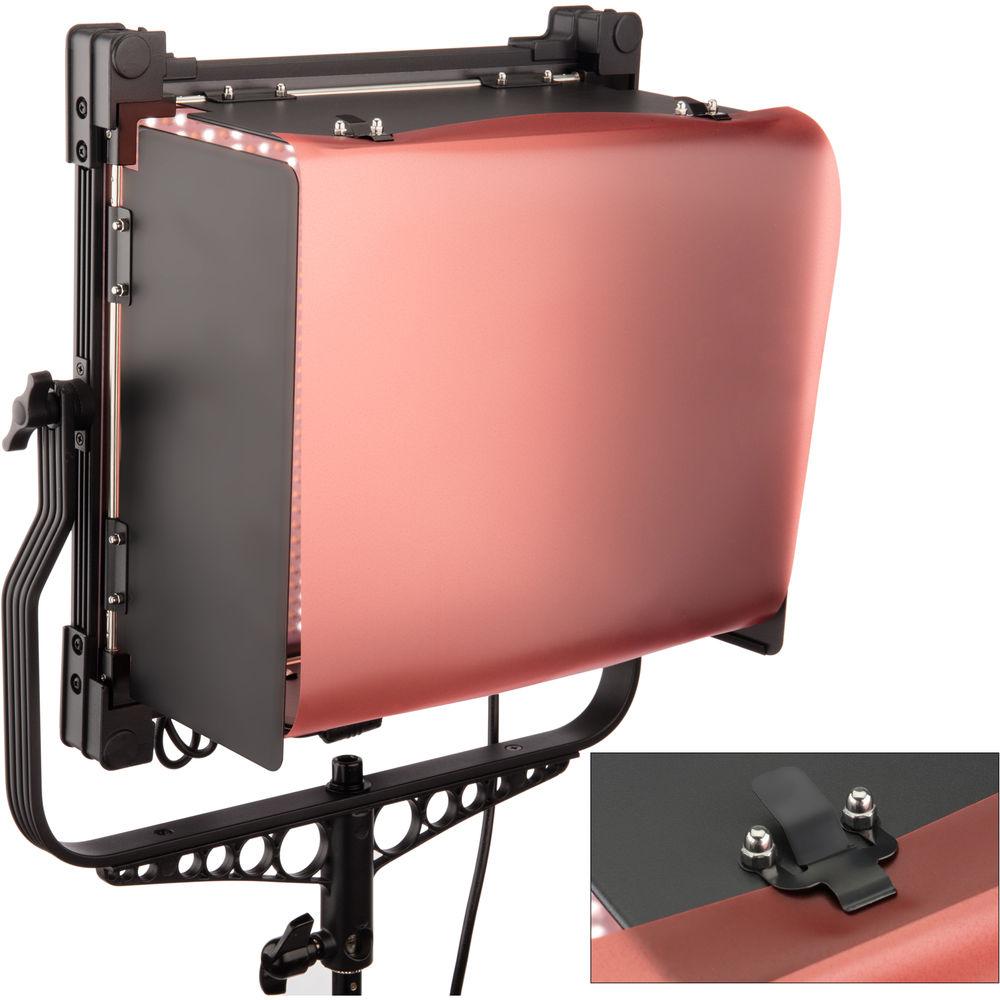

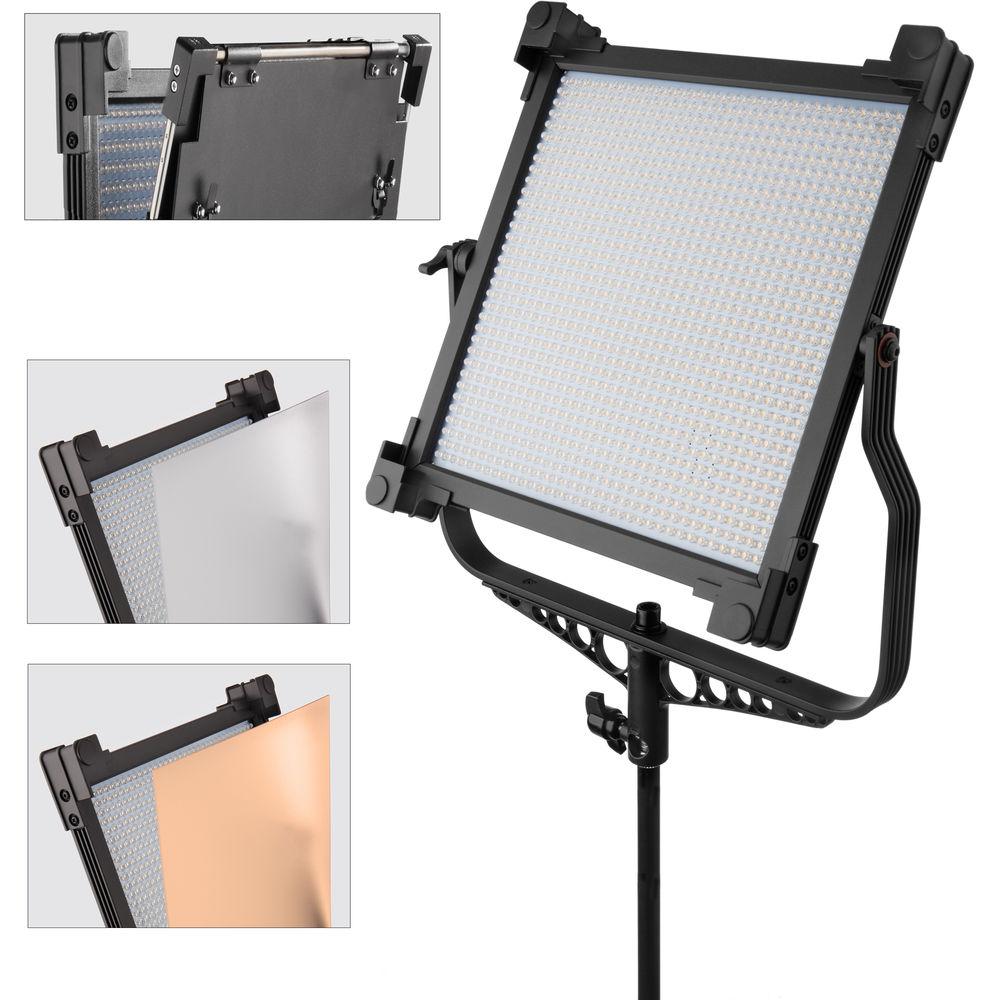

- With a color temperature of 5600K, the 1200D blends in seamlessly in daylight venues or with other daylight-balanced fixtures. A tungsten conversion filter is provided to for match situations with warm color temperature or just for creative use.
- Dimming
- The Spectro-LED 1200D is conveniently dimmable from 100-10% to ensure the ideal light level for your requirements.
- High CRI/TLCI
- The high CRI/TLCI rating of 95 indicates faithful and accurate color rendering.
- Flicker-Free Output
- Flicker-free output allows you to shoot at a high frame rate for slow motion.
- Power Options

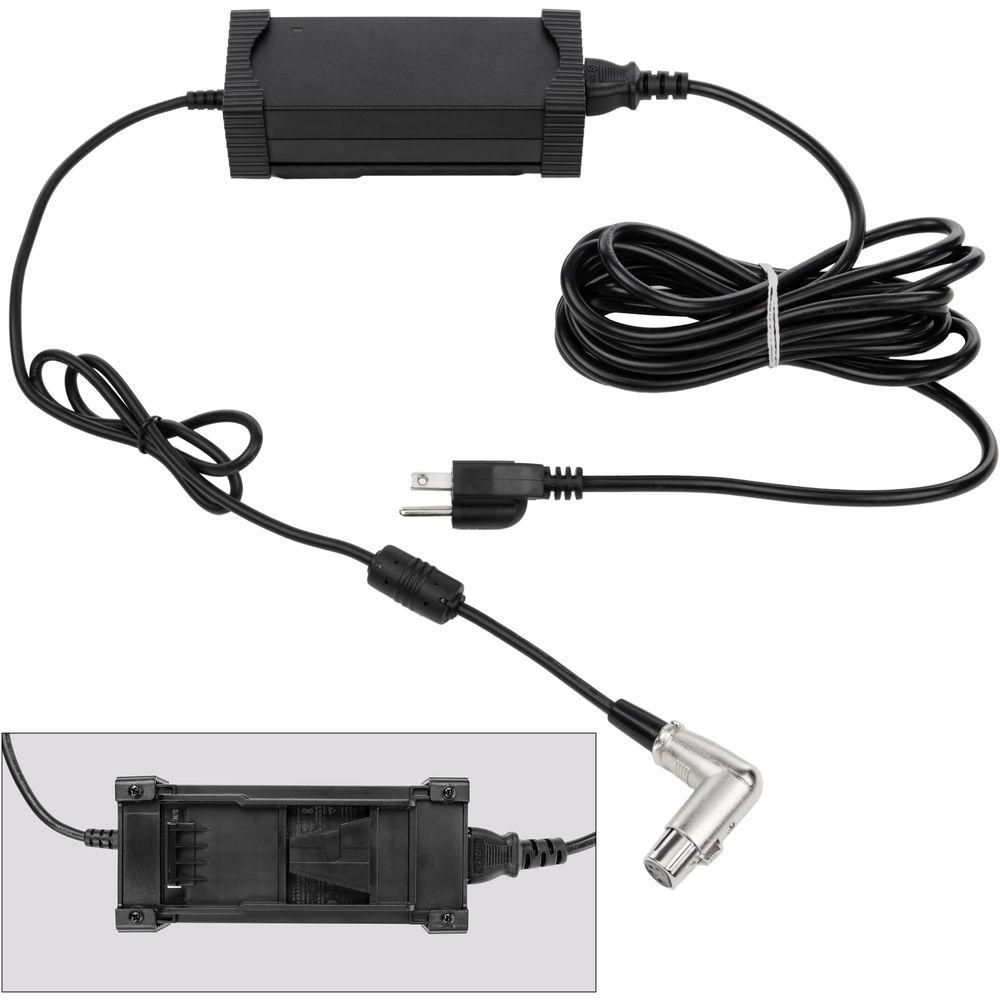

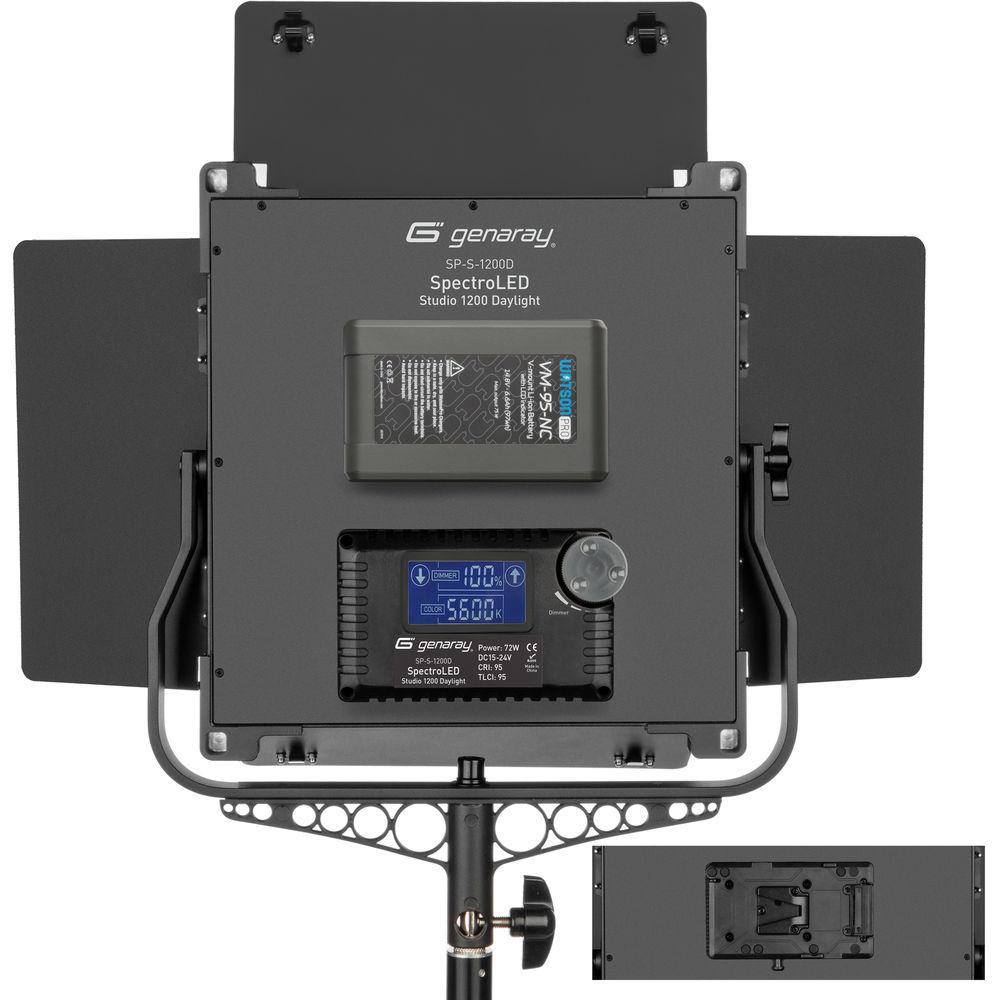

- The Spectro-LED 1200D runs on the included multi-voltage 100-240 VAC power supply or on optional V-mount batteries when mains power is unavailable.
- Remote Control
- Adjust intensity from distances up to 65' with the included wireless remote control.
- Mounting

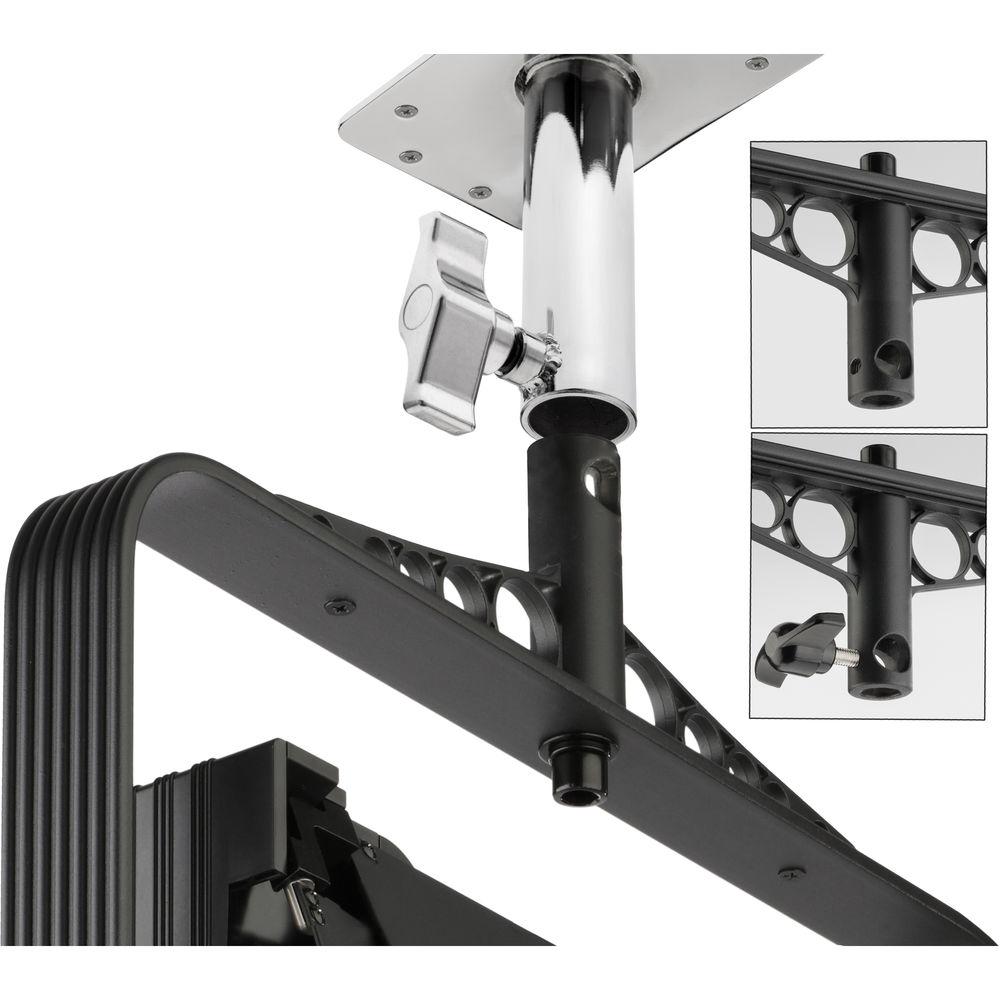

- The Spectro-LED 1200D has a combination 5/8" receiver / 1-1/8" pin for stand mounting.
- Barndoors

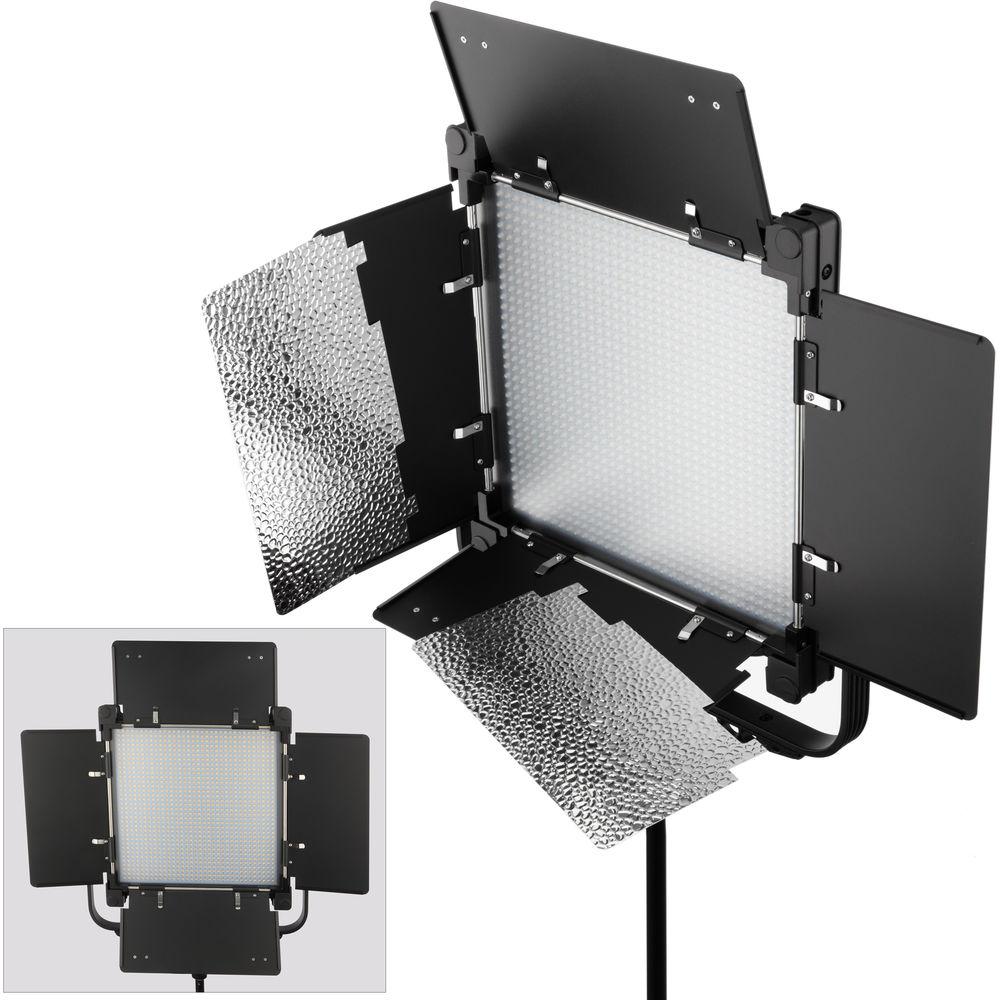

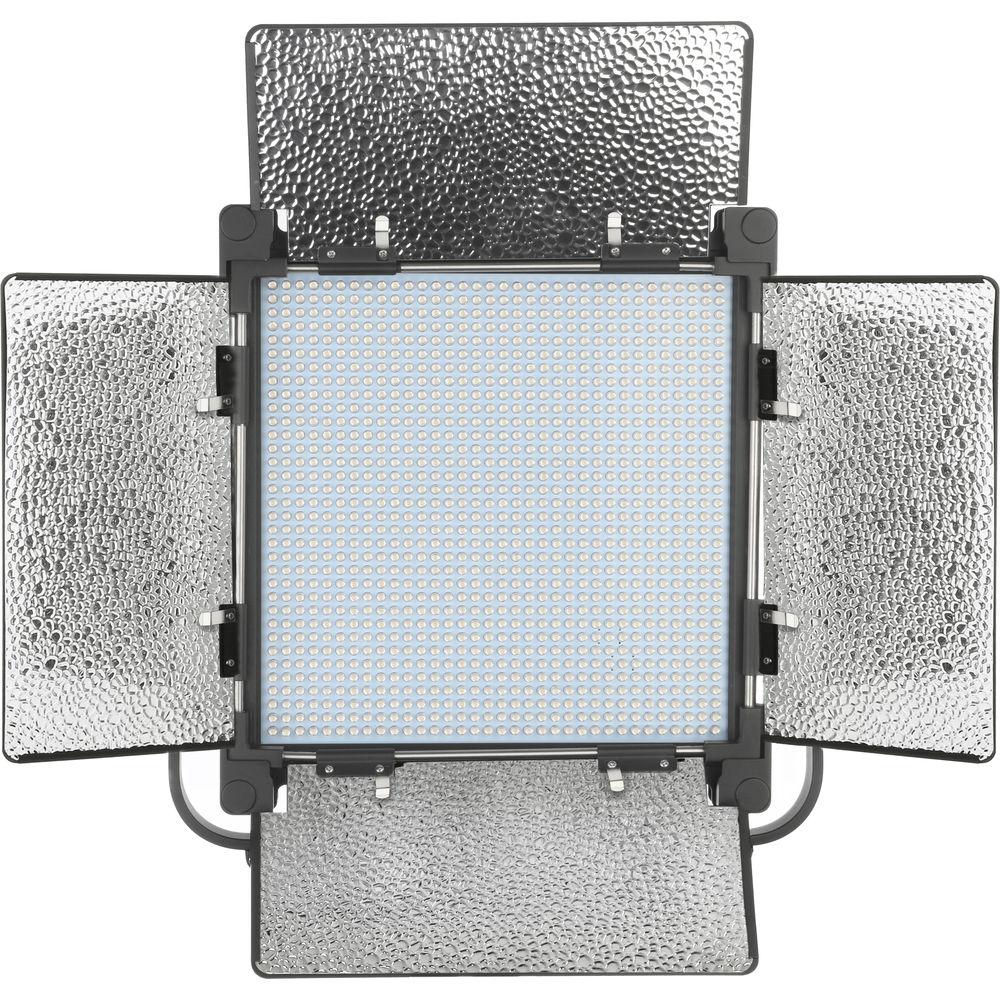

- The removable 4-way barndoors have textured silver inserts for enhanced output that can be removed for a softer look. The barndoors provide control of the light's tight 45-degree spread.
- Photometrics
- 9605 lux at 3' (0.9 m)

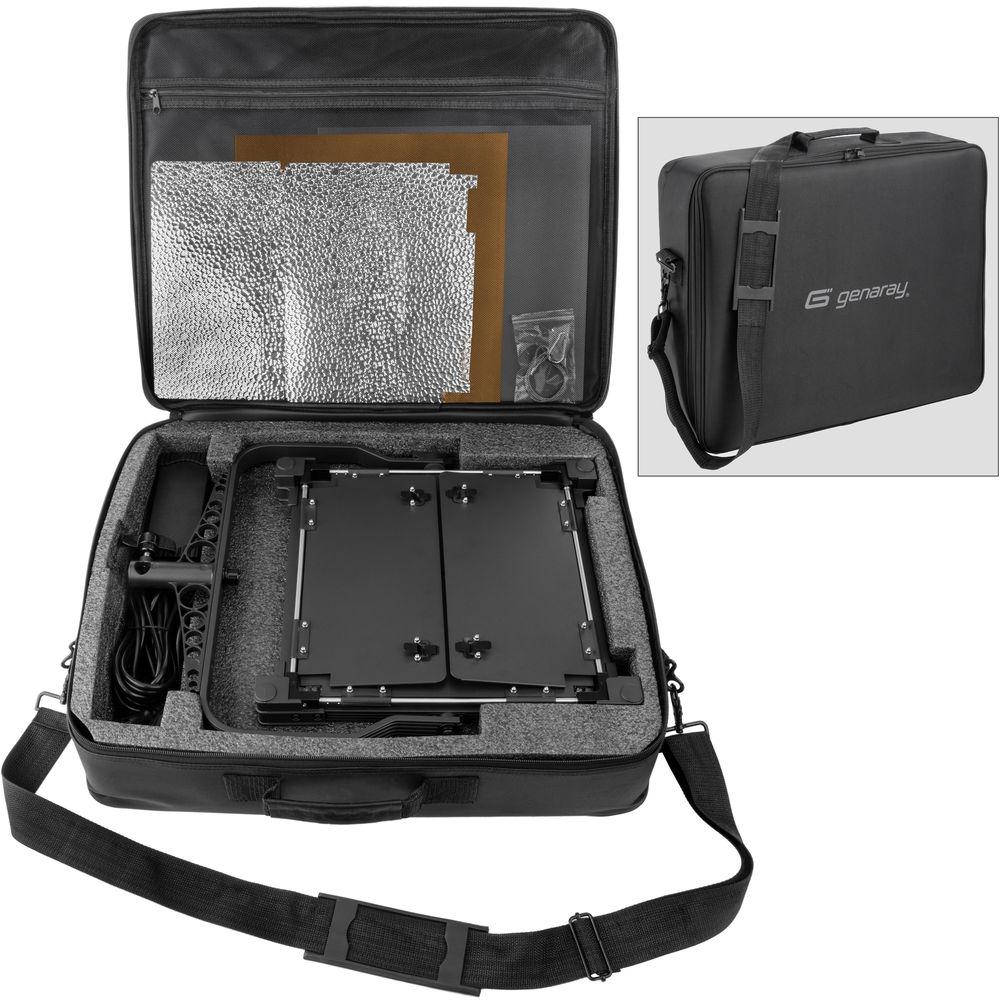

UPC: 855193007080 In the Box Genaray SpectroLED SP-S-1200D Daylight Studio LED Light Yoke Wireless Remote Control Diffusion Filter Tungsten Filter Barndoors AC Power Adapter Power Cord Carry Case Limited 1-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray SpectroLED SP-S-1200D Daylight Studio LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray Studio 1200 Specs | | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Temperature with Included Filter | 3200K | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 95 at 5600K | | Cooling System | Passive | | Dimming | Yes, 100 to 10% (Continuous) | | Display | LCD | | Photometrics | 45° at 5600K:
892.3 fc / 9605 lux at 3' / 0.91 m | | Number of LEDs | 1200 (Daylight) | | Rectangular Panel Size | 11 x 11" / 27.94 x 27.94 cm | | Fixture Dimensions | 18.5 x 15.2 x 2.9" / 47.0 x 38.7 x 7.4 cm (Including Yoke) | | Fixture Weight | 9 lb / 4.08 kg (Including Yoke, Barndoors) | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR, D-Tap | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | Yoke Type | Yoke/Bracket | | Tilt | 90
