Product description

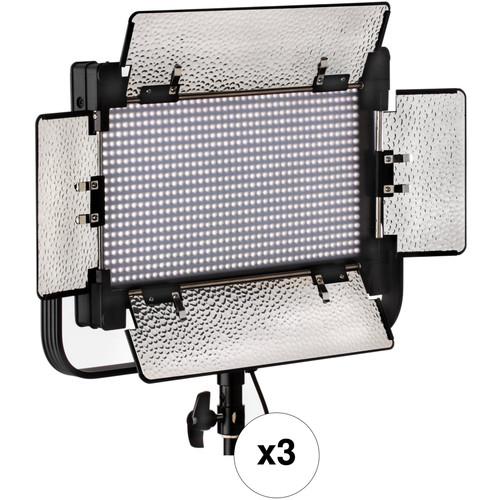

• 3 x Genaray SpectroLED 800 Bi-Color Studio LED Light
  • The Genaray SP-S-800B SpectroLED 800 Bi-Color Studio LED Light
  An asset in the studio or on location, the 13 x 6.75" panel SpectroLED 800 Bi-Color Studio LED Light by Genaray employs 800 LEDs for output that's variable from 3200-5600K for matching other fixtures or ambient light conditions while maintaining a high CRI/TLCI of 95 indicating faithful and accurate rendition of color. Light intensity is variable from 100-10%. Both functions are adjustable locally on the fixture or remotely at distances up to 65' with the included wireless remote control. Settings are displayed on the light's back panel LCD screen.The SpectroLED 800 ships with removable 4-way barndoors that limit spill light and allow you to further control the light's tight 45-degree beam spread to illuminate parts of your subject that you want to and keep the light from areas where you don't want it. The barndoors have removable textured inserts that ensure maximum output while lending a slightly specular, snappy quality of light. Remove the inserts if you prefer a softer look. The SpectroLED 800 has a yoke that permits tilting when stand mounting with its 5/8" receiver. The receiver also has side access to offer a more horizontal mount that allows for an expanded tilt range without the barndoors being impeded by the light stand. The receiver offers an additional benefit accessed by removing the tightening knob which converts the receiver to a 1-1/8" pin for stands with a Junior receiver.The SpectroLED 800 Bi-Color is ready for worldwide use thanks to its included multi-voltage 100-240 VAC adapter but you can also take advantage of the light's V-Mount battery plate to operate the light on optional batteries when mains power is unavailable.
  Adjustable Color Temperature
  • Color is adjustable from 3200K-5600K or anywhere in between in 100K increments.
  Dimming
  • The Spectro-LED 800 is conveniently dimmable from 100-10% and can be adjusted by 1% increments to ensure the ideal light level for your requirements.
  High CRI/TLCI
  • The high CRI/TLCI rating of 95 indicates faithful and accurate color rendering.
  Flicker-Free Output
  • Flicker-free output allows you to shoot at a high frame rate for slow motion.
  Power Options
  • The Spectro-LED 800 runs on the included multi-voltage 100-240 VAC power supply or on optional V-Mount batteries when mains power is unavailable.
  Remote Control
  • Adjust both color temperature and light intensity from distances up to 65' with the included wireless remote control.
  Mounting
  • The Spectro-LED 800 has a combination 5/8" receiver / 1-1/8" pin for stand mounting.
  Barndoors
  • The removable 4-way barndoors have textured silver inserts for enhanced output that can be removed for a softer look. The barndoors provide control of the light's tight 45-degree spread.
  Photometrics
  • At 5600K: 2470 lux @ 3' / 0.9m
    At 4400K: 5555 lux @ 3' / 0.9m
    At 3200K: 2665 lux @ 3' / 0.9m
  UPC: 855193007059

• 3 x SpectroLED 800 Bi-Color Studio LED Light wwetwvcdqvuvrsarzcvbq
• Yoke
• Wireless Remote Control
• 23A 12 V Battery for Remote
• Diffusion Filter
• Barndoors
• AC Power Adapter
• Power Cord
• Carry Case
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Genaray SpectroLED 800 Bi-Color Studio LED Light

  Beam Angle	45°
  Color Temperature	3200 to 5600K ± 150K (with 300K Shift over Lifetime)
  Color Accuracy Standard	CRI 95 at 5600K TLCI 95 at 5600K
  Cooling System	Passive
  Dimming	Yes, 100 to 10% (Continuous)
  Display	LCD
  Photometrics	45° at 5600K: 229.5 fc / 2470 lux at 3' / 0.91 m 45° at 4400K: 516.1 fc / 5555 lux at 3' / 0.91 m 45° at 3200K: 247.6 fc / 2665 lux at 3' / 0.91 m
  Number of LEDs	800
  Rectangular Panel Size	13 x 6.75" / 33.02 x 17.14 cm
  Fixture Dimensions	17.1 x 14.6 x 2.8" / 43.4 x 37.1 x 7.1 cm (Including Yoke)
  Fixture Weight	7.5 lb / 3.40 kg (Including Yoke, Barndoors)

  Battery Plate	1 x V-Mount
  Power Input Connector	4-Pin XLR, D-Tap

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver

  Yoke Type	Yoke/Bracket
  Tilt	90 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 35 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
