Genaray Stacked Lighting 36" Soft Strip

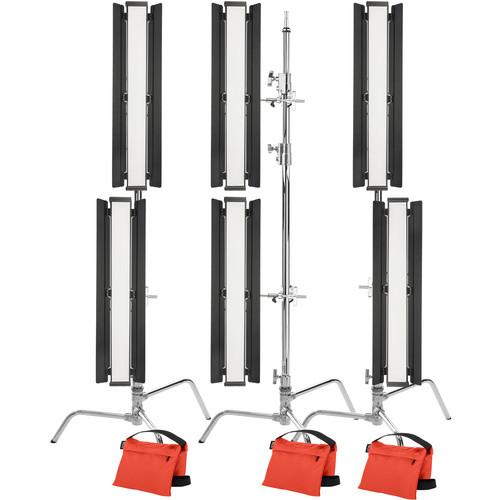

User Manual for Genaray Stacked Lighting 36" Soft Strip 6-Light Pro Kit with C-Stands

• Product category: LED Lights Genaray
• Brand: Genaray
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genaray LED Lights

Product description

• 6 x Genaray 36" Soft Strip LED Light
  • Genaray: 10 Beautiful LED Strip Light Setups
  Offering 256 bright LEDs with a soft wrap-around quality thanks to its long, narrow form factor, the 36" long Soft Strip LED Light from Genaray is a versatile fixture with features easy to use in the studio or on location. The light has color temperature that's a solid, daylight-balanced 5600K with a high CRI/TLCI rating of 95/98.3, an indicator of precise color rendering. Light intensity is conveniently variable from 10 to 100% without flicker, avoiding moving the fixture back and forth to achieve the desired illumination level. The SSL-36 runs barely warm to the touch, allowing you to work close to the subject without causing discomfort or hot light hazards. The power-saving light produces an output of 977 lux at 3.3' while consuming just 56W of power, ensuring a fast return on investment. The long, narrow fixture can be used vertically or horizontally. In vertical orientation, the SSL-36 is ideal for use as a sidelight or for dramatic lighting. It also creates long, elegant reflections when shooting products. It horizontal mode, the light has a wrap-around quality with appealing falloff at the top and bottom of the frame. Another use is overhead as a hairlight. The SSL-36 has a beam angle coverage of 60 degrees which can be modified and controlled by its 2-way barndoors. The fixture comes with a multi-voltage adapter that makes it ready for world use, but it can also run on optional V-mount batteries when AC power is unavailable. A case is included to store and transport the light.
  Horizontal or Vertical Orientation
  • The long, thin form factor gives a wrap-around quality when used horizontally. Used vertically, it's well-suited for a sidelight or for lighting objects and casting a long, elegant reflection.
  2-Way Barndoors
  • This simple but effective modifier allows you to swing one or more leaves into the light's beam for selective lighting of your subject.
  Lollipop Mount
  • The mount incorporates a ball head attachment that allows fine-tuning of the light's positioning.
  AC or Optional Battery Power
  • The SSL-36 ships with a multi-voltage 100-240 VAC power supply but it can also run on V-mount batteries when mains power is unavailable.
  Even Illumination
  • The SSL-36 provides even illumination along its 36-inch length, without noticeable hot spots. When shooting full-length portraits or group shots, this fixture bathes your subjects in soft and diffuse wraparound light without multiple shadows.
  Cool Running
  • The SSL-36 runs barely warm to the touch allowing you to work close to your subject without discomfort and without losing time waiting for the fixture to cool down.
  Dimming
  • The light features 10 to 100% dimming to adjust the output without moving the fixture back and forth.
  Dead Quiet Operation
  • The light's fanless convection cooling is a valuable asset in sound-sensitive environments.
  UPC: 855193007349
• 3 x Impact Turtle Base C-Stand - 10.75' (Chrome)
  • Genaray: 10 Beautiful LED Strip Light Setups
  This Impact Turtle Base C Stand features a detachable base with twist and release locking legs that are easily removed to facilitate transportation or to replace the riser with an alternate size. A light head can be mounted to the base directly with the aid of a stand adapter.The base allows individual legs to be set at any angle, and can be positioned in locations not possible with standard designed stands.
  Fold Away Legs and Removable Base
  • This stand features twist and release locking legs with unique mounts which are easy to fold or replace. The base detaches from the riser for easy packing.
  Quick Setup
  • This stand sets up easily in a matter of seconds.
  Durable Finish
  • This stand is suitable for all weather conditions.
  UPC: 847628012028
• 4 x Impact Center Jaw Vise Grip - 3"
  • Genaray: 10 Beautiful LED Strip Light Setups
  Featuring a large spin handle and a 5/8" stud, the Impact Center Jaw Vise Grip has a 5/8" pin and adjustable jaws that allow you to securely mount lights or other gear with a 5/8" receiver to pipes or shelving up to 3" in thickness or diameter. The jaws have a non-abrasive coating to prevent scratching. UPC: 847628556188
• 3 x Impact Filled Saddle Sandbag (15 lb, Orange)
  • Genaray: 10 Beautiful LED Strip Light Setups
  Made of thick, weather- and water-resistant Cordura nylon, the 15 lb Impact Filled Orange Saddle Sandbag is a staple in studios or on location for stabilizing light stands, booms, tripods, and backgrounds. The bag features rugged and durable assembly throughout. A double-zipper design is employed for safe containment and removal of the sand, as well as a webbed handle for hanging or moving.
  Saddle-Style Sandbag
  • The two-winged saddle sandbag is designed to conform to studio equipment such as light stands, tripods, backgrounds, or any other equipment that needs support and stabilization
  Sturdy Handles
  • Strong top and bottom handles made with nylon webbing offer options for providing a counterweight to boom arms and make transporting the sandbag easy
  Weather and Water Resistant
  • The thick Cordura fabric stands up to the elements and keeps the contents dry
  Double-Zipper Design
  • The double-zipper design ensures that the contents of the bag do not spill out
  UPC: 847628589971

• 6 x 36" Soft Strip LED Light zzutdeeevy
• Lollipop Mount
• Dimmer Control Box with V-Mount
• V-Mount Strap
• AC Adapter
• AC Cable
• Carry Case
• Limited 1-Year Warranty

• 3 x Impact - Turtle Base C-Stand - 10.75' (Chrome)

• 4 x Impact - Center Jaw Vise Grip - 3"

• 3 x Impact - Filled Saddle Sandbag (15 lb, Orange)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 6 x Genaray 36" Soft Strip LED Light

  Beam Angle	60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95 TLCI 98.3
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Continuous)
  Display	None
  Housing Material	Metal
  Photometrics	91 fc / 979.2 lux at 3.28' / 1 m
  Number of LEDs	256 (Daylight)
  Expected Lamp Life	50000 Hours
  Fixture Dimensions	Overall: 37.6 x 4.2 x 1.9" / 95.5 x 10.7 x 4.8 cm
  Fixture Weight	6.4 lb / 2.90 kg

  Battery Plate	1 x V-Mount

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery
  Max Power Consumption	56 W
  Power Pass-Thru	None

  Cable Length	36" / 91.44 cm

  Power Supply Output	15 VDC, 5 A
  Power Supply Dimensions	1.5 x 2.9 x 5.9" / 3.8 x 7.4 x 15.0 cm
  Power Supply Weight	0.9 lb / 0.41 kg

  Box Dimensions (LxWxH)	40.0 x 5.1 x 5.1"

• 3 x Impact Turtle Base C-Stand - 10.75' (Chrome)

  Load Capacity	22 lb / 10 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	10.8' / 3.3 m
  Minimum Working Height	4.8' / 1.5 m
  Collapsed Height	4.8' / 1.5 m
  Footprint Diameter	37" / 94 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	Yes
  Leveling Leg	No
  Reverse Legs	No
  Finish	Chrome
  Weight	19.8 lb / 9.0 kg

  Box Dimensions (LxWxH)	53.0 x 14.0 x 3.0"

• 4 x Impact Center Jaw Vise Grip - 3"

  Clamp Type	Vise
  Jaw Shape	Flat, Round
  Jaw Opening	3.0 " / 7.6 cm
  Mount Type	1 x 5/8" Stud
  Material	Aluminum, Steel
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.8 x 5.4 x 3.85"

• 3 x Impact Filled Saddle Sandbag (15 lb, Orange)

  Design	Saddle Bag
  Weight Capacity	15 lb / 6.8 kg
  Number of Bags	1
  Fill Material	Sand
  Closure Type	Zipper
  Water Resistance	Water Resistant
  Material	Nylon
  Dimensions (L x W)	17.8 x 11.0" / 45.0 x 28.0 cm
  Strap Width	1.5" / 4.0 cm

  Box Dimensions (LxWxH)	10.5 x 10.5 x 8.0"
