Product description has put together this Genaray Torpedo Portable Daylight Focusing 3-LED Light Softbox Kit for image-makers seeking a versatile setup with solid performance features for the studio or on the road. The kit is built around three Torpedo daylight-balanced LED lights with barndoors that focus from 15 to 75 degrees. Each light comes with a Bowens Adapter, a 24 x 24" softbox, a beauty dish adapter, and an 8' air-cushioned light stand. A wheeled, padded kit bag is included for storage and transport. - 3 x Genaray Torpedo Portable Daylight Focusing LED Designed for photographers and videographers who require "big light" performance features in a small, lightweight fixture, the Torpedo Portable Daylight Focusing LED from Genaray weighs 2.6 lb and measures just 8" in length, yet outputs the tungsten equivalent power of a 200-300W Fresnel. True to its name, the light has an expansive focusing range from 15° for sunlight, sharp-shadow, or long-throw work, to a wide 75° flood for fill light or diffusing through a silk. The included 4-way barndoors allow you to further sculpt the beam for selective lighting. The Torpedo employs COB LEDs to draw more power from the tiny array which can be dimmed from 1 to 100%. The versatile Torpedo offers power options thanks to the inclusion of a universal 100 to 240 VAC adapter, but you can also run on NP-F or V-mount batteries when mains power is unavailable. The Torpedo has a tilting yoke with an industry-standard 5/8" receiver for matching light stands.
- Benefits
-
- Fresnel Lens: Wide beam spread from 15° spot to 75° flood
- Compact and Portable: At only 8" long and weighing just 2.6 lb, the Torpedo packs a lot of power into a small form factor
- Daylight Color Temperature of 5600K: Ideal for shooting outdoors or in locations with large windows
- Color Rendering: CRI/TLCI ratings of 95/96 are indicators of accuracy in color display
- COB LED Array: Chip-on-board (COB) technology not only allows superior power from a small array, but eliminates multiple shadows which are a problem for some LEDs
- Fan Cooling: The thermo-activated fan protects the unit's electronics and lengthens the life of the LEDs. The barely audible fan is quiet enough to be used on sound-sensitive sets
- Battery or AC Options: Power the Torpedo with the included 100 to 240 VAC adapter or with optional NP-F or V-mount batteries when mains power is unavailable
- 4-Way Barndoors: Shape the light beam to allow your preferred areas to be illuminated, and keep light from areas where you don't want it
- Diffusers and Filters: Use one of the two included diffuser filters to soften the bright LEDs and modify their output, or use one of the three color filters for more creative results
- Optional Bowens-Type Adapter: Adding the optional dedicated adapter allows you to add accessories such as reflectors, softboxes, and snoots made by the many manufacturers that use the popular Bowens mount
UPC: 855193007325 - 3 x Genaray Bowens Adapter for Torpedo Focusing Spot LED Made by Genaray for this Fresnel-type fixture, the aluminum-constructed Bowens Adapter for Torpedo Focusing Spot LED mounts to the light in seconds and allows the use of accessories such as reflectors, softboxes, and snoots made by the many manufacturers that use this popular mount.
- Benefits
- Specifically for Torpedo: Featuring all-aluminum construction, the adapter mounts in seconds, allowing you to use accessories such as reflectors, softboxes, and snoots from the many manufacturers that make products with this popular mount
UPC: 855193007332 - 3 x Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24") The Impact Quikbox (24 x 24") is a great way to expand the capabilities of your on-camera, shoe-mount flash. The Quikbox lives up to its name by popping open and assembling in a couple of minutes. Just pop open the softbox, add the diffusers and included adapter ring and shoe adapter, mount on a lightstand and you're ready to shoot. Using a softbox with your shoe-mounted flash will help to diffuse and to evenly distribute the light output of the flash. This will help to reduce those harsh shadows which are often the result of flash photography. Also included is an internal diffuser, to minimize the possibility of hotspots. In addition, the recessed front face helps to control light spill. The included flash bracket is adjustable vertically, and features a universal shoe which is adjustable horizontally. These adjustments make this unit compatible with virtually all standard flash units (incl. Nikon SB-900 & SB-910), as well as radio receivers. In addition, for those receivers that do not feature a bottom shoe connector, the bracket shoe is removable to expose a male 1/4"-20 screw. There are also three plastic washers included in the shoe assembly, to accommodate receivers of various sizes.
- Sets up in minutes - no troublesome rods
UPC: 847628012479 - 3 x Impact Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads This Impact Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads features durable aluminum alloy construction and mounts quickly onto the flash head, allowing you to use 16", 20", 22", and 27" Impact Beauty Dishes on your studio flash. It is compatible with Bowens, Calumet Travelite, Cowboy, Impact VC-VS-VSD Monolights, Interfit Stellar, JTL, Photoflex, Rime Lite and Westcott Photo Basics flash heads. UPC: 847628551848
- 3 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - Impact Light Kit Roller Bag #2 (Medium, Black) Store, protect, and transport up to three compact strobe monolights, LED monolights, or battery strobe systems and related accessories with the black Light Kit Roller Bag #2 from Impact. For strength, durability, and protection, this bag features unibody construction, a weather-resistant 600D nylon shell, and dual zippers that can accommodate an optional, user-supplied padlock. There's also a convenient business card/ID pocket on the top of the bag. Gear is easily organized with the four included touch-fastening dividers. Bright yellow fabric lining the inside of the case and the dividers makes it easier to locate gear in low light.
Store a few stands, umbrellas, and other accessories in the compartment created with the longest divider. A variety of accessories may be stored in the large mesh, zippered, inner accessory pocket. Carry your Light Kit Roller Bag with the heavy-duty folding plastic top grip handle, bottom haul handle, twin hand straps with grip handle, or roll it over flat ground on the heavy-duty, ball bearing casters. A long rubber skid plate and scratch plate help protect the bottom of the bag. Upright standing is possible thanks to the two rubber feet located on the bottom of the bag, opposite the wheels. - Roomy
- The Light Kit Bag accommodates up to three select compact strobe monolights, LED monolights, or battery strobe systems. It's also roomy enough for stands, umbrellas, or boom arms.
- Compatible Products
- This versatile bag holds a variety of compatible lights such as:
Impact Digital Monolight
160Ws: VSD-160
300Ws: VSD-300
400Ws: VS-LCD400
Impact VC-500WL 500Ws Digital Monolight
VC-500WL
Impact Astral Extreme AS-X-400 Monolight
AS-X-400
Genaray MonoBright Daylight LED 1200
MB-100DWV - Protects Your Gear
- The rigid unibody construction and padded interior protects your gear against the bumps and impact that occur during transport.
- Protection from the Elements
- Durable weather-resistant 600D ballistic nylon exterior shields contents from moisture, dust, dirt, and debris.
- Adjustable Dividers
- Four padded adjustable dividers secure and protect your lights. Each divider is attached to the interior lining with heavy-duty touch fastener strips. Whether your bag is lying flat or standing upright, your lights and gear will be held firmly in place.
- Bright Yellow Interior Lining
- Bright yellow interior fabric on the lining and dividers makes it easier to locate your gear under low light.
- Heavy-Duty Casters
- Moving your gear from place to place is easy with the built-in, ball bearing casters. They easily glide over most surfaces and absorb the vibrations from rough flooring or pavement.
- Large Inner Pocket
- A large mesh pocket on the inner lid is ideal for securing and organizing cables, microphones, and other accessories. It can be zippered shut so that your gear stays secure and doesn't rattle around inside the bag.
- Business Card/ID Pocket
- Photographers will appreciate the built-in business card/ID pocket located on top of the bag.
- Carrying Options
- Using the sturdy, folding plastic grip puts the bag on the prefect angle to be pulled on its casters. The twin carry straps are handy for lifting the bag in or out of vans or car trunks. And the bottom haul handle can be used in conjunction with the top handle for one- or two-person lifting.
- Dual Zipper
- The heavy-duty zipper accommodates an optional, user-supplied padlock for extra security.
- Upright Standing
- Upright standing is possible thanks to the two rubber feet located on the bottom of the bag opposite the wheels.
- Added Protection
- For added protection, the underside of the bag features two long rubber skid plates, and a center scratch plate.

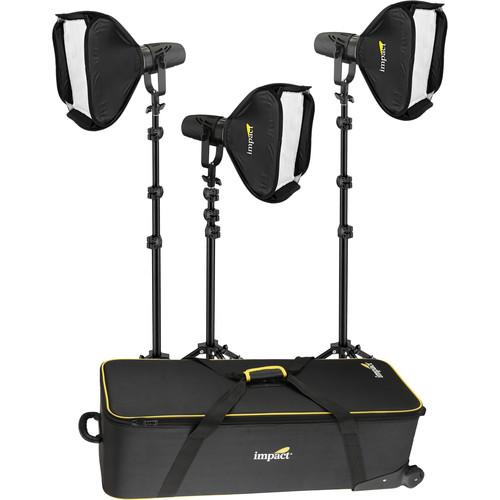

UPC: 847628008175 In the Box - 3 x Torpedo Portable Daylight Focusing LED zsuassfsdwuufttdfvzdyscarcstdd
- AC Power Adapter and Power Cord
- D-Tap Cable
- 2 x Diffusers
- 4-Leaf Barndoor Set
- Filter Set
- Yoke
- Carrying Case
- Limited 1-Year Warranty
- 3 x Bowens Adapter for Torpedo Focusing Spot LED
- 3 x Impact - Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")
- 3 x Impact - Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads
- 3 x Impact - Air-Cushioned Light Stand (Black, 8')
- Impact - Light Kit Roller Bag #2 (Medium, Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Torpedo Portable Daylight Focusing 3-LED Light Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Genaray Torpedo Portable Daylight Focusing LED
| | | Beam Angle | 15 to 75° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Cooling System | Fan | | Dimming | Yes, 1 to 100% (Continuous) | | Housing Material | ABS Plastic | | Photometrics | 15°:
519.5 fc / 5592 lux at 3.28' / 1 m
75°:
256 fc / 2756 lux at 3.28' / 1 m | | Expected Lamp Life | 50000 Hours | | Fixture Weight | 2.6 lb / 1.18 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount Also 1 x NP-F | | | | Lens Diameter | 3.7" / 9.4 cm | | Lens Type | Fresnel | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 to 36 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Cable Length | 55" / 139.7 cm | | | | Certifications | CE, RoHS, as per Manufacturer | | | | Box Dimensions (LxWxH) | 15.45 x 9.5 x 5.85" | - 3 x Genaray Bowens Adapter for Torpedo Focusing Spot LED
| Material of Construction | Aluminum | | Mount | Bowens S | | Certification | CE | | Dimensions (WxD) | 4.8 x 1.25" / 12.2 x 3.2 cm | | Weight | 5.3 oz / 150 g | | | | Box Dimensions (LxWxH) | 15.6 x 12.45 x 1.55" | - 3 x Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")
| Shape | Square | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Maximum Wattage | 250 W | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 24.0" / W: 61.0 x H: 61.0 cm | | Weight | 2.8 lb / 1.270 kg (with Case) | | | | Box Dimensions (LxWxH) | 24.0 x 13.5 x 3.8" | - 3 x Impact Beauty Dish Adapter for Impact Monolights, Bowens, Travelite, Cowboy, Interfit Stellar, JTL, Photoflex, Rime Lite, Westcott Flash Heads
| Construction | Aluminum alloy | | | | Box Dimensions (LxWxH) | 6.25 x 6.25 x 2.25" | - 3 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - Impact Light Kit Roller Bag #2 (Medium, Black)
| | | Interior Dimensions | 36 x 13 x 9.5" / 91 x 33 x 24 cm | | Load Capacity | 35.0 lb / 15.8 kg | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Handle
2 x Shoulder Strap | | Casters | 2 | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 39 x 15 x 11" / 99 x 38 x 28 cm | | Weight | 15.4 lb / 7 kg | | | | Box Dimensions (LxWxH) | 39.8 x 16.0 x 12.0" |
