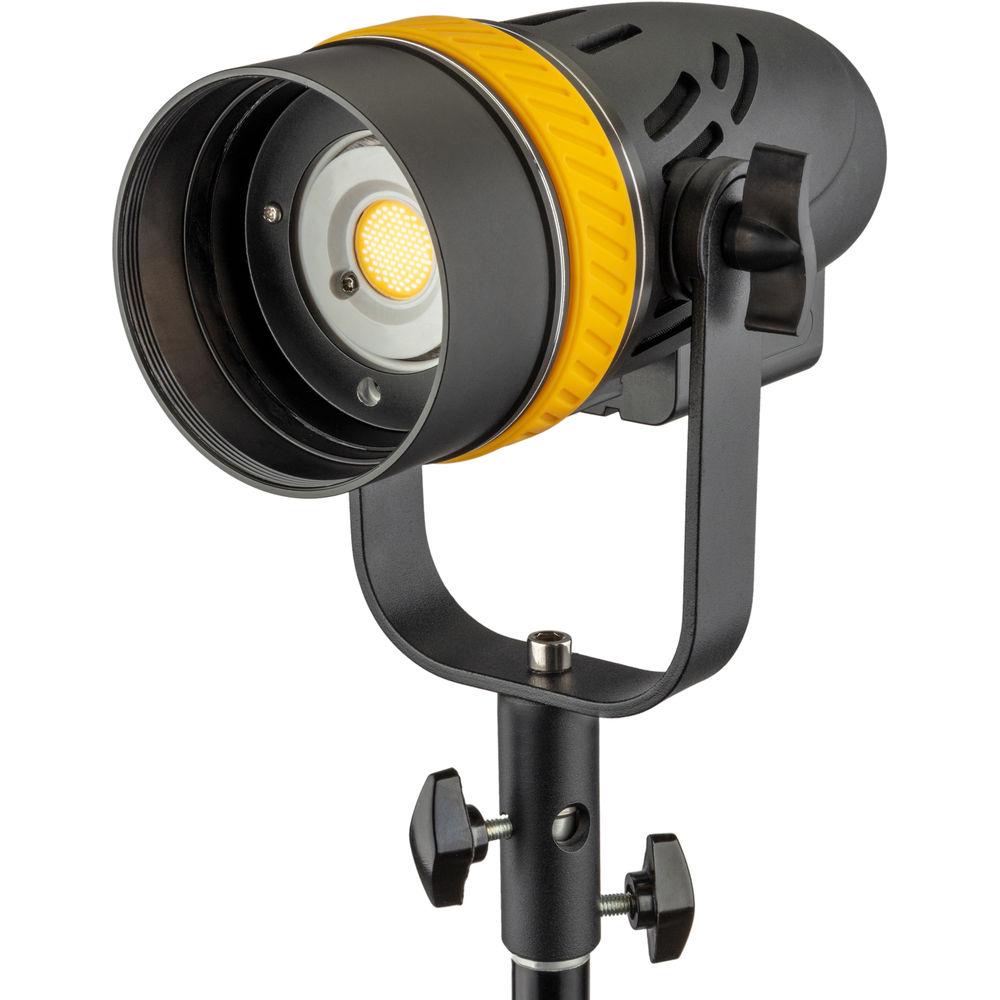

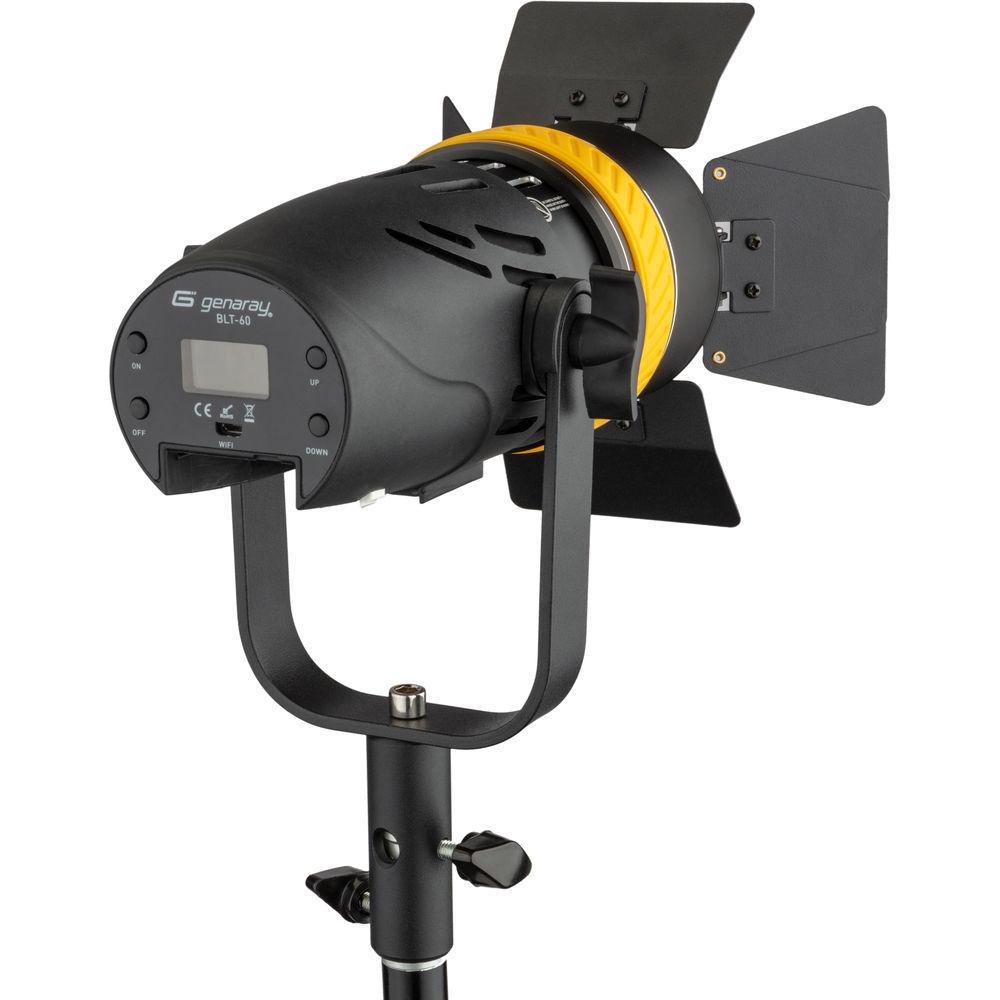

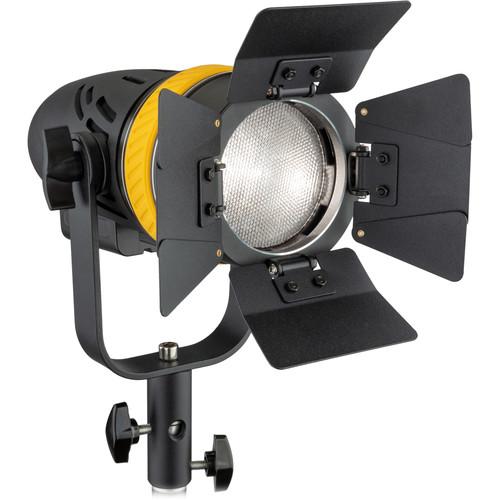

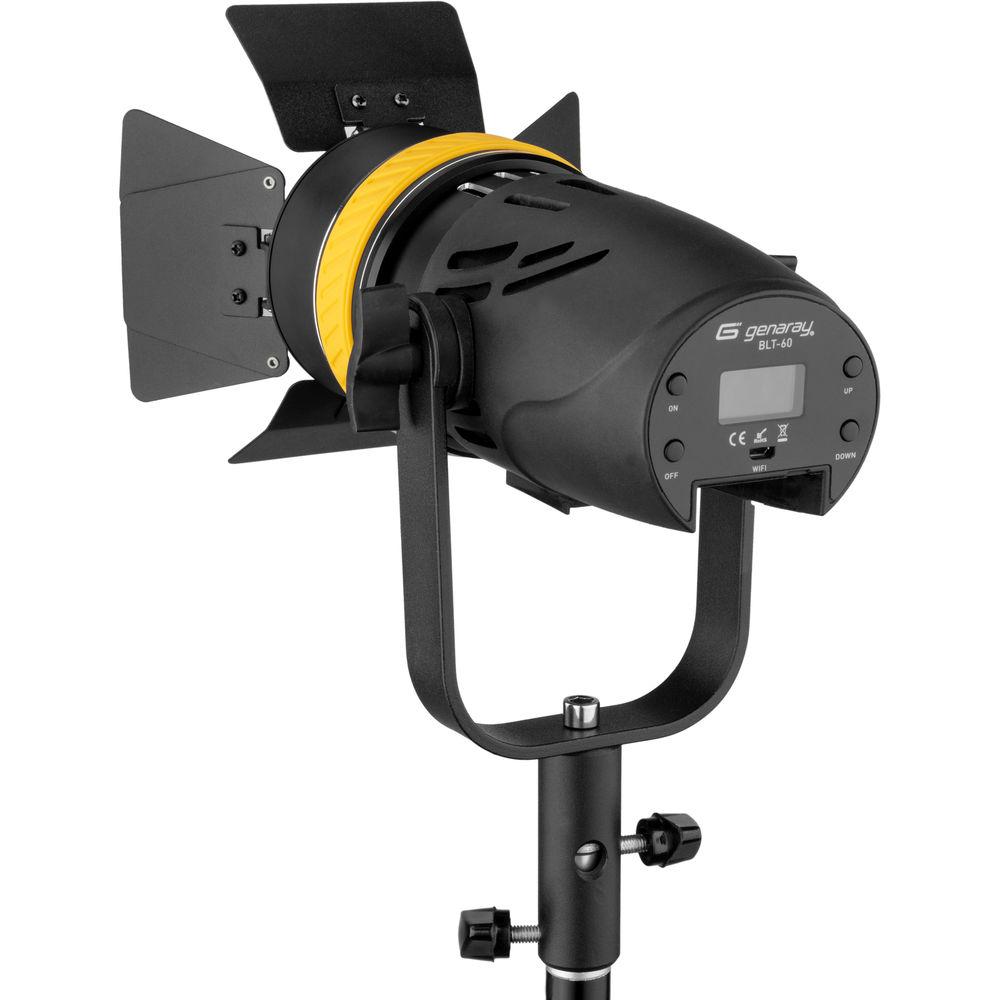

Product description Designed for photographers and videographers who require "big light" performance features in a small, lightweight fixture, the Torpedo Portable Daylight Focusing LED from Genaray weighs 2.6 lb and measures just 8" in length, yet outputs the tungsten equivalent power of a 200-300W Fresnel. True to its name, the light has an expansive focusing range from 15° for sunlight, sharp-shadow, or long-throw work, to a wide 75° flood for fill light or diffusing through a silk. The included 4-way barndoors allow you to further sculpt the beam for selective lighting. The Torpedo employs COB LEDs to draw more power from the tiny array which can be dimmed from 1 to 100%. The versatile Torpedo offers power options thanks to the inclusion of a universal 100 to 240 VAC adapter, but you can also run on NP-F or V-mount batteries when mains power is unavailable. The Torpedo has a tilting yoke with an industry-standard 5/8" receiver for matching light stands. - Benefits
-

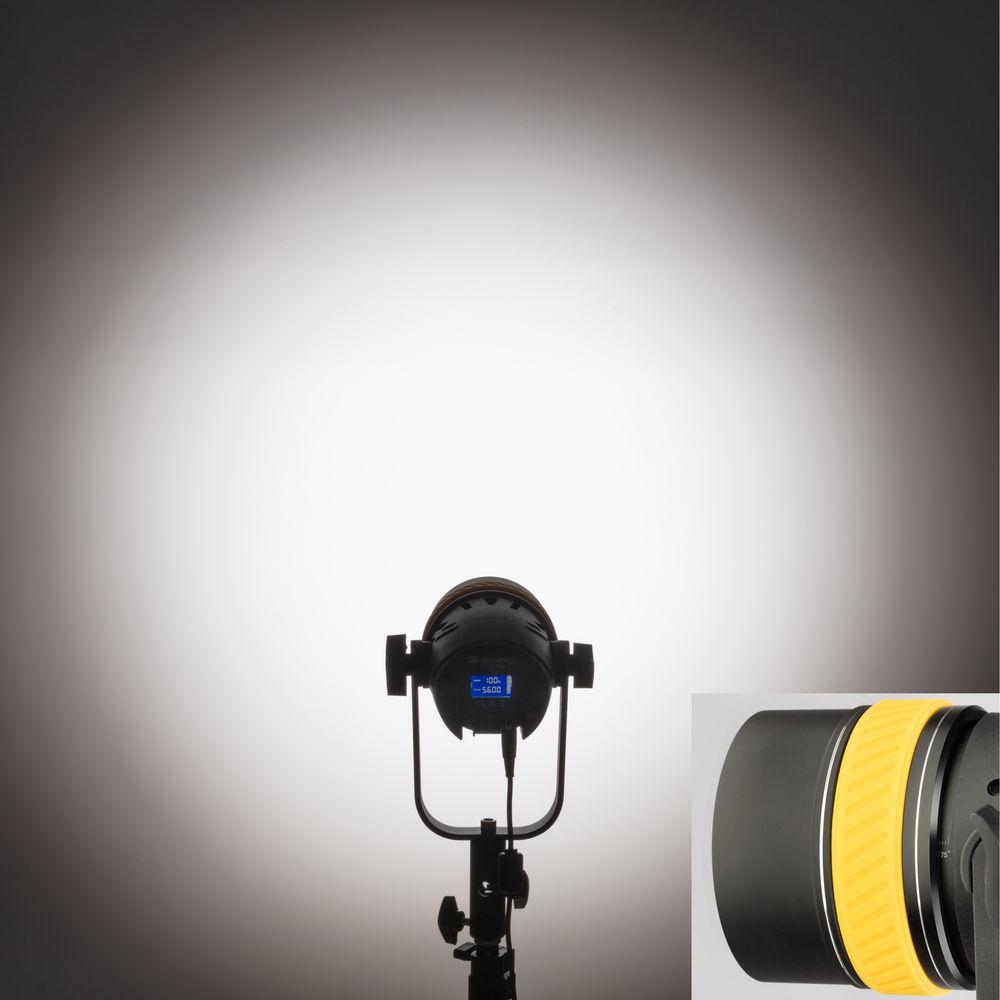

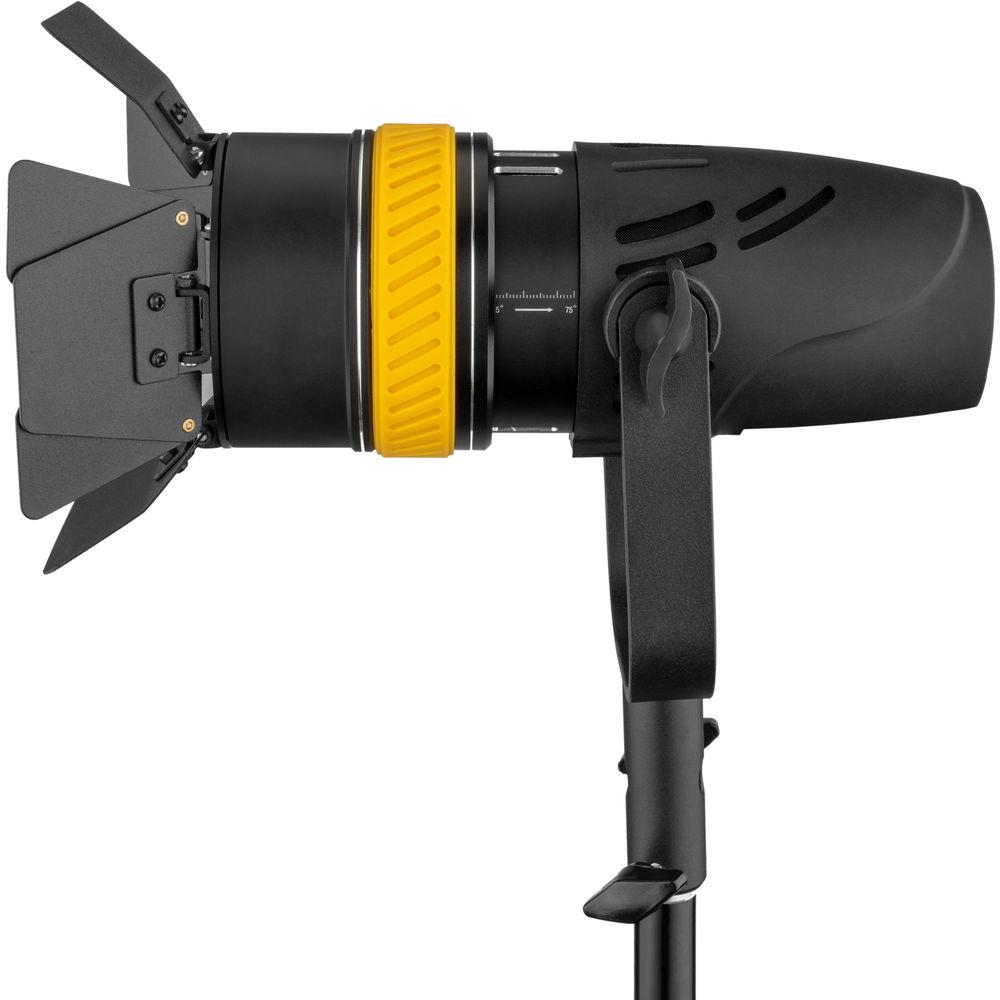

- Fresnel Lens: Wide beam spread from 15° spot to 75° flood
- Compact and Portable: At only 8" long and weighing just 2.6 lb, the Torpedo packs a lot of power into a small form factor
- Daylight Color Temperature of 5600K: Ideal for shooting outdoors or in locations with large windows
- Color Rendering: CRI/TLCI ratings of 95/96 are indicators of accuracy in color display
- COB LED Array: Chip-on-board (COB) technology not only allows superior power from a small array, but eliminates multiple shadows which are a problem for some LEDs
- Fan Cooling: The thermo-activated fan protects the unit's electronics and lengthens the life of the LEDs. The barely audible fan is quiet enough to be used on sound-sensitive sets

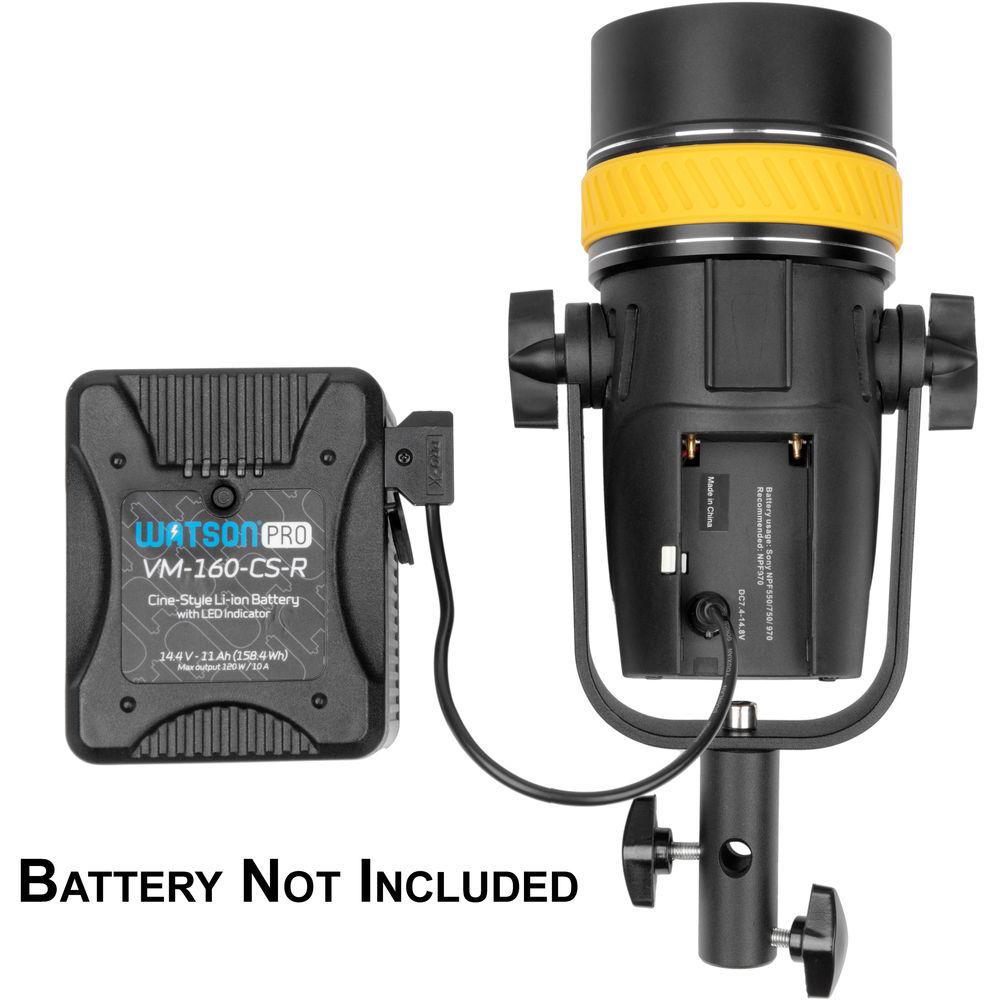

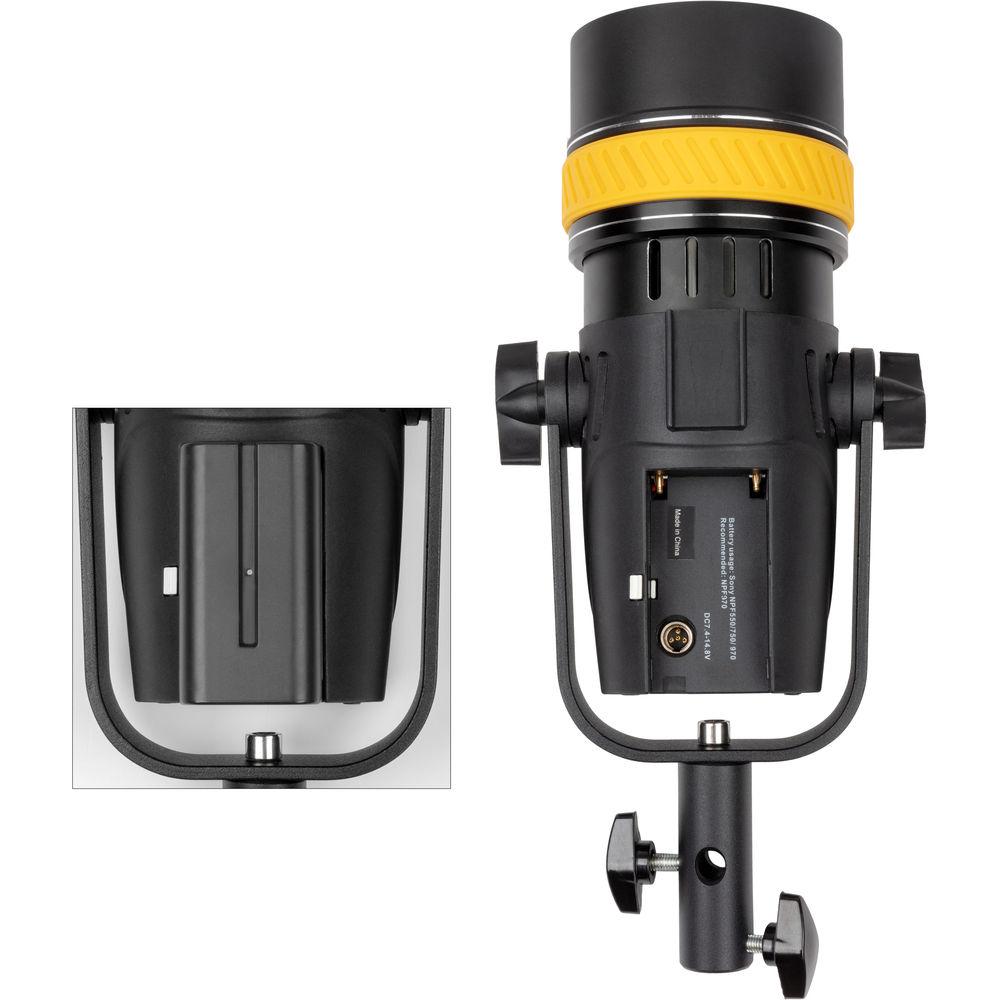

- Battery or AC Options: Power the Torpedo with the included 100 to 240 VAC adapter or with optional NP-F or V-mount batteries when mains power is unavailable

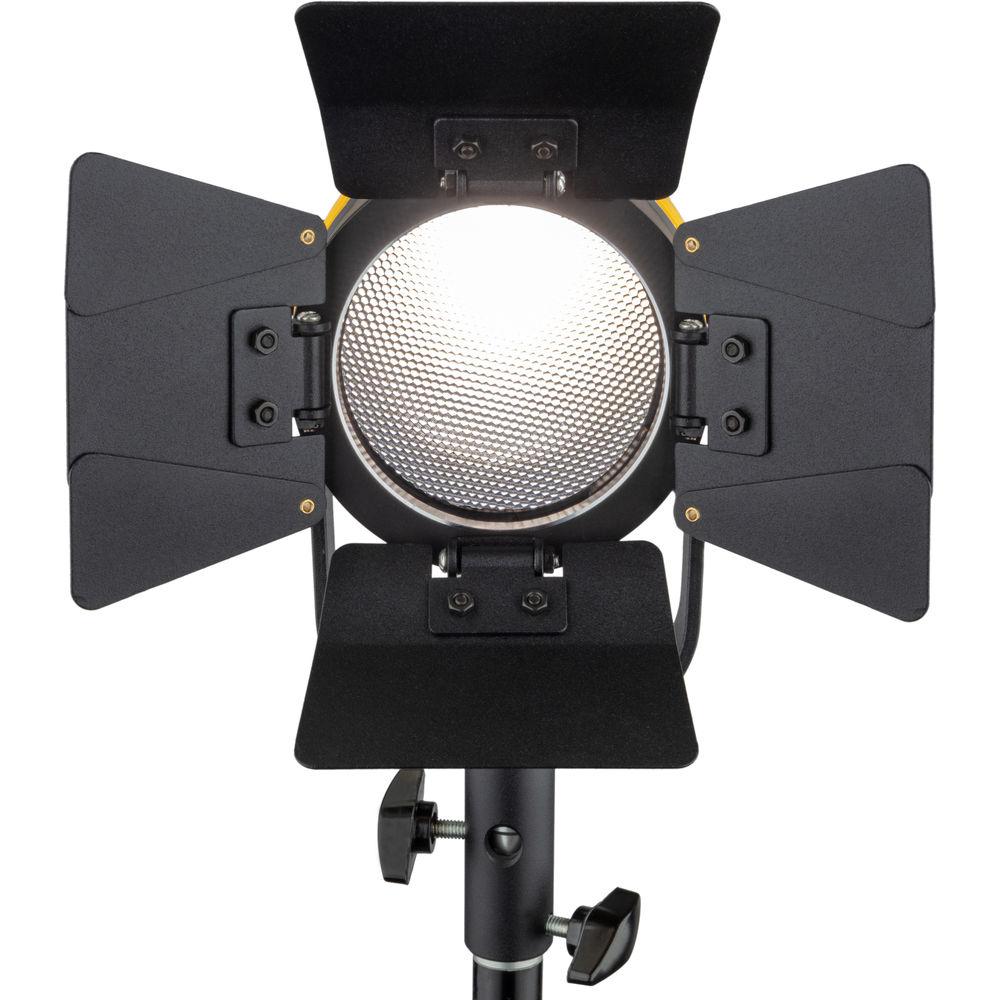

- 4-Way Barndoors: Shape the light beam to allow your preferred areas to be illuminated, and keep light from areas where you don't want it
- Diffusers and Filters: Use one of the two included diffuser filters to soften the bright LEDs and modify their output, or use one of the three color filters for more creative results
- Optional Bowens-Type Adapter: Adding the optional dedicated adapter allows you to add accessories such as reflectors, softboxes, and snoots made by the many manufacturers that use the popular Bowens mount
UPC: 855193007325 In the Box Genaray Torpedo Portable Daylight Focusing LED AC Power Adapter and Power Cord D-Tap Cable 2 x Diffusers 4-Leaf Barndoor Set Filter Set Yoke Carrying Case Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Torpedo Portable Daylight Focusing LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

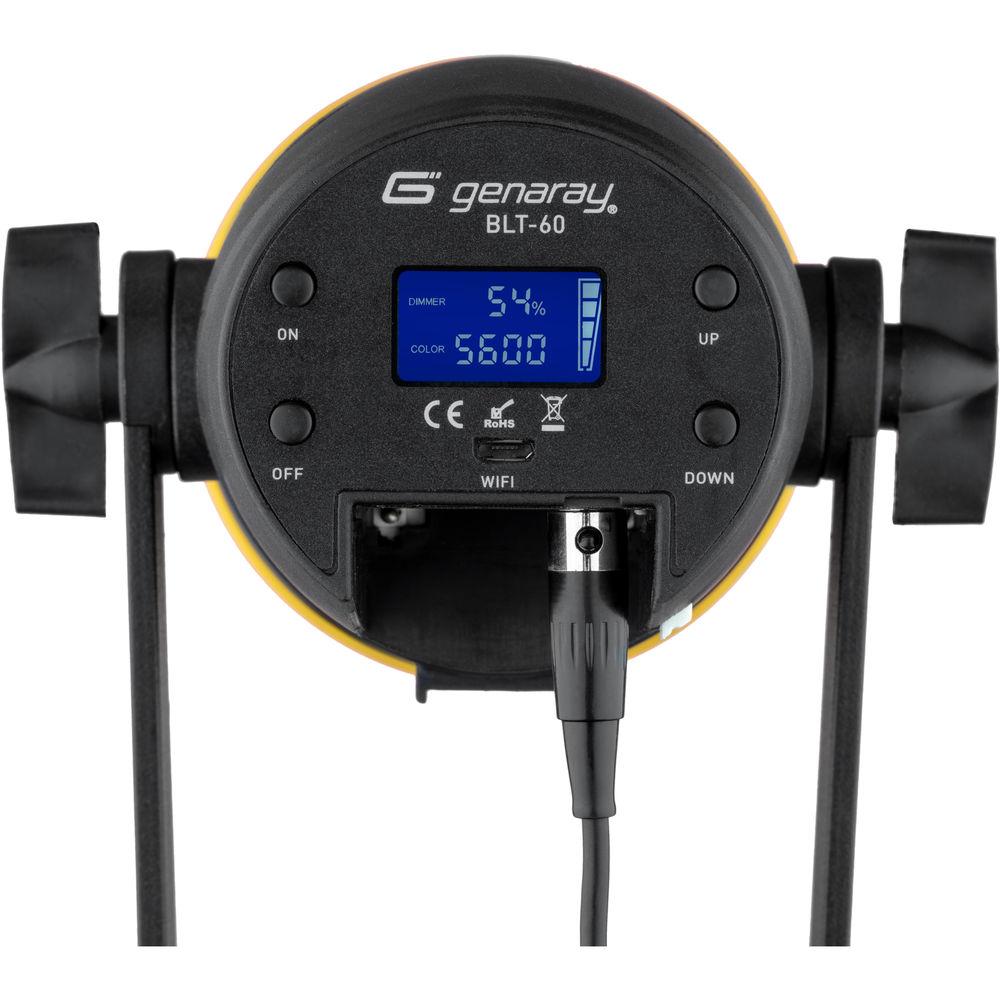

Technical parametersGenaray Torpedo BLT-60 Specs | | | Beam Angle | 15 to 75° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Cooling System | Fan | | Dimming | Yes, 1 to 100% (Continuous) | | Housing Material | ABS Plastic | | Photometrics | 15°:
519.5 fc / 5592 lux at 3.28' / 1 m
75°:
256 fc / 2756 lux at 3.28' / 1 m | | Expected Lamp Life | 50000 Hours | | Fixture Weight | 2.6 lb / 1.18 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount Also 1 x NP-F | | | | Lens Diameter | 3.7" / 9.4 cm | | Lens Type | Fresnel | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 to 36 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Cable Length | 55" / 139.7 cm | | | | Certifications | CE, RoHS, as per Manufacturer | | | | Package Weight | 5.37 lb | | Box Dimensions (LxWxH) | 15.45 x 9.5 x 5.85" |
