Product description

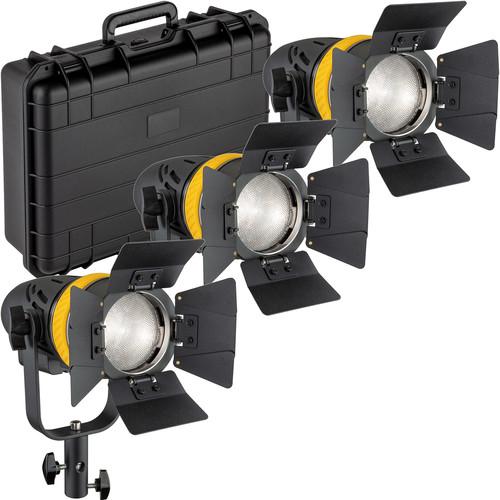

• 3 x Genaray Torpedo Portable Daylight Focusing LED Designed for photographers and videographers who require "big light" performance features in a small, lightweight fixture, the Torpedo Portable Daylight Focusing LED from Genaray weighs 2.6 lb and measures just 8" in length, yet outputs the tungsten equivalent power of a 200-300W Fresnel. True to its name, the light has an expansive focusing range from 15° for sunlight, sharp-shadow, or long-throw work, to a wide 75° flood for fill light or diffusing through a silk. The included 4-way barndoors allow you to further sculpt the beam for selective lighting. The Torpedo employs COB LEDs to draw more power from the tiny array which can be dimmed from 1 to 100%. The versatile Torpedo offers power options thanks to the inclusion of a universal 100 to 240 VAC adapter, but you can also run on NP-F or V-mount batteries when mains power is unavailable. The Torpedo has a tilting yoke with an industry-standard 5/8" receiver for matching light stands.
  Benefits
  • Fresnel Lens: Wide beam spread from 15° spot to 75° flood
  • Compact and Portable: At only 8" long and weighing just 2.6 lb, the Torpedo packs a lot of power into a small form factor
  • Daylight Color Temperature of 5600K: Ideal for shooting outdoors or in locations with large windows
  • Color Rendering: CRI/TLCI ratings of 95/96 are indicators of accuracy in color display
  • COB LED Array: Chip-on-board (COB) technology not only allows superior power from a small array, but eliminates multiple shadows which are a problem for some LEDs
  • Fan Cooling: The thermo-activated fan protects the unit's electronics and lengthens the life of the LEDs. The barely audible fan is quiet enough to be used on sound-sensitive sets
  • Battery or AC Options: Power the Torpedo with the included 100 to 240 VAC adapter or with optional NP-F or V-mount batteries when mains power is unavailable
  • 4-Way Barndoors: Shape the light beam to allow your preferred areas to be illuminated, and keep light from areas where you don't want it
  • Diffusers and Filters: Use one of the two included diffuser filters to soften the bright LEDs and modify their output, or use one of the three color filters for more creative results
  • Optional Bowens-Type Adapter: Adding the optional dedicated adapter allows you to add accessories such as reflectors, softboxes, and snoots made by the many manufacturers that use the popular Bowens mount
  UPC: 855193007325
• Genaray Hard Case for Genaray Torpedo Three-Light Kit (Black) Store, transport, and protect three Torpedo Lights and related accessories in the water, dust, and crushproof Hard Case for Genaray Torpedo Three-Light Kit from Genaray. The case is black and features lid foam, custom-cut interior foam, a latch closure, and a manual pressure release valve. Plastic hasps may be used with optional padlocks. Carry the case with the large carry handle.
  Compatible Products
  • Genaray Torpedo Three-Light Kit
  Molded Foam Interior
  • The molded foam interior is designed specifically to cradle your Torpedo lights. It prevents your lights from rattling around in the case, even in the event of sudden stops, bumps, or drops.
  Double-Snap Closure Latches
  • The double-snap closures keep your case shut tight, so the watertight seal can do its work. Special pull tabs on each latch ensure that they won't open accidentally.
  Pressure Release Valve
  • If you experience altitude or air pressure changes, the pressure release valve will equalize the internal pressure of the case. This allows the case to open easily, and you won't need to pry your case open and risk sending your lights flying.
  UPC: 855193007387

• 3 x Torpedo Portable Daylight Focusing LED
• AC Power Adapter and Power Cord
• D-Tap Cable
• 2 x Diffusers
• 4-Leaf Barndoor Set
• Filter Set
• Yoke
• Carrying Case
• Limited 1-Year Warranty

• Hard Case for Genaray Torpedo Three-Light Kit (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Genaray Torpedo Portable Daylight Focusing LED

  Beam Angle	15 to 75°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95 TLCI 96
  Cooling System	Fan
  Dimming	Yes, 1 to 100% (Continuous)
  Housing Material	ABS Plastic
  Photometrics	15°: 519.5 fc / 5592 lux at 3.28' / 1 m 75°: 256 fc / 2756 lux at 3.28' / 1 m
  Expected Lamp Life	50000 Hours
  Fixture Weight	2.6 lb / 1.18 kg (Including Yoke)

  Battery Plate	1 x V-Mount Also 1 x NP-F

  Lens Diameter	3.7" / 9.4 cm
  Lens Type	Fresnel

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Yoke Type	Yoke/Bracket

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	7.4 to 36 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	60 W

  Cable Length	55" / 139.7 cm

  Certifications	CE, RoHS, as per Manufacturer

  Box Dimensions (LxWxH)	15.45 x 9.5 x 5.85"

• Genaray Hard Case for Genaray Torpedo Three-Light Kit (Black)

  Material	Polymer
  Type of Closure	Latches
  Carrying/Transport Options	Large handle
