User Manual for Genaray Ultra-Thin Bicolor 144 SMD LED On-Camera Light Click to enlarge the picture
Contents of the user manual for the Genaray Ultra-Thin Bicolor 144 SMD LED
- Product category: On Camera Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray On Camera Lights
 |
User manual for the Genaray Ultra-Thin Bicolor 144 SMD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|
Product description The Genaray Ultra-Thin Bicolor 144 combines cutting-edge features with an all-aluminum, slim design for bright and efficient on-camera applications. It uses the more advanced surface-mount SMD LEDs and features a 3200-5600K adjustable color temperature, and offers a >90 TLCI/CRI color accuracy across the entire color temperature range.

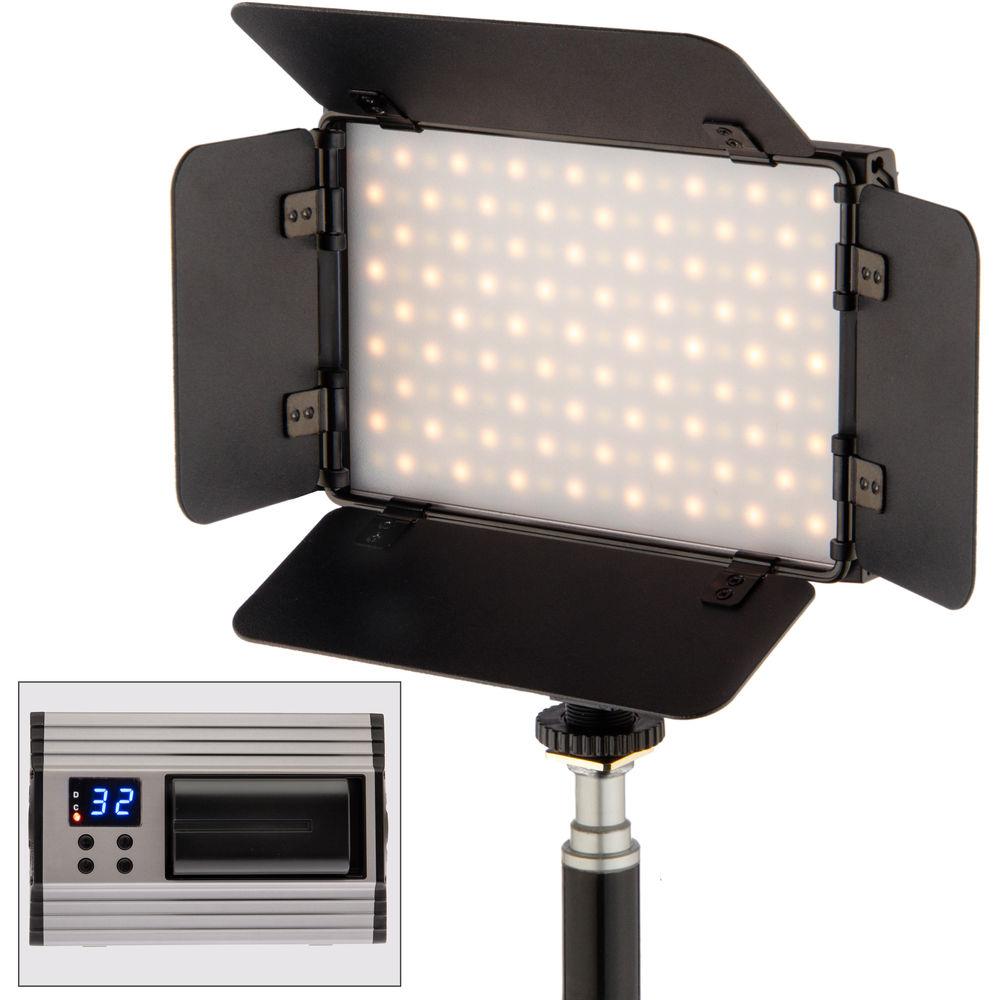

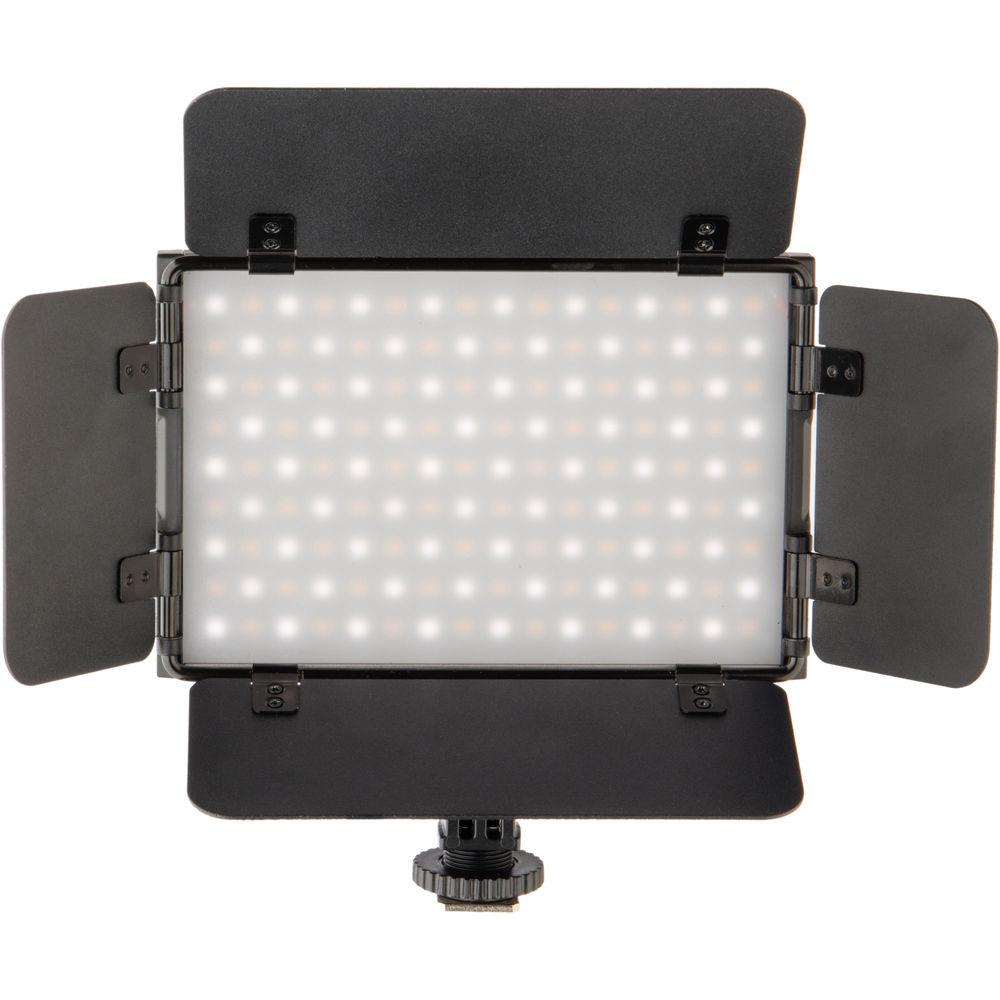

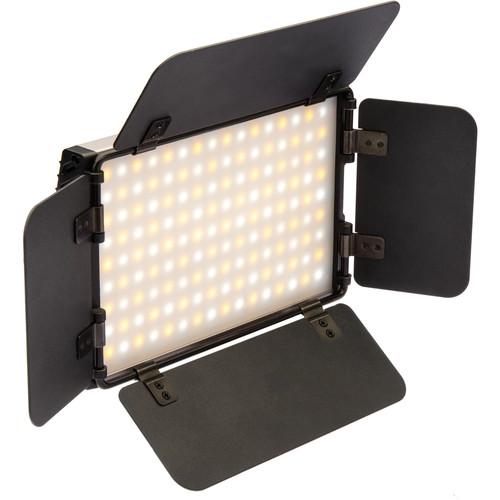

With the integrated barndoors shut, the Bicolor 144 has a fully-enclosed, aluminum exterior, providing for all-around protection and an elegant aesthetic. Open the barndoors and shape the light output as you like, while the built-in diffuser softens the light and minimizes shadows.

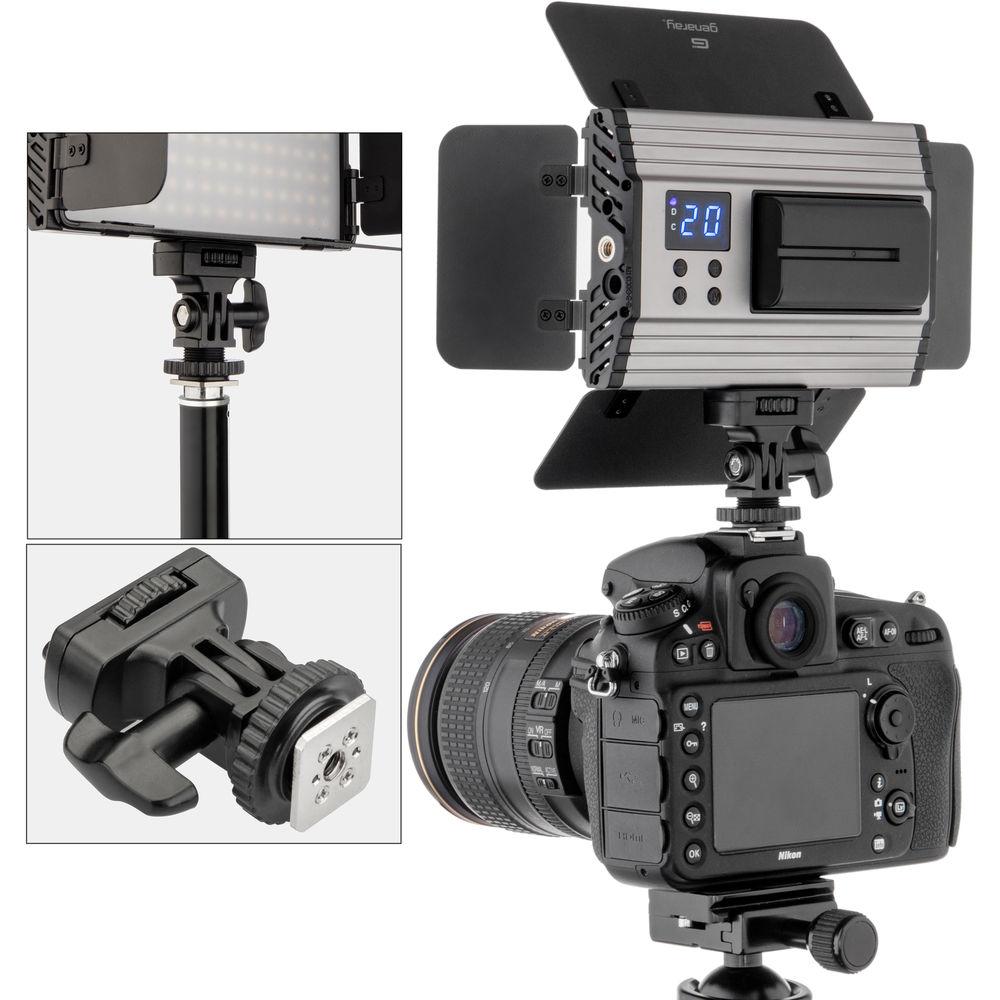

An included shoe mount adapter with a 1/4"-20 threaded mounting hole on the bottom allows you to attach the light on your camera or light stand and tilt it into an optimal position. At the same time, a safety pin on the light ensures twist-free operation.
The Bicolor 144 also has a built-in 99-channel, 2.4 GHz receiver that allows for remote control of one or more units from up to 98 ft away using the optional Genaray MB-WRT controller.

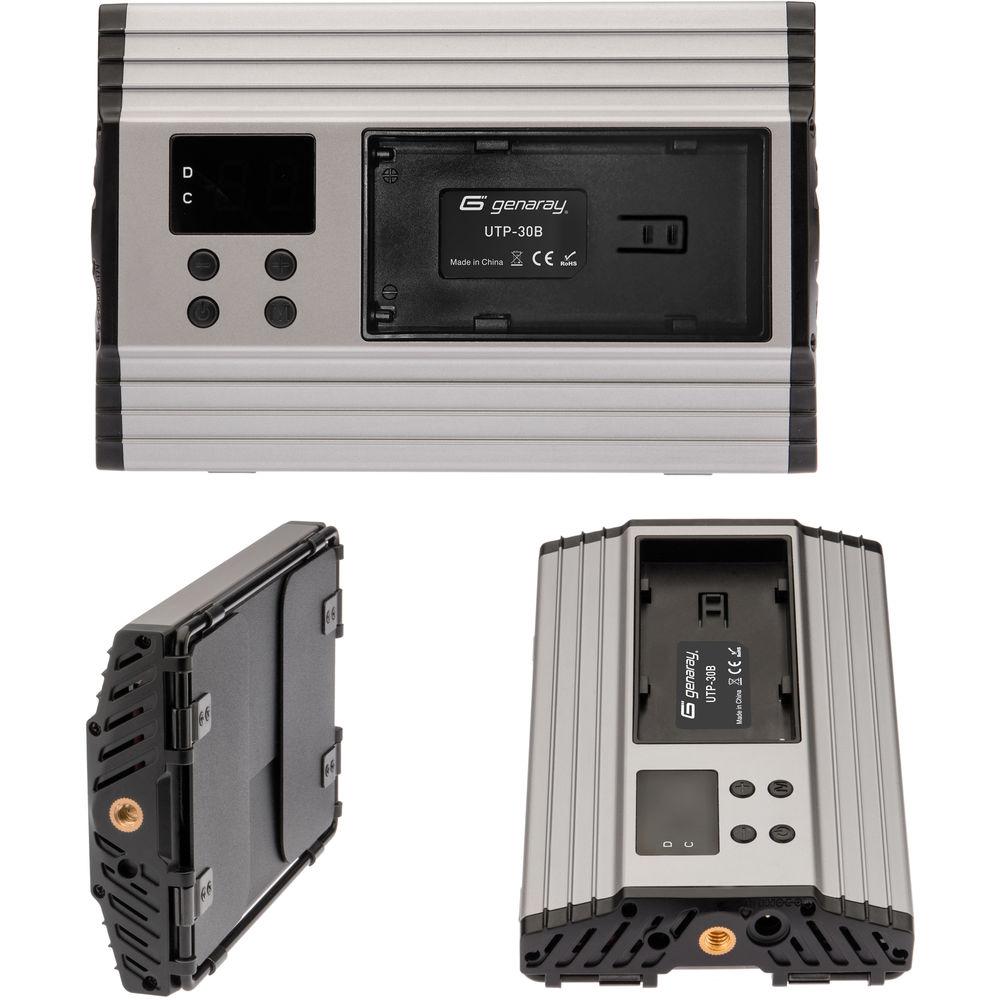

The Bicolor 144 accepts a single NP-F L-Series battery or an AC adapter for continuous in-studio power. Both are available sold separately. - Key Features
-
- Surface-mount SMD LEDs with 50,000-hour bulb life
- 3200-5600K color temperature, adjustable in increments of 100K
- >90 TLCI/CRI
- 10-100% brightness dimmer
- Flicker-free

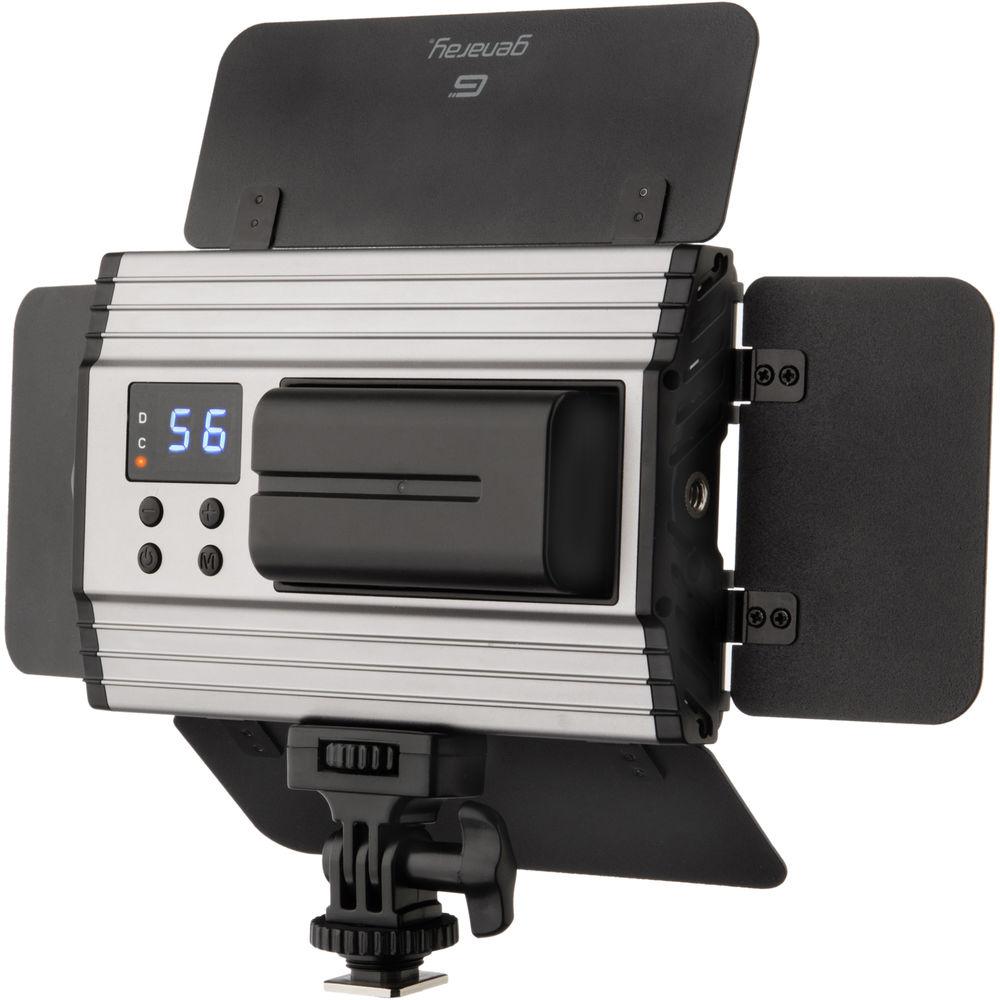

- Color display with controls on the rear for adjusting color temperature and brightness
- Integrated barndoors
- Built-in diffuser
- Built-in 99-channel, 2.4 GHz receiver for remote control with optional Genaray MB-WRT controller
- Slim, lightweight design; robust, all-aluminum exterior
- Includes tilting shoe mount adapter with a 1/4"-20 threaded mounting hole on the bottom for attaching to cameras and light stands
- 1/4"-20 threaded hole and safety pin on the bottom and side for twist-free operation
- Supports a single NP-F battery or AC adapter, sold separately
- >270 lux at 3200K at 3 ft, >280 at 5600K
UPC: 855193007004 In the Box Genaray Ultra-Thin Bicolor 144 SMD LED On-Camera Light Shoe Mount Adapter Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Ultra-Thin Bicolor 144 SMD LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray UTP-30B Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 90 at 3200K
TLCI 90 at 3200K
CRI 90 at 5600K
TLCI 90 at 5600K | | Photometrics | 3200K:
25.1 fc / 269.9 lux at 3' / 0.91 m
5600K:
26 fc / 280 lux at 3' / 0.91 m | | Dimming | Yes, 10 to 100% | | Cooling System | Passive | | Display | LCD | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 144 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 13 to 19 VDC | | Max Power Consumption | 15 W | | Power Source | External Battery | | | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 99 / X | | Wireless Range | 98' / 30 m | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 3.7 x 5.7 x 1" / 9.5 x 14.5 x 2.5 cm | | Weight | 0.8 lb / 363 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.3 x 5.0 x 2.9" |
