User Manual for Genaray Ultra-Thin Bicolor 288 SMD LED On-Camera Light Click to enlarge the picture
Contents of the user manual for the Genaray Ultra-Thin Bicolor 288 SMD LED
- Product category: On Camera Lights Genaray
- Brand: Genaray
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genaray On Camera Lights
 |
User manual for the Genaray Ultra-Thin Bicolor 288 SMD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genaray product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genaray user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genaray product will considerably shorten its lifespan!
|

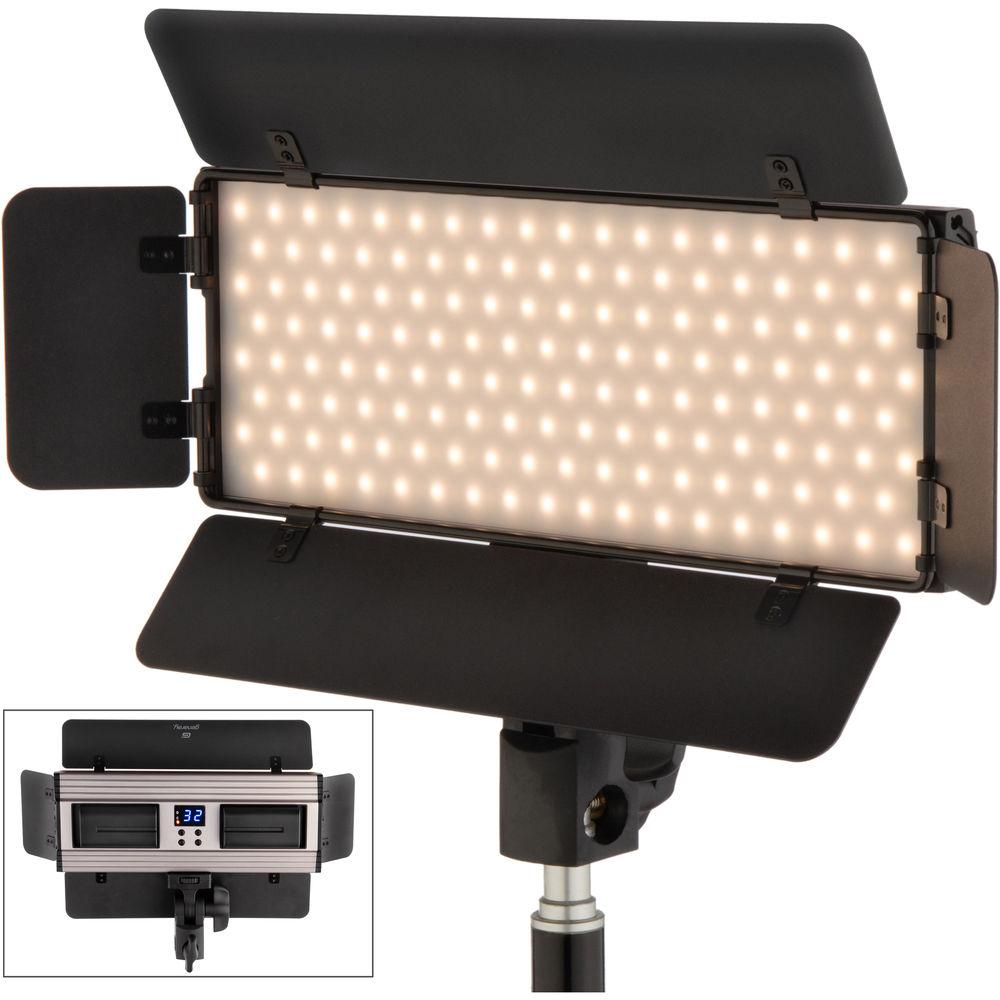

Product description The Genaray Ultra-Thin Bicolor 288 combines cutting-edge features with an all-aluminum, slim design for bright and efficient on-camera applications. It uses the more advanced surface-mount SMD LEDs and features a 3200-5600K adjustable color temperature, and offers a >90 TLCI/CRI color accuracy across the entire color temperature range. It comes packed in a compact soft case along with a variety of accessories.

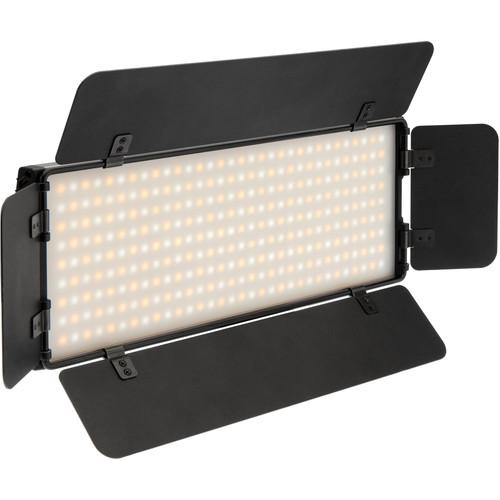

With the integrated barndoors shut, the Bicolor 288 has a fully-enclosed aluminum exterior, providing for all-around protection and an elegant aesthetic. Open the barndoors and shape the light output as you like, while the built-in diffuser softens the light and minimizes shadows.

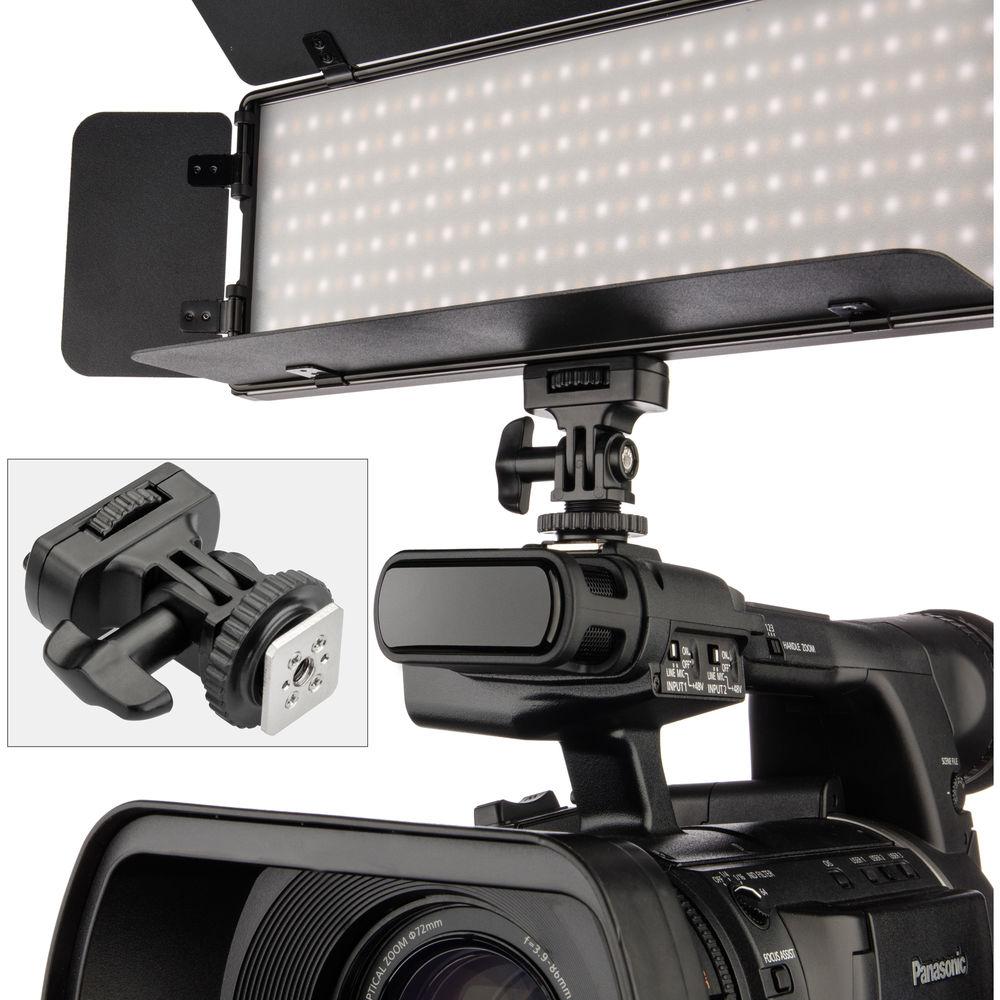

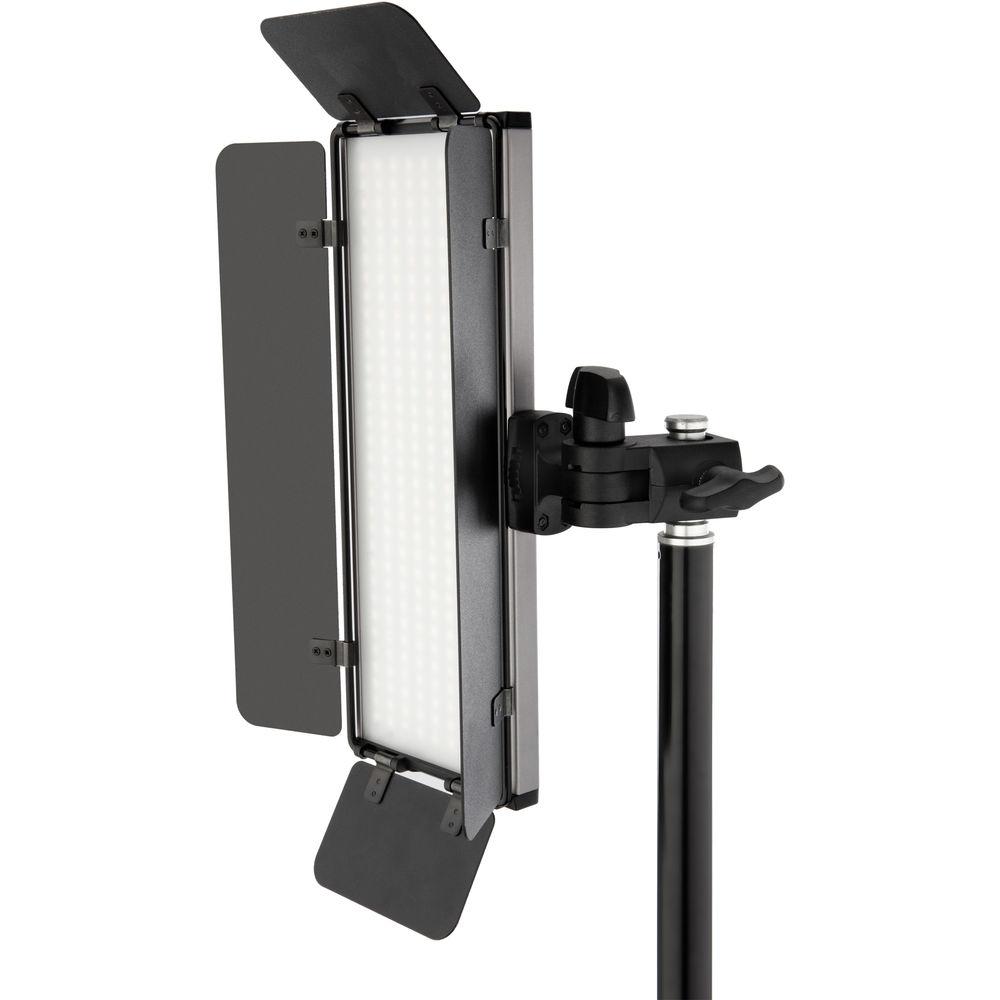

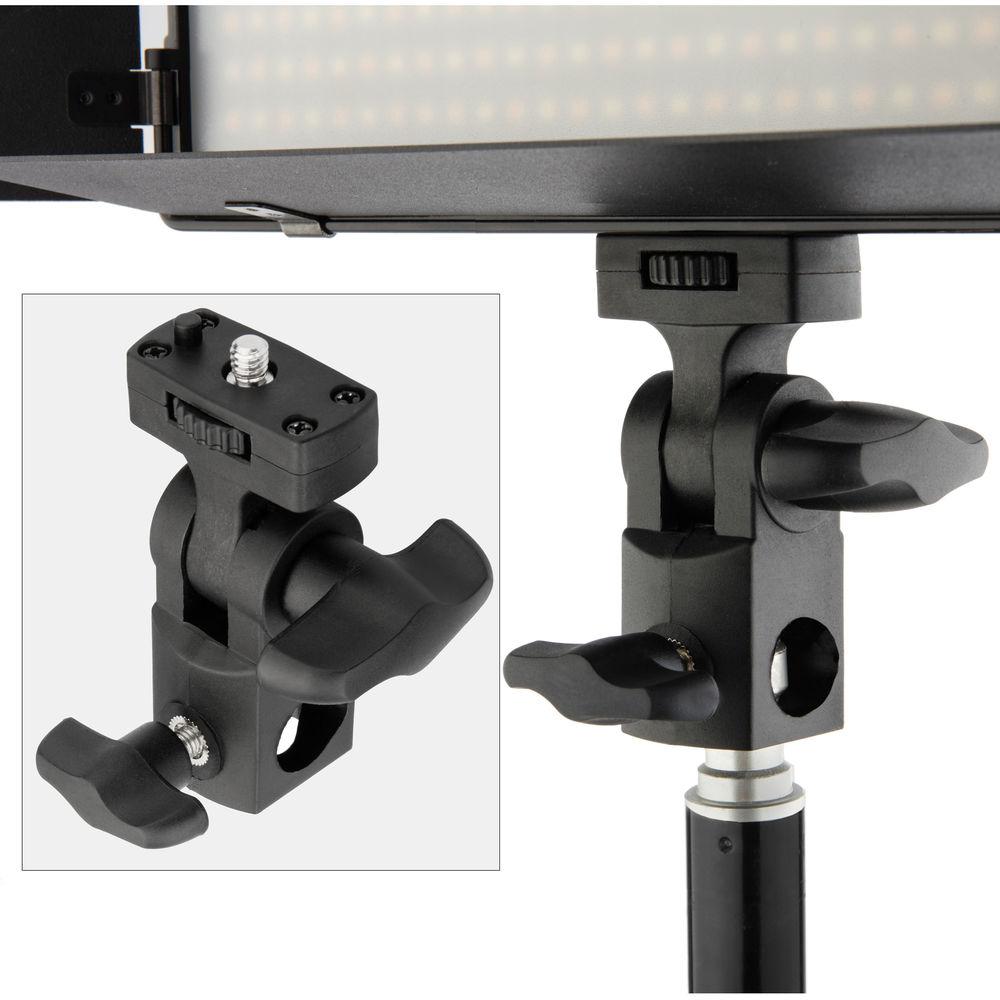

An included shoe mount adapter with a 1/4"-20 threaded mounting hole on the bottom allows you to attach the light on your camera or light stand and tilt it into an optimal position. At the same time, a safety pin on the light ensures twist-free operation.
The Bicolor 288 also has a built-in 99-channel, 2.4 GHz receiver that allows for remote control of one or more units from up to 98 ft away using the included Genaray MB-WRT controller.
The Bicolor 288 can be powered by up to two NP-F L-Series batteries or an AC adapter, all included. - Key Features
-
- Surface-mount SMD LEDs with 50,000-hour bulb life
- 3200-5600K color temperature, adjustable in increments of 100K
- >90 TLCI/CRI
- 10-100% brightness dimmer
- Flicker-free

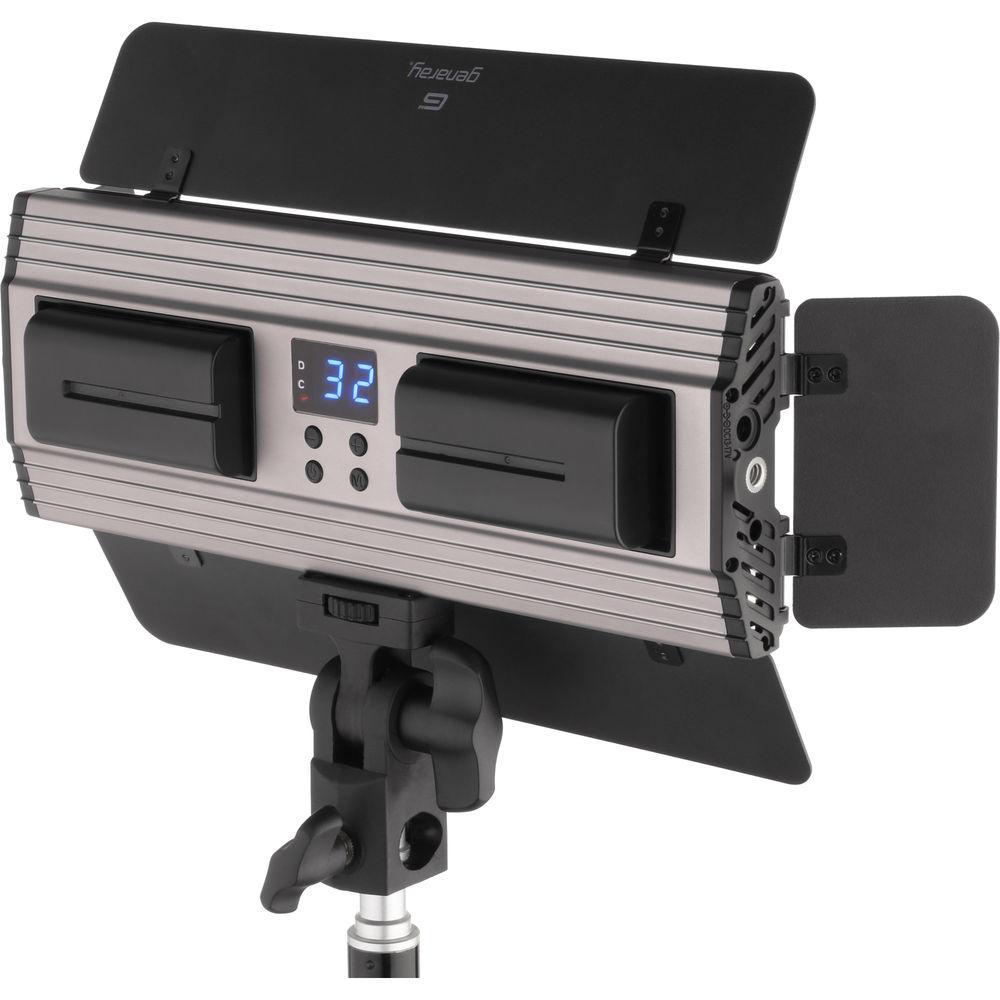

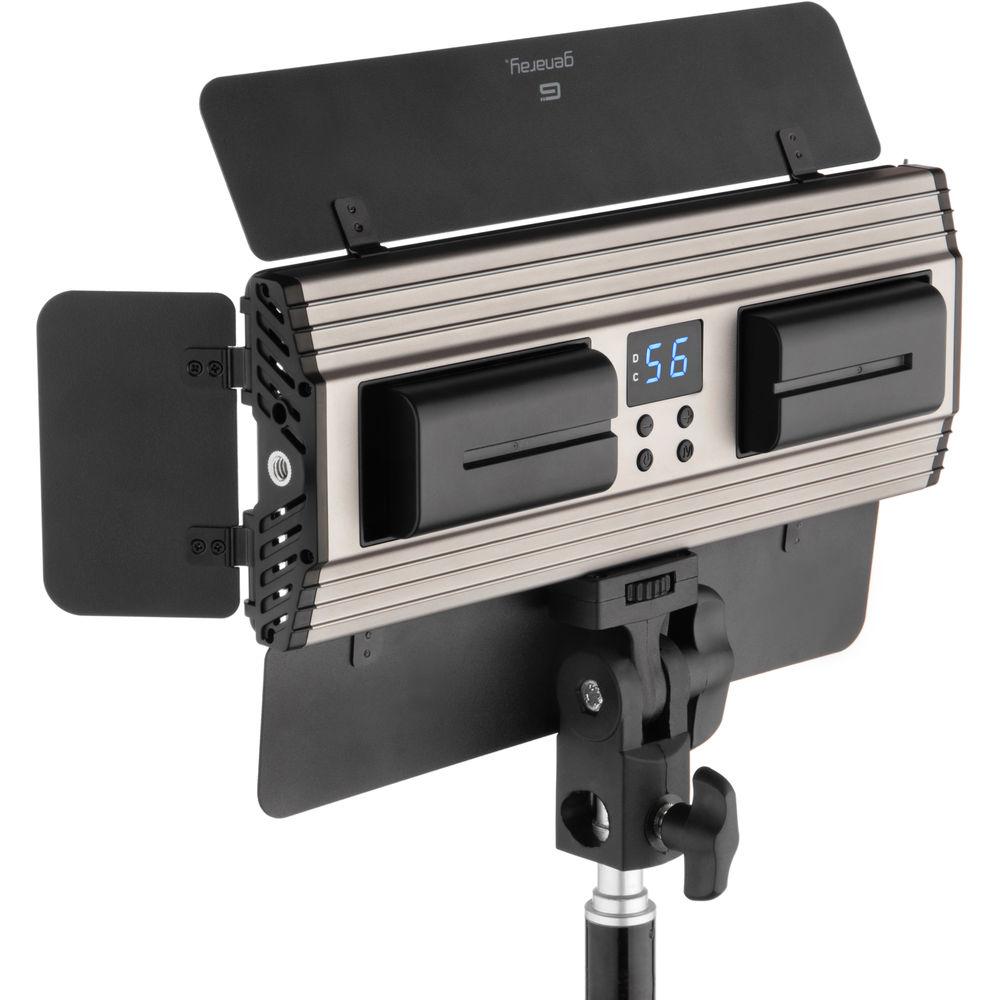

- Color display with controls on the rear for adjusting color temperature and brightness
- Integrated barndoors
- Built-in diffuser
- Built-in 99-channel, 2.4 GHz receiver for remote control with included Genaray controller
- Slim, lightweight design; robust, all-aluminum exterior
- Includes tilting shoe mount adapter with a 1/4"-20 threaded mounting hole on the bottom for attaching to cameras and light stands

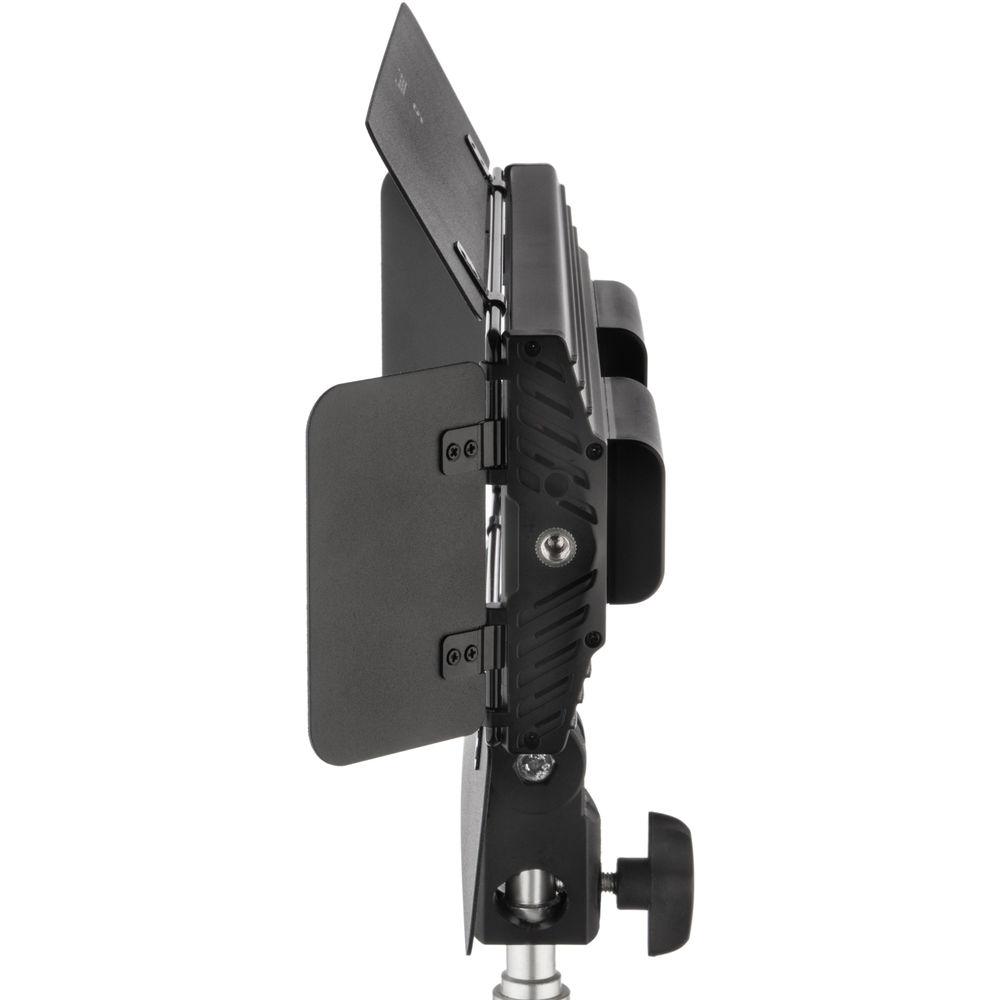

- 1/4"-20 threaded hole and safety pin on the bottom and side for twist-free operation
- Powered by up to two included NP-F batteries or AC adapter
- >585 lux at 3200K at 3 ft, >635 at 5600K

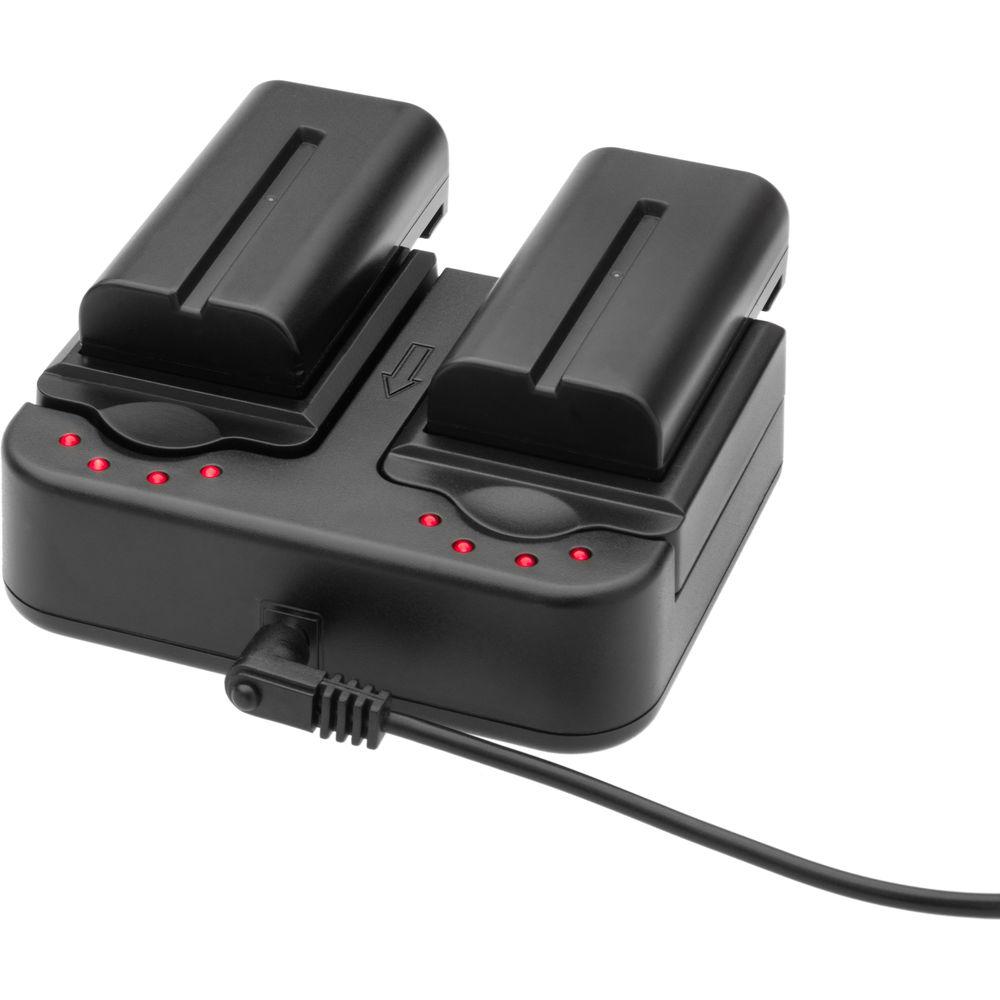

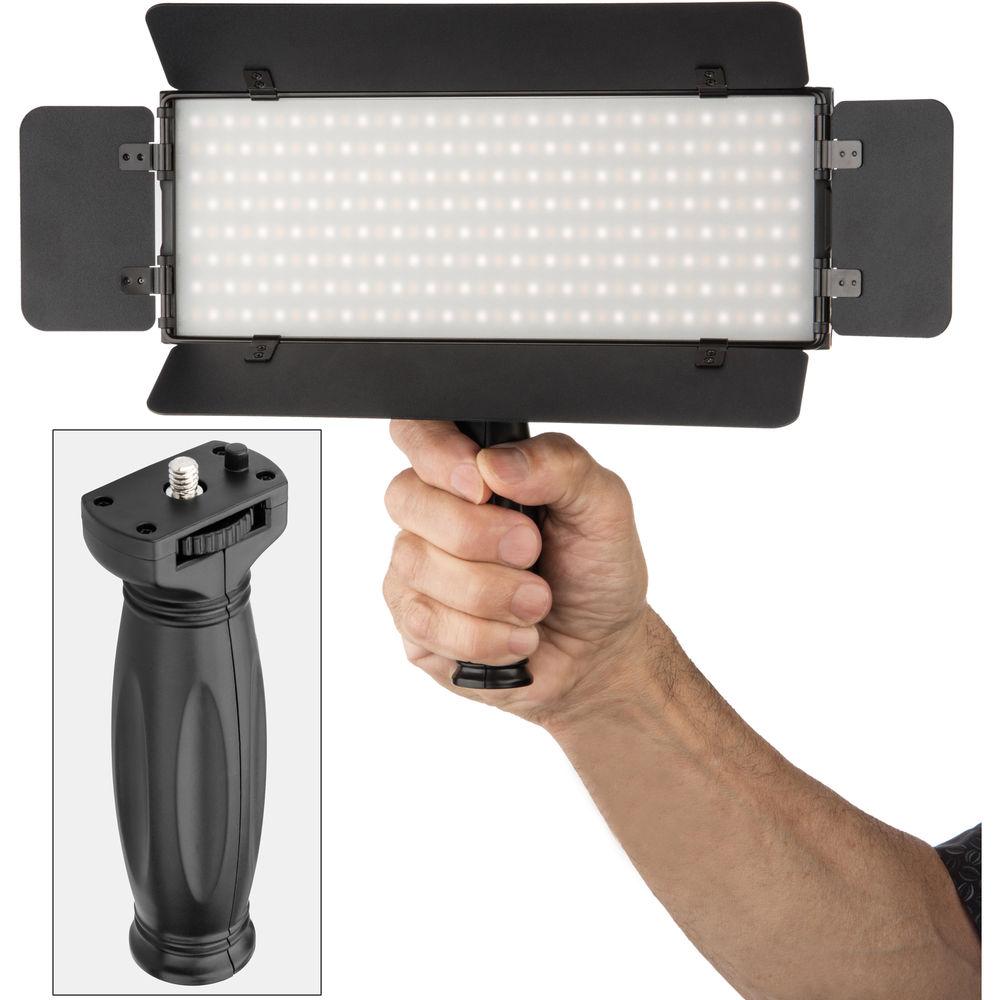

UPC: 855193007011 In the Box Genaray Ultra-Thin Bicolor 288 SMD LED On-Camera Light Shoe Mount Adapter 2 x NP-F L-Series Batteries Dual Charger AC Power Cord (12.5 ft) Handgrip Wireless Remote for MonoBright & Escort Series LED Soft Carrying Case Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genaray Ultra-Thin Bicolor 288 SMD LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenaray UTP-60B Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 90 at 3200K
TLCI 90 at 3200K
CRI 90 at 5600K
TLCI 90 at 5600K | | Photometrics | 3200K:
54.4 fc / 585 lux at 3' / 0.91 m
5600K:
59 fc / 635 lux at 3' / 0.91 m | | Dimming | Yes, 10 to 100% | | Cooling System | Passive | | Display | LCD | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 288 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Battery Plate | 2 x Sony L-Series (NP-F) | | DC Input Power | 13 to 19 VDC | | Max Power Consumption | 30 W | | | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 99 / X | | Wireless Range | 98' / 30 m | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 3.7 x 9.8 x 1" / 9.5 x 25 x 2.5 cm | | Weight | 1.2 lb / 0.54 kg
2 lb / 0.9 kg (Including Battery) | | | | Package Weight | 5.19 lb | | Box Dimensions (LxWxH) | 17.65 x 11.05 x 3.3" |
