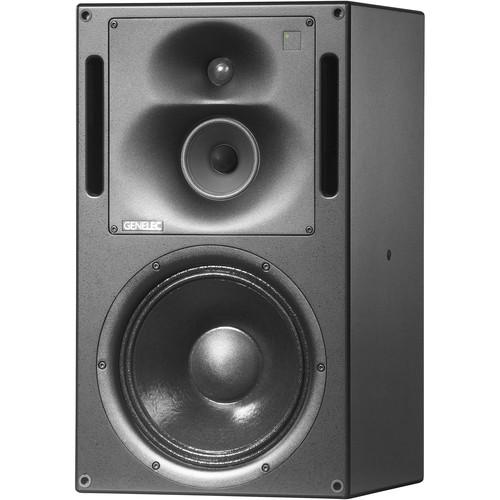

Product description The Genelec 1237A Tri-Amplified SAM Monitor System comes from the company's 35+ years of designing and building professional three-way monitors for recording studios, post-production houses, digital mastering facilities, radio, and TV broadcasting companies. The monitor uses a 500-watt powered 12" low frequency woofer, a 250-watt powered mid-frequency woofer that is handmade in Finland, and a 200-watt powered 1" metal dome high frequency tweeter in a proprietary large Directivity Control Waveguide (DCW) to deliver a frequency response of 32 to 22,000 Hz (-6 dB). The waveguide helps maintain balanced on- and off-axis imaging for even the most acoustically challenging environments.
Power is supplied by the 3U removable and rackmountable RAM-L amplifier module that uses a Class D amplifier design for the low and mid frequencies combined with a Class AB design for the treble. The amplifier module supports rapid system configuration as well the automatic room response calibration for fast and accurate monitor installations. The monitor is also equipped with the company's Genelec Loudspeaker Manager Control Network Technologies for integrating multiple monitors together to build stereo and surround systems.
For I/O the monitor features both an analog XLR input with a 10 kΩ impedance as well as an AES/EBU XLR digital input. It also includes an AES/EBU XLR digital Thru/Output for connecting to additional monitors using the Genelec Loudspeaker Manager Control Network technology (GLM) with four low frequency notch filters, two high frequency notch filters, two low frequency shelving filters, and two high frequency shelving filters. The monitor can be positioned either vertically or horizontally on its side by rotating the mid/high unit 90°. - Genelec Loudspeaker Manger (GLM)
- Enables automatic alignment of every monitor on the network for level, timing, and equalization of room response anomalies
- AutoCal
- Calibrates monitor for operation in room
- RAM-L
- Provides modular removeable and 3U rackmountable amplification with class D amplification for bass and mids as well as class AB amplification for highs
- Directivity Control Waveguide (DCM)
- Provides excellent on and off-axis imaging even in difficult acoustic environments
- Mounting Configuration
- Can be positioned either vertically or horizontally by rotating the mid/high unit 90°
In the Box Genelec 1237A Tri-Amplified SAM Monitor System (12" LF Woofer) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 1237A Tri-Amplified SAM Monitor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 1237A Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
MF Driver: 1 x 5" / 127 mm Woofer
LF Driver: 1 x 12" / 30.48 cm Woofer | | Amplification | HF Amplifier: Class-AB Rated at 200 W
MF Amplifier: Class-D Rated at 250 W
LF Amplifier: Class-D Rated at 500 W | | | | Frequency Range | 32 Hz to 22 kHz (at -6 dB) | | Frequency Response | 37 Hz to 20 kHz ± 2.5 dB | | Maximum Sound Pressure Level (SPL) | 122 dB | | Signal-to-Noise Ratio | 115 dB | | Total Harmonic Distortion (THD) | 0.01% | | Self-Generated Noise | Less Than 10 dB | | | | EQ | 2 x LF Shelf dB
2 x HF Shelf dB | | Filters | 6 x Notch/Peak 4 LF and 2 HF Notch Filters | | | | Crossover Frequency | Low-Pass Frequency: 450 Hz
High-Pass Frequency: 3 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms) | | Computer Interface | 2 x RJ45 (Controller, Network) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
25 W (Idle)
750 W (Maximum) | | | | Dimensions (W x H x D) | 15.8 x 26.8 x 15.0" / 400.0 x 680.0 x 380.0 mm
19.0 x 5.2 x 9.9" / 483.0 x 132.0 x 252.0 mm (Amplifier) | | Weight | 93.0 lb / 42.0 kg (with Amplifier)
80.0 lb / 36.0 kg (without Amplifier) |
