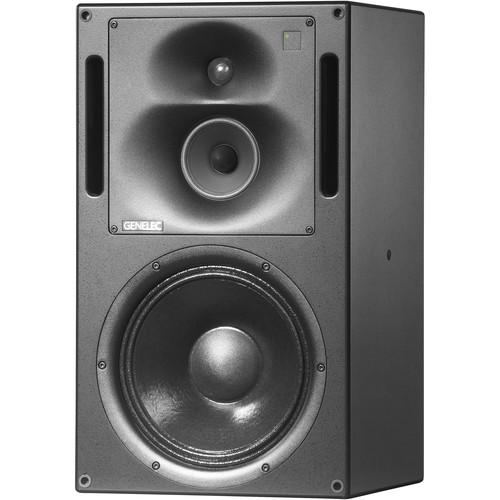

User Manual for Genelec 1238A Tri-Amplified SAM Monitor System Click to enlarge the picture
Contents of the user manual for the Genelec 1238A Tri-Amplified SAM Monitor System
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
|
User manual for the Genelec 1238A Tri-Amplified SAM Monitor System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description The Genelec 1238A Tri-Amplified SAM Monitor System comes from the company's 35+ years of designing and building professional three-way monitors for recording studios, post-production houses, digital mastering facilities, radio, and TV broadcasting companies. The monitor uses a 500-watt powered 15" low frequency woofer, a 250-watt powered mid-frequency woofer that is handmade in Finland, and a 200-watt powered 1" metal dome high frequency tweeter in a proprietary large Directivity Control Waveguide (DCW) to deliver an extended low frequency response of 30 to 22,000 Hz (-6 dB). The waveguide helps maintain balanced on- and off-axis imaging for even the most acoustically challenging environments.
Power is supplied by the 3U removable and rackmountable RAM-L amplifier module that uses a Class D amplifier design for the low and mid frequencies combined with a Class AB design for the treble. The amplifier module supports rapid system configuration as well the automatic room response calibration for fast and accurate monitor installations. The monitor is also equipped with the company's Genelec Loudspeaker Manager Control Network Technologies for integrating multiple monitors together to build stereo and surround systems.
For I/O the monitor features both an analog XLR input with a 10 kΩ impedance as well as an AES/EBU XLR digital input. It also includes an AES/EBU XLR digital Thru/Output for connecting to additional monitors using the Genelec Loudspeaker Manager Control Network technology (GLM) with four low frequency notch filters, two high frequency notch filters, two low frequency shelving filters, and two high frequency shelving filters. The monitor can be positioned either vertically or horizontally on its side by rotating the mid/high unit 90°. - Genelec Loudspeaker Manger (GLM)
- Enables automatic alignment of every monitor on the network for level, timing, and equalization of room response anomalies
- AutoCal
- Calibrates monitor for operation in room
- RAM-L
- Provides modular removeable and 3U rackmountable amplification with class D amplification for bass and mids as well as class AB amplification for highs
- Directivity Control Waveguide (DCM)
- Provides excellent on and off-axis imaging even in difficult acoustic environments
- Mounting Configurations
- Can be positioned either vertically or horizontally by rotating the mid/high unit 90°
In the Box Genelec 1238A Tri-Amplified SAM Monitor System (15" LF Woofer) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 1238A Tri-Amplified SAM Monitor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 1238A Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
MF Driver: 1 x 5" / 127 mm Woofer
LF Driver: 1 x 15" / 38.1 cm Woofer | | Amplification | HF Amplifier: Class-AB Rated at 200 W
MF Amplifier: Class-D Rated at 250 W
LF Amplifier: Class-D Rated at 500 W | | | | Frequency Range | 30 Hz to 22 kHz (at -6 dB) | | Frequency Response | 35 Hz to 20 kHz ± 2.5 dB | | Maximum Sound Pressure Level (SPL) | 124 dB | | Signal-to-Noise Ratio | 115 dB | | Total Harmonic Distortion (THD) | 0.01% | | Self-Generated Noise | Less Than 10 dB | | | | EQ | 4 x LF Notch/Peak dB
2 x HF Notch/Peak dB
2 x LF Shelf dB
2 x HF Shelf dB | | | | Crossover Frequency | Low-Pass Frequency: 420 Hz
High-Pass Frequency: 3 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms) | | Computer Interface | 2 x RJ45 (Controller, Network) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
25 W (Idle)
750 W (Maximum) | | | | Dimensions (W x H x D) | 18.9 x 32.0 x 1.5" / 480.0 x 810.0 x 420.0 mm | | Weight | 126.0 lb / 57.0 kg | | | | Package Weight | 202.0 lb | | Box Dimensions (LxWxH) | 35.0 x 22.0 x 20.0" |
