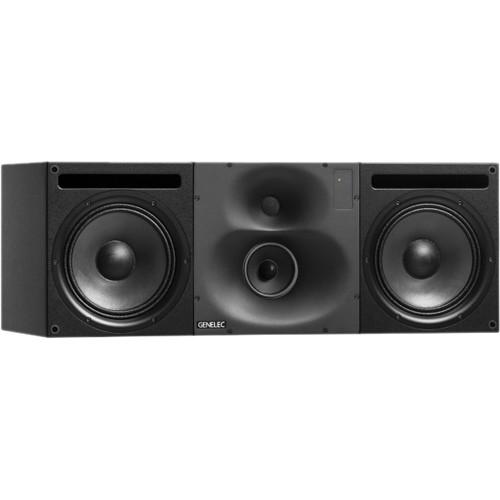

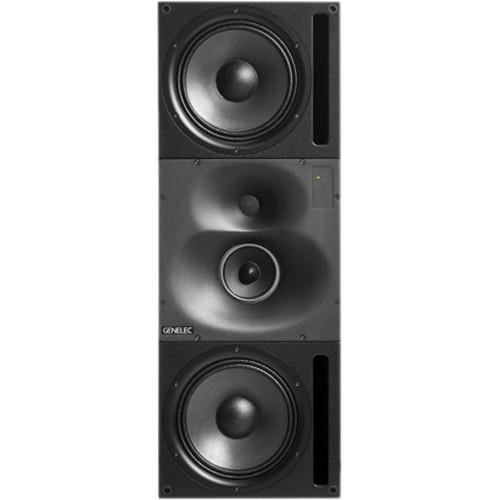

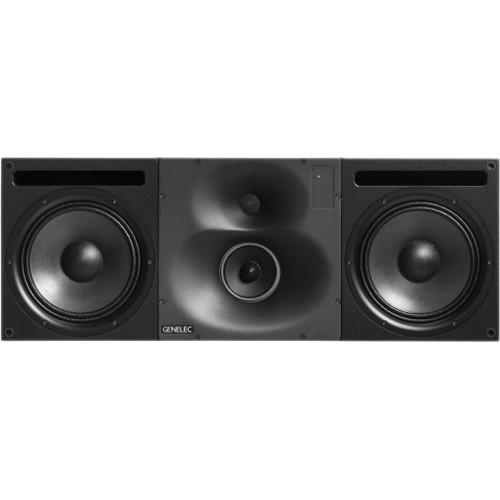

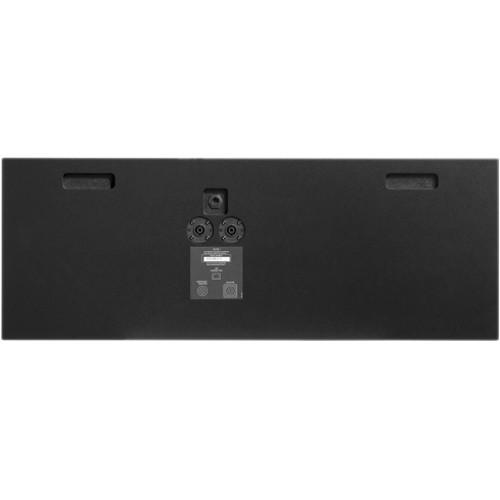

Product description The 1238A Tri-Amplified SAM Monitor System with RAM-L Amplifier from Genelec is a 3-way monitoring system for medium-sized control rooms. It can be used as a free standing monitor, or flush-mounted in control room walls. This unit is suitable for recording, film and video post-production, broadcast monitoring, and mastering. The Directivity Control Waveguide (DCW) technology is designed to provide stereo imaging and neutral frequency response in various acoustics. The 6.6' program material listening distance and low distortion amplifiers allows for a 124 dB peak sound level. The 1238A monitor is fully compatible with the Genelec Loudspeaker Manager GLM and the proprietary Genelec control network (sold separately). It can be used with 8200-series SAM monitors and 7200-series SAM subwoofers in the same network.
The 1238A monitor reproduces low frequencies with a 15" woofer in a 110 liter base reflex enclosure. It uses the 5" direct radiating mid-range driver and a 1" metal dome tweeter, both acoustically loaded by the DCW. All drivers are magnetically shielded. The 1238A uses the RAM-L amplifier unit which is mounted with vibration absorbs in the rear of the monitor enclosure, and can also be detached and mounted into a 19" rack. In the Box Genelec 1238A Tri-Amplified SAM Monitor System with RAM-L Amplifier Power Cable GLM Control Network Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 1238A Tri-Amplified SAM Monitor System with RAM-L Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 1238A Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
MF Driver: 1 x 5" / 12.5 cm Cone
LF Driver: 1 x 15" / 38.5 cm Woofer | | Amplification | HF Amplifier: Rated at 200 W
MF Amplifier: Rated at 250 W
LF Amplifier: Rated at 500 W | | | | Frequency Response | 35 Hz to 20 kHz ± 2.5 dB | | Maximum Sound Pressure Level (SPL) | 124 dB | | Signal-to-Noise Ratio | 115 dB | | Total Harmonic Distortion (THD) | 0.01% | | Maximum Input Level | +25 dBu | | Analog Input Sensitivity/Gain | +18 to 0 dBu (Incrementally Variable) | | Self-Generated Noise | Less Than 10 dB | | | | EQ | 4 x LF Notch/Peak dB
2 x HF Notch/Peak dB
2 x LF Shelf dB
2 x HF Shelf dB Via GLM Software | | | | Crossover Frequency | Low-Pass Frequency: 420 Hz
High-Pass Frequency: 3 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms) | | Computer Interface | 2 x RJ45 (Controller, Network) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
25 W (Idle)
750 W (Maximum) | | | | Dimensions (W x H x D) | 19.0 x 32.0 x 16.5" / 480.0 x 810.0 x 420.0 cm
19.0 x 5.3 x 19.9" / 483.0 x 132.0 x 252.0 mm (Amplifier) | | Weight | 126.0 lb / 57.0 kg (with Amplifier)
113.0 lb / 51.0 kg (without Amplifier) |
