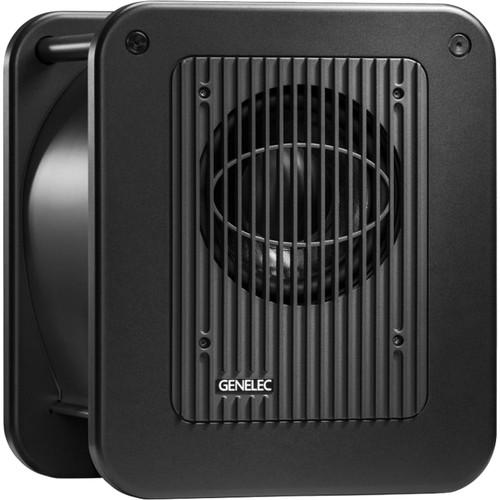

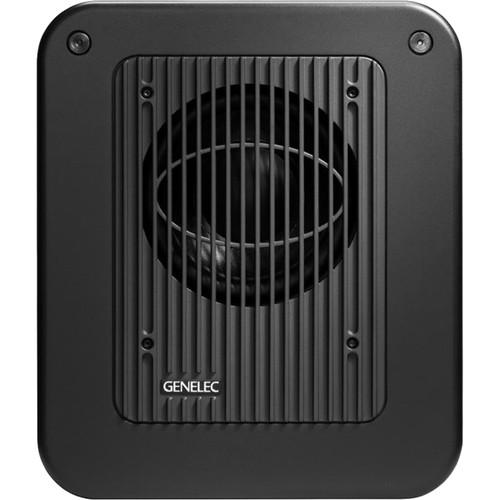

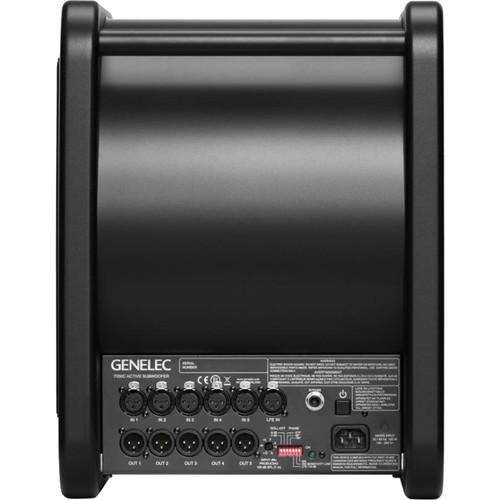

User Manual for Genelec 7050C - 130W 8" Active Studio Subwoofer Click to enlarge the picture
Contents of the user manual for the Genelec 7050C - 130W 8" Active
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec 7050C - 130W 8" Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|

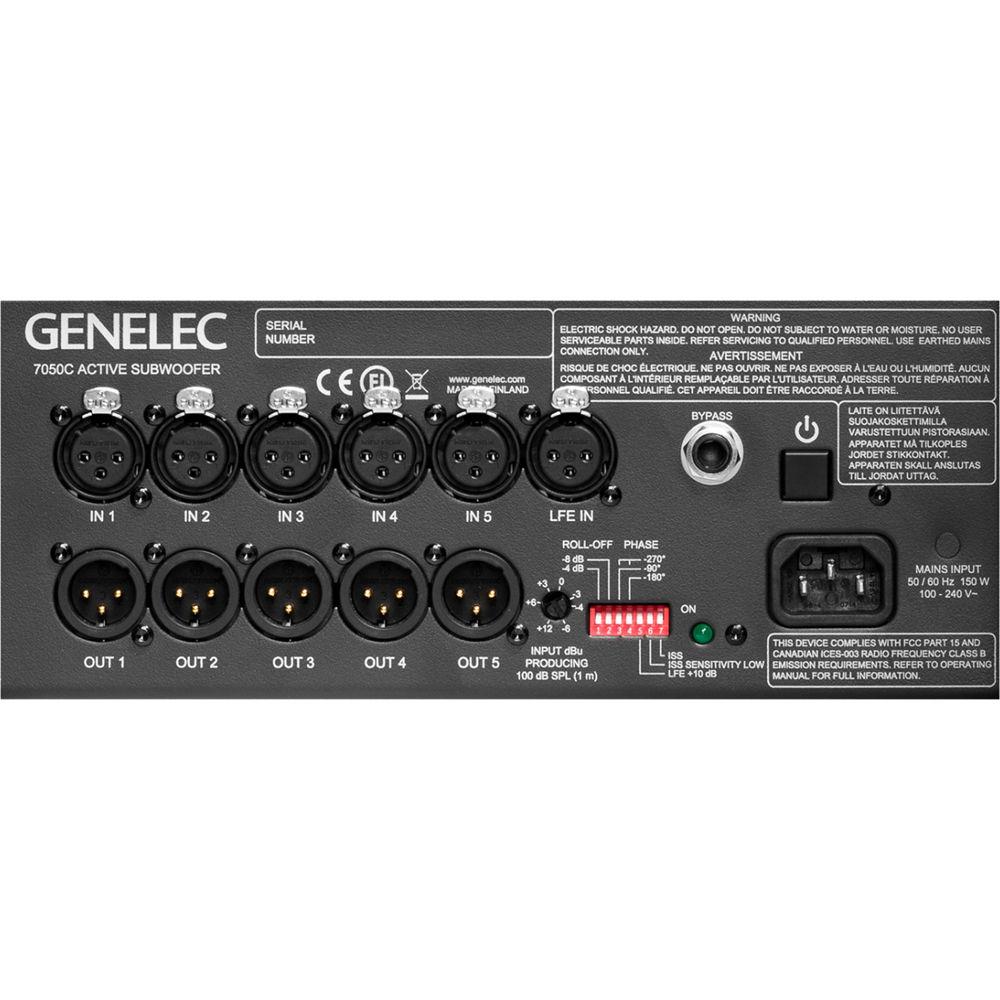

Product description Building upon the success of the 7050A and 7050B models, the Genelec 7050C Studio Subwoofer is an 8", 130W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7050C boasts several improvements including a bypassable onboard bass management system, lower distortion, a universal mains voltage switched-mode power supply, and an increased maximum SPL of 103 dB.The subwoofer works in stereo or 5.1 channel configurations using analog XLR inputs and outputs. The integrated bass management section features five input and output channels with 85 Hz low-pass/high-pass filters, plus a discrete 120 Hz LFE signal input with selectable +10 dB boost.The 7050C utilizes a magnetically shielded low frequency driver, housed in a Genelec LSE spiral enclosure, which delivers an extended low-frequency response down to 24 Hz with low distortion. Rear panel DIP switches to allow the user to adjust subwoofer phase and low-frequency roll-off, engage the +10 dB LFE level, and activate and control the sensitivity of the Intelligent Signal Sensing (ISS) power-saving mode, which reduces the unit’s power consumption down to a mere 0.5 W in standby mode. The Genelec 7050C ships with a standard IEC power cord. -
- Laminar Spiral Enclosure (LSE) technology
- Bass management system
- Optimized amplifiers
- Room response compensation
- Protection circuitry
- Active crossovers
In the Box Genelec 7050C - 130W 8" Active Studio Subwoofer Mains Cable Limited 2-Year Warranty, Extended to 5-Years with Registration User Manual PDF 3.8mbcqzqybee Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 7050C - 130W 8" Active Studio Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 7050C Specs | | | Frequency Response | Lower Cut-Off Frequency (-6 dB): 24 Hz
Upper Cut-Off Frequency (-6 dB)
Main Channels / LFE: 85 Hz / 120 Hz | | Driver | 8.0" / 205 mm magnetically shielded | | THD | Harmonic distortion at 90 dB SPL at 1 m on axis in half space (30 - 85 Hz)
2nd: ≤4%
3rd: ≤1% | | SPL | Maximum Short Term Sine Wave SPL Output Averaged from 30 to 85 Hz, Measured in Half Space at 1 m: 103 dB | | Noise | Self-Generated Noise Level in Half Space at 1 m / 3.3' on Axis (A-Weighted): ≤5 dB | | | | Power | Amplifier Short Term Output Power (Long Term Output Power is Limited by Driver Unit Protection Circuitry): 130 W | | THD | Amplifier System THD at Nominal Output: ≤0.05 % | | Power Supply | 100 to 240 VAC, 50/60 Hz universal | | Power Consumption | Standby, ISS active: ≤0.5 W
Idle: 11 W
Full Output: 150 W | | | | Filter | Subsonic Filter (18 dB/Octave) Below: 24 Hz | | Input Channels | 5 + LFE | | Low Pass Filter | Low-Pass Frequency for Inputs 1-5: 85 Hz
Low-Pass Frequency for LFE IN Input: 120 Hz | | Connectors | Inputs: 6 x XLR (5 x inputs + LFE input)
Output: 5 x XLR | | Input Impedance | 10 kOhms balanced | | Rejection | Mid-Band Rejection >400 Hz: ≥50 dB | | High Pass Crossover | High-Pass Frequency for Outputs 1-5: 85 Hz | | Output Gain | 0 dB | | LF Roll Off | Bass Roll-Off Control in 4 dB Steps: 0 to -12 dB @ 26 Hz | | Phase Control | Phase Matching Control in 90° Steps: 0 to -270° | | Input Sensitivity | Input Sensitivity Control: +12 to -6 dB | | Input Sensitivity (Selectable) | LFE Input Sensitivity Control: 0 or +10 dB selectable | | Dimensions (H x W x D) | 16.1 x 13.8 x 12.6" / 410.0 x 350.0 x 319.0 mm | | Weight | 38.1 lb / 17.3 kg | | | | Package Weight | 42.85 lb | | Box Dimensions (LxWxH) | 19.5 x 17.0 x 16.0" |
