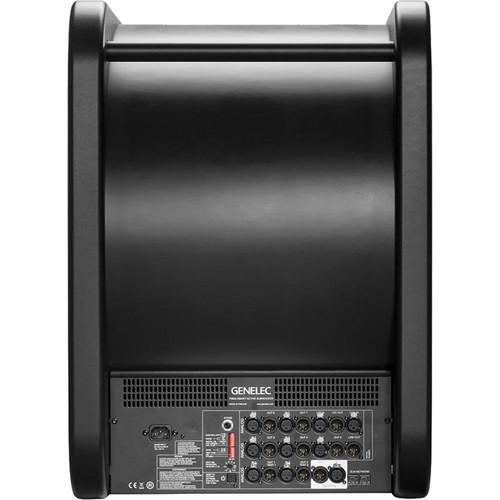

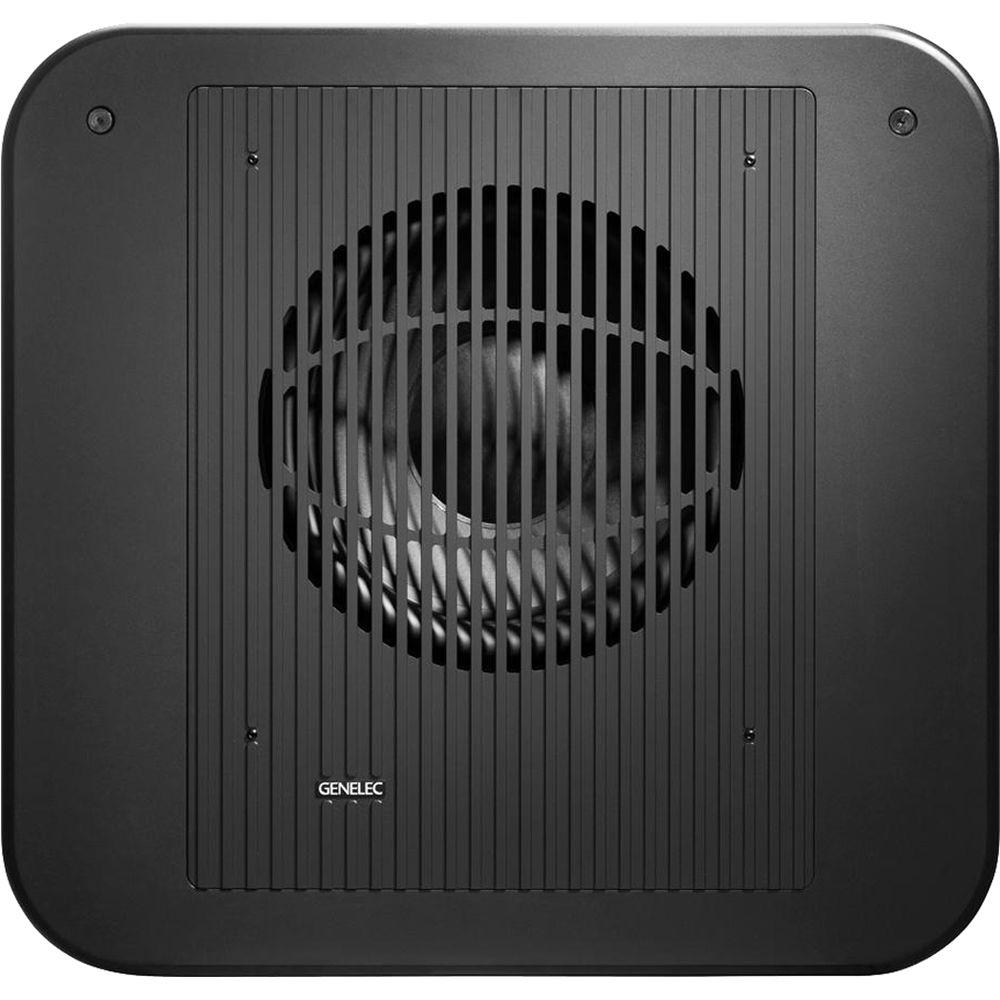

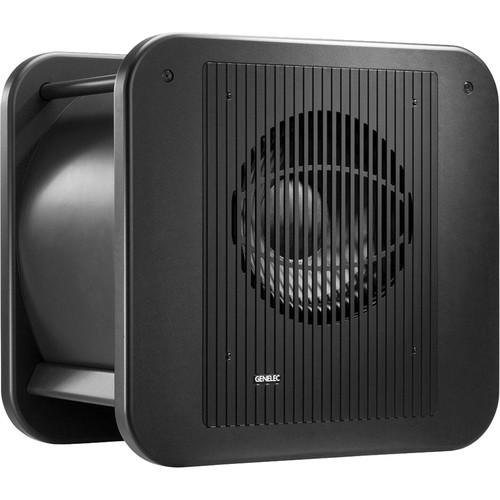

User Manual for Genelec 7380A SAM 800W 15" SAM-Series Studio Subwoofer Click to enlarge the picture
Contents of the user manual for the Genelec 7380A SAM 800W 15" SAM-Series
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec 7380A SAM 800W 15" SAM-Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|

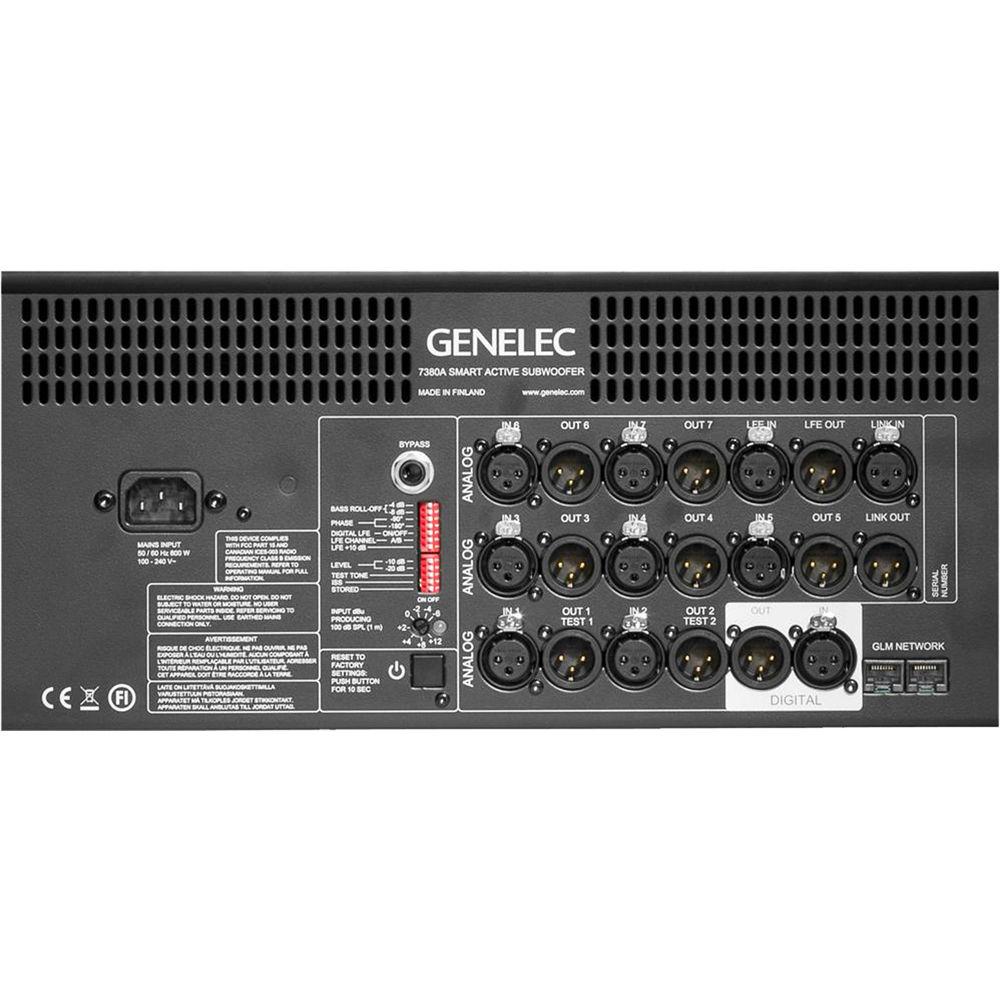

Product description Delivering a level of performance often associated with much larger enclosures, the flagship Genelec 7380A SAM (Smart Active Monitoring) Subwoofer is a 15", 800W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7380A combines the Laminar Spiral Enclosure (LSE) technology with AutoCal and GLM control network technologies. Genelec's AutoCal allows the unit to automatically align multiple subwoofers for level, timing, crossover phase, and equalization of room response anomalies. Providing extended low-frequency performance, accurate tonal characteristics, and high dynamic capabilities, the 7380A supports a distributed bass management architecture. This subwoofer offers 7.1 channel analog XLR inputs and outputs together with stereo AES/EBU XLR inputs and outputs without the need for additional external AD converters. The 800W Class-D amplifier unit is integrated into the enclosure and contains DSP crossover filters, driver overload and protection circuitry. The Genelec 7380A is the low-frequency monitoring tool for music studios, mobile vans, digital workstations, radio and TV broadcasting, providing remarkable sound clarity, definition, and neutrality. -
- Smart Active Monitor (SAM) systems
- Laminar Spiral Enclosure (LSE) technology
- Bass Management system
- Intelligent Signal Sensing (ISS) technology
- Optimized amplifiers
- Active crossovers
- Protection circuitry
In the Box Genelec 7380A SAM 800W 15" SAM-Series Studio Subwoofer Mains Cable GLM Network Cable (5m) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 7380A SAM 800W 15" SAM-Series Studio Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 7380A Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 800 W | | Drivers | Full-Range Driver: 1 x 15" / 38.1 cm Cone | | | | Frequency Range | 16 Hz to 120 Hz (at -6 dB) | | Maximum Sound Pressure Level (SPL) | 123 dB | | Total Harmonic Distortion (THD) | 0.01% | | Maximum Input Level | +24 dBu | | Analog Input Sensitivity/Gain | +48 dBu to -6 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 5 dBA (at 3.28' / 1 m) | | Phase Adjustment | 4-Position Switch 15
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
