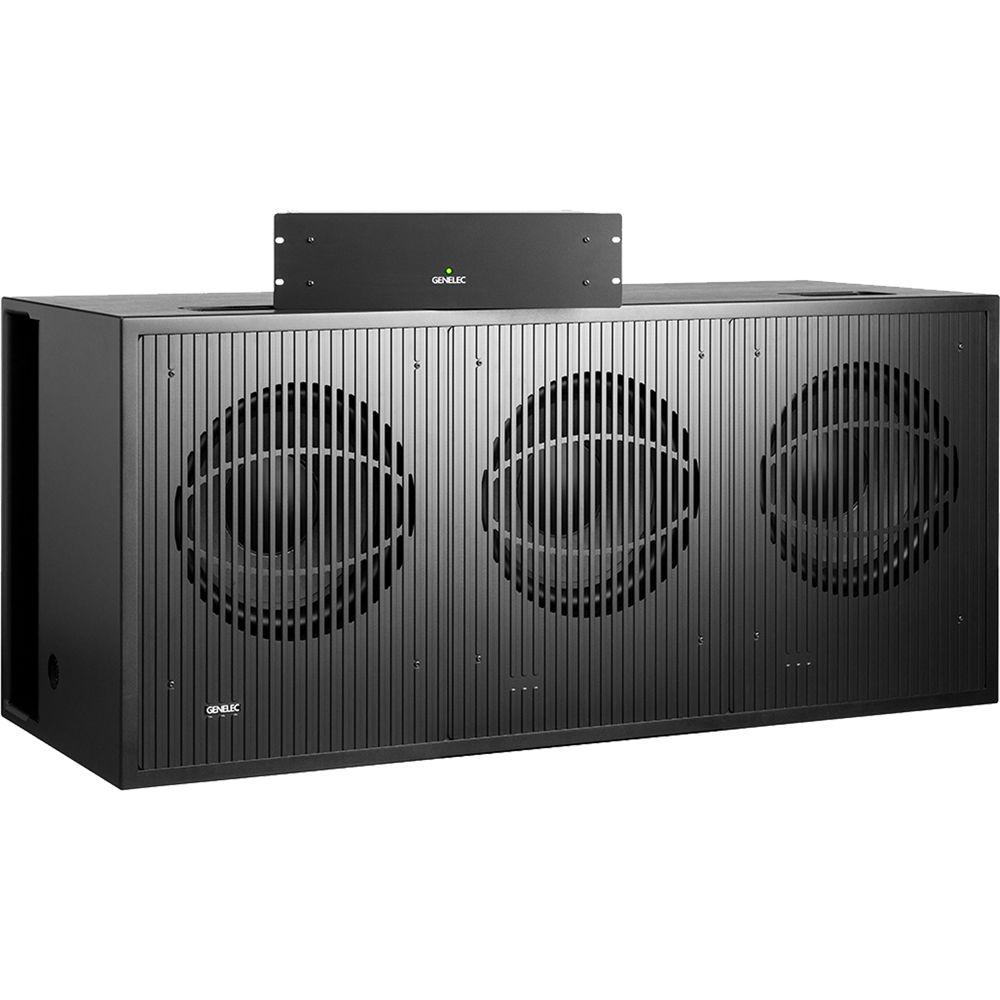

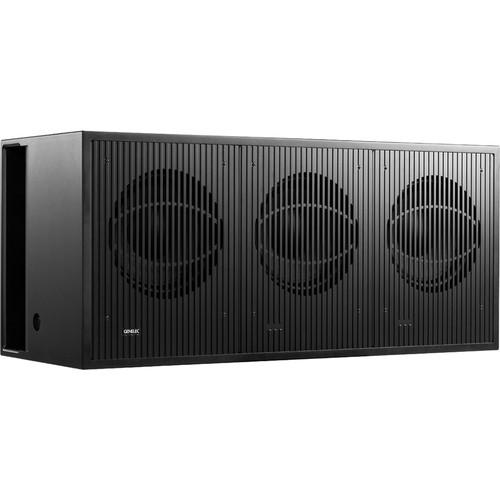

Product description The Genelec 7382AP is a professional, active subwoofer designed to extend the bass reproduction of active loudspeakers. With flexible calibration and bass-management features, it easily integrates into environments requiring analog or digital interfacing, for sound systems ranging from simple stereo to 40+ channels of immersive audio in large recording studios, film mixing facilities, mastering suites, post-production houses, clubs, or high-end home theaters.The 7382AP's rugged, wood-fiberboard enclosure houses three, custom-designed 15" long-throw woofers, which deliver high SPL up to 130 dB, with low distortion and minimal power compression. Combined with a laminar-flow, bass-reflex port, the subwoofer provides precise bass articulation at frequencies down to 15 Hz.Electronics are integrated in the RAM-SW remote amplifier module, individually calibrated to match the supplied subwoofer. The module contains active crossover filters, digital signal processing algorithms, overload protection, and a 2500W, Class-D amplifier. Analog and AES/EBU digital I/O, as well as a separate LFE (Low Frequency Effect) analog input offer a set of flexible connectivity options, which support distributed bass-management technology.As part of the SAM Series of subwoofers, the 7382AP integrates with the Genelec Loudspeaker Manager (GLM) software (free download available separately), via which it can be calibrated, configured, and controlled to compensate for detrimental room/acoustic anomalies, solve issues of subwoofer placement, and obtain a flat frequency response.Built to withstand the rigors of professional use, the 7382AP's electronics, drivers, and enclosure were designed, assembled, tested, and individually calibrated in the Genelec factory in Iisalmi, Finland. Note: Requires the GLM V2.0 User Kit (available separately) to integrate the speaker's Smart Active Monitoring (SAM) technology with the GLM monitor calibration software (free download available separately). - Key Features
-
- Subwoofer with flexible calibration and bass-management features
- For systems ranging from simple stereo to 40+ channels of immersive audio
- Easily integrates in environments requiring analog or digital interfacing
- Use in large recording studios, film-mixing facilities, mastering suites, post-production houses, and more

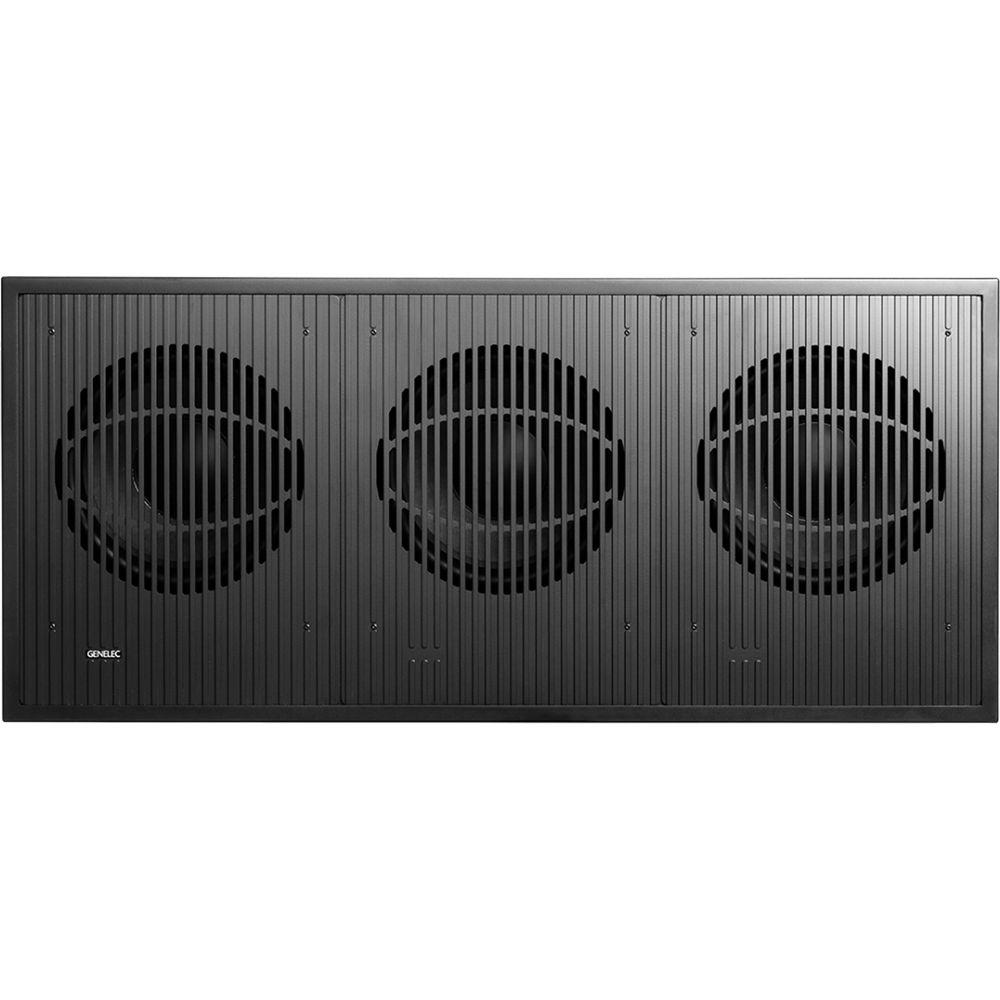

- Three custom-designed 15" woofers
- 2500W Class-D RAM-SW amplifier module
- Laminar-flow bass-reflex port design provides extended low-frequency performance
- Extended low-frequency response down to 15 Hz
- Active crossover
- Maximum SPL in excess of 130 dB
- Frequency response down to 15 Hz
- Smart Active Monitoring (SAM) technology integrates with Genelec Loudspeaker Manager (GLM) software (free download available separately)
- Energy-saving Intelligent Signal Sensing (ISS) automatically puts the subwoofer into power-save mode when audio has been absent for a selected time
- Producer Black finish
- Designed, hand-assembled, and individually tested at Genelec's factory in Iisalmi, Finland
- Rugged Cabinet
-
- High-quality wood fiberboard enclosure
- Heavily braced to eliminate structural resonances and vibration
- Four integrated handles for easy maneuverability and installation
- Custom-Designed 15" Woofers
-
- Three, 15" long-throw, magnetically shielded woofers
- Woofers deliver high SPL with low distortion and minimal power compression
- RAM-SW Remote Amplifier Module
-
- Remote design allows for flexible installation
- Individually calibrated to match supplied subwoofer speaker
- NL4 speakON input connector
- Temperature-controlled forced-air cooling provides low-noise operation and excellent reliability
- Module can be quietly installed in the listening space
- Height: 3 RU
- Genelec-Designed Class-D Amplifiers with SMPS
-
- Produces high output and features universal mains input voltage for convenient worldwide operation
- Quality Electronic Design
-
- Precision DSP algorithms ensure high dynamic range and low self-generated noise
- Smart Active Monitor (SAM) System
-
- For total system control and automated room-calibration features
- Integrates with GLM software (free download available separately)
- Use GLM software to configure, calibrate, and control subwoofer
- Distributed Bass Management
-
- Bass management divides the input audio signal into low-frequency and high-frequency content at the subwoofer crossover frequency
- Monitors and subwoofer receive full bandwidth audio signal and filtering is done separately inside each monitor and subwoofer
- Signal content below the crossover frequency is reproduced by the subwoofer
- The crossover frequency can be adjusted from 50 Hz to 100 Hz in 5 Hz increments
- Crossover is set via the GLM software
- Versatile Connectivity
-
- For adjustable bass management and optimized low-frequency system performance

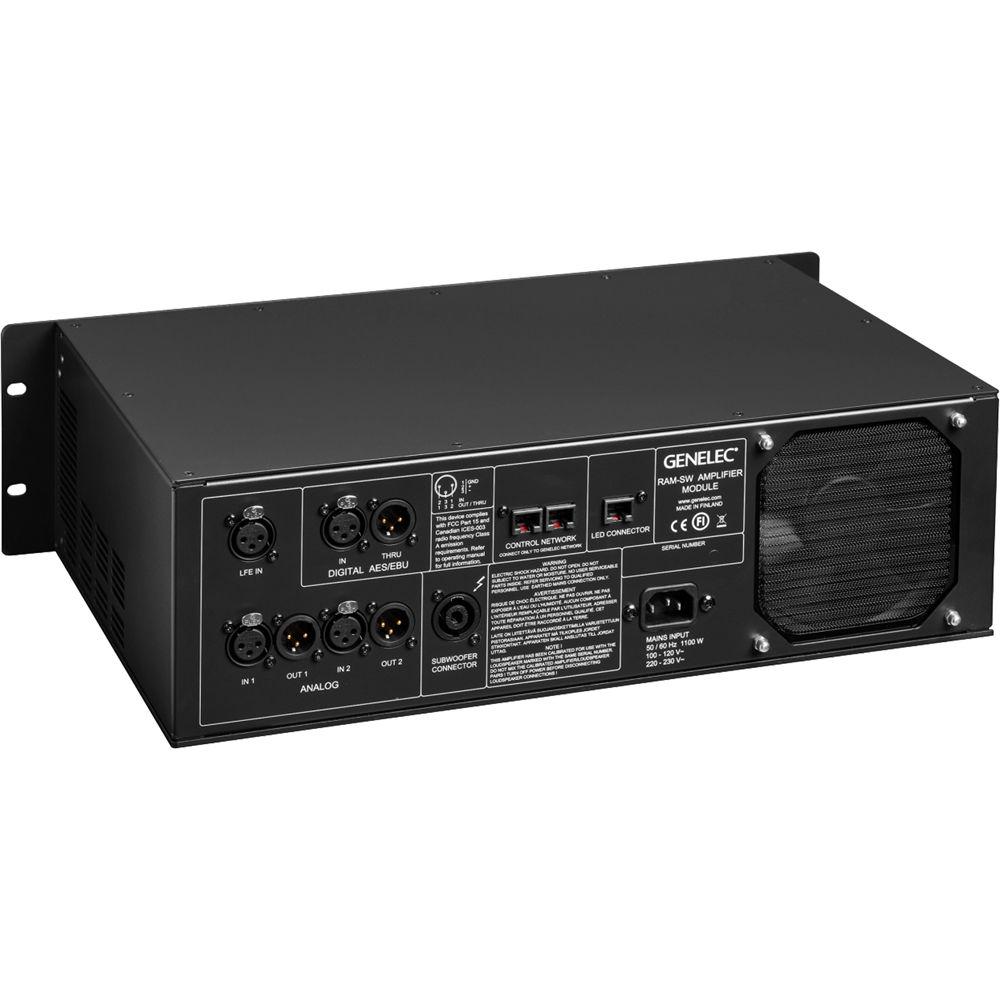

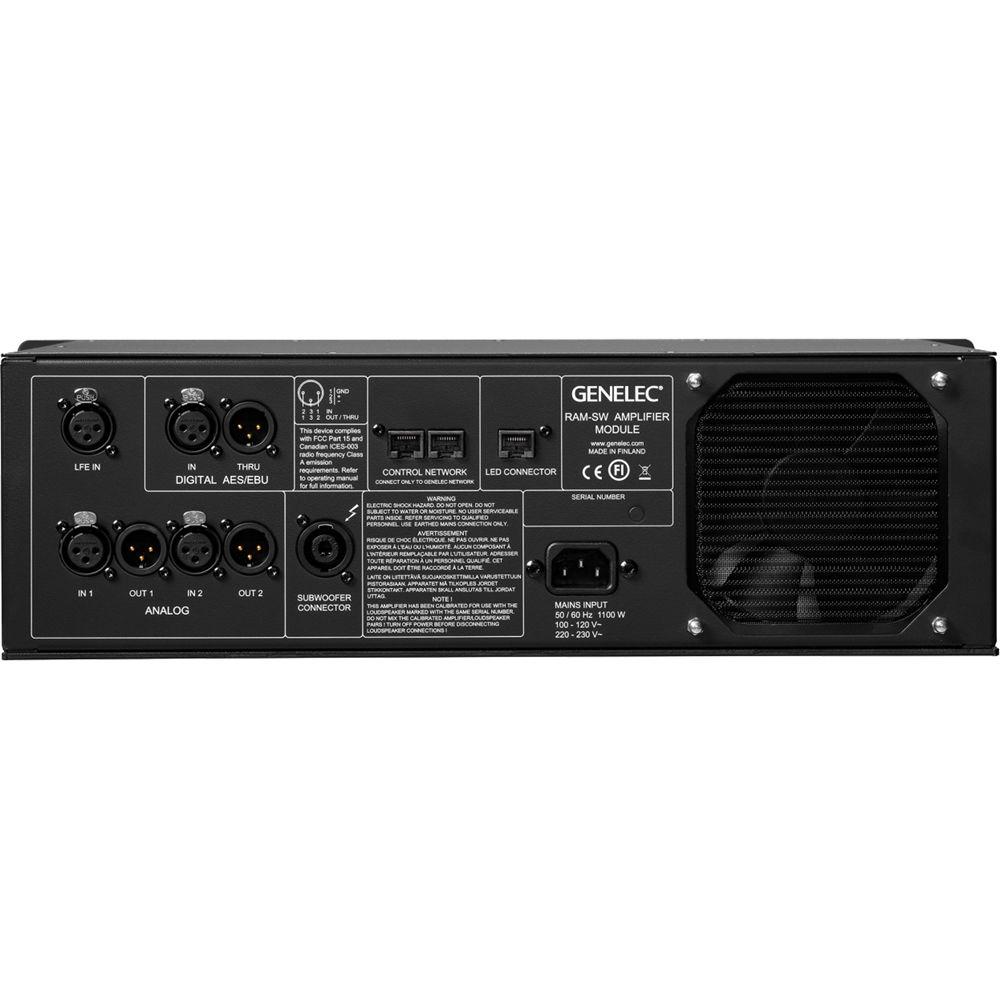

- 2 x XLR balanced analog audio inputs to connect a console or a monitor controller to the subwoofer
- 1 x XLR balanced analog LFE (Low Frequency Effect) input for dedicated analog LFE signal
- 2 x XLR balanced analog audio outputs to connect the subwoofer to the monitors
- 1 x XLR AES/EBU digital audio input (accepts stereo signal)
- 1 x XLR AES/EBU digital audio out/thru for bit-to-bit copy of digital signal at AES/EBU input
- 2 x RJ45 GLM control network connectors
- SpeakON connector to connect amplifier module to subwoofer cabinet
- Sustainability and Green Values
-
- Efficient use of materials
- Low-energy consumption
- Extended lifetime by design
In the Box Genelec 7382AP SAM Series 3 x 15" 2500W Studio Subwoofer (Producer Black) RAM-SW Remote Amplifier Module SpeakON Speaker Cable (33.3') GLM Network Cable (16.4') Power Cord Limited 2-Warranty with an Additional 3 Years Upon Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 7382AP SAM Series 3 x 15" 2500W Studio Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 7382AP Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Drivers | Subwoofer Driver: 3 x 15" / 381 mm Woofer | | Amplification | LF Amplifier: Class-D Rated at 2500 W | | | | Frequency Response | 15 Hz to 100 Hz ± 6 dB LFE: 15 Hz to 120 Hz (-6 dB) | | Maximum Sound Pressure Level (SPL) | 129 dB 133 dB, maximum peak | | Total Harmonic Distortion (THD) | 1% | | Maximum Input Level | +24 dB | | Self-Generated Noise | Less Than 5 dBA (at 3' / 1 m) | | Phase Adjustment | None | | EQ | None | | Filters | None | | Parametric EQ | None | | | | Crossover Frequency | Low-Pass Frequency: 100 Hz LFE: 120 Hz low-pass frequency | | Crossover Type | Active | | | | I/O | 1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms)
2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
2 x 3-Pin XLR Balanced Male Analog Output (10 kOhms)
1 x 3-Pin XLR Balanced Female Analog Input (10 kOhms) Discrete LFE signal input | | Computer Interface | 2 x RJ45 (Network) | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 1500 W (Maximum)
22 W (Idle)
13 W (Standby) | | | | Operating Temperature | 59 to 95°F / 15 to 35°C | | Operating Humidity | 20 to 80% | | | | Enclosure Material | Wood | | Dimensions (W x H x D) | 55.1 x 24.6 x 22.0" / 1400.0 x 625.0 x 558.0 mm (Subwoofer)
19.0 x 5.2 x 11.3" / 483.0 x 132.0 x 286.0 mm RAM-SW amplifier unit | | Weight | 319.7 lb / 145.0 kg (Subwoofer)
24.9 lb / 11.3 kg RAM-SW amplifier unit |
