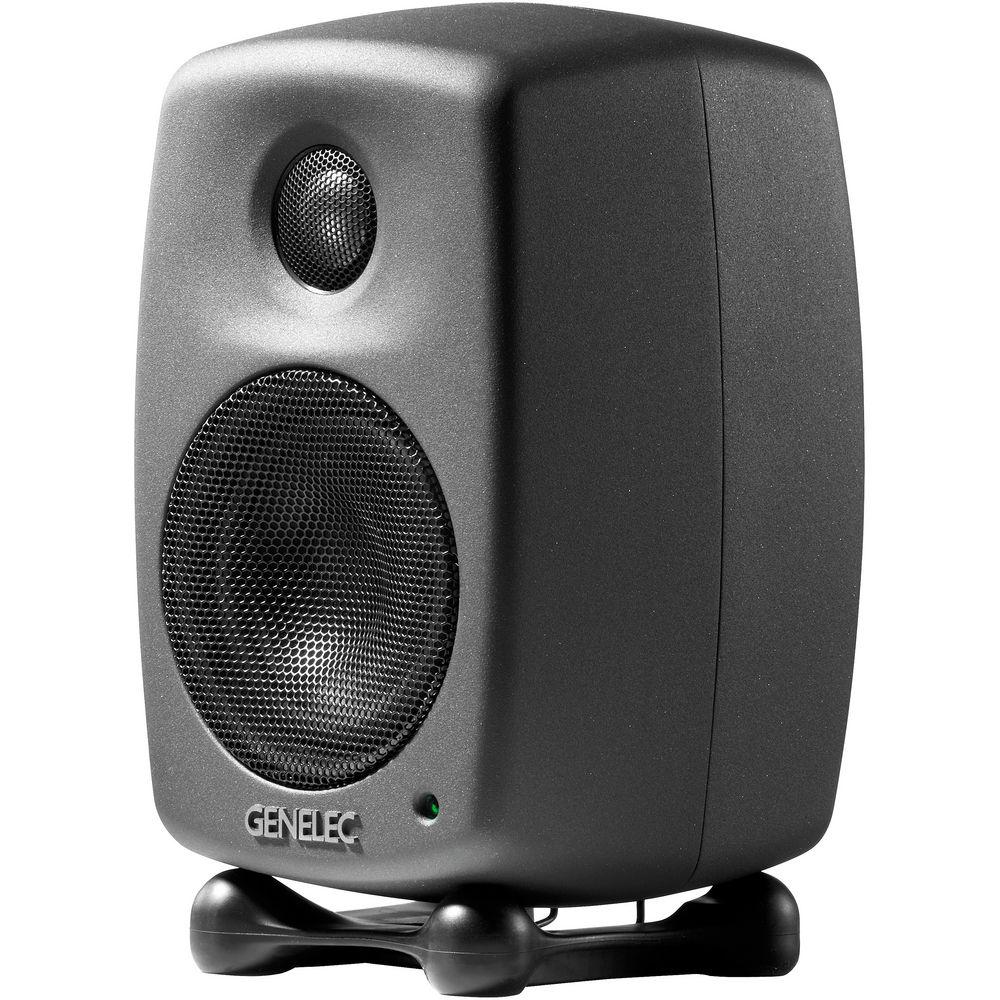

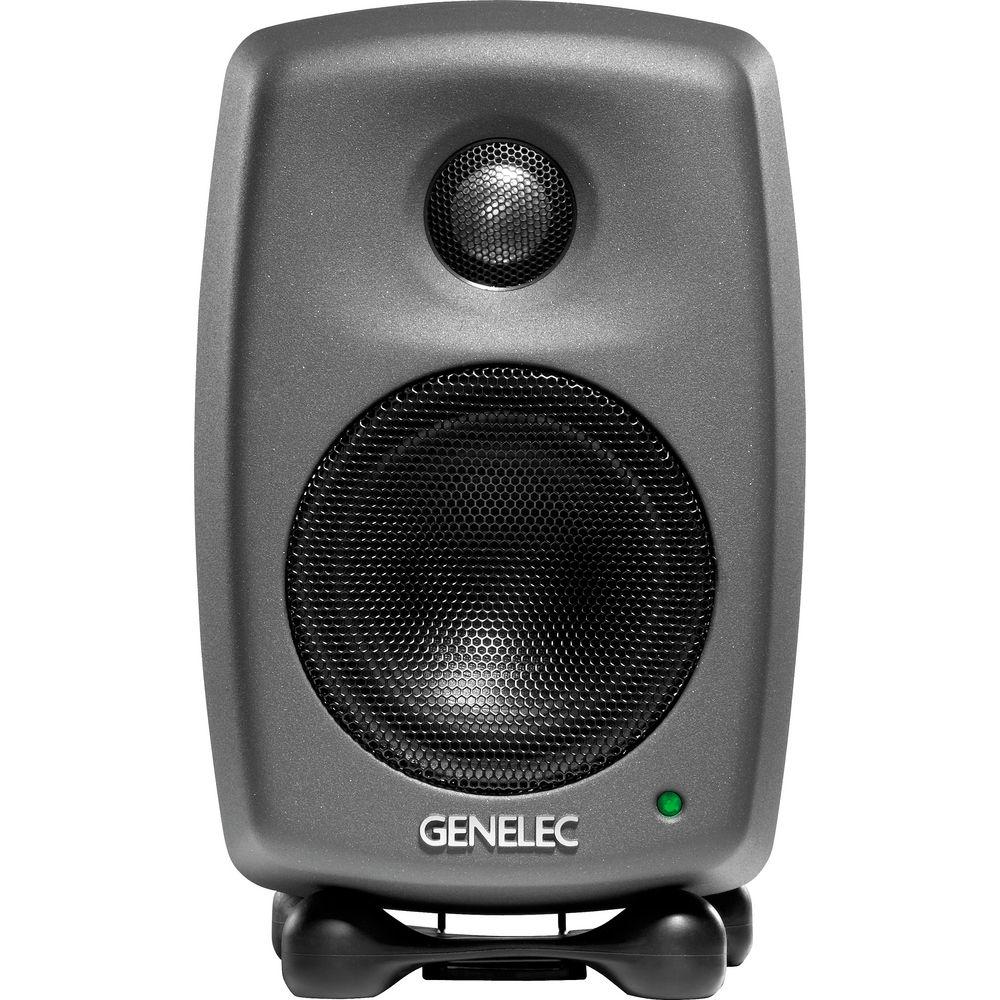

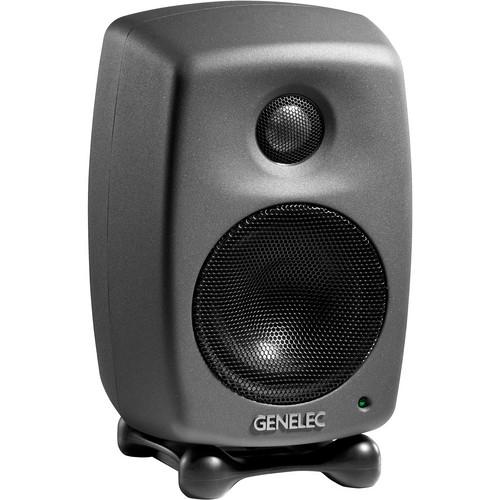

Product description Styled in what the manufacturer has dubbed "Producer Finish," the Genelec 8010 Bi-Amplified Active Monitor (Single) is designed for mixing and mastering in recording studios, broadcast facilities, and mobile work. The compact monitor utilizes independent 25W Class-D amplifiers to power a 3" woofer and a 3/4" metal dome tweeter housed in a die-cast aluminum enclosure.
The monitor utilizes Genelec's Directivity Control Waveguide and Minimum Diffraction Enclosure designs to tame box reflections, flatten the frequency response from 74 Hz to 20 kHz, and provide a maximum SPL of 96 dB.
The amplifiers utilize Genelec's Intelligent Signal Sensing circuitry to conserve electricity, utilizing less than 0.5W in standby mode, 5W when idle, and 30W peak per amplifier at full output. The amplifier automatically detects the presence of an input signal and adjusts the power consumption of the monitor accordingly.

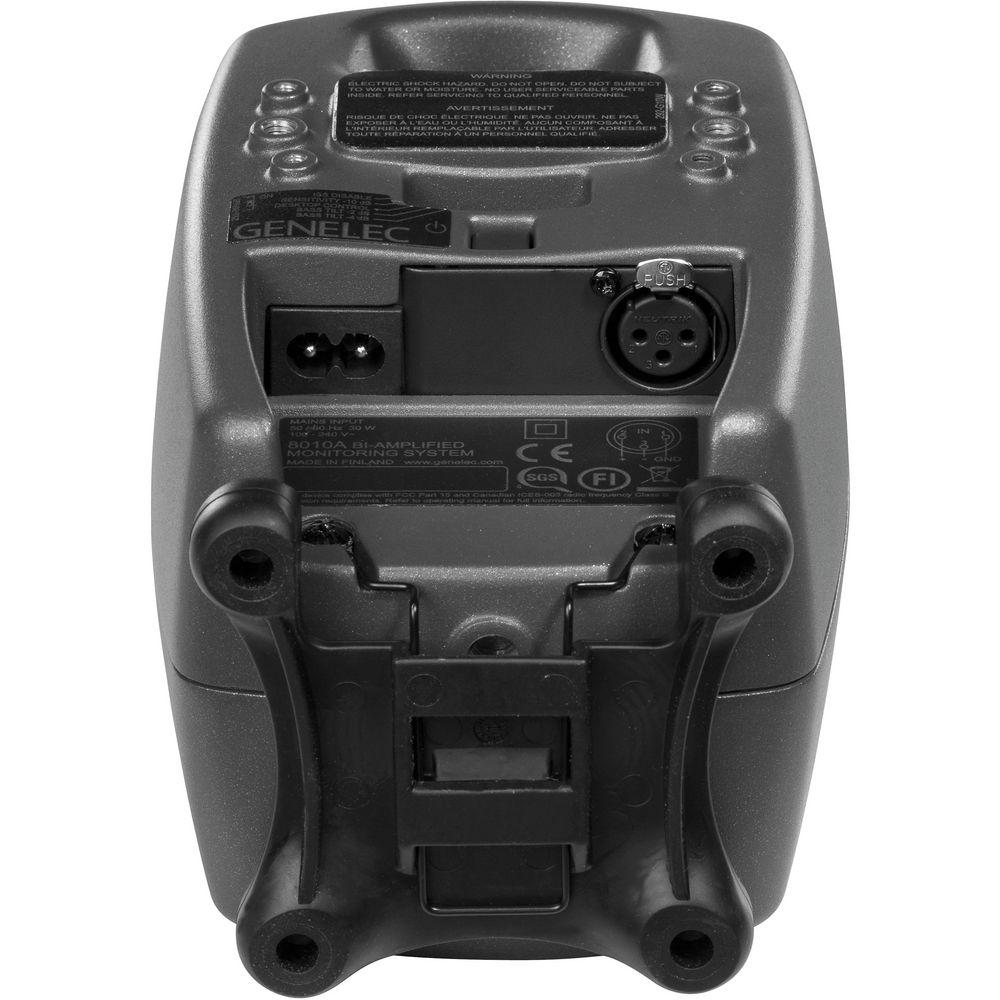

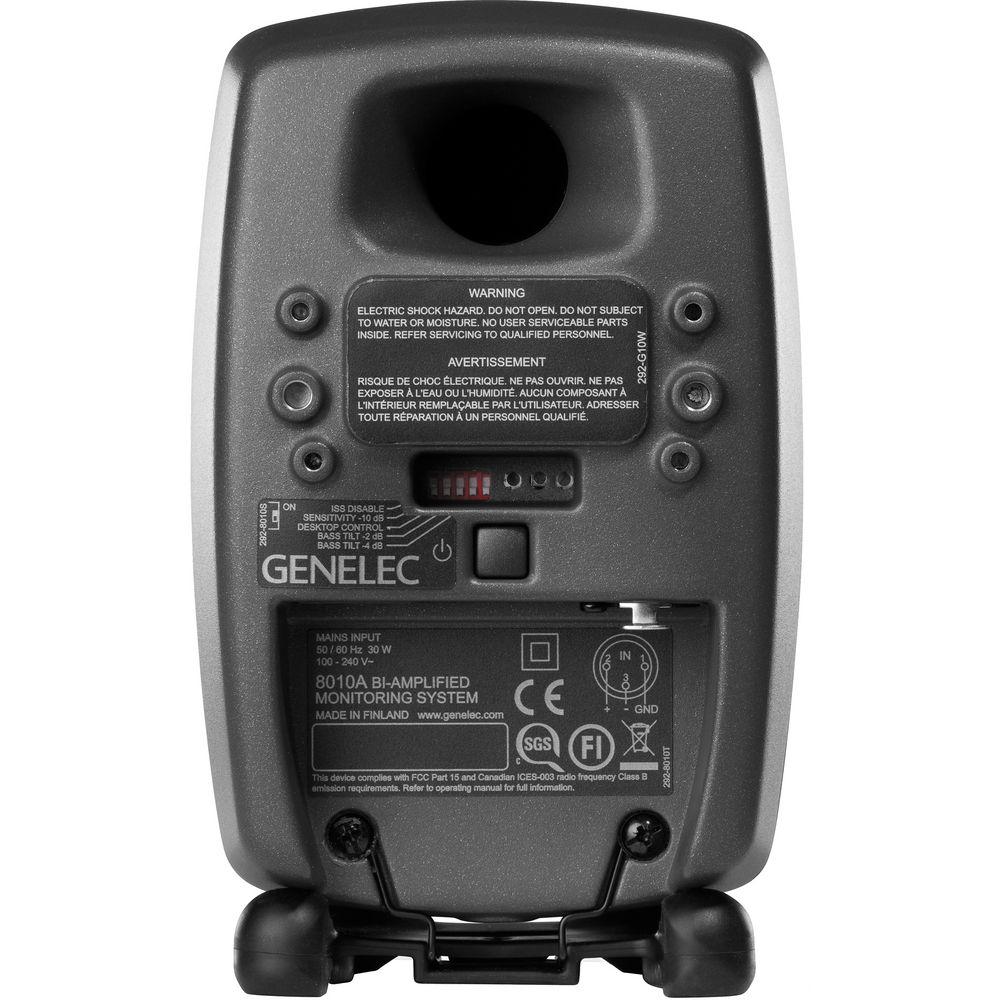

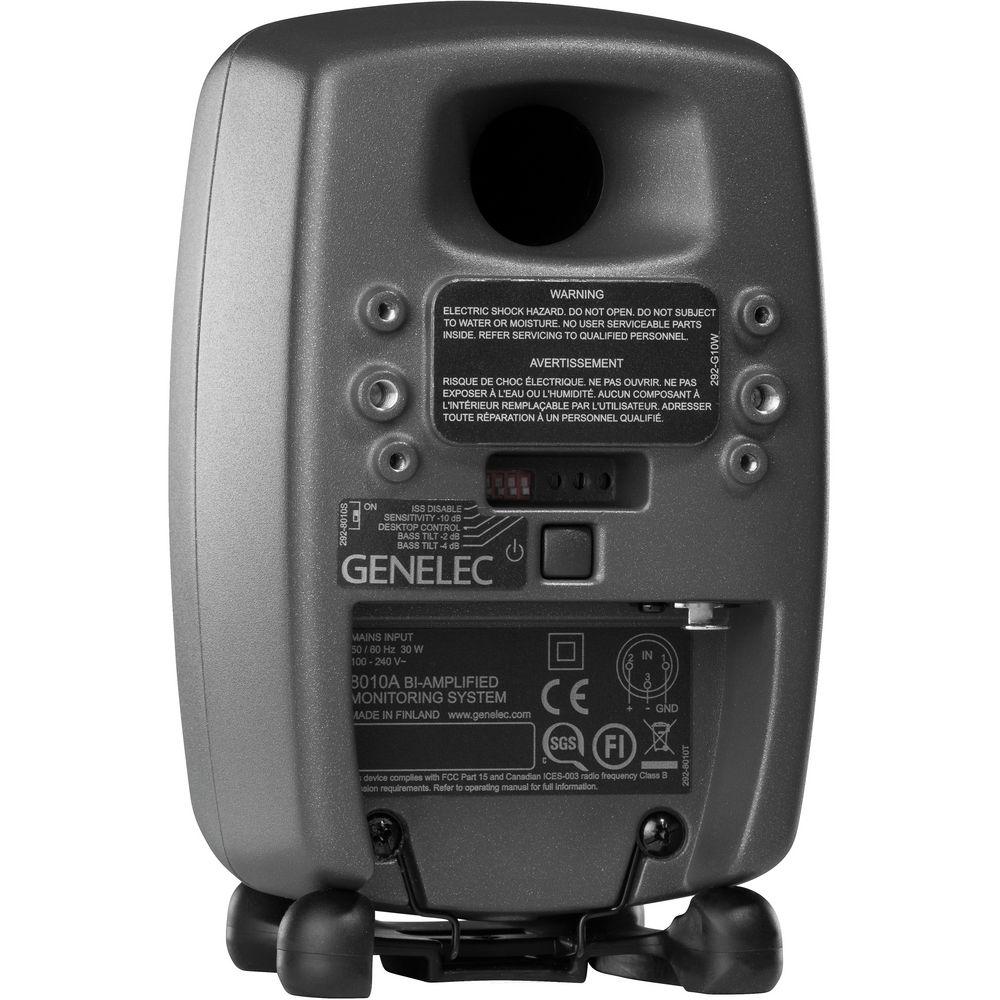

A bass tilt control allows you to adjust the bass response to fit the acoustics of your listening environment. The included ISO stand helps reduce the transmission of structural vibrations into your work surface. In the Box Genelec 8010 Bi-Amplified Active Monitor (Single, Producer Finish) Power Cable Limited 2-Year Warranty User Manual PDF 891.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8010 Bi-Amplified Active Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8010 Specs | Type | Active | | Drivers | 1 x 0.8" / 1.9 cm Tweeter
1 x 3" / 7.6 cm Woofer | | Amplifier Output | Bass with 8-Ohm Load: 25 W
Treble with 8-Ohm Load: 25 W | | Maximum SPL | Short Term at 1 m: ≥96 dB
Short Term at 0.5 m: ≥102 dB
Long Term at 1 m: ≥91 dB
Peak at 1 m: ≥105 dB | | Filter | Lower Cut-Off Frequency, -3 dB: ≤73 Hz
Upper Cut-Off Frequency, -3 dB: ≥21 kHz | | Frequency Response | 74 Hz to 20 kHz (±2.5 dB)
67 Hz to 25 kHz (-6 dB) | | Harmonic Distortion | 70 to 400 Hz: <3% (80 dB SPL, 1 m, On Axis)
Above 400 Hz: <0.5% (80 dB SPL, 1 m, On Axis) | | Input | 1 x Balanced 3-Pin XLR Female | | Input Impedance | 10 kOhms | | Input Level | For 100 dB SPL Output at 1 m: -6 dBu (Sensitivity -10 dB Off)
Level Control Range Relative to Max Output: -10 dB (Sensitivity -10 dB On) | | Crossover Frequency | Bass/Treble: 3 kHz | | Tilt | Bass Control in -2 dB Steps: 0 to -6 dB at 100 Hz | | THD + N | ≤0.08% | | Voltage | 100 to 240 VAC | | Operating Range | Voltage: ± 10% | | Power Consumption | Standby: <0.5 W
Idle: 5 W
Full Output: 30 W | | Dimensions (H x W x D) | With ISO Stand: 7.7 x 4.8 x 4.5" / 19.5 x 12.1 x 11.5 cm
Without ISO Stand: 7.1 x 4.8 x 4.5" / 18.1 x 12.1 x 11.5 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 12.3 x 6.6 x 6.0" |
