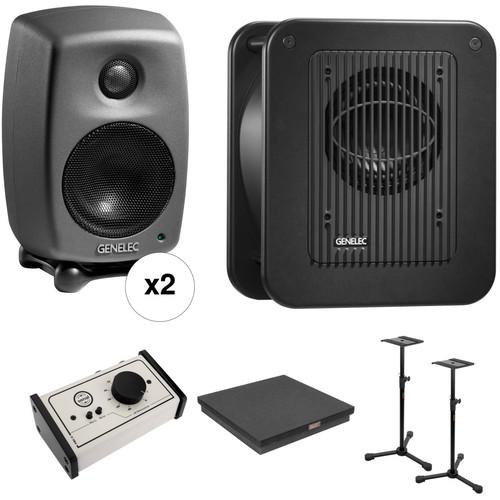

User Manual for Genelec 8010 Deluxe Studio Monitor and Subwoofer Kit with Stands, Sub Platform, and Monitor Controller

• Product category: Studio Monitors Genelec
• Brand: Genelec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genelec Studio Monitors

Product description

• 2 x Genelec 8010 Bi-Amplified Active Monitor (Single, Producer Finish) Styled in what the manufacturer has dubbed "Producer Finish," the Genelec 8010 Bi-Amplified Active Monitor (Single) is designed for mixing and mastering in recording studios, broadcast facilities, and mobile work. The compact monitor utilizes independent 25W Class-D amplifiers to power a 3" woofer and a 3/4" metal dome tweeter housed in a die-cast aluminum enclosure.

  The monitor utilizes Genelec's Directivity Control Waveguide and Minimum Diffraction Enclosure designs to tame box reflections, flatten the frequency response from 74 Hz to 20 kHz, and provide a maximum SPL of 96 dB.

  The amplifiers utilize Genelec's Intelligent Signal Sensing circuitry to conserve electricity, utilizing less than 0.5W in standby mode, 5W when idle, and 30W peak per amplifier at full output. The amplifier automatically detects the presence of an input signal and adjusts the power consumption of the monitor accordingly.

  A bass tilt control allows you to adjust the bass response to fit the acoustics of your listening environment. The included ISO stand helps reduce the transmission of structural vibrations into your work surface.
• Genelec 7040A Studio Subwoofer The Genelec 7040A Studio Subwoofer is an ultra-compact studio subwoofer designed to provide accurate low frequency reproduction in limited production spaces. Offering a professional and reliable low frequency reproduction system in a transportable package, the Genelec 7040A is the ideal to complement Genelec 8010 and 8020 monitors. It extends the low frequency response down to 30 Hz and uses Genelec's patented Laminar Spiral Enclosure (LSE) technology, which provides precise bass articulation and extended low frequency capacity. This stereo subwoofer system can produce 100 dB of undistorted SPL using a 6.5" woofer, and a powerful Genelec-designed Class D amplifier. With its small footprint, the 7040A is a subwoofer solution for recording and composing/project studios, mobile vans and portable recording systems.
• Senal PMC-II Passive Monitor Controller The PMC-II Passive Monitor Controller from Senal is for anyone using powered monitors that needs a precise and easy way to control monitor volume. Featuring XLR/TRS combo inputs as well as TRS stereo mini-jack inputs, the controller is compatible with a variety of professional and consumer audio equipment, and it can be used anywhere a separate volume controller is needed. Designed to be inserted between powered monitors and a computer, a sound card, or an audio interface, the PMC-II adds the convenience of accurately adjusting your monitors' volume without having to access the computer or sound card's volume control. In addition, it is equipped with a 1/8" TRS stereo mini-input jack and is compatible with any smartphone, tablet, MP3 player, or device with a stereo mini-jack output. The PMC-II's passive design won't alter or color the sound originating from the computer or device that it is connected to. Built with a steel housing and solid wood panels, the PMC-II is an effective, stylish, and dependable addition to any workstation or studio.
  Precision Volume Control
  • The PMC-II allows you to accurately adjust the volume of your monitors without having to access your computer or sound card's volume controls
  Passive Design
  • There is no need for a power supply to operate it, and thanks to its passive design, it doesn't alter or color the original sound from your computer or other device
  Multiple Inputs
  • XLR/TRS combo and 1/8" stereo mini inputs offer compatibility with computers, sound cards, and portable devices with a 1/8" stereo output such as an iPhone or tablet
  Multiple Outputs
  • XLR and 1/8" stereo mini-jack outputs ensure compatibility with several monitor formats for professional, project, or home studio applications
  Oversize Control Knob
  • The oversize control knob ranges from 0 to -85 dB of attenuation so that you can easily and accurately control monitor volume
  Mute Button
  • A mute button allows you to quickly silence the output
  Mono Button
  • The mono button is ideal for listening to mixes in mono to check for balance or phasing issues
  Steel Housing
  • The PMC-II is a durable and stylish addition to any workstation or studio
  UPC: 847628594135
• Auray ISO-SUB Subwoofer Isolation Stabilizer The ISO-SUB Subwoofer Isolation Stabilizer from Auray is for improving the sound and resolution of a subwoofer. It is used to reduce vibrations and unwanted resonance that can make a subwoofer sound muddy, and is ideal for home theater, studio, and stereo-system applications. A sturdy, fabric-covered wooden base with EVA (ethylene-vinyl acetate) padding isolates and stabilizes the speaker, and a high-density acoustic foam decouples the speaker from the floor so low frequencies sound clearer and more focused. The ISO-SUB's design preserves the accuracy and clarity of your subwoofer and decreases the transmission of vibrations to adjacent rooms and other spaces.
  Improves the Sound of Your Subwoofer
  • Without the proper isolation, a subwoofer can sound muddy. The ISO-SUB provides a subwoofer with a high-density acoustic-foam platform that minimizes vibrations and resonance to clarify and sharpen the SUB's sound
  Minimizes Resonant Coupling
  • If the subwoofer makes other surfaces vibrate, it diminishes its clarity and accuracy. The ISO-SUB minimizes resonant coupling from the floor or stage so that all you hear is the pure, low-end bass sound coming from the subwoofer
  Prevents Speaker Recoil
  • The EVA padding on the surface of the ISO-SUB prevents speaker recoil by eliminating the speaker's back-to-front motion. This stability enhances speaker accuracy by eliminating the transmission of vibrations to other surfaces
  UPC: 847628597884
• Auray LMS-335 Studio Monitor Stands (Pair) The Auray LMS-335 Studio Monitor Stands are durably constructed and designed to support studio monitors at the optimal listening position in professional and home recording studios.

  Each stand is constructed from steel tubing and a 9" steel plate. An ergonomic locking knob secures the stand, and a locking pin is inserted into six pre-drilled holes to allow the height of each monitor to be adjusted between 35 and 58.5".

  The three-leg design has a base spread of 23" for stability and a geometry that allows for the stand to fit around corners and beside studio furniture. They come with both interchangeable rubber feet for hard wood floors as well as metal spike feet for carpeted floors. The necessary tools and hardware for assembling the stands and changing the feet from rubber pads to metal spikes are included. Two touch-fastener straps are included on the central supports for neatly securing cables to the stand.
  9" Steel Plate
  • Fits most standard studio monitors
  Triangular Base Geometry
  • Allows for the stand to be placed around corners and beside studio furniture
  Locking Pin
  • Secures stand in six positions between 35 and 58.5"
  Interchangeable Feet
  • Features rubber feet for hardwood floors and spiked metal feet for carpeted floors
  Durable Steel Construction
  • Ensures years of reliable use
  UPC: 847628576384

• 2 x 8010 Bi-Amplified Active Monitor (Single, Producer Finish) xruwdrqsurbxyfscvdstxuzzrtxrtd
• Power Cable
• Limited 2-Year Warranty

• 7040A Studio Subwoofer

• Senal - PMC-II Passive Monitor Controller

• Auray - ISO-SUB Subwoofer Isolation Stabilizer

• Auray - LMS-335 Studio Monitor Stands (Pair)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genelec 8010 Bi-Amplified Active Monitor (Single, Producer Finish)

  Type	Active
  Drivers	1 x 0.8" / 1.9 cm Tweeter 1 x 3" / 7.6 cm Woofer
  Amplifier Output	Bass with 8-Ohm Load: 25 W Treble with 8-Ohm Load: 25 W
  Maximum SPL	Short Term at 1 m: ≥96 dB Short Term at 0.5 m: ≥102 dB Long Term at 1 m: ≥91 dB Peak at 1 m: ≥105 dB
  Filter	Lower Cut-Off Frequency, -3 dB: ≤73 Hz Upper Cut-Off Frequency, -3 dB: ≥21 kHz
  Frequency Response	74 Hz to 20 kHz (±2.5 dB) 67 Hz to 25 kHz (-6 dB)
  Harmonic Distortion	70 to 400 Hz: <3% (80 dB SPL, 1 m, On Axis) Above 400 Hz: <0.5% (80 dB SPL, 1 m, On Axis)
  Input	1 x Balanced 3-Pin XLR Female
  Input Impedance	10 kOhms
  Input Level	For 100 dB SPL Output at 1 m: -6 dBu (Sensitivity -10 dB Off) Level Control Range Relative to Max Output: -10 dB (Sensitivity -10 dB On)
  Crossover Frequency	Bass/Treble: 3 kHz
  Tilt	Bass Control in -2 dB Steps: 0 to -6 dB at 100 Hz
  THD + N	≤0.08%
  Voltage	100 to 240 VAC
  Operating Range	Voltage: ± 10%
  Power Consumption	Standby: <0.5 W Idle: 5 W Full Output: 30 W
  Dimensions (H x W x D)	With ISO Stand: 7.7 x 4.8 x 4.5" / 19.5 x 12.1 x 11.5 cm Without ISO Stand: 7.1 x 4.8 x 4.5" / 18.1 x 12.1 x 11.5 cm
  Weight	3.3 lb / 1.5 kg

  Box Dimensions (LxWxH)	12.3 x 6.6 x 6.0"

• Genelec 7040A Studio Subwoofer

  Maximum Sound Pressure Level (SPL)	100 dB
  Frequency Response	30 to 90 Hz (-6 dB)
  Input Level Adjustment	± 3 dB (33 to 85 Hz)
  Driver Diameter	6.5" / 16.5 cm
  Amplifier (Power)	50 W
  Connectors	2x XLR analog input 2x XLR analog output
  Dimensions (HxWxD)	16.1 x 13.8 x 8.1" (41 x 35 x 20.5 cm)
  Weight	24.9 lb (11.3 kg)

  Box Dimensions (LxWxH)	20.0 x 16.0 x 11.0"

• Senal PMC-II Passive Monitor Controller

  Product Type	Monitor controller
  Design	Passive
  Channels	2
  Input Connections	2 x XLR/1/4" (6.3 mm) TRS combo 1/8" (3.5 mm) stereo TRS mini-jack
  Output Connections	2 x XLR 1/8" (3.5 mm) stereo TRS mini-jack
  Line Output Level	Max: 20 dBu
  Output Level	-20 dB
  Output Impedance	600 Ohms
  Input Impedance	10,000 Ohms balanced, 5000 Ohms unbalanced
  Frequency Response	10 Hz to 40 kHz
  Total Harmonic Distortion	0.001%
  Attenuation	85 dB (attenuator) 112 dB (attenuator and mute)
  Controls	Volume knob, mute button, mono button
  Dimensions (H x W x D)	2.4 x 6.4 x 3.3" (6.2 x 16.4 x 8.5 cm)
  Weight	1.6 lb (726 g)

  Box Dimensions (LxWxH)	8.0 x 3.8 x 3.2"

• Auray ISO-SUB Subwoofer Isolation Stabilizer

  Material of Construction	High-density acoustic foam Fabric-covered base Ethylene-vinyl acetate (EVA) padding
  Dimensions (H x W x D)	2 x 15 x 15" (5.1 x 38.1 x 38.1 cm)
  Weight	4.7 lb (2.1 kg)

  Box Dimensions (LxWxH)	16.5 x 15.9 x 2.7"

• Auray LMS-335 Studio Monitor Stands (Pair)

  Minimum Height	35.0" (88.9 cm)
  Maximum Height	58.5" ( 148.6 cm)
  Load Capacity	90.0 lb (40.8 kg)
  Plate Size	9.0 x 9.0" (22.9 x 22.9 cm)
  Base Spread	23.0" (58.4 cm)
  Weight	10.35 lb (4.690 kg)

  Box Dimensions (LxWxH)	35.5 x 10.0 x 9.0"
