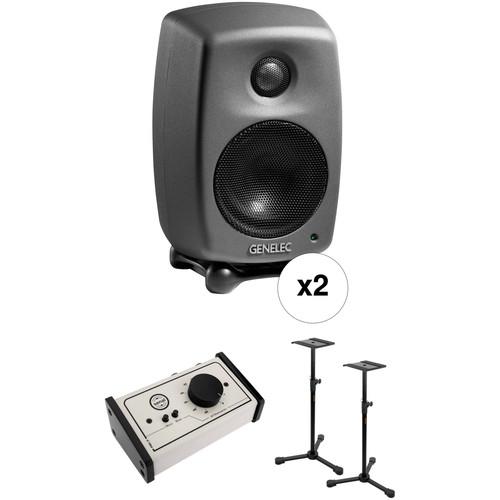

Genelec 8010 Deluxe Studio Monitor Kit

User Manual for Genelec 8010 Deluxe Studio Monitor Kit with Stands and Monitor Controller

• Product category: Studio Monitors Genelec
• Brand: Genelec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genelec Studio Monitors

Product description

• 2 x Genelec 8010 Bi-Amplified Active Monitor (Single, Producer Finish) Styled in what the manufacturer has dubbed "Producer Finish," the Genelec 8010 Bi-Amplified Active Monitor (Single) is designed for mixing and mastering in recording studios, broadcast facilities, and mobile work. The compact monitor utilizes independent 25W Class-D amplifiers to power a 3" woofer and a 3/4" metal dome tweeter housed in a die-cast aluminum enclosure.

  The monitor utilizes Genelec's Directivity Control Waveguide and Minimum Diffraction Enclosure designs to tame box reflections, flatten the frequency response from 74 Hz to 20 kHz, and provide a maximum SPL of 96 dB.

  The amplifiers utilize Genelec's Intelligent Signal Sensing circuitry to conserve electricity, utilizing less than 0.5W in standby mode, 5W when idle, and 30W peak per amplifier at full output. The amplifier automatically detects the presence of an input signal and adjusts the power consumption of the monitor accordingly.

  A bass tilt control allows you to adjust the bass response to fit the acoustics of your listening environment. The included ISO stand helps reduce the transmission of structural vibrations into your work surface.
• Senal PMC-II Passive Monitor Controller The PMC-II Passive Monitor Controller from Senal is for anyone using powered monitors that needs a precise and easy way to control monitor volume. Featuring XLR/TRS combo inputs as well as TRS stereo mini-jack inputs, the controller is compatible with a variety of professional and consumer audio equipment, and it can be used anywhere a separate volume controller is needed. Designed to be inserted between powered monitors and a computer, a sound card, or an audio interface, the PMC-II adds the convenience of accurately adjusting your monitors' volume without having to access the computer or sound card's volume control. In addition, it is equipped with a 1/8" TRS stereo mini-input jack and is compatible with any smartphone, tablet, MP3 player, or device with a stereo mini-jack output. The PMC-II's passive design won't alter or color the sound originating from the computer or device that it is connected to. Built with a steel housing and solid wood panels, the PMC-II is an effective, stylish, and dependable addition to any workstation or studio.
  Precision Volume Control
  • The PMC-II allows you to accurately adjust the volume of your monitors without having to access your computer or sound card's volume controls
  Passive Design
  • There is no need for a power supply to operate it, and thanks to its passive design, it doesn't alter or color the original sound from your computer or other device
  Multiple Inputs
  • XLR/TRS combo and 1/8" stereo mini inputs offer compatibility with computers, sound cards, and portable devices with a 1/8" stereo output such as an iPhone or tablet
  Multiple Outputs
  • XLR and 1/8" stereo mini-jack outputs ensure compatibility with several monitor formats for professional, project, or home studio applications
  Oversize Control Knob
  • The oversize control knob ranges from 0 to -85 dB of attenuation so that you can easily and accurately control monitor volume
  Mute Button
  • A mute button allows you to quickly silence the output
  Mono Button
  • The mono button is ideal for listening to mixes in mono to check for balance or phasing issues
  Steel Housing
  • The PMC-II is a durable and stylish addition to any workstation or studio
  UPC: 847628594135
• Auray LMS-335 Studio Monitor Stands (Pair) The Auray LMS-335 Studio Monitor Stands are durably constructed and designed to support studio monitors at the optimal listening position in professional and home recording studios.

  Each stand is constructed from steel tubing and a 9" steel plate. An ergonomic locking knob secures the stand, and a locking pin is inserted into six pre-drilled holes to allow the height of each monitor to be adjusted between 35 and 58.5".

  The three-leg design has a base spread of 23" for stability and a geometry that allows for the stand to fit around corners and beside studio furniture. They come with both interchangeable rubber feet for hard wood floors as well as metal spike feet for carpeted floors. The necessary tools and hardware for assembling the stands and changing the feet from rubber pads to metal spikes are included. Two touch-fastener straps are included on the central supports for neatly securing cables to the stand.
  9" Steel Plate
  • Fits most standard studio monitors
  Triangular Base Geometry
  • Allows for the stand to be placed around corners and beside studio furniture
  Locking Pin
  • Secures stand in six positions between 35 and 58.5"
  Interchangeable Feet
  • Features rubber feet for hardwood floors and spiked metal feet for carpeted floors
  Durable Steel Construction
  • Ensures years of reliable use
  UPC: 847628576384

• 2 x 8010 Bi-Amplified Active Monitor (Single, Producer Finish) wrvqcxcufccaadwyxwezdwrzt
• Power Cable
• Limited 2-Year Warranty

• Senal - PMC-II Passive Monitor Controller

• Auray - LMS-335 Studio Monitor Stands (Pair)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genelec 8010 Bi-Amplified Active Monitor (Single, Producer Finish)

  Type	Active
  Drivers	1 x 0.8" / 1.9 cm Tweeter 1 x 3" / 7.6 cm Woofer
  Amplifier Output	Bass with 8-Ohm Load: 25 W Treble with 8-Ohm Load: 25 W
  Maximum SPL	Short Term at 1 m: ≥96 dB Short Term at 0.5 m: ≥102 dB Long Term at 1 m: ≥91 dB Peak at 1 m: ≥105 dB
  Filter	Lower Cut-Off Frequency, -3 dB: ≤73 Hz Upper Cut-Off Frequency, -3 dB: ≥21 kHz
  Frequency Response	74 Hz to 20 kHz (±2.5 dB) 67 Hz to 25 kHz (-6 dB)
  Harmonic Distortion	70 to 400 Hz: <3% (80 dB SPL, 1 m, On Axis) Above 400 Hz: <0.5% (80 dB SPL, 1 m, On Axis)
  Input	1 x Balanced 3-Pin XLR Female
  Input Impedance	10 kOhms
  Input Level	For 100 dB SPL Output at 1 m: -6 dBu (Sensitivity -10 dB Off) Level Control Range Relative to Max Output: -10 dB (Sensitivity -10 dB On)
  Crossover Frequency	Bass/Treble: 3 kHz
  Tilt	Bass Control in -2 dB Steps: 0 to -6 dB at 100 Hz
  THD + N	≤0.08%
  Voltage	100 to 240 VAC
  Operating Range	Voltage: ± 10%
  Power Consumption	Standby: <0.5 W Idle: 5 W Full Output: 30 W
  Dimensions (H x W x D)	With ISO Stand: 7.7 x 4.8 x 4.5" / 19.5 x 12.1 x 11.5 cm Without ISO Stand: 7.1 x 4.8 x 4.5" / 18.1 x 12.1 x 11.5 cm
  Weight	3.3 lb / 1.5 kg

  Box Dimensions (LxWxH)	12.3 x 6.6 x 6.0"

• Senal PMC-II Passive Monitor Controller

  Product Type	Monitor controller
  Design	Passive
  Channels	2
  Input Connections	2 x XLR/1/4" (6.3 mm) TRS combo 1/8" (3.5 mm) stereo TRS mini-jack
  Output Connections	2 x XLR 1/8" (3.5 mm) stereo TRS mini-jack
  Line Output Level	Max: 20 dBu
  Output Level	-20 dB
  Output Impedance	600 Ohms
  Input Impedance	10,000 Ohms balanced, 5000 Ohms unbalanced
  Frequency Response	10 Hz to 40 kHz
  Total Harmonic Distortion	0.001%
  Attenuation	85 dB (attenuator) 112 dB (attenuator and mute)
  Controls	Volume knob, mute button, mono button
  Dimensions (H x W x D)	2.4 x 6.4 x 3.3" (6.2 x 16.4 x 8.5 cm)
  Weight	1.6 lb (726 g)

  Box Dimensions (LxWxH)	8.0 x 3.8 x 3.2"

• Auray LMS-335 Studio Monitor Stands (Pair)

  Minimum Height	35.0" (88.9 cm)
  Maximum Height	58.5" ( 148.6 cm)
  Load Capacity	90.0 lb (40.8 kg)
  Plate Size	9.0 x 9.0" (22.9 x 22.9 cm)
  Base Spread	23.0" (58.4 cm)
  Weight	10.35 lb (4.690 kg)

  Box Dimensions (LxWxH)	35.5 x 10.0 x 9.0"
