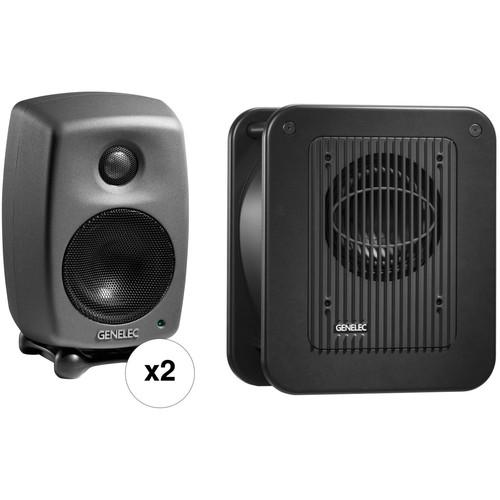

Genelec 8010.LSE StereoPak - Two 8010APs

User Manual for Genelec 8010.LSE StereoPak - Two 8010APs and One 7040A Subwoofer

• Product category: Studio Monitors Genelec
• Brand: Genelec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genelec Studio Monitors

Product description

• 2 x Genelec 8010 Bi-Amplified Active Monitor (Single, Producer Finish) Styled in what the manufacturer has dubbed "Producer Finish," the Genelec 8010 Bi-Amplified Active Monitor (Single) is designed for mixing and mastering in recording studios, broadcast facilities, and mobile work. The compact monitor utilizes independent 25W Class-D amplifiers to power a 3" woofer and a 3/4" metal dome tweeter housed in a die-cast aluminum enclosure.

  The monitor utilizes Genelec's Directivity Control Waveguide and Minimum Diffraction Enclosure designs to tame box reflections, flatten the frequency response from 74 Hz to 20 kHz, and provide a maximum SPL of 96 dB.

  The amplifiers utilize Genelec's Intelligent Signal Sensing circuitry to conserve electricity, utilizing less than 0.5W in standby mode, 5W when idle, and 30W peak per amplifier at full output. The amplifier automatically detects the presence of an input signal and adjusts the power consumption of the monitor accordingly.

  A bass tilt control allows you to adjust the bass response to fit the acoustics of your listening environment. The included ISO stand helps reduce the transmission of structural vibrations into your work surface.
• Genelec 7040A Studio Subwoofer The Genelec 7040A Studio Subwoofer is an ultra-compact studio subwoofer designed to provide accurate low frequency reproduction in limited production spaces. Offering a professional and reliable low frequency reproduction system in a transportable package, the Genelec 7040A is the ideal to complement Genelec 8010 and 8020 monitors. It extends the low frequency response down to 30 Hz and uses Genelec's patented Laminar Spiral Enclosure (LSE) technology, which provides precise bass articulation and extended low frequency capacity. This stereo subwoofer system can produce 100 dB of undistorted SPL using a 6.5" woofer, and a powerful Genelec-designed Class D amplifier. With its small footprint, the 7040A is a subwoofer solution for recording and composing/project studios, mobile vans and portable recording systems.

• 2 x 8010 Bi-Amplified Active Monitor (Single, Producer Finish)
• Power Cable
• Limited 2-Year Warranty

• 7040A Studio Subwoofer

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genelec 8010 Bi-Amplified Active Monitor (Single, Producer Finish)

  Type	Active
  Drivers	1 x 0.8" / 1.9 cm Tweeter 1 x 3" / 7.6 cm Woofer
  Amplifier Output	Bass with 8-Ohm Load: 25 W Treble with 8-Ohm Load: 25 W
  Maximum SPL	Short Term at 1 m: ≥96 dB Short Term at 0.5 m: ≥102 dB Long Term at 1 m: ≥91 dB Peak at 1 m: ≥105 dB
  Filter	Lower Cut-Off Frequency, -3 dB: ≤73 Hz Upper Cut-Off Frequency, -3 dB: ≥21 kHz
  Frequency Response	74 Hz to 20 kHz (±2.5 dB) 67 Hz to 25 kHz (-6 dB)
  Harmonic Distortion	70 to 400 Hz: <3% (80 dB SPL, 1 m, On Axis) Above 400 Hz: <0.5% (80 dB SPL, 1 m, On Axis)
  Input	1 x Balanced 3-Pin XLR Female
  Input Impedance	10 kOhms
  Input Level	For 100 dB SPL Output at 1 m: -6 dBu (Sensitivity -10 dB Off) Level Control Range Relative to Max Output: -10 dB (Sensitivity -10 dB On)
  Crossover Frequency	Bass/Treble: 3 kHz
  Tilt	Bass Control in -2 dB Steps: 0 to -6 dB at 100 Hz
  THD + N	≤0.08%
  Voltage	100 to 240 VAC
  Operating Range	Voltage: ± 10%
  Power Consumption	Standby: <0.5 W Idle: 5 W Full Output: 30 W
  Dimensions (H x W x D)	With ISO Stand: 7.7 x 4.8 x 4.5" / 19.5 x 12.1 x 11.5 cm Without ISO Stand: 7.1 x 4.8 x 4.5" / 18.1 x 12.1 x 11.5 cm
  Weight	3.3 lb / 1.5 kg

  Box Dimensions (LxWxH)	12.3 x 6.6 x 6.0"

• Genelec 7040A Studio Subwoofer

  Maximum Sound Pressure Level (SPL)	100 dB
  Frequency Response	30 to 90 Hz (-6 dB)
  Input Level Adjustment	± 3 dB (33 to 85 Hz)
  Driver Diameter	6.5" / 16.5 cm
  Amplifier (Power)	50 W
  Connectors	2x XLR analog input 2x XLR analog output
  Dimensions (HxWxD)	16.1 x 13.8 x 8.1" (41 x 35 x 20.5 cm)
  Weight	24.9 lb (11.3 kg)

  Box Dimensions (LxWxH)	20.0 x 16.0 x 11.0"
