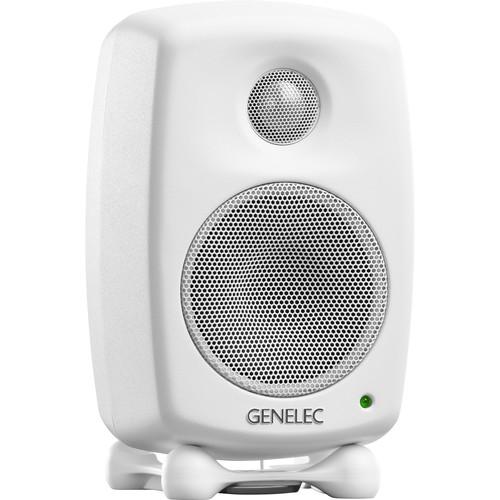

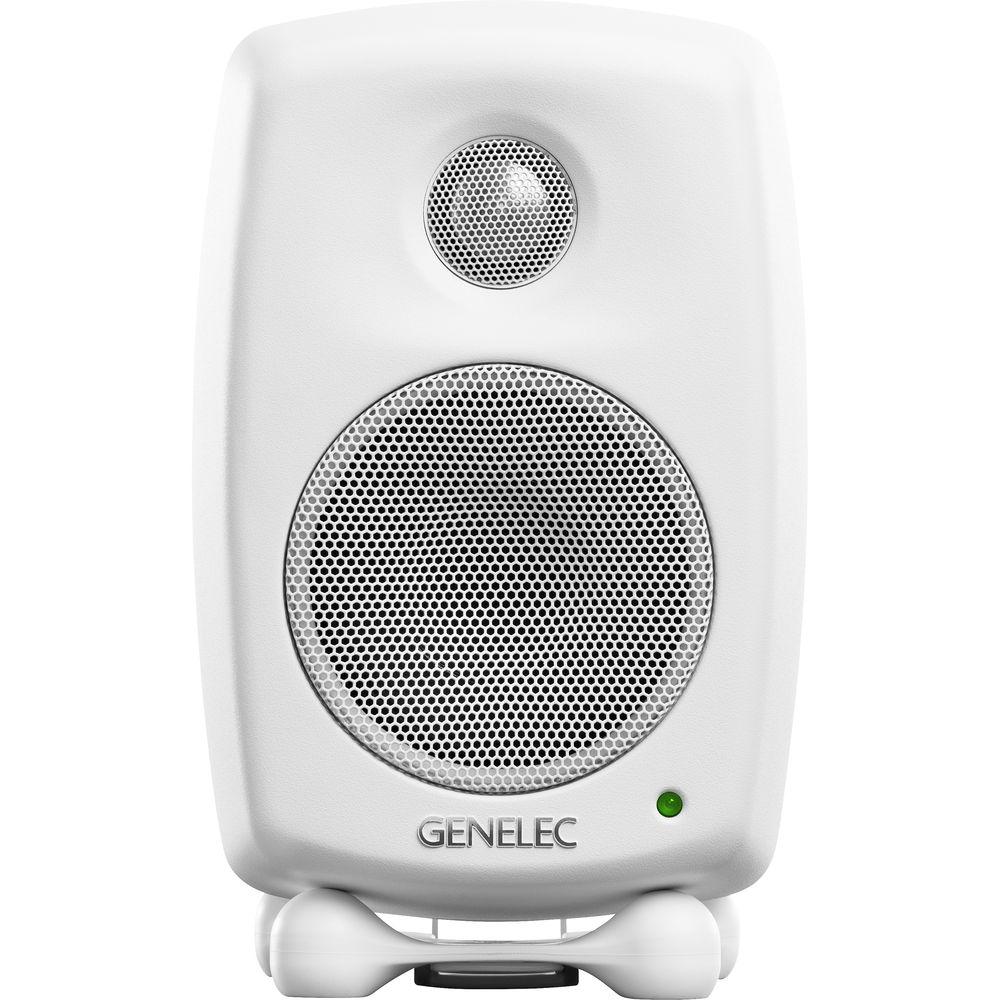

Product description The white Genelec 8010A is a single 2-way active studio monitor designed to provide accurate mix referencing for audio engineers, musicians, and producers in project studios, small control rooms, or mobile setups. It features 50W of Class-D amplification driving a 3” woofer and 3/4” metal-dome tweeter, producing a frequency response of 67 Hz to 25 kHz.A proprietary waveguide enhances imaging while the bass reflex port extends the low-frequency response. The aluminum enclosure is shaped to minimize diffraction. It supports a balanced input via an XLR 3-pin connector. Room compensation options include a sensitivity switch and multiple low-frequency adjustments. There is a selectable power-saving mode that enables automatic power up/down via a signal-sensing circuit.The 8010A offers multiple mounting options including three pairs of threaded holes for compatibility with various brackets and an Iso-Pod isolation stand. -
- 3" woofer and 3/4" metal-dome tweeter
- 50W Class-D amplification
- 67 Hz to 25 kHz frequency response (-6 dB), 74 Hz to 20 kHz frequency response (± 2.5 dB)
- Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging and wider listening area
- Bass reflex port provides extended low-frequency response
- Room compensation controls include sensitivity and low-frequency adjustments
- Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology

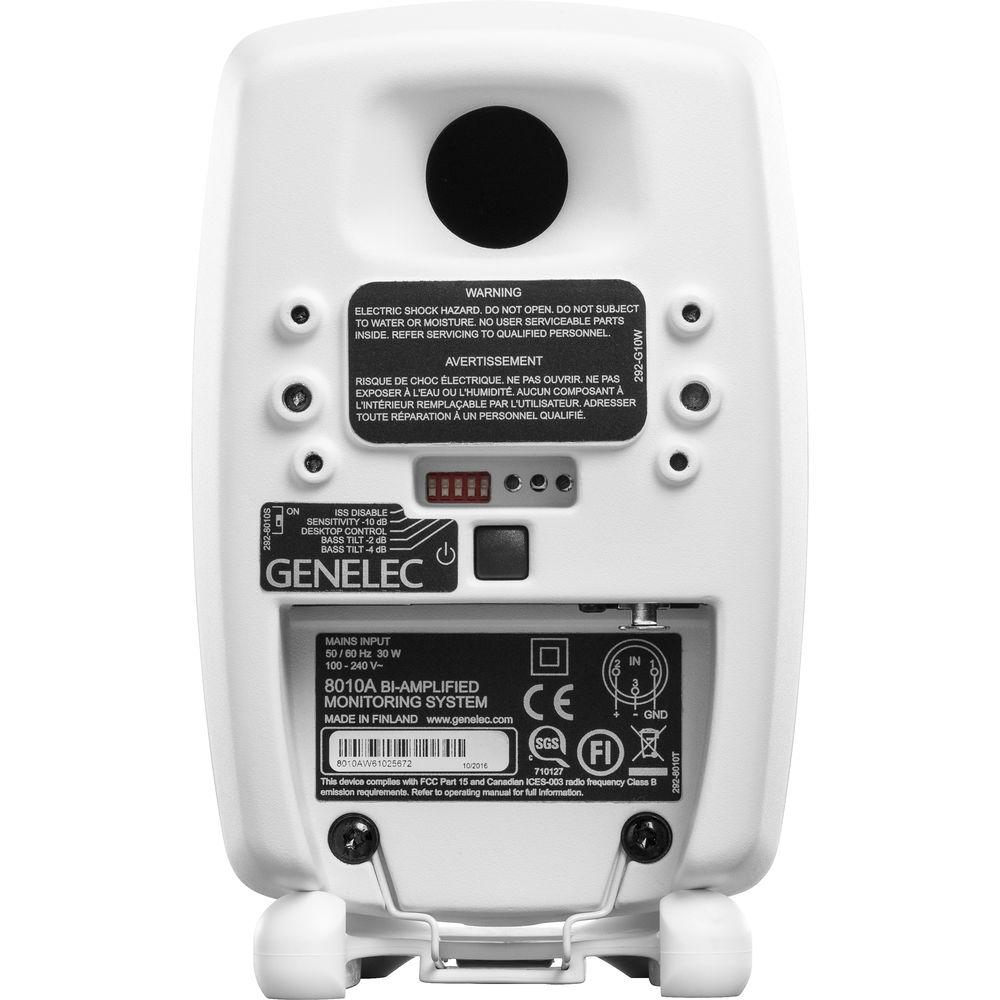

- Balanced XLR 3-pin input
- ISS (Intelligent Signal Sensing) automatic power-saving mode
- Multiple mounting options: Iso-Pod and three pairs of threaded holes that are compatible with OmniMount, VESA, and Sanus brackets
- Includes Iso-Pod isolation stand for vibration decoupling
In the Box Genelec 8010A 3" 2-Way 50W Active Studio Monitor (Single, White) Iso-Pod Isolation Stand Power Cable Limited 2-Year Warranty with 3-Year Extension upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8010A 3" 2-Way 50W Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8010A Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 0.75" / 19 mm Tweeter
LF Driver: 1 x 3" / 76 mm Woofer | | Amplification | HF Amplifier: Class-D Rated at 25 W
LF Amplifier: Class-D Rated at 25 W | | | | Frequency Range | 67 Hz to 25 kHz (at -6 dB) | | Frequency Response | 74 Hz to 20 kHz ± 2.5 dB | | Maximum Sound Pressure Level (SPL) | 105 dB | | Total Harmonic Distortion (THD) | 0.08% | | Analog Input Sensitivity/Gain | -6 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 5 dBA (at 3.28' / 1 m) | | | | EQ | 1 x LF Shelf: -6 to 0 dB at 100 Hz | | | | Crossover Frequency | 3 kHz | | | | I/O | 1 x 3-Pin XLR Analog Input (7 kOhms) | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
5 W (Idle)
30 W (Maximum) | | | | Enclosure Material | Aluminum | | Dimensions (W x H x D) | 4.8 x 7.7 x 4.5" / 121.0 x 195.0 x 114.0 mm Height Excluding Iso-Pod: 7.1" / 181 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 12.3 x 6.3 x 5.9" |
