Genelec 8020 Deluxe Studio Monitor Kit

User Manual for Genelec 8020 Deluxe Studio Monitor Kit with Stands and Monitor Controller

• Product category: Studio Monitors Genelec
• Brand: Genelec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genelec Studio Monitors

Product description

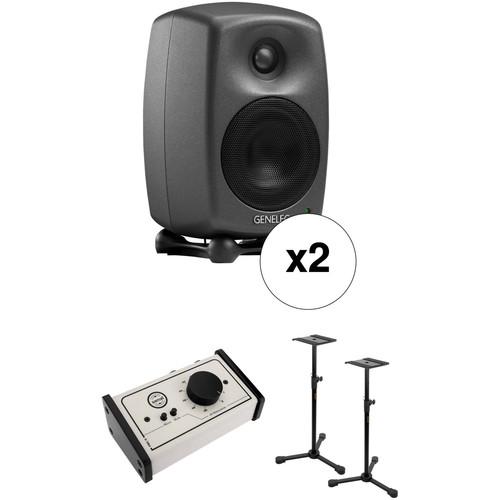

• 2 x Genelec 8020D Studio Monitor (Producer Finish) Styled in what the manufacturer has dubbed a "Producer Finish", and now utilizing Class-D amplification, the Genelec 8020D Active Two-Way 4" Studio Monitor provides an accurate reproduction of the source material in a compact form factor. Its die-cast aluminum enclosure features a rounded shape, which minimizes frequency and reflection distortions caused by edge diffraction. The metal dome tweeter is surrounded by Genelec's Directivity Controlled Waveguide, which helps to create an even response when listening both on and off axis.

  The 8020D is built with Intelligent Signal Sensing (ISS) technology, which automatically activates the speaker when an audio signal is detected and puts it in standby mode when no signal is present, reducing its energy consumption to less than 0.5W. The 8020D features a 50W high-frequency amplifier for its ¾" tweeter, and a 50W low-frequency amplifier for its 4" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec subwoofer can be used to monitor a wider array of frequencies.
  • Attached Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
  • Well-suited for near-field studio monitoring, control rooms, editing suites, surround sound applications, and multimedia entertainment systems
  • Rear-facing treble-tilt, bass roll-off, and desktop cut controls enable you to optimize the speaker to its environment
  • Threaded holes for wall or ceiling brackets
  • Active crossover filter
  • Driver unit protection circuitry
  • Woofer and tweeter magnetically shielded
• Senal PMC-II Passive Monitor Controller The PMC-II Passive Monitor Controller from Senal is for anyone using powered monitors that needs a precise and easy way to control monitor volume. Featuring XLR/TRS combo inputs as well as TRS stereo mini-jack inputs, the controller is compatible with a variety of professional and consumer audio equipment, and it can be used anywhere a separate volume controller is needed. Designed to be inserted between powered monitors and a computer, a sound card, or an audio interface, the PMC-II adds the convenience of accurately adjusting your monitors' volume without having to access the computer or sound card's volume control. In addition, it is equipped with a 1/8" TRS stereo mini-input jack and is compatible with any smartphone, tablet, MP3 player, or device with a stereo mini-jack output. The PMC-II's passive design won't alter or color the sound originating from the computer or device that it is connected to. Built with a steel housing and solid wood panels, the PMC-II is an effective, stylish, and dependable addition to any workstation or studio.
  Precision Volume Control
  • The PMC-II allows you to accurately adjust the volume of your monitors without having to access your computer or sound card's volume controls
  Passive Design
  • There is no need for a power supply to operate it, and thanks to its passive design, it doesn't alter or color the original sound from your computer or other device
  Multiple Inputs
  • XLR/TRS combo and 1/8" stereo mini inputs offer compatibility with computers, sound cards, and portable devices with a 1/8" stereo output such as an iPhone or tablet
  Multiple Outputs
  • XLR and 1/8" stereo mini-jack outputs ensure compatibility with several monitor formats for professional, project, or home studio applications
  Oversize Control Knob
  • The oversize control knob ranges from 0 to -85 dB of attenuation so that you can easily and accurately control monitor volume
  Mute Button
  • A mute button allows you to quickly silence the output
  Mono Button
  • The mono button is ideal for listening to mixes in mono to check for balance or phasing issues
  Steel Housing
  • The PMC-II is a durable and stylish addition to any workstation or studio
  UPC: 847628594135
• Auray LMS-335 Studio Monitor Stands (Pair) The Auray LMS-335 Studio Monitor Stands are durably constructed and designed to support studio monitors at the optimal listening position in professional and home recording studios.

  Each stand is constructed from steel tubing and a 9" steel plate. An ergonomic locking knob secures the stand, and a locking pin is inserted into six pre-drilled holes to allow the height of each monitor to be adjusted between 35 and 58.5".

  The three-leg design has a base spread of 23" for stability and a geometry that allows for the stand to fit around corners and beside studio furniture. They come with both interchangeable rubber feet for hard wood floors as well as metal spike feet for carpeted floors. The necessary tools and hardware for assembling the stands and changing the feet from rubber pads to metal spikes are included. Two touch-fastener straps are included on the central supports for neatly securing cables to the stand.
  9" Steel Plate
  • Fits most standard studio monitors
  Triangular Base Geometry
  • Allows for the stand to be placed around corners and beside studio furniture
  Locking Pin
  • Secures stand in six positions between 35 and 58.5"
  Interchangeable Feet
  • Features rubber feet for hardwood floors and spiked metal feet for carpeted floors
  Durable Steel Construction
  • Ensures years of reliable use
  UPC: 847628576384

• 2 x 8020D Studio Monitor (Producer Finish) rqdxzvwxrzye
• Limited 2-Year Warranty (Extendable to 5-Years Total with Registration)

• Senal - PMC-II Passive Monitor Controller

• Auray - LMS-335 Studio Monitor Stands (Pair)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Genelec 8020D Studio Monitor (Producer Finish)

  Cut-Off Frequency	Lower: ≤ 56 Hz at -6 dB Upper: ≥ 25 kHz at -6 dB
  Frequency Response	62 Hz to 20 kHz (±2.5 dB)
  SPL	≥ 100 dB SPL maximum (short-term sine-wave acoustic output on axis in half-space, averaged from 100 Hz to 3 kHz at 3.3' / 1 m) 93 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3' / 1 m)
  Peak Output Capacity	≥ 107 db maximum peak acoustic output (per pair in listening room with music material at 3.3' / 1 m)
  Self-Generated Noise Level	≤ 5 dB (in free field at 3.3' / 1 m on axis (A-weighted))
  Harmonic Distortion	< 3% (at 85 dB SPL at 3.3' / 1 m on axis, 50 to 200 Hz) < 0.5% (at 85 dB SPL at 3.3' / 1 m on axis, higher than 200 Hz)
  Drivers	Bass: 4" / 105 mm cone Treble: ¾" / 19 mm metal dome Both drivers are magnetically shielded
  Amplifier	Bass Amplifier Short-Term Output Power: 50 W Treble Amplifier Short-Term Output Power: 50 W Long-term output power is limited by driver protection circuitry
  THD	≤ 0.05% at nominal output
  Crossover Frequency	Bass/Treble: 3 kHz
  Digital Controls	GLM Software Frequency Response Adjustment Parametric Notch Filters: 16x Shelving Filters: 2 x LF and 2 x HF System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone
  Mains Voltage	100 to 240 VAC 50/60 Hz
  Power Consumption	Idle: 3 W Standby: < 0.5 W Full Output: 60 W
  Analog Input	XLR female, balanced (pin 1 ground, pin 2 positive, pin 3 negative)
  Input Level	-6 dBu at volume control max (for 100 dB SPL at 3.3' / 1 m)
  Input Impedance	10 kOhms
  Sensitivity	-12 dB (constantly variable, control range relative to maximum output)
  Controls	Treble Tilt Control (operating range): 0 to -2 dB at 15 kHz Desktop 200-Hz Control: -4 dB at 200 Hz Bass Roll-Off Control: 0 to -4 dB at 65 Hz
  Analog Input	Maximum Analog Input Level: +24 dBu Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3' / 1 m) Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu
  Dimensions (H x W x D)	9.5 x 6.0 x 5.6" / 242.0 x 151.0 x 142.0 mm, Iso-Pod stand included 9.1 x 6.0 x 5.6" / 230.0 x 151.0 x 142.0 mm, Iso-Pod stand excluded
  Weight	7.0 lb / 3.2 kg

  Box Dimensions (LxWxH)	14.9 x 8.0 x 7.5"

• Senal PMC-II Passive Monitor Controller

  Product Type	Monitor controller
  Design	Passive
  Channels	2
  Input Connections	2 x XLR/1/4" (6.3 mm) TRS combo 1/8" (3.5 mm) stereo TRS mini-jack
  Output Connections	2 x XLR 1/8" (3.5 mm) stereo TRS mini-jack
  Line Output Level	Max: 20 dBu
  Output Level	-20 dB
  Output Impedance	600 Ohms
  Input Impedance	10,000 Ohms balanced, 5000 Ohms unbalanced
  Frequency Response	10 Hz to 40 kHz
  Total Harmonic Distortion	0.001%
  Attenuation	85 dB (attenuator) 112 dB (attenuator and mute)
  Controls	Volume knob, mute button, mono button
  Dimensions (H x W x D)	2.4 x 6.4 x 3.3" (6.2 x 16.4 x 8.5 cm)
  Weight	1.6 lb (726 g)

  Box Dimensions (LxWxH)	8.0 x 3.8 x 3.2"

• Auray LMS-335 Studio Monitor Stands (Pair)

  Minimum Height	35.0" (88.9 cm)
  Maximum Height	58.5" ( 148.6 cm)
  Load Capacity	90.0 lb (40.8 kg)
  Plate Size	9.0 x 9.0" (22.9 x 22.9 cm)
  Base Spread	23.0" (58.4 cm)
  Weight	10.35 lb (4.690 kg)

  Box Dimensions (LxWxH)	35.5 x 10.0 x 9.0"
