Genelec 8020D ESPRESSO 4" Active 5.1

Search your instruction manual in PDF to download

User Manual for Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer

Click to enlarge the picture
Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer Contents of the user manual for the Genelec 8020D ESPRESSO 4" Active 5.1
  • Product category: Studio Monitors Genelec
  • Brand: Genelec
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Genelec Studio Monitors

User manual for the Genelec 8020D ESPRESSO 4" Active 5.1 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Genelec product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!



Product description

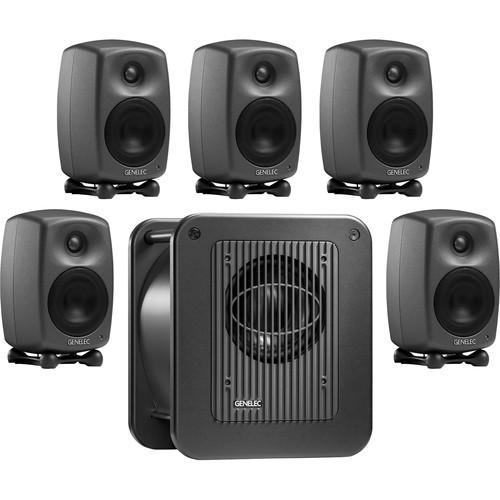

The compact Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer includes five 8020D studio monitors and a 7050C subwoofer. Small in dimension, the system is designed to provide accurate sound reproduction with extended low end, for near-field monitoring when space is limited.
The 8020D is a 4" two-way active studio monitor equipped with a 50W woofer amplifier and a 50W tweeter amplifier. Its die-cast aluminum enclosure features Minimum Diffraction Enclosure (MDE) technology, which improves the flatness of the frequency response and the power response of free-standing loudspeaker systems. The speaker employs Directivity Control Waveguide (DCW) technology to minimize early reflections, make the sound directivity uniform and smooth, and provide color-free and accurate reproduction.The 7050C is an 8" active subwoofer ideally matched with the 8020D speakers in both stereo and multichannel audio formats. It delivers 130W of power and extends the low frequencies down to 24 Hz. The subwoofer features the company's Laminar Spiral Enclosure (LSE) technology and provides enhanced, color-free low end.
  • 8020D Studio Monitor (Producer Finish) Styled in what the manufacturer has dubbed a "Producer Finish", and now utilizing Class-D amplification, the Genelec 8020D Active Two-Way 4" Studio Monitor provides an accurate reproduction of the source material in a compact form factor. Its die-cast aluminum enclosure features a rounded shape, which minimizes frequency and reflection distortions caused by edge diffraction. The metal dome tweeter is surrounded by Genelec's Directivity Controlled Waveguide, which helps to create an even response when listening both on and off axis.

    The 8020D is built with Intelligent Signal Sensing (ISS) technology, which automatically activates the speaker when an audio signal is detected and puts it in standby mode when no signal is present, reducing its energy consumption to less than 0.5W. The 8020D features a 50W high-frequency amplifier for its ¾" tweeter, and a 50W low-frequency amplifier for its 4" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec subwoofer can be used to monitor a wider array of frequencies.
    • Attached Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
    • Well-suited for near-field studio monitoring, control rooms, editing suites, surround sound applications, and multimedia entertainment systems
    • Rear-facing treble-tilt, bass roll-off, and desktop cut controls enable you to optimize the speaker to its environment
    • Threaded holes for wall or ceiling brackets
    • Active crossover filter
    • Driver unit protection circuitry
    • Woofer and tweeter magnetically shielded
  • 7050C - 130W 8" Active Studio Subwoofer Building upon the success of the 7050A and 7050B models, the Genelec 7050C Studio Subwoofer is an 8", 130W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7050C boasts several improvements including a bypassable onboard bass management system, lower distortion, a universal mains voltage switched-mode power supply, and an increased maximum SPL of 103 dB.The subwoofer works in stereo or 5.1 channel configurations using analog XLR inputs and outputs. The integrated bass management section features five input and output channels with 85 Hz low-pass/high-pass filters, plus a discrete 120 Hz LFE signal input with selectable +10 dB boost.The 7050C utilizes a magnetically shielded low frequency driver, housed in a Genelec LSE spiral enclosure, which delivers an extended low-frequency response down to 24 Hz with low distortion. Rear panel DIP switches to allow the user to adjust subwoofer phase and low-frequency roll-off, engage the +10 dB LFE level, and activate and control the sensitivity of the Intelligent Signal Sensing (ISS) power-saving mode, which reduces the unit’s power consumption down to a mere 0.5 W in standby mode. The Genelec 7050C ships with a standard IEC power cord.
      • Laminar Spiral Enclosure (LSE) technology
      • Bass management system
      • Optimized amplifiers
      • Room response compensation
      • Protection circuitry
      • Active crossovers
In the Box Bundle Items 5 x 8020D Studio Monitor (Producer Finish) asbxftxyvbuuze
  • Limited 2-Year Warranty (Extendable to 5-Years Total with Registration)
7050C - 130W 8" Active Studio Subwoofer
  • Mains Cable
  • Limited 2-Year Warranty, Extended to 5-Years with Registration
Guides & Manuals Table of Contents




Upload User Manual

Have you got an user manual for the Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:


User manual for Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer can be downloaded below, so the upload option is not active.


OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%

User manual for Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer can be downloaded below, so the upload option is not active.

Download User Manual

The user manual for the Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer can be downloaded in PDF format at the link stated below.
Download PDF user manual - Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" SubwooferDownload PDF User Manual - Genelec 8020D ESPRESSO 4" Active 5.1 Monitoring System with 8" Subwoofer
(PDF file, 1.46 MB)


Technical parameters

  • 8020D Studio Monitor (Producer Finish)
    Cut-Off Frequency Lower: ≤ 56 Hz at -6 dB
    Upper: ≥ 25 kHz at -6 dB
    Frequency Response 62 Hz to 20 kHz (±2.5 dB)
    SPL ≥ 100 dB SPL maximum (short-term sine-wave acoustic output on axis in half-space, averaged from 100 Hz to 3 kHz at 3.3' / 1 m)
    93 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3' / 1 m)
    Peak Output Capacity ≥ 107 db maximum peak acoustic output (per pair in listening room with music material at 3.3' / 1 m)
    Self-Generated Noise Level ≤ 5 dB (in free field at 3.3' / 1 m on axis (A-weighted))
    Harmonic Distortion < 3% (at 85 dB SPL at 3.3' / 1 m on axis, 50 to 200 Hz)
    < 0.5% (at 85 dB SPL at 3.3' / 1 m on axis, higher than 200 Hz)
    Drivers Bass: 4" / 105 mm cone
    Treble: ¾" / 19 mm metal dome
    Both drivers are magnetically shielded
    Amplifier Bass Amplifier Short-Term Output Power: 50 W
    Treble Amplifier Short-Term Output Power: 50 W
    Long-term output power is limited by driver protection circuitry
    THD ≤ 0.05% at nominal output
    Crossover Frequency Bass/Treble: 3 kHz
    Digital Controls GLM Software Frequency Response Adjustment
    Parametric Notch Filters: 16x
    Shelving Filters: 2 x LF and 2 x HF
    System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone
    Mains Voltage 100 to 240 VAC 50/60 Hz
    Power Consumption Idle: 3 W
    Standby: < 0.5 W
    Full Output: 60 W
    Analog Input XLR female, balanced (pin 1 ground, pin 2 positive, pin 3 negative)
    Input Level -6 dBu at volume control max (for 100 dB SPL at 3.3' / 1 m)
    Input Impedance 10 kOhms
    Sensitivity -12 dB (constantly variable, control range relative to maximum output)
    Controls Treble Tilt Control (operating range): 0 to -2 dB at 15 kHz
    Desktop 200-Hz Control: -4 dB at 200 Hz
    Bass Roll-Off Control: 0 to -4 dB at 65 Hz
    Analog Input Maximum Analog Input Level: +24 dBu
    Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3' / 1 m)
    Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu
    Dimensions (H x W x D) 9.5 x 6.0 x 5.6" / 242.0 x 151.0 x 142.0 mm, Iso-Pod stand included
    9.1 x 6.0 x 5.6" / 230.0 x 151.0 x 142.0 mm, Iso-Pod stand excluded
    Weight 7.0 lb / 3.2 kg
    Box Dimensions (LxWxH) 14.9 x 8.0 x 7.5"
  • 7050C - 130W 8" Active Studio Subwoofer
    Frequency Response Lower Cut-Off Frequency (-6 dB): 24 Hz
    Upper Cut-Off Frequency (-6 dB)
    Main Channels / LFE: 85 Hz / 120 Hz
    Driver 8.0" / 205 mm magnetically shielded
    THD Harmonic distortion at 90 dB SPL at 1 m on axis in half space (30 - 85 Hz)
    2nd: ≤4%
    3rd: ≤1%
    SPL Maximum Short Term Sine Wave SPL Output Averaged from 30 to 85 Hz, Measured in Half Space at 1 m: 103 dB
    Noise Self-Generated Noise Level in Half Space at 1 m / 3.3' on Axis (A-Weighted): ≤5 dB
    Power Amplifier Short Term Output Power (Long Term Output Power is Limited by Driver Unit Protection Circuitry): 130 W
    THD Amplifier System THD at Nominal Output: ≤0.05 %
    Power Supply 100 to 240 VAC, 50/60 Hz universal
    Power Consumption Standby, ISS active: ≤0.5 W
    Idle: 11 W
    Full Output: 150 W
    Filter Subsonic Filter (18 dB/Octave) Below: 24 Hz
    Input Channels 5 + LFE
    Low Pass Filter Low-Pass Frequency for Inputs 1-5: 85 Hz
    Low-Pass Frequency for LFE IN Input: 120 Hz
    Connectors Inputs: 6 x XLR (5 x inputs + LFE input)
    Output: 5 x XLR
    Input Impedance 10 kOhms balanced
    Rejection Mid-Band Rejection >400 Hz: ≥50 dB
    High Pass Crossover High-Pass Frequency for Outputs 1-5: 85 Hz
    Output Gain 0 dB
    LF Roll Off Bass Roll-Off Control in 4 dB Steps: 0 to -12 dB @ 26 Hz
    Phase Control Phase Matching Control in 90° Steps: 0 to -270°
    Input Sensitivity Input Sensitivity Control: +12 to -6 dB
    Input Sensitivity (Selectable) LFE Input Sensitivity Control: 0 or +10 dB selectable
    Dimensions (H x W x D) 16.1 x 13.8 x 12.6" / 410.0 x 350.0 x 319.0 mm
    Weight 38.1 lb / 17.3 kg
    Box Dimensions (LxWxH) 19.5 x 17.0 x 16.0"
