User Manual for Genelec 8020D Studio Monitor Click to enlarge the picture
Contents of the user manual for the Genelec 8020D Studio Monitor
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec 8020D Studio Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|

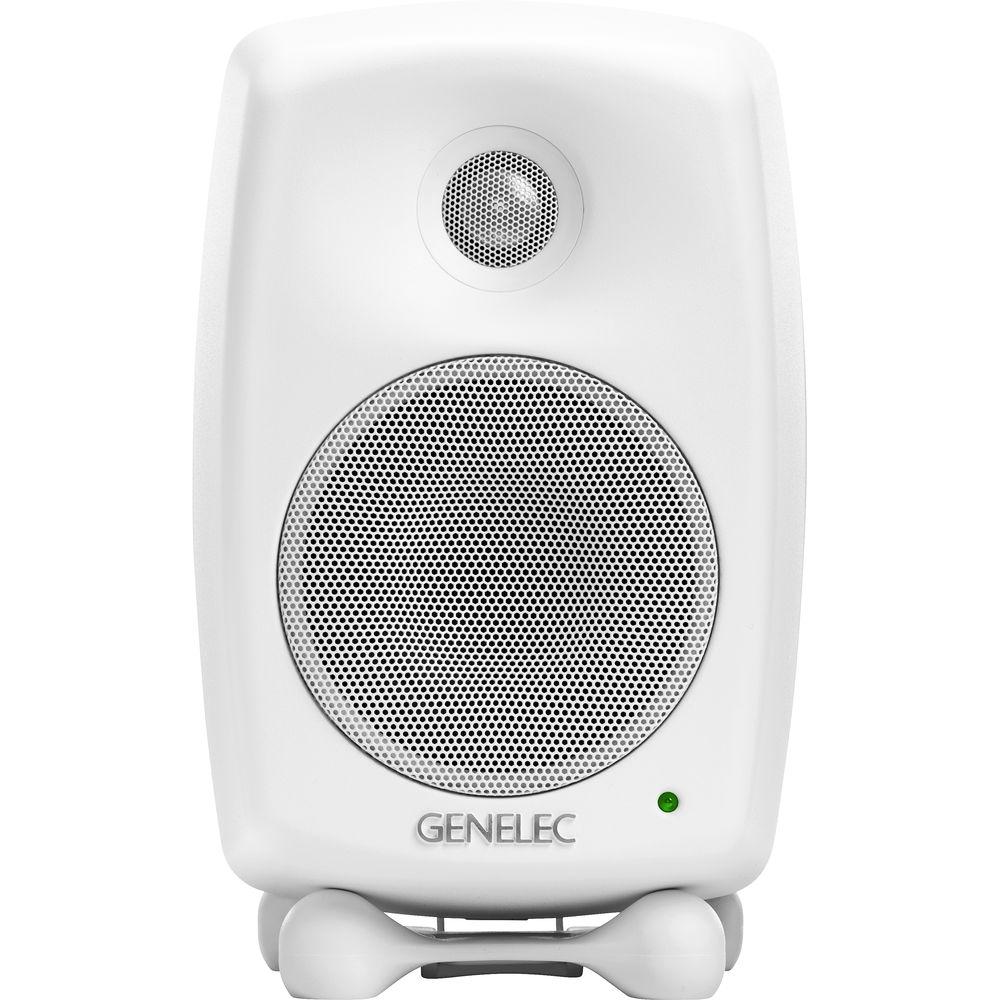

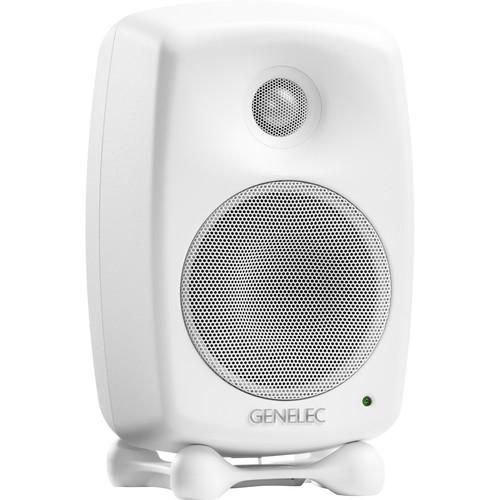

Product description Styled in a white finish and now utilizing Class-D amplification, the Genelec 8020D Active Two-Way 4" Studio Monitor provides an accurate reproduction of the source material in a compact form factor. Its die-cast aluminum enclosure features a rounded shape, which minimizes frequency and reflection distortions caused by edge diffraction. The metal dome tweeter is surrounded by Genelec's Directivity Controlled Waveguide, which helps to create an even response when listening both on and off axis.
The 8020D is built with Intelligent Signal Sensing (ISS) technology, which automatically activates the speaker when an audio signal is detected and puts it in standby mode when no signal is present, reducing its energy consumption to less than 0.5W. The 8020D features a 50W high-frequency amplifier for its ¾" tweeter, and a 50W low-frequency amplifier for its 4" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec subwoofer can be used to monitor a wider array of frequencies. - Attached Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
- Well-suited for near-field studio monitoring, control rooms, editing suites, surround sound applications, and multimedia entertainment systems

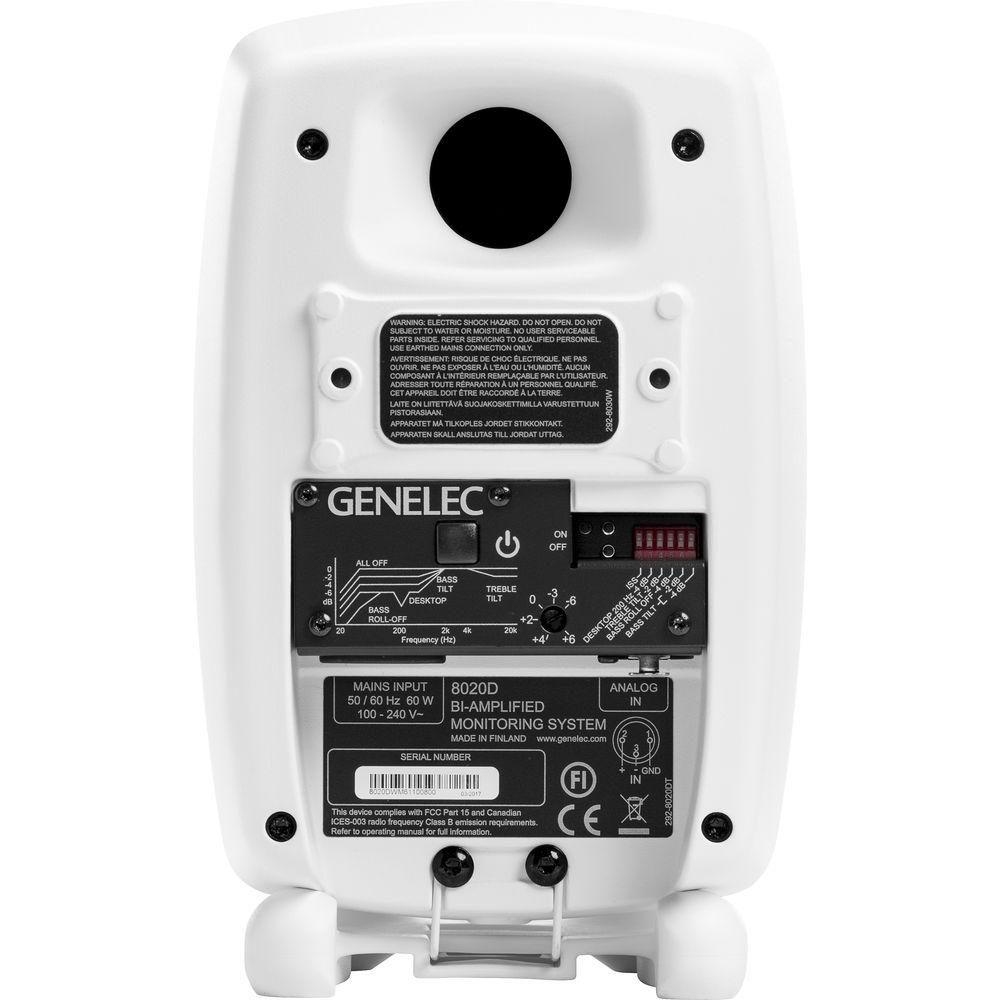

- Rear-facing treble-tilt, bass roll-off, and desktop cut controls enable you to optimize the speaker to its environment
- Threaded holes for wall or ceiling brackets
- Driver unit protection circuitry
- Woofer and tweeter magnetically shielded
In the Box Genelec 8020D Studio Monitor (White Finish) Limited 2-Year Warranty (Extendable to 5-Years Total with Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8020D Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8020D Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 0.75" / 19 mm Metal Dome Tweeter
LF Driver: 1 x 4" / 105 mm Cone | | Amplification | HF Amplifier: Rated at 50 W
LF Amplifier: Rated at 50 W | | | | Frequency Response | 62 Hz to 20 kHz ± 2.5 dB | | Maximum Sound Pressure Level (SPL) | 107 dB | | Total Harmonic Distortion (THD) | 0.05% | | Maximum Input Level | +24 dBu | | Analog Input Sensitivity/Gain | +36 to -6 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 5 dBA (at 3.28' / 1 m) | | Protections and Limiting | Driver Protection | | | | EQ | 1 x LF Shelf: -4 to 0 dB at 65 Hz
1 x Low-Mid Notch/Peak: -4 to 0 dB at 200 Hz
1 x HF Tilt: -2 to 0 dB at 15 kHz | | | | Crossover Frequency | 3 kHz | | | | I/O | 1 x 3-Pin XLR Female Analog Input (10 kOhms) | | | | Digital EQ & Crossover | GLM Software Adjustment
16 x Parametric Notch Filter
2 x Low Shelf EQ
2 x High Shelf EQ | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
3 W (Idle)
60 W (Maximum) | | | | Dimensions (W x H x D) | 6.0 x 9.5 x 5.6" / 151.0 x 242.0 x 142.0 mm Height Excluding Iso-Pod: 9.1" / 231 mm | | Weight | 7.0 lb / 3.2 kg | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 14.1 x 7.6 x 7.3" |
