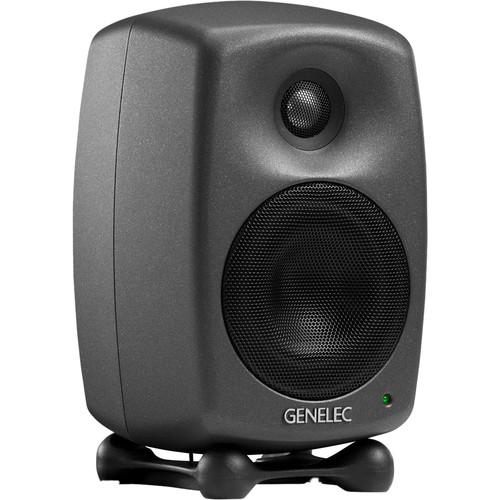

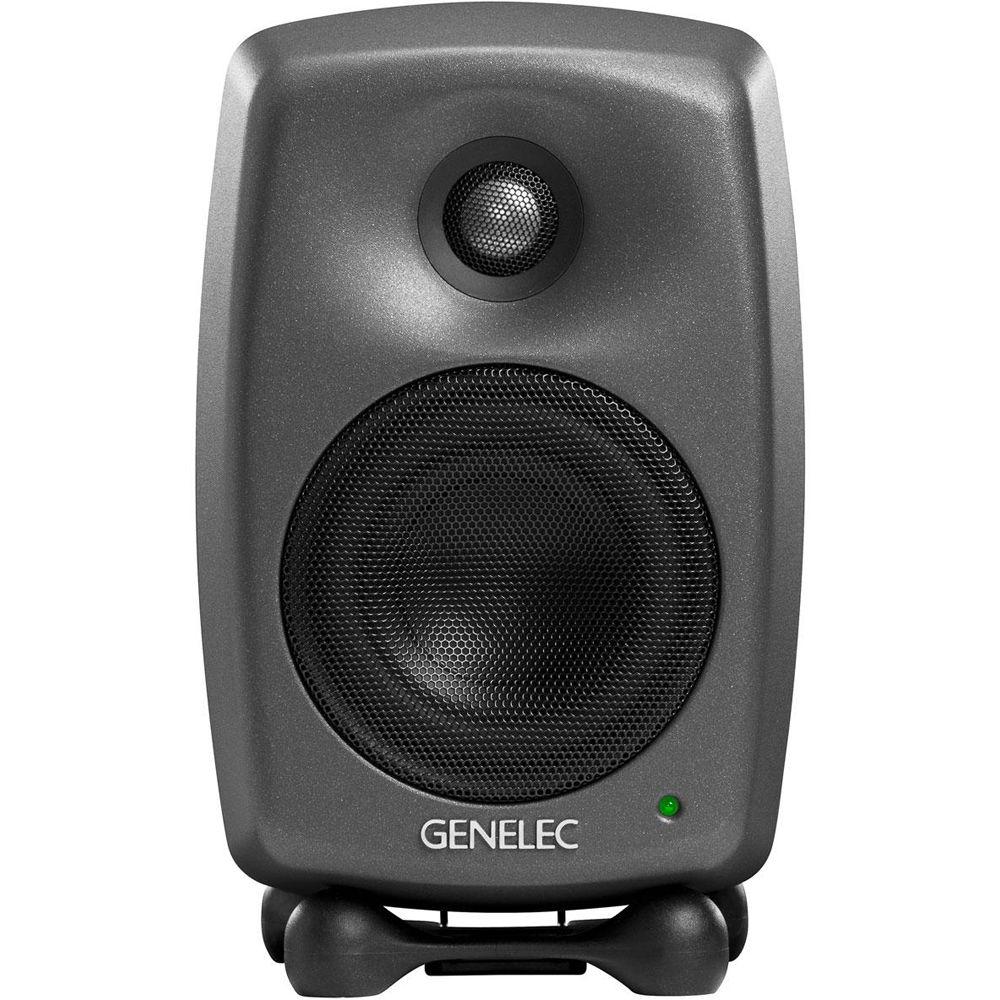

Product description Styled in what the manufacturer has dubbed a "Producer Finish", and now utilizing Class-D amplification, the Genelec 8020D Active Two-Way 4" Studio Monitor provides an accurate reproduction of the source material in a compact form factor. Its die-cast aluminum enclosure features a rounded shape, which minimizes frequency and reflection distortions caused by edge diffraction. The metal dome tweeter is surrounded by Genelec's Directivity Controlled Waveguide, which helps to create an even response when listening both on and off axis.
The 8020D is built with Intelligent Signal Sensing (ISS) technology, which automatically activates the speaker when an audio signal is detected and puts it in standby mode when no signal is present, reducing its energy consumption to less than 0.5W. The 8020D features a 50W high-frequency amplifier for its ¾" tweeter, and a 50W low-frequency amplifier for its 4" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec subwoofer can be used to monitor a wider array of frequencies. - Attached Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
- Well-suited for near-field studio monitoring, control rooms, editing suites, surround sound applications, and multimedia entertainment systems

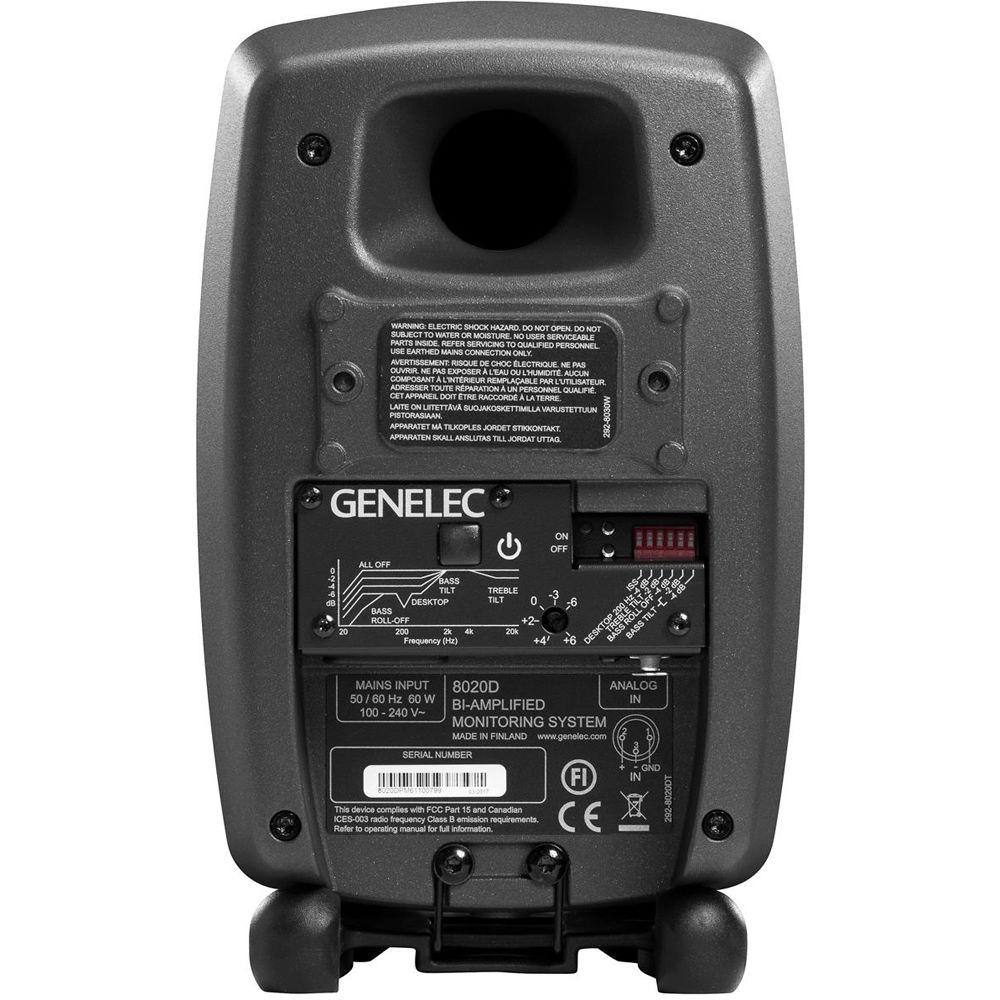

- Rear-facing treble-tilt, bass roll-off, and desktop cut controls enable you to optimize the speaker to its environment
- Threaded holes for wall or ceiling brackets
- Driver unit protection circuitry
- Woofer and tweeter magnetically shielded
In the Box Genelec 8020D Studio Monitor (Producer Finish) Limited 2-Year Warranty (Extendable to 5-Years Total with Registration) User Manual PDF 1.4mberwrffudfbdwfscwswtwrfttbyceatcb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8020D Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8020D Specs | Cut-Off Frequency | Lower: ≤ 56 Hz at -6 dB
Upper: ≥ 25 kHz at -6 dB | | Frequency Response | 62 Hz to 20 kHz (±2.5 dB) | | SPL | ≥ 100 dB SPL maximum (short-term sine-wave acoustic output on axis in half-space, averaged from 100 Hz to 3 kHz at 3.3' / 1 m)
93 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3' / 1 m) | | Peak Output Capacity | ≥ 107 db maximum peak acoustic output (per pair in listening room with music material at 3.3' / 1 m) | | Self-Generated Noise Level | ≤ 5 dB (in free field at 3.3' / 1 m on axis (A-weighted)) | | Harmonic Distortion | < 3% (at 85 dB SPL at 3.3' / 1 m on axis, 50 to 200 Hz)
< 0.5% (at 85 dB SPL at 3.3' / 1 m on axis, higher than 200 Hz) | | Drivers | Bass: 4" / 105 mm cone
Treble: ¾" / 19 mm metal dome
Both drivers are magnetically shielded | | Amplifier | Bass Amplifier Short-Term Output Power: 50 W
Treble Amplifier Short-Term Output Power: 50 W
Long-term output power is limited by driver protection circuitry | | THD | ≤ 0.05% at nominal output | | Crossover Frequency | Bass/Treble: 3 kHz | | Digital Controls | GLM Software Frequency Response Adjustment
Parametric Notch Filters: 16x
Shelving Filters: 2 x LF and 2 x HF
System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone | | Mains Voltage | 100 to 240 VAC 50/60 Hz | | Power Consumption | Idle: 3 W
Standby: < 0.5 W
Full Output: 60 W | | Analog Input | XLR female, balanced (pin 1 ground, pin 2 positive, pin 3 negative) | | Input Level | -6 dBu at volume control max (for 100 dB SPL at 3.3' / 1 m) | | Input Impedance | 10 kOhms | | Sensitivity | -12 dB (constantly variable, control range relative to maximum output) | | Controls | Treble Tilt Control (operating range): 0 to -2 dB at 15 kHz
Desktop 200-Hz Control: -4 dB at 200 Hz
Bass Roll-Off Control: 0 to -4 dB at 65 Hz | | Analog Input | Maximum Analog Input Level: +24 dBu
Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3' / 1 m)
Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu | | Dimensions (H x W x D) | 9.5 x 6.0 x 5.6" / 242.0 x 151.0 x 142.0 mm, Iso-Pod stand included
9.1 x 6.0 x 5.6" / 230.0 x 151.0 x 142.0 mm, Iso-Pod stand excluded | | Weight | 7.0 lb / 3.2 kg | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 14.9 x 8.0 x 7.5" |
