Genelec 8030.LSE Broadcast Pak 5.1 System

User Manual for Genelec 8030.LSE Broadcast Pak 5.1 System Five 8030CPs & One 7050CPM Subwoofer

• Product category: Studio Monitors Genelec
• Brand: Genelec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genelec Studio Monitors

Product description

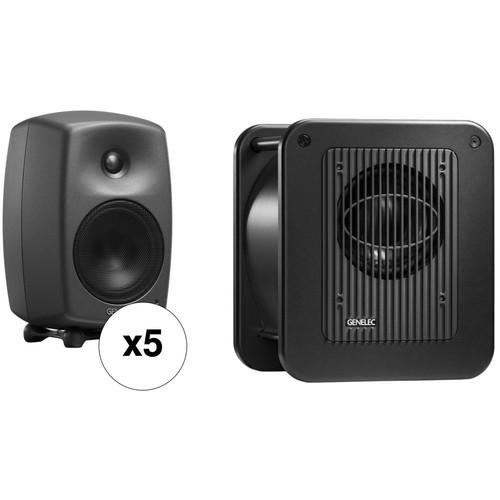

• 5 x Genelec 8030C Active Two-Way 5" Studio Monitor (Single) The 8030C Active Two-Way 5" Studio Monitor from Genelec provides an accurate reproduction of the source material in a compact design, well suited for near field monitoring, mobile vans, broadcast and TV control rooms, surround systems, home studios, and multimedia applications. The cabinet features Minimum Diffraction Enclosure (MDE) technology, which is constructed from all-aluminum in a rounded shape, which minimizes distortions caused by edge diffraction. The metal dome tweeter is surrounded by a smoothly shaped Directivity Controlled Waveguide (DCW), which helps to create an even response when listening both on and off axis.

  The 8030C is built with Intelligent Signal Sensing (ISS) technology which automatically activates the speaker when an audio signal is detected, and puts it into Standby Mode when no signal is present, reducing the energy consumption to less than 0.5 watts. The 8030C features a 50-watt high frequency amplifier for its 3/4" tweeter, and a 50-watt low-frequency amplifier for its 5" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec 7050B active subwoofer can be used to monitor a wider array of frequencies.
  • • Active crossover filters
    • Optimized amplifiers
    • Driver unit protection circuitry
    • Fully magnetically shielded
    • Directivity Control Waveguide (DCW) technology
    • Minimum Diffraction Enclosure (MDE) technology
    • Reflex port design
    • Room response compensation via Tone Controls, which optimize the speaker to its environment
    • Intelligent Signal Sensing (ISS) technology saves electricity
    • Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
    • Versatile mounting options with threading for ceiling and wall mounts
• Genelec 7050C - 130W 8" Active Studio Subwoofer Building upon the success of the 7050A and 7050B models, the Genelec 7050C Studio Subwoofer is an 8", 130W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7050C boasts several improvements including a bypassable onboard bass management system, lower distortion, a universal mains voltage switched-mode power supply, and an increased maximum SPL of 103 dB.The subwoofer works in stereo or 5.1 channel configurations using analog XLR inputs and outputs. The integrated bass management section features five input and output channels with 85 Hz low-pass/high-pass filters, plus a discrete 120 Hz LFE signal input with selectable +10 dB boost.The 7050C utilizes a magnetically shielded low frequency driver, housed in a Genelec LSE spiral enclosure, which delivers an extended low-frequency response down to 24 Hz with low distortion. Rear panel DIP switches to allow the user to adjust subwoofer phase and low-frequency roll-off, engage the +10 dB LFE level, and activate and control the sensitivity of the Intelligent Signal Sensing (ISS) power-saving mode, which reduces the unit’s power consumption down to a mere 0.5 W in standby mode. The Genelec 7050C ships with a standard IEC power cord.
  • • Laminar Spiral Enclosure (LSE) technology
    • Bass management system
    • Optimized amplifiers
    • Room response compensation
    • Protection circuitry
    • Active crossovers


• 5 x 8030C Active Two-Way 5" Studio Monitor (Single) vesatqufxbdusdtyyvvq
• Iso-Pod Table Stand
• Power Cable
• Limited 2-Year Warranty

• 7050C - 130W 8" Active Studio Subwoofer

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 5 x Genelec 8030C Active Two-Way 5" Studio Monitor (Single)

  Inputs	1 x XLR balanced
  Frequency Response	54 Hz - 20 kHz (± 2.0 dB)
  Cut-Off Frequency	Lower Cut-Off Frequency, -6 dB: < 47 Hz Upper Cut-Off Frequency, -6 dB: > 25 kHz
  Crossover Frequency	3.0 kHz
  LF Amplifier	50W
  HF Amplifier	50W
  Maximum SPL	Short Term: ≥104 dB @ 3.3' / 1 m Long Term (RMS): 96 dB @ 3.3' / 1 m Peak Output (Pair): ≥ 110 dB
  Noise Level	Noise Level: ≤ 5 dBA (self-generated in free field at 3.3' / 1 m on axis)
  THD	Harmonic Distortion (at 85 dB SPL @ 3.3' / 1 m on axis): 50 to 100 Hz: < 2 % 100 Hz or Higher: < 0.5 %
  Low Frequency Driver	5.0" / 127.0 mm
  High Frequency Driver	0.8" / 19.1 mm metal dome
  Level Control	Dial: -6 to +6 dB
  Tone Controls	Treble Tilt Control Operating Range: 0 to –2 dB @ 15 kHz Bass Roll-Off Control: –4 dB step @ 55 Hz Bass Tilt Control Operating Range in –2 dB Steps: 0 to –6 dB @ 100 Hz Desktop Control: –4 dB @ 160 Hz
  Mounting Options	Tabletop (with included Iso-Pod) 3/8" thread on base Two 0.24 x 0.39" (6 x 10 mm) threaded holes for Omnimount size 20.5 brackets or the included keyhole wall-mount adapter
  Enclosure Material	Die-cast aluminum
  Power Supply (AC)	100 - 240 VAC, 50/60 Hz
  Distortion	Amplifier System Distortion at Nominal Output: THD < 0.05 %
  Voltage Range	±10%
  Power Consumption	Idle: 3 W Standby: < 0.5 W Full Output: 60 W
  Dimensions (H x W x D)	With Iso-Pod: 11.8 x 7.4 x 7.0" / 299.0 x 189.0 x 178.0 mm Without Iso-Pod: 11.2 x 7.4 x 7.0" / 285.0 x 189.0 x 178.0 mm
  Weight	11.0 lb / 5.0 kg

  Box Dimensions (LxWxH)	17.3 x 11.8 x 11.7"

• Genelec 7050C - 130W 8" Active Studio Subwoofer

  Frequency Response	Lower Cut-Off Frequency (-6 dB): 24 Hz Upper Cut-Off Frequency (-6 dB) Main Channels / LFE: 85 Hz / 120 Hz
  Driver	8.0" / 205 mm magnetically shielded
  THD	Harmonic distortion at 90 dB SPL at 1 m on axis in half space (30 - 85 Hz) 2nd: ≤4% 3rd: ≤1%
  SPL	Maximum Short Term Sine Wave SPL Output Averaged from 30 to 85 Hz, Measured in Half Space at 1 m: 103 dB
  Noise	Self-Generated Noise Level in Half Space at 1 m / 3.3' on Axis (A-Weighted): ≤5 dB

  Power	Amplifier Short Term Output Power (Long Term Output Power is Limited by Driver Unit Protection Circuitry): 130 W
  THD	Amplifier System THD at Nominal Output: ≤0.05 %
  Power Supply	100 to 240 VAC, 50/60 Hz universal
  Power Consumption	Standby, ISS active: ≤0.5 W Idle: 11 W Full Output: 150 W

  Filter	Subsonic Filter (18 dB/Octave) Below: 24 Hz
  Input Channels	5 + LFE
  Low Pass Filter	Low-Pass Frequency for Inputs 1-5: 85 Hz Low-Pass Frequency for LFE IN Input: 120 Hz
  Connectors	Inputs: 6 x XLR (5 x inputs + LFE input) Output: 5 x XLR
  Input Impedance	10 kOhms balanced
  Rejection	Mid-Band Rejection >400 Hz: ≥50 dB
  High Pass Crossover	High-Pass Frequency for Outputs 1-5: 85 Hz
  Output Gain	0 dB
  LF Roll Off	Bass Roll-Off Control in 4 dB Steps: 0 to -12 dB @ 26 Hz
  Phase Control	Phase Matching Control in 90° Steps: 0 to -270°
  Input Sensitivity	Input Sensitivity Control: +12 to -6 dB
  Input Sensitivity (Selectable)	LFE Input Sensitivity Control: 0 or +10 dB selectable
  Dimensions (H x W x D)	16.1 x 13.8 x 12.6" / 410.0 x 350.0 x 319.0 mm
  Weight	38.1 lb / 17.3 kg

  Box Dimensions (LxWxH)	19.5 x 17.0 x 16.0"
