User Manual for Genelec 8030C Active Two-Way 5" Studio Monitor Click to enlarge the picture
Contents of the user manual for the Genelec 8030C Active Two-Way 5" Studio
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec 8030C Active Two-Way 5" Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|

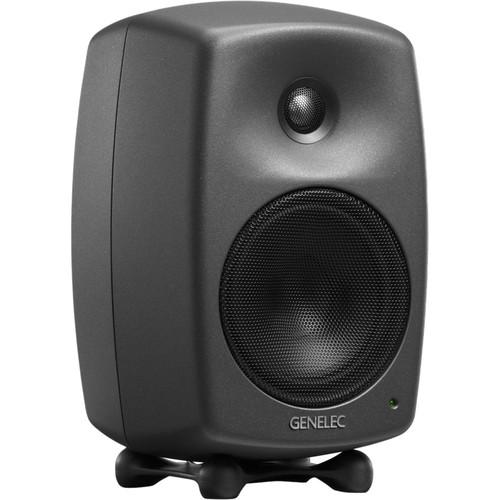

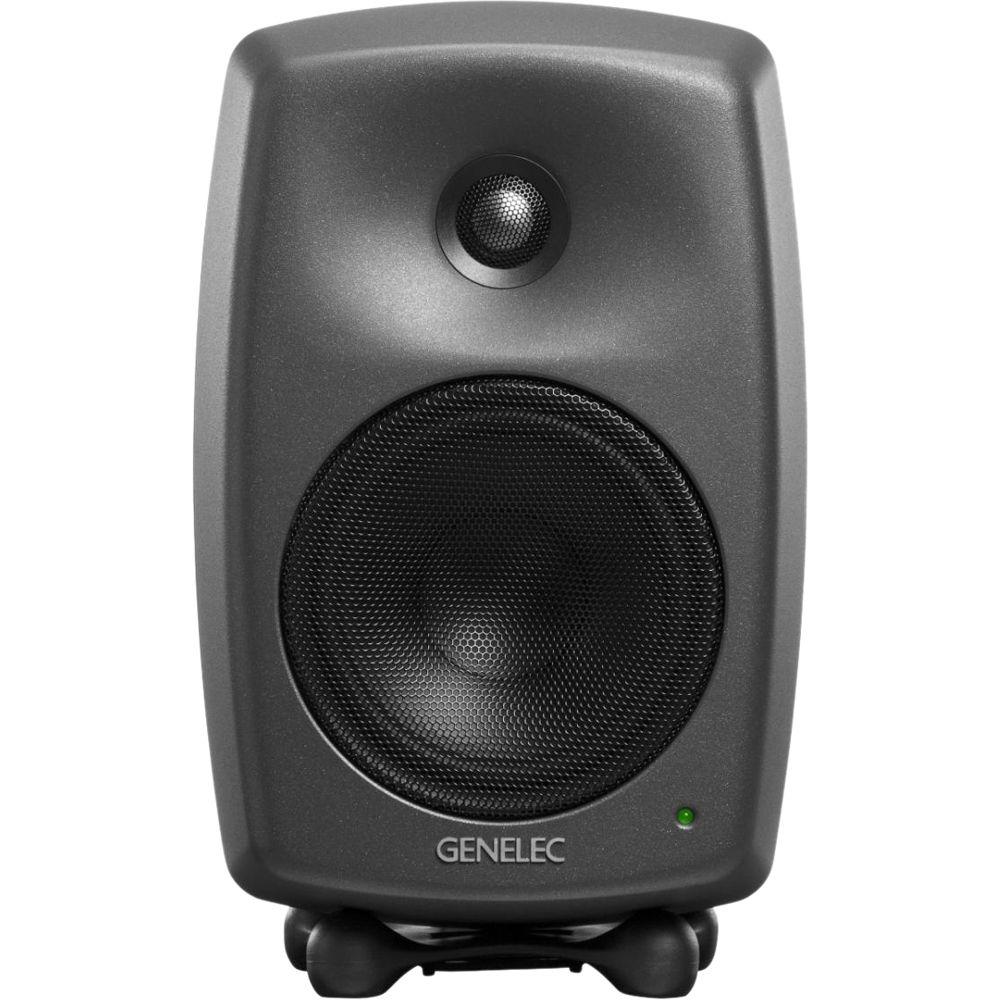

Product description Genelec at the Forefront: 8030C Studio Monitor Read More The 8030C Active Two-Way 5" Studio Monitor from Genelec provides an accurate reproduction of the source material in a compact design, well suited for near field monitoring, mobile vans, broadcast and TV control rooms, surround systems, home studios, and multimedia applications. The cabinet features Minimum Diffraction Enclosure (MDE) technology, which is constructed from all-aluminum in a rounded shape, which minimizes distortions caused by edge diffraction. The metal dome tweeter is surrounded by a smoothly shaped Directivity Controlled Waveguide (DCW), which helps to create an even response when listening both on and off axis.
The 8030C is built with Intelligent Signal Sensing (ISS) technology which automatically activates the speaker when an audio signal is detected, and puts it into Standby Mode when no signal is present, reducing the energy consumption to less than 0.5 watts. The 8030C features a 50-watt high frequency amplifier for its 3/4" tweeter, and a 50-watt low-frequency amplifier for its 5" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec 7050B active subwoofer can be used to monitor a wider array of frequencies. -
- Active crossover filters
- Optimized amplifiers
- Driver unit protection circuitry
- Fully magnetically shielded
- Directivity Control Waveguide (DCW) technology
- Minimum Diffraction Enclosure (MDE) technology
- Reflex port design

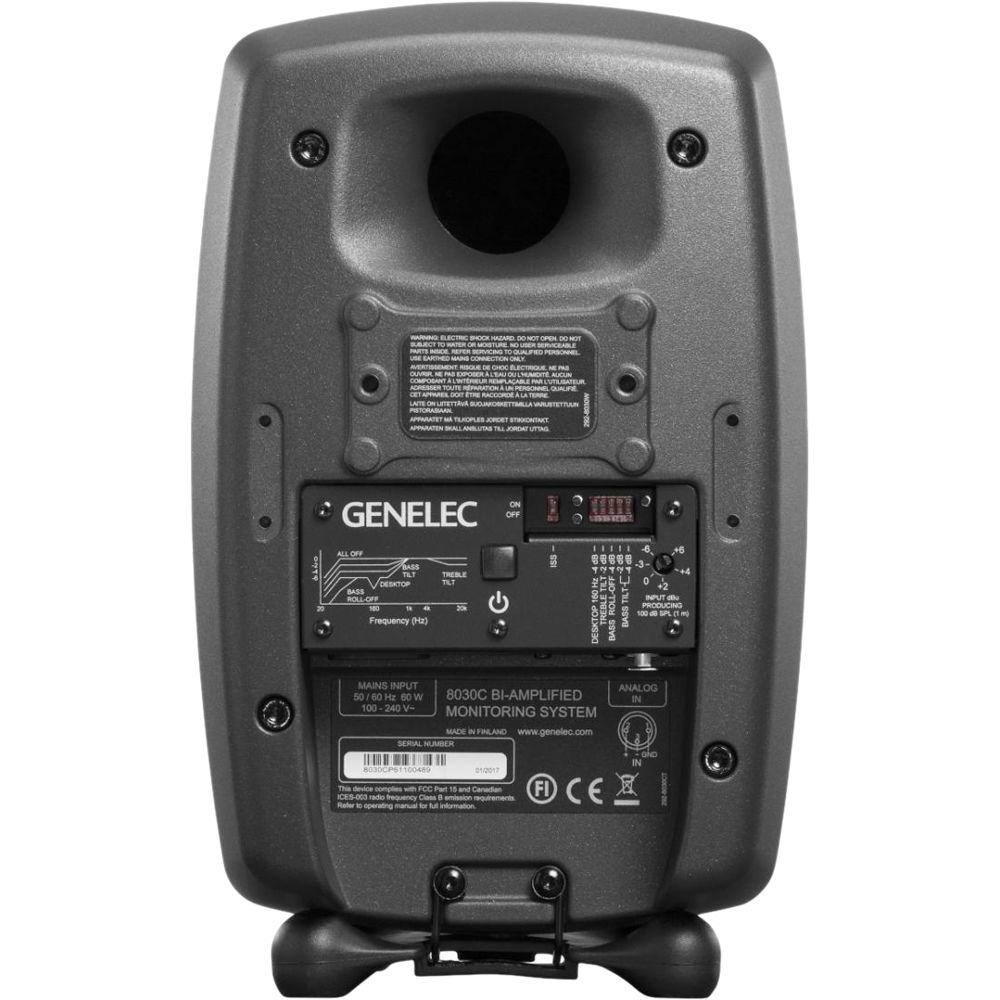

- Room response compensation via Tone Controls, which optimize the speaker to its environment
- Intelligent Signal Sensing (ISS) technology saves electricity
- Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
- Versatile mounting options with threading for ceiling and wall mounts
In the Box Genelec 8030C Active Two-Way 5" Studio Monitor (Single) Iso-Pod Table Stand Power Cable Limited 2-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8030C Active Two-Way 5" Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8030C Specs | Inputs | 1 x XLR balanced | | Frequency Response | 54 Hz - 20 kHz (± 2.0 dB) | | Cut-Off Frequency | Lower Cut-Off Frequency, -6 dB: < 47 Hz
Upper Cut-Off Frequency, -6 dB: > 25 kHz | | Crossover Frequency | 3.0 kHz | | LF Amplifier | 50W | | HF Amplifier | 50W | | Maximum SPL | Short Term: ≥104 dB @ 3.3' / 1 m
Long Term (RMS): 96 dB @ 3.3' / 1 m
Peak Output (Pair): ≥ 110 dB | | Noise Level | Noise Level: ≤ 5 dBA (self-generated in free field at 3.3' / 1 m on axis) | | THD | Harmonic Distortion (at 85 dB SPL @ 3.3' / 1 m on axis):
50 to 100 Hz: < 2 %
100 Hz or Higher: < 0.5 % | | Low Frequency Driver | 5.0" / 127.0 mm | | High Frequency Driver | 0.8" / 19.1 mm metal dome | | Level Control | Dial: -6 to +6 dB | | Tone Controls | Treble Tilt Control Operating Range: 0 to –2 dB @ 15 kHz
Bass Roll-Off Control: –4 dB step @ 55 Hz
Bass Tilt Control Operating Range in –2 dB Steps: 0 to –6 dB @ 100 Hz
Desktop Control: –4 dB @ 160 Hz | | Mounting Options | Tabletop (with included Iso-Pod)
3/8" thread on base
Two 0.24 x 0.39" (6 x 10 mm) threaded holes for Omnimount size 20.5 brackets or the included keyhole wall-mount adapter | | Enclosure Material | Die-cast aluminum | | Power Supply (AC) | 100 - 240 VAC, 50/60 Hz | | Distortion | Amplifier System Distortion at Nominal Output: THD < 0.05 % | | Voltage Range | ±10% | | Power Consumption | Idle: 3 W
Standby: < 0.5 W
Full Output: 60 W | | Dimensions (H x W x D) | With Iso-Pod: 11.8 x 7.4 x 7.0" / 299.0 x 189.0 x 178.0 mm
Without Iso-Pod: 11.2 x 7.4 x 7.0" / 285.0 x 189.0 x 178.0 mm | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 13.75 lb | | Box Dimensions (LxWxH) | 17.3 x 11.8 x 11.7" |
