Product description

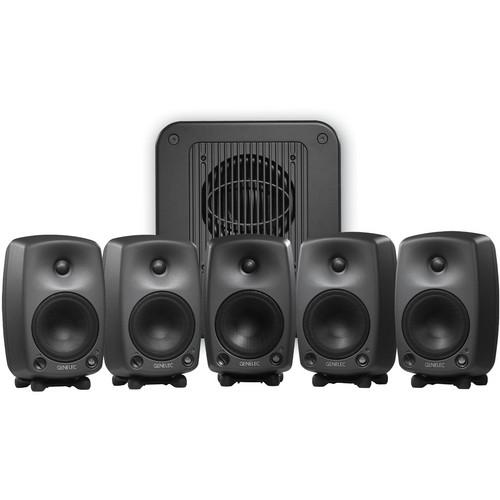

• 8030C Active Two-Way 5" Studio Monitor (Single) The 8030C Active Two-Way 5" Studio Monitor from Genelec provides an accurate reproduction of the source material in a compact design, well suited for near field monitoring, mobile vans, broadcast and TV control rooms, surround systems, home studios, and multimedia applications. The cabinet features Minimum Diffraction Enclosure (MDE) technology, which is constructed from all-aluminum in a rounded shape, which minimizes distortions caused by edge diffraction. The metal dome tweeter is surrounded by a smoothly shaped Directivity Controlled Waveguide (DCW), which helps to create an even response when listening both on and off axis.

  The 8030C is built with Intelligent Signal Sensing (ISS) technology which automatically activates the speaker when an audio signal is detected, and puts it into Standby Mode when no signal is present, reducing the energy consumption to less than 0.5 watts. The 8030C features a 50-watt high frequency amplifier for its 3/4" tweeter, and a 50-watt low-frequency amplifier for its 5" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec 7050B active subwoofer can be used to monitor a wider array of frequencies.
  • • Active crossover filters
    • Optimized amplifiers
    • Driver unit protection circuitry
    • Fully magnetically shielded
    • Directivity Control Waveguide (DCW) technology
    • Minimum Diffraction Enclosure (MDE) technology
    • Reflex port design
    • Room response compensation via Tone Controls, which optimize the speaker to its environment
    • Intelligent Signal Sensing (ISS) technology saves electricity
    • Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
    • Versatile mounting options with threading for ceiling and wall mounts
• 7050B - 8" Active Companion Subwoofer The Genelec 7050B Subwoofer features a 8" driver, powered by a robust 70 Watt amplifier, housed in Genelec's proprietary LSE(Laminar Spiral Enclosure) bass reflex cabinet. This design combines minimized enclosure noise with tight, consistent signal dispersion, a characteristic of laminar. The rear panel of the 7050B provides a bass management unit featuring 5 separate XLR I/O's and a dedicated LFE input for mixing or monitoring film-related music and sound effects in Dolby Digital, DTS, and other encoding formats. The amplifier unit, with active crossover filters and driver overload protection, is adjacent to an ample set of Bass Roll-Off, Phase and LFE Bandwidth DIP switch controls. The 7050B is a viable, space-conserving low end monitoring solution for 2:1 or 5:1 systems installed in project or commercial recording studios, A/V post production facilities, or mobile live mixing applications.
  • Compact powered subwoofer with 8" driver and 70 Watts of amplification.
  • Magnetically shielded for use in proximity to computer or video monitors.
  • LSE (Laminar Spiral Enclosure) bass reflex subwoofer cabinet design for minimized turbulence noise and optimum signal flow.
  • Metal grille covering for driver
  • Extended bass reproduction down to 25 Hz
  • Six-position -6 to +12 sensitivity adjustment trim
  • 3 separate -2, -4, -6dB bass roll-off DIP switches
  • Selectable 85/120 LFE bandwidth selector DIP switch for film related mixing.
  • +10 dB LFE boost switch for monitoring of DTS and Dolby Digital encoding formats.
  • Dual phase matching switches with 0 - 270° toggling
  • Balanced XLR inputs and outputs

• Iso-Pod Table Stand

• Power Cable

• Limited 2-Year Warranty

• AC Power Cable

• Owner's Manual

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 8030C Active Two-Way 5" Studio Monitor (Single)

  Inputs	1 x XLR balanced
  Frequency Response	54 Hz - 20 kHz (± 2.0 dB)
  Cut-Off Frequency	Lower Cut-Off Frequency, -6 dB: < 47 Hz Upper Cut-Off Frequency, -6 dB: > 25 kHz
  Crossover Frequency	3.0 kHz
  LF Amplifier	50W
  HF Amplifier	50W
  Maximum SPL	Short Term: ≥104 dB @ 3.3' / 1 m Long Term (RMS): 96 dB @ 3.3' / 1 m Peak Output (Pair): ≥ 110 dB
  Noise Level	Noise Level: ≤ 5 dBA (self-generated in free field at 3.3' / 1 m on axis)
  THD	Harmonic Distortion (at 85 dB SPL @ 3.3' / 1 m on axis): 50 to 100 Hz: < 2 % 100 Hz or Higher: < 0.5 %
  Low Frequency Driver	5.0" / 127.0 mm
  High Frequency Driver	0.8" / 19.1 mm metal dome
  Level Control	Dial: -6 to +6 dB
  Tone Controls	Treble Tilt Control Operating Range: 0 to –2 dB @ 15 kHz Bass Roll-Off Control: –4 dB step @ 55 Hz Bass Tilt Control Operating Range in –2 dB Steps: 0 to –6 dB @ 100 Hz Desktop Control: –4 dB @ 160 Hz
  Mounting Options	Tabletop (with included Iso-Pod) 3/8" thread on base Two 0.24 x 0.39" (6 x 10 mm) threaded holes for Omnimount size 20.5 brackets or the included keyhole wall-mount adapter
  Enclosure Material	Die-cast aluminum
  Power Supply (AC)	100 - 240 VAC, 50/60 Hz
  Distortion	Amplifier System Distortion at Nominal Output: THD < 0.05 %
  Voltage Range	±10%
  Power Consumption	Idle: 3 W Standby: < 0.5 W Full Output: 60 W
  Dimensions (H x W x D)	With Iso-Pod: 11.8 x 7.4 x 7.0" / 299.0 x 189.0 x 178.0 mm Without Iso-Pod: 11.2 x 7.4 x 7.0" / 285.0 x 189.0 x 178.0 mm
  Weight	11.0 lb / 5.0 kg

  Box Dimensions (LxWxH)	17.3 x 11.8 x 11.7"

• 7050B - 8" Active Companion Subwoofer

  Active or Passive	Active
  Driver	8"
  Power	70 Watts(short term, no limiter)
  Crossover	Active, 85 Hz
  Frequency Range	25 Hz - 85 Hz(free field +/-3 dB) LFE 85/120 Hz(free field +/-3 dB)
  Maximum Sound Pressure Level (SPL)	100 dB SPL @ 1m
  Impedance	Not Applicable, Self-Powered
  Maximum Power Handling	Not Applicable, Self-Powered
  Enclosure Material	Laminar Spiral Enclosure(LSE)
  Controls and Indicators	1 x Sensitivity Adjustment Trim 3 x Bass Roll-Off DIP Switches 2 x Phase DIP Switches 2 x LFE Bandwidth 1 x Mains Power Switch 1 x Power On LED
  Connectors	1 x 3-pin XLR Female, LFE Input 5 x 3-pin XLR Female Front LCR, Rear L,R In 5 x 3-pin XLR Male Front LCR, Rear L,R Out
  Power Supply (AC)	120V only
  Dimensions	16.1 x 13.8 x 12.6" (410 x 350 x 319mm)
  Weight	39.6 lbs (18 kg)

  Box Dimensions (LxWxH)	19.5 x 17.0 x 16.0"
