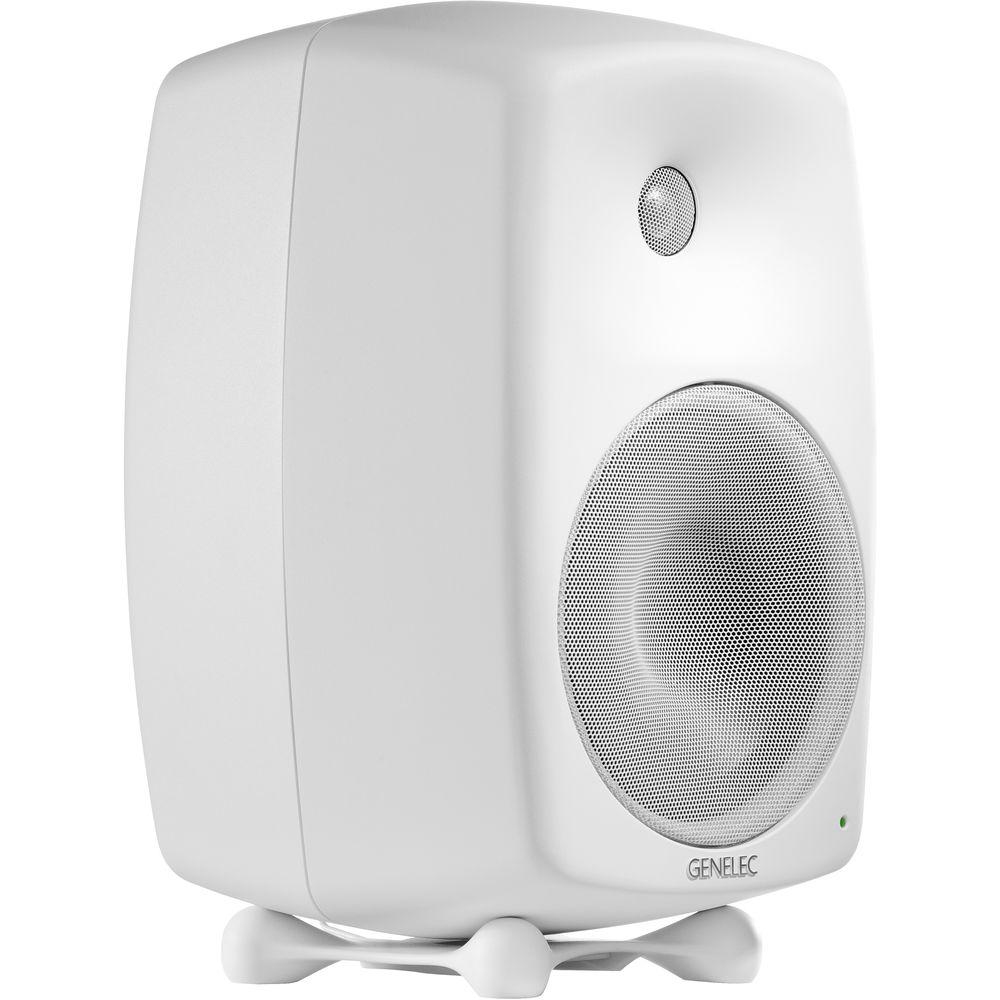

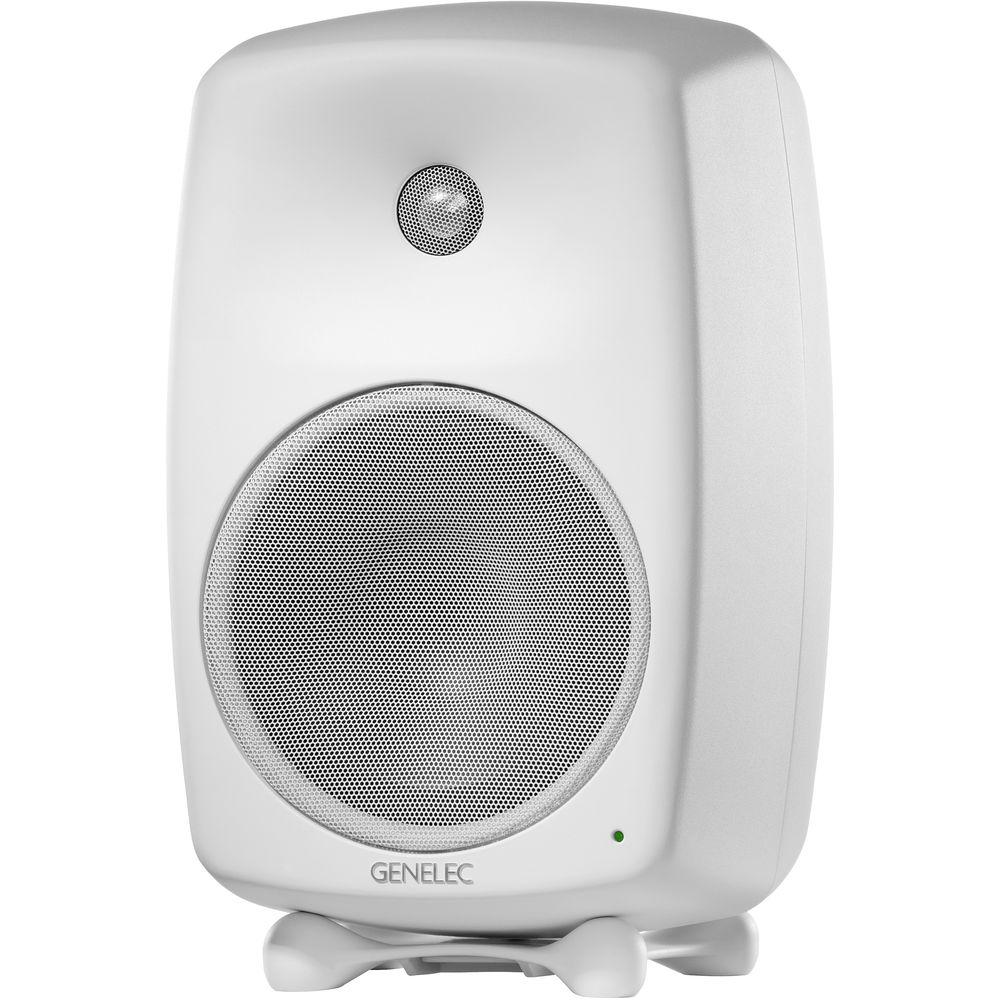

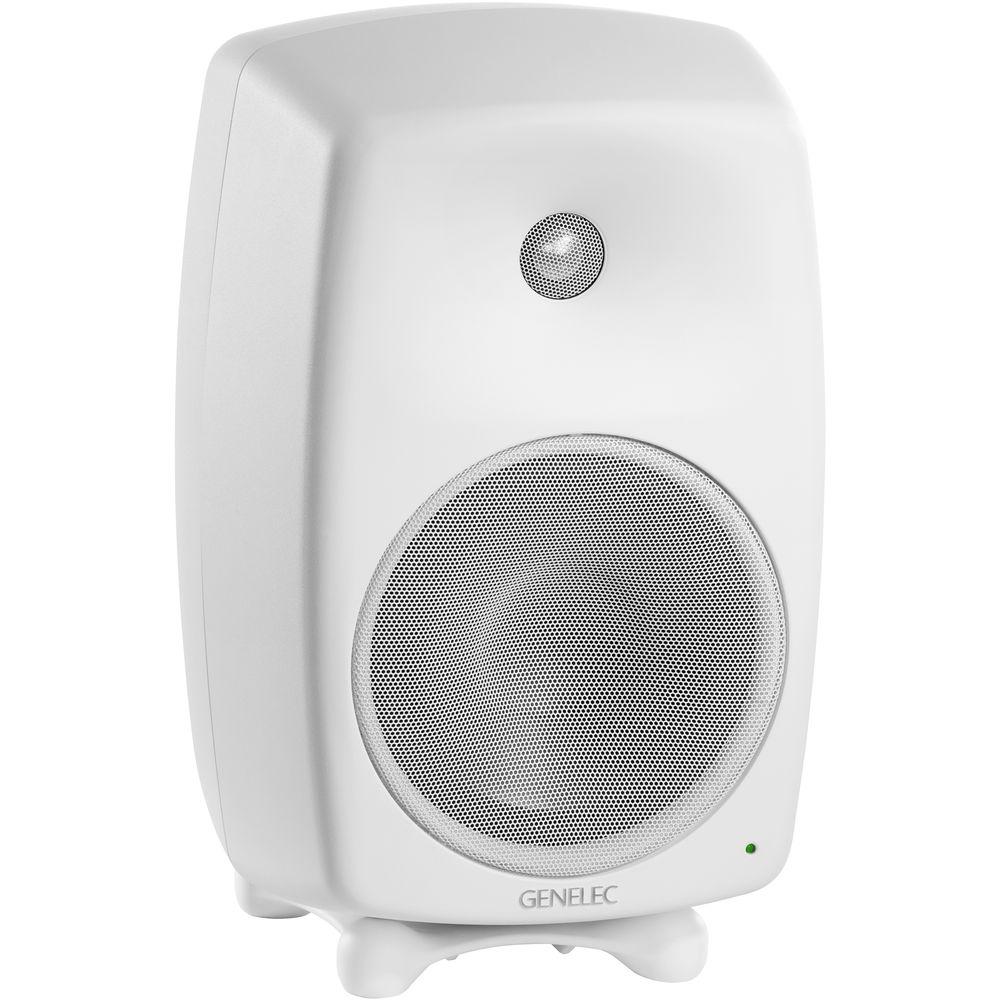

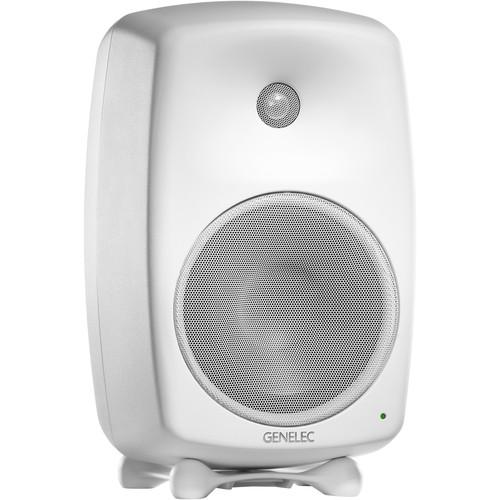

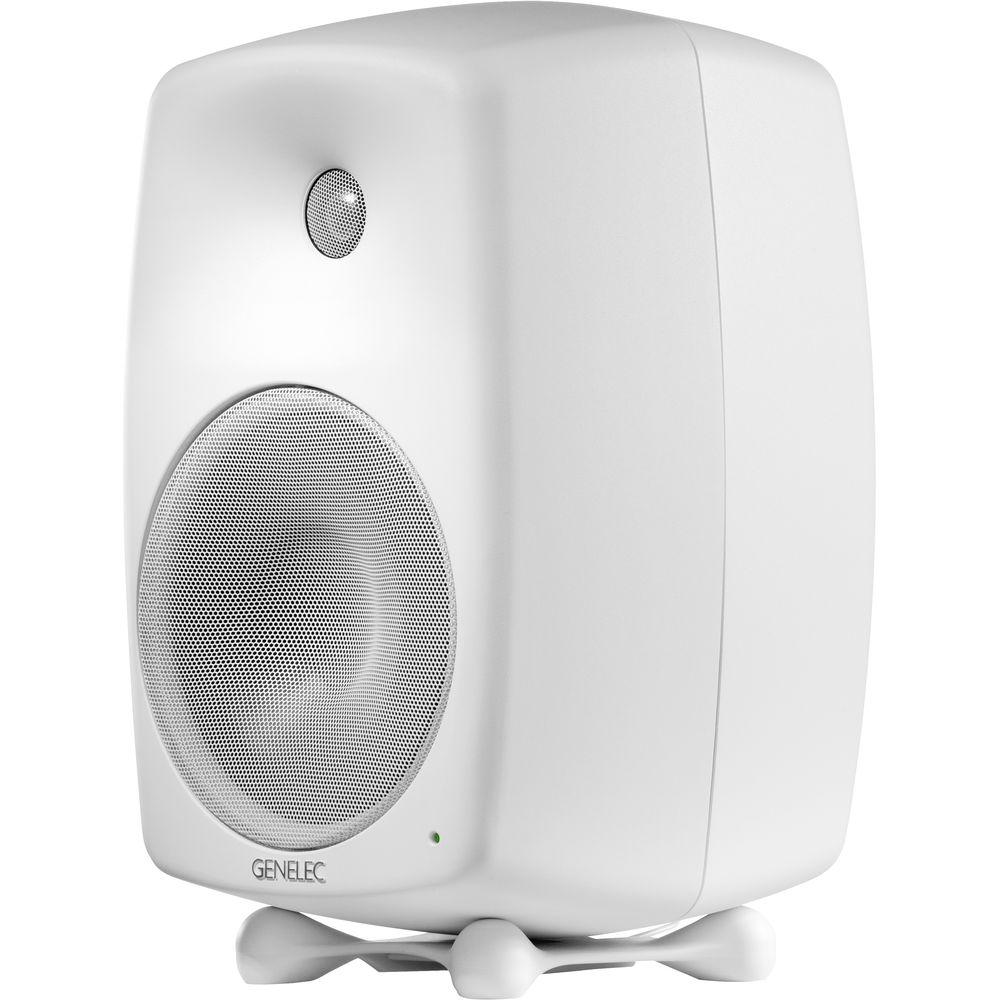

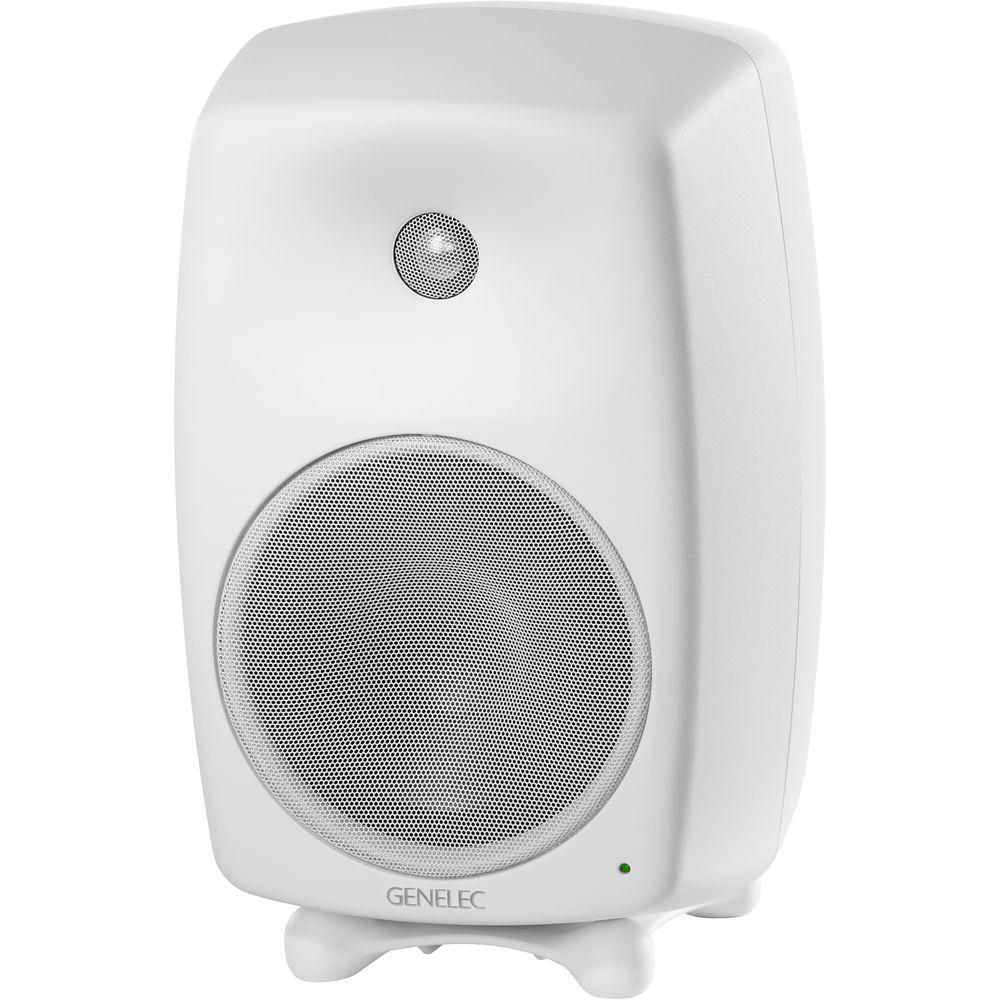

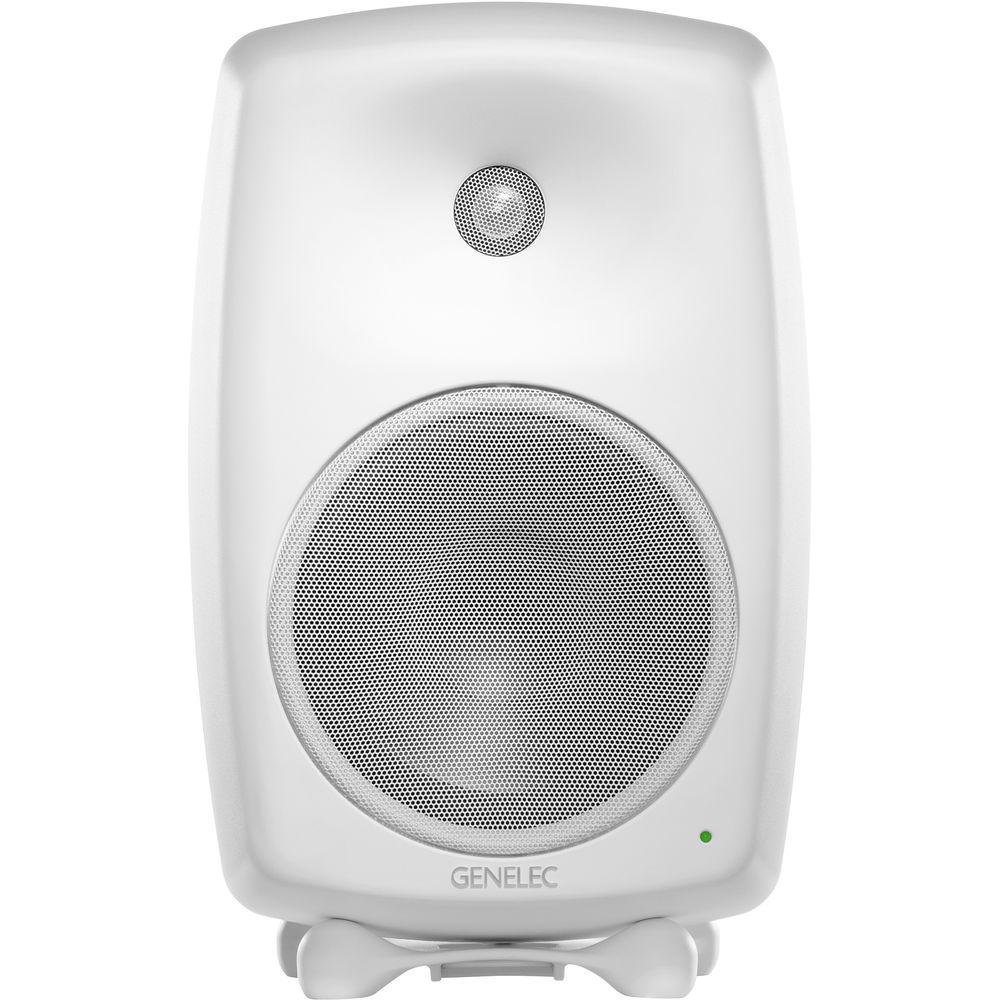

User Manual for Genelec 8050B 8" 2-Way 270W Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Genelec 8050B 8" 2-Way 270W Active
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec 8050B 8" 2-Way 270W Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description The white Genelec 8050B is a single 2-way active studio monitor designed to provide accurate mix referencing for audio engineers, musicians, and producers in commercial studios, mastering control rooms, broadcast trucks, or editing suites. It features a 150W amp driving an 8” woofer and a 120W amp pushing a 1” metal-dome tweeter, producing a frequency response of 35 Hz to 21 kHz.A proprietary waveguide enhances imaging while the bass reflex port extends the low-frequency response. The aluminum enclosure is shaped to minimize diffraction. It supports a balanced input via an XLR 3-pin connector. Room compensation options include high- and low-frequency adjustments. There is a selectable power-saving mode that enables automatic power up/down via a signal-sensing circuit.The 8050B offers multiple mounting options including threaded holes for compatibility with OmniMount and K&M brackets and an Iso-Pod isolation stand. -
- 8" woofer and 1" metal-dome tweeter
- 150W LF amplifier, 120W HF amplifier
- 35 Hz to 21 kHz frequency response (-3 dB), 38 Hz to 20 kHz frequency response (± 2 dB)
- Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging and a wider listening area
- Bass reflex port provides extended low-frequency response
- Room compensation controls include high- and low-frequency adjustments
- Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology
- Balanced XLR 3-pin input and input level control
- ISS (Intelligent Signal Sensing) automatic power-saving mode
- Multiple mounting options: Iso-Pod and threaded holes that are compatible with OmniMount brackets
- Includes Iso-Pod isolation stand for vibration decoupling
In the Box Genelec 8050B 8" 2-Way 270W Active Studio Monitor (Single, White) Iso-Pod Isolation Stand Power Cable Limited 2-Year Warranty with 3-Year Extension upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8050B 8" 2-Way 270W Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8050B Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
LF Driver: 1 x 8" / 205 mm Woofer | | Amplification | HF Amplifier: Rated at 120 W
LF Amplifier: Rated at 150 W | | | | Frequency Range | 35 Hz to 21 kHz (at -3 dB) | | Frequency Response | 38 Hz to 20 kHz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 120 dB | | Signal-to-Noise Ratio | 100 dB | | Total Harmonic Distortion (THD) | 0.05% | | Analog Input Sensitivity/Gain | +6 to -6 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 10 dBA (at 3.28' / 1 m) | | | | EQ | 1 x HF Tilt: -4 to +2 dB at 15 kHz
1 x LF Tilt: -6 to 0 dB at 100 Hz (2 dB Increments)
1 x LF Shelf: -6 to 0 dB at 35 Hz (2 dB Increments) | | | | Crossover Frequency | 1.8 kHz | | | | I/O | 1 x 3-Pin XLR Analog Input (10 kOhms) | | | | AC Input Power | 100 to 230 VAC at 50/60 Hz Voltage Set According to Region | | Power Consumption | 0.5 W (Standby)
10 W (Idle)
170 W (Maximum) | | | | Enclosure Material | Aluminum | | Dimensions (W x H x D) | 11.3 x 17.8 x 10.9" / 286.0 x 452.0 x 278.0 mm Height Excluding Iso-Pod: 17" / 433 mm | | Weight | 31.7 lb / 14.4 kg | | | | Package Weight | 38.9 lb | | Box Dimensions (LxWxH) | 23.0 x 16.0 x 16.0" |
