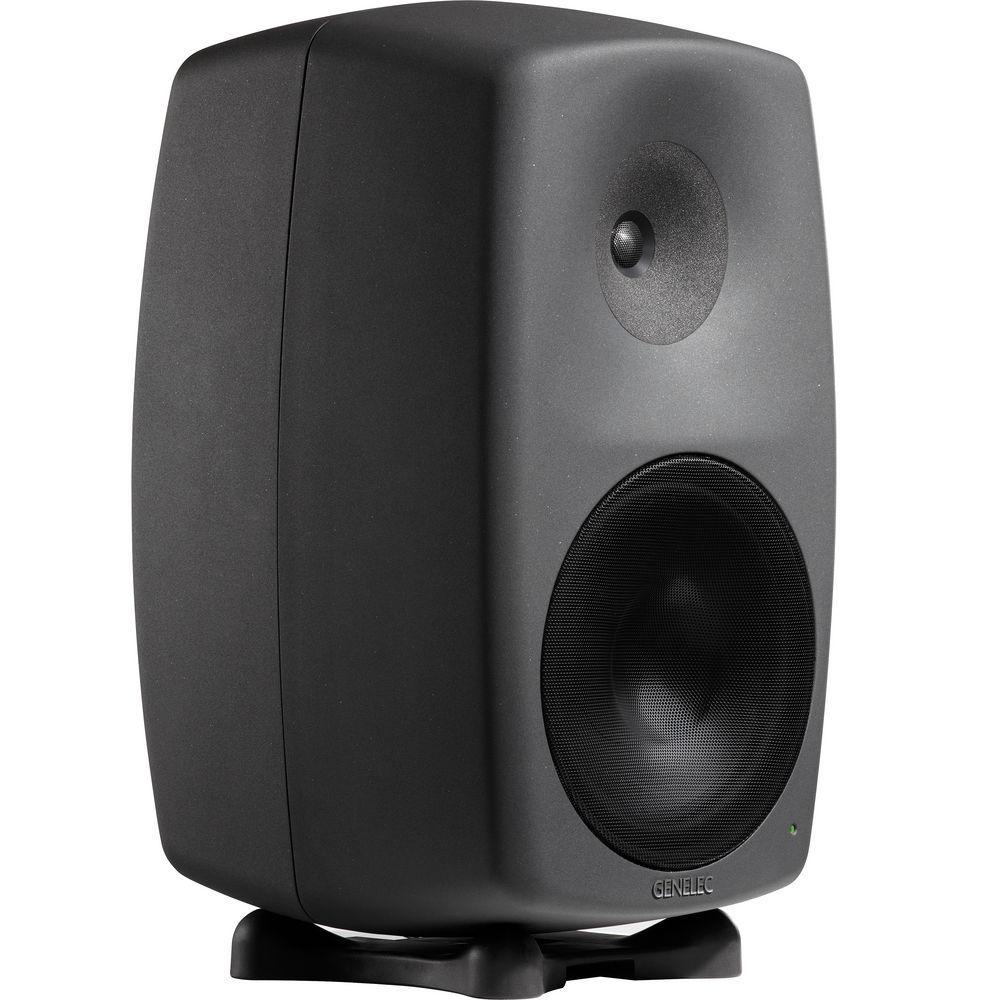

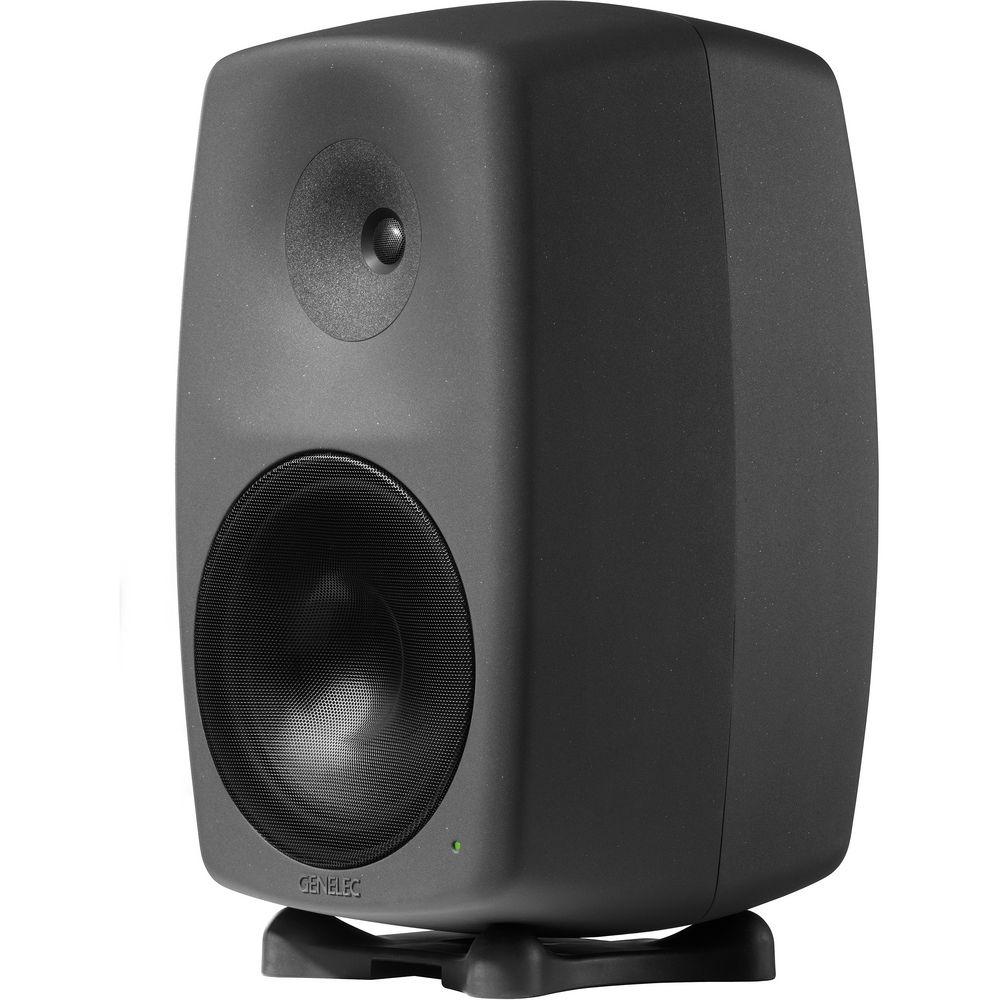

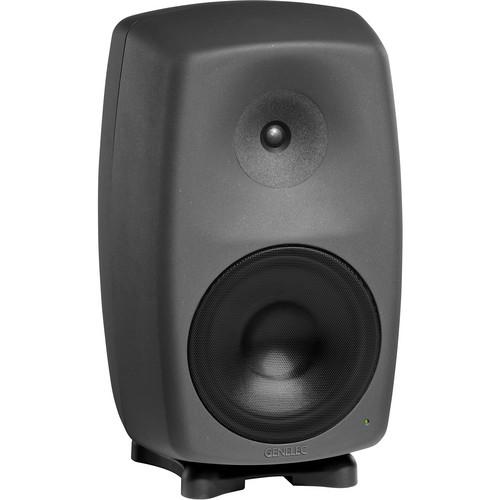

User Manual for Genelec 8260A 390W 10" Active 3-Way Active Digital Monitor Speaker Click to enlarge the picture
Contents of the user manual for the Genelec 8260A 390W 10" Active 3-Way
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec 8260A 390W 10" Active 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description The 8260A from Genelec is an advanced 3-way monitor speaker ideal for use in professional studios. The speaker has a die-cast aluminum Minimum Diffraction Enclosure that houses a 10" woofer, a 5" midrange driver, and a 0.75" tweeter. The coaxial driver design provides accurate imaging and excellent sound quality. A Directivity Control Waveguide ensures that the drivers couple properly over their full bandwidth and create an accurate mid/high point source. The tri-amplified design provides 390W of total output power for a strong, clear performance with exceptionally low distortion.
The speaker features DSP signal processing, which is responsible for all of the speaker functions such as crossover, driver EQ, room response alignment, and more. Genelec Loudspeaker Manager software (sold separately) allows you to manage all of the functions easily. The speaker has both analog and digital inputs, plus a digital thru connector for terrific flexibility. An Iso-Pod base decouples the speaker from its mounting surface to eliminate coloration caused by vibrations and reflections. - Die-cast aluminum Minimum Diffraction Enclosure provides a smooth frequency response
- The 10" woofer, 5" midrange driver, and 0.75" tweeter feature a coaxial driver design that provides accurate imaging and excellent sound quality
- A Directivity Control Waveguide ensures that the drivers couple properly over their full bandwidth and create an accurate mid/high point source
- The tri-amplified design provides 390W of total output power for a strong, clear performance with exceptionally low distortion
- DSP signal processing is responsible for all of the speaker functions such as crossover, driver EQ, driver position alignment, room response alignment, calibration, and distance compensating delays

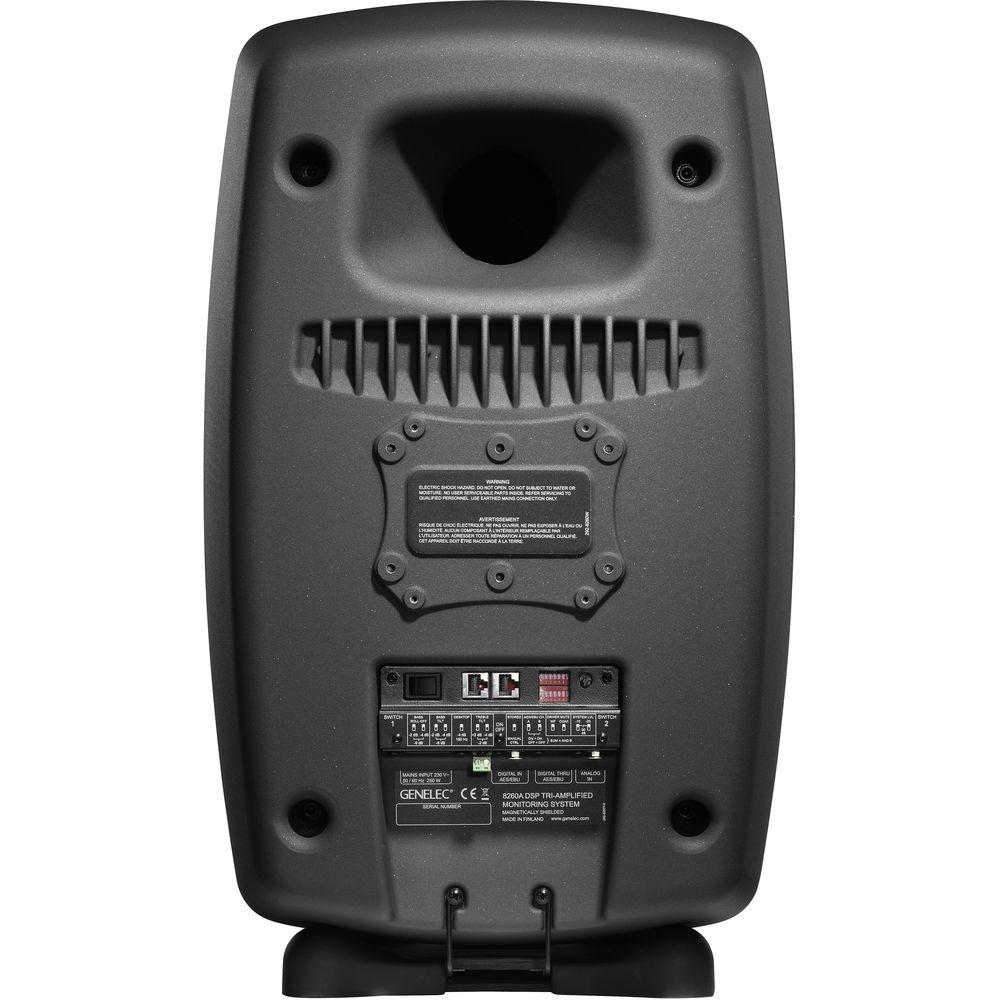

- Analog and digital inputs provide terrific flexibility. A digital thru connector is also provided
- The included Iso-Pod base decouples the speaker from its mounting surface to eliminate coloration caused by vibrations and reflections
- Integrated rear support points allow convenient mounting on various floor and wall stands
In the Box Genelec 8260A 390W 10" Active 3-Way Active Digital Monitor Speaker (Black) Power Cord Iso-Pod Stand User Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8260A 390W 10" Active 3-Way Active Digital Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8260A Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 0.75" / 19 mm Aluminum Dome Tweeter
MF Driver: 1 x 5" / 127 mm Composite Cone
LF Driver: 1 x 10" / 254 mm Woofer | | Amplification | HF Amplifier: Rated at 120 W
MF Amplifier: Rated at 120 W
LF Amplifier: Rated at 150 W | | | | Frequency Response | 29 Hz to 21 kHz ± 1 dB | | Maximum Sound Pressure Level (SPL) | 123 dB | | | | Crossover Frequency | Low-Pass Frequency: 490 Hz
High-Pass Frequency: 3 kHz | | | | I/O | 1 x 3-Pin XLR Female Analog Input (10 kOhms)
1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output/Thru (110 Ohms) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 120 VAC at 60 Hz | | | | Dimensions (W x H x D) | 14.1 x 22.4 x 13.6" / 357.0 x 570.0 x 347.0 mm | | Weight | 60.5 lb / 27.5 kg | | | | Package Weight | 69.4 lb | | Box Dimensions (LxWxH) | 27.7 x 18.2 x 17.9" |
