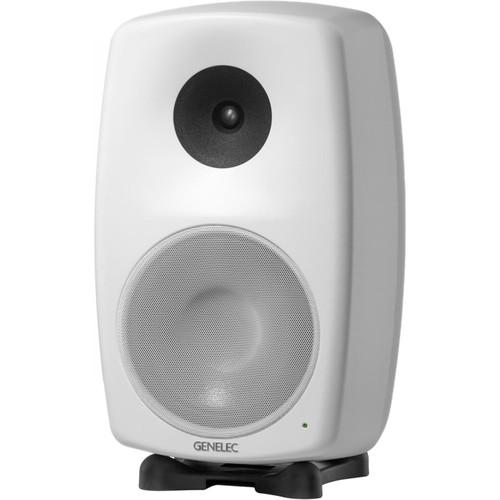

User Manual for Genelec 8260A SAM Series 10" 3-Way 390W Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Genelec 8260A SAM Series 10" 3-Way
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
|
User manual for the Genelec 8260A SAM Series 10" 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description The white Genelec 8260A is a single SAM-Series, 3-way active studio monitor designed to provide accurate mix referencing with extended low frequencies and software control capabilities for audio engineers, musicians, and producers in commercial facilities, mid- to large-sized control rooms, or mastering rooms. It features 390W of tri-amped power driving a 10” woofer, 5" midrange driver, and 3/4” tweeter, producing a frequency response of 23 Hz to 40 kHz.A proprietary waveguide enhances imaging, while the bass reflex port extends the low-frequency response. The die-cast aluminum enclosure is shaped to minimize diffraction and reflections. XLR connectors are provided for the balanced analog input and AES/EBU digital input and output. Rear-panel room compensation options include a sensitivity switch and high- and low-frequency adjustments. Detailed frequency adjustments and automatic calibration can be performed via GLM (Genelec Loudspeaker Manager) software and the GLM User Kit (available separately). A power-saving mode enables automatic power up/down via a signal-sensing circuit.The 8260A offers multiple mounting options including an Iso-Pod isolation stand and two sets of threaded holes for compatibility with K&M monitor mounts. -
- 10" woofer, 5" midrange driver, and 3/4" tweeter
- 150W LF amp, 120W MF amp, and 120W HF amp
- 23 Hz to 40 kHz frequency response (-6 dB), 29 Hz to 20 kHz frequency response (±1 dB)
- Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging and a wider listening area
- Bass reflex port provides extended low-frequency response
- Room compensation controls include sensitivity, system level, and high- and low-frequency adjustments
- Supports automatic calibration via software control
- Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology
- XLR connections for balanced analog input and digital AES/EBU input and output
- ISS (Intelligent Signal Sensing) automatic power-saving mode
- Multiple mounting options: Iso-Pod and threaded holes that are compatible with K&M mounts
- Includes Iso-Pod isolation stand for vibration decoupling
In the Box Genelec 8260A SAM Series 10" 3-Way 390W Active Studio Monitor (Single, White) Iso-Pod Isolation Stand Power Cable 16.4' / 5m GLM (Genelec Loudspeaker Manager) Network Cable Limited 2-Year Warranty with 3-Year Extension upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8260A SAM Series 10" 3-Way 390W Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8260A Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 0.75" / 19 mm Dome Tweeter
MF Driver: 1 x 5" / 120 mm Cone
LF Driver: 1 x 10" / 255 mm Woofer | | Amplification | HF Amplifier: Rated at 120 W
MF Amplifier: Rated at 120 W
LF Amplifier: Rated at 150 W | | | | Frequency Range | 23 Hz to 40 kHz (at -6 dB) | | Frequency Response | 29 Hz to 20 kHz ± 1 dB | | Maximum Sound Pressure Level (SPL) | 123 dB | | Maximum Input Level | +21 dBu | | Analog Input Sensitivity/Gain | -6 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 5 dBA (at 3.28' / 1 m) | | | | EQ | 4 x LF Notch/Peak dB
2 x HF Notch/Peak dB
2 x LF Shelf dB
2 x HF Shelf dB Via GLM Software | | | | Crossover Frequency | Low-Pass Frequency: 490 Hz
High-Pass Frequency: 2.6 kHz | | | | I/O | 1 x 3-Pin XLR Female Analog Input (10 kOhms)
1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output/Thru (110 Ohms) | | Computer Interface | 2 x RJ45 (Controller, Network) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Power Consumption | 26 W (Idle)
330 W (Maximum) | | | | Enclosure Material | Aluminum | | Dimensions (W x H x D) | 14.1 x 23.3 x 13.7" / 357.0 x 593.0 x 347.0 mm Height Excluding Iso-Pod: 22.4" / 570 mm | | Weight | 60.0 lb / 27.5 kg |
