Genelec 8320.LSE Surround SAM Five 8320A

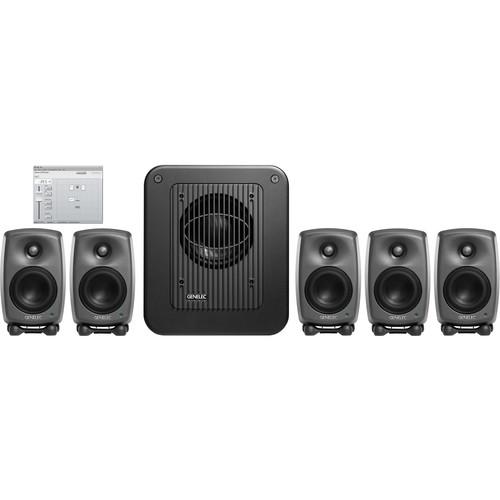

User Manual for Genelec 8320.LSE Surround SAM Five 8320A One 7350A Subwoofer & GLM V2.0 with 9310AM Volume Control Kit

• Product category: Studio Monitors Genelec
• Brand: Genelec
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Genelec Studio Monitors

Product description

• 8320A Bi-Amplified Smart Active Monitor (Single) The single 8320A Bi-Amplified Smart Active Monitor from Genelec is a two-way monitor designed for professional applications. It features built-in Smart Active Monitor (SAM) digital signal processing (DSP), with the Genelec Loudspeaker Manager (GLM) software designed to provide accuracy and ease of use in difficult acoustic environments.

  The high performance drivers are directly connected to dedicated D Class power amplifiers. System protection is implemented as a part of the SAM signal processing. The MDE (Minimum Diffraction Enclosure) enclosure is made of die-cast aluminum and shaped to reduce edge diffraction, and is combined with the Directivity Control Waveguide (DCW).
• 7350A SAM 150W 8" SAM-Series Studio Subwoofer Delivering a level of performance often associated with much larger enclosures, the Genelec 7350A SAM (Smart Active Monitoring) Subwoofer is an 8", 150W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7350A combines the Laminar Spiral Enclosure (LSE) technology with AutoCal and GLM control network technologies. Genelec's AutoCal allows the unit to automatically align multiple subwoofers for level, timing, crossover phase, and equalization of room response anomalies. Providing extended low-frequency performance, accurate tonal characteristics, and high dynamic capabilities, the 7350A supports a distributed bass management architecture. This subwoofer offers 5.1 channel analog XLR inputs and outputs together with stereo AES/EBU XLR inputs and outputs without the need for additional external AD converters. The 150W Class-D amplifier unit is integrated into the enclosure and contains DSP crossover filters, driver overload and protection circuitry. The Genelec 7350A is the low-frequency monitoring tool for music studios, mobile vans, digital workstations, radio and TV broadcasting, providing remarkable sound clarity, definition, and neutrality.
  • • Smart Active Monitor (SAM) systems
    • Laminar Spiral Enclosure (LSE) technology
    • Bass Management system
    • Intelligent Signal Sensing (ISS) technology
    • Optimized amplifiers
    • Active crossovers
    • Protection circuitry
• GLM 2.0 User Kit The GLM 2.0 User Kit from Genelec is an accessories kit designed for Genelec's GLM 2.0 networking system. It includes a GLM network adapter, a microphone with a holder, a USB cable, and a GLM network cable.

  The GLM 2.0 Loudspeaker Manager Software is available for download with the purchase of a GLM 2.0 User Kit. GLM 2.0 is a monitor control networking system that manages connectivity with up to 30 SAM studio monitors and subwoofers. The GLM software is compatible with Windows and Mac and features level adjustment, distance delays, and flexible room response compensation equalization with the AutoCal automated calibration system. All parameters and settings are stored in system setup files or saved in each individual monitor or subwoofer if the GLM network needs to be disconnected.

  GLM 2.0 Loudspeaker Manager Software

  • Connectivity with up to 30 SAM monitors and subwoofers
  • User interface designed for fast, easy setup
  • Adapts SAM monitors to various environments
  • Provides neutral sound reproduction via flat system frequency response for in-room calibration
  • Automatic calibration of levels and distance-compensating delays for accurate and stable sound stage imaging
  • Stores calibration settings for different listening positions and instantly recalls them during the production stage
  • Symmetrical or individualized stereo pair equalization compensation
  • Subwoofer crossover phase is set for all subwoofers on the network
  • Each monitor group has its own AutoCal calibration file
  • Groups contained in one GLM system setup file can use both analog and digital input
  • Unlimited number of system setup files
  • Volume control via external wired or wireless volume controller or GLM software master fader
  • Real-time on-screen SPL reading of the active monitor group

  GLM AutoCal Calibration Module

  • Provides an integrated process for complete automated measurement, analysis, and adjustment of every monitor on the GLM control network
  • Aligns relative levels, compensates distance differences, and adjusts correct crossover phase for all subwoofers on the network
  • Acoustic Response Editor provides graphical display of measured response, filter compensation, and system response for each monitor, with full manual control of acoustic settings
  • SinglePoint and MultiPoint microphone positions provide measurements for one-, two-, or three-person mixing environments
  • Uses a factory-calibrated Genelec 8300A acoustic measurement microphone (included)
• 9310A Volume Controller for GLM 2.0 The 9310A Volume Controller from Genelec provides wired volume control for all SAM studio monitors and subwoofers linked to the GLM 2.0 Network Adapter via the software volume fader. The controller connects to the GLM 2.0 interface using a built-in 3.5mm stereo male connector.

• Power Cord

• 16.4' RJ45 Cable

• Limited 2-Year Warranty

• Mains Cable

• GLM Network Cable (5m)

• Limited 2-Year Warranty

• GLM Network Adapter

• Microphone

• Microphone Holder

• USB Cable

• GLM Network Cable

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Genelec 8320.LSE Surround SAM Five 8320A One 7350A Subwoofer & GLM V2.0 with 9310AM Volume Control Kit can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Genelec 8320.LSE Surround SAM Five 8320A One 7350A Subwoofer & GLM V2.0 with 9310AM Volume Control Kit can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Genelec 8320.LSE Surround SAM Five 8320A One 7350A Subwoofer & GLM V2.0 with 9310AM Volume Control Kit (PDF file, 1.29 MB)

Technical parameters

• 8320A Bi-Amplified Smart Active Monitor (Single)

  Monitor Type	Active 2-Way
  Enclosure	Bass-Reflex, Shielded
  Drivers	HF Driver: 1 x 0.75" / 1.9 cm Tweeter LF Driver: 1 x 4" / 10.2 cm Woofer
  Amplification	HF Amplifier: Rated at 50 W LF Amplifier: Rated at 50 W

  Frequency Range	55 Hz to 23 kHz (at -6 dB)
  Frequency Response	66 Hz to 20 kHz ± 1.5 dB

  I/O	1 x 3-Pin XLR Balanced Analog Input
  Computer Interface	2 x RJ45 (Controller, Network)

  Dimensions (W x H x D)	6.0 x 9.5 x 5.6" / 15.1 x 24.2 x 14.2 cm
  Weight	7.0 lb / 3.2 kg

  Box Dimensions (LxWxH)	14.8 x 8.1 x 7.5"

• 7350A SAM 150W 8" SAM-Series Studio Subwoofer

  Monitor Type	Active Subwoofer
  Enclosure	Bass-Reflex, Shielded
  Power Rating	150 W
  Drivers	Subwoofer Driver: 1 x 8" / 203.2 mm Woofer

  Frequency Range	22 Hz to 160 Hz (at -6 dB)
  Maximum Sound Pressure Level (SPL)	104 dB
  Total Harmonic Distortion (THD)	0.005%
  Maximum Input Level	+24 dBu
  Analog Input Sensitivity/Gain	+48 dBu to -6 dBu (Continuously Variable)
  Self-Generated Noise	Less Than 5 dBA (at 3.28' / 1 m)

  Filters	Low-Pass at 85 Hz High-Pass at 85 Hz 20 x Parametric Notch Filters in GLM Control; Input Low-Pass Selectable 50 to 100 Hz, No Output Filtering

  I/O	6 x 3-Pin XLR Balanced Female Analog Input 6 x 3-Pin XLR Balanced Male Analog Output 1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms) 1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms)
  Computer Interface	2 x RJ45 (Controller, Network)

  Max Sample Rate/Resolution	192 kHz / 24-Bit

  AC Input Power	100 to 240 VAC at 50/60 Hz
  Power Consumption	0.5 W (Standby) 8.5 W (Idle) 150 W (Maximum)

  Dimensions (W x H x D)	13.8 x 16.1 x 12.6" / 350.0 x 410.0 x 319.0 mm
  Weight	41.9 lb / 19.0 kg

  Box Dimensions (LxWxH)	19.6 x 16.7 x 15.7"

• GLM 2.0 User Kit

  Operating System	Windows 8 or 8.1 (32- or 64-bit), Windows 7 SP1 or newer (32- or 64-bit), Vista, XP
  Processor	Intel Pentium or compatible (1.6 GHz minimum)
  GPU	DirectX 11.0 class or better
  Minimum RAM	2 GB
  Minimum Disk Capacity	1 GB
  Display	1024 x 768 or higher resolution
  Additional Requirements	Internet connection

  Operating System	OS X 10.10 Yosemite, OS X 10.9 Mavericks
  Processor	Any processor compatible with the above operating systems
  GPU	Any GPU compatible with the above operating systems
  Minimum RAM	2 GB
  Minimum Disk Capacity	1 GB
  Display	1024 x 768 or higher resolution
  Additional Requirements	Internet connection

  Box Dimensions (LxWxH)	9.9 x 4.8 x 2.3"

• 9310A Volume Controller for GLM 2.0

  Box Dimensions (LxWxH)	4.4 x 4.4 x 2.0"
