Product description

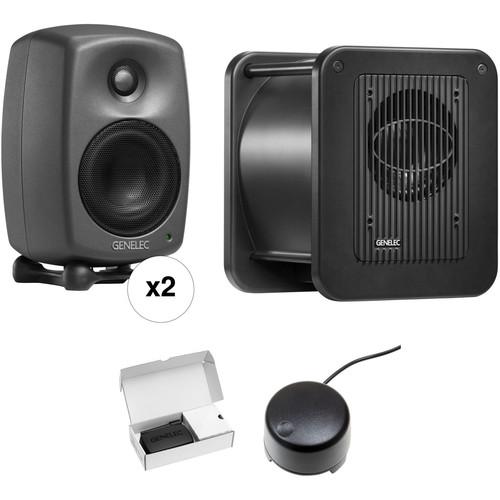

• 2 x Genelec 8320A Bi-Amplified Smart Active Monitor (Single) The single 8320A Bi-Amplified Smart Active Monitor from Genelec is a two-way monitor designed for professional applications. It features built-in Smart Active Monitor (SAM) digital signal processing (DSP), with the Genelec Loudspeaker Manager (GLM) software designed to provide accuracy and ease of use in difficult acoustic environments.

  The high performance drivers are directly connected to dedicated D Class power amplifiers. System protection is implemented as a part of the SAM signal processing. The MDE (Minimum Diffraction Enclosure) enclosure is made of die-cast aluminum and shaped to reduce edge diffraction, and is combined with the Directivity Control Waveguide (DCW).
• Genelec 7350A SAM 150W 8" SAM-Series Studio Subwoofer Delivering a level of performance often associated with much larger enclosures, the Genelec 7350A SAM (Smart Active Monitoring) Subwoofer is an 8", 150W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7350A combines the Laminar Spiral Enclosure (LSE) technology with AutoCal and GLM control network technologies. Genelec's AutoCal allows the unit to automatically align multiple subwoofers for level, timing, crossover phase, and equalization of room response anomalies. Providing extended low-frequency performance, accurate tonal characteristics, and high dynamic capabilities, the 7350A supports a distributed bass management architecture. This subwoofer offers 5.1 channel analog XLR inputs and outputs together with stereo AES/EBU XLR inputs and outputs without the need for additional external AD converters. The 150W Class-D amplifier unit is integrated into the enclosure and contains DSP crossover filters, driver overload and protection circuitry. The Genelec 7350A is the low-frequency monitoring tool for music studios, mobile vans, digital workstations, radio and TV broadcasting, providing remarkable sound clarity, definition, and neutrality.
  • • Smart Active Monitor (SAM) systems
    • Laminar Spiral Enclosure (LSE) technology
    • Bass Management system
    • Intelligent Signal Sensing (ISS) technology
    • Optimized amplifiers
    • Active crossovers
    • Protection circuitry
• Genelec GLM 2.0 User Kit The GLM 2.0 User Kit from Genelec is an accessories kit designed for Genelec's GLM 2.0 networking system. It includes a GLM network adapter, a microphone with a holder, a USB cable, and a GLM network cable.

  The GLM 2.0 Loudspeaker Manager Software is available for download with the purchase of a GLM 2.0 User Kit. GLM 2.0 is a monitor control networking system that manages connectivity with up to 30 SAM studio monitors and subwoofers. The GLM software is compatible with Windows and Mac and features level adjustment, distance delays, and flexible room response compensation equalization with the AutoCal automated calibration system. All parameters and settings are stored in system setup files or saved in each individual monitor or subwoofer if the GLM network needs to be disconnected.

  GLM 2.0 Loudspeaker Manager Software

  • Connectivity with up to 30 SAM monitors and subwoofers
  • User interface designed for fast, easy setup
  • Adapts SAM monitors to various environments
  • Provides neutral sound reproduction via flat system frequency response for in-room calibration
  • Automatic calibration of levels and distance-compensating delays for accurate and stable sound stage imaging
  • Stores calibration settings for different listening positions and instantly recalls them during the production stage
  • Symmetrical or individualized stereo pair equalization compensation
  • Subwoofer crossover phase is set for all subwoofers on the network
  • Each monitor group has its own AutoCal calibration file
  • Groups contained in one GLM system setup file can use both analog and digital input
  • Unlimited number of system setup files
  • Volume control via external wired or wireless volume controller or GLM software master fader
  • Real-time on-screen SPL reading of the active monitor group

  GLM AutoCal Calibration Module

  • Provides an integrated process for complete automated measurement, analysis, and adjustment of every monitor on the GLM control network
  • Aligns relative levels, compensates distance differences, and adjusts correct crossover phase for all subwoofers on the network
  • Acoustic Response Editor provides graphical display of measured response, filter compensation, and system response for each monitor, with full manual control of acoustic settings
  • SinglePoint and MultiPoint microphone positions provide measurements for one-, two-, or three-person mixing environments
  • Uses a factory-calibrated Genelec 8300A acoustic measurement microphone (included)
• Genelec 9310A Volume Controller for GLM 2.0 The 9310A Volume Controller from Genelec provides wired volume control for all SAM studio monitors and subwoofers linked to the GLM 2.0 Network Adapter via the software volume fader. The controller connects to the GLM 2.0 interface using a built-in 3.5mm stereo male connector.

• 2 x 8320A Bi-Amplified Smart Active Monitor (Single) brqrucbvaadfzxcbusyfdqywtdszdedsbeww
• Power Cord
• 16.4' RJ45 Cable
• Limited 2-Year Warranty

• 7350A SAM 150W 8" SAM-Series Studio Subwoofer

• GLM 2.0 User Kit

• 9310A Volume Controller for GLM 2.0
