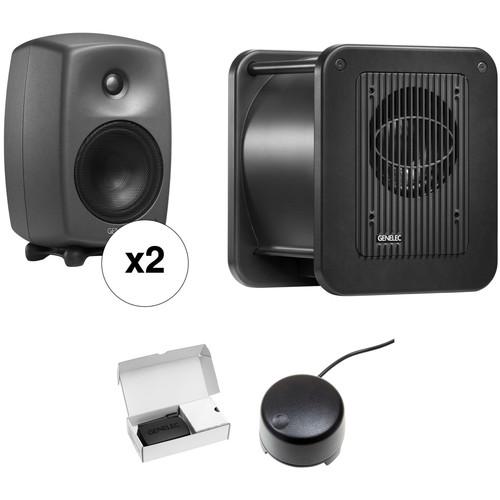

User Manual for Genelec 8330.LSE Triple SAM Kit - Two 8330APMs, One 7350A Subwoofer & GLM V2.0 Kit with Volume Control Click to enlarge the picture
Contents of the user manual for the Genelec 8330.LSE Triple SAM Kit -
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
|
User manual for the Genelec 8330.LSE Triple SAM Kit - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description Designed for engineers looking for matching monitors and subwoofers, the 8330.LSE Triple SAM Kit from Genelec gives you two 5" monitors and a corresponding subwoofer, all manageable over the company's GLM technology. The system consists of two 8330A monitors, a 7350A subwoofer, a GLM 2.0 user kit, and a 9310A volume controller.The monitor sports a Minimum Diffraction Enclosure and a Directivity Control Waveguide to provide a flat frequency response and realistic stereo imaging. You can tune these monitors to your room by means of the built-in SAM DSP.
The 7350A SAM Studio Subwoofer provides a Laminar Spiral Enclosure and a built-in bass management system. The 8" subwoofer also utilizes SAM technology, so your whole system can coordinate and accommodate your room. The included GLM 2.0 Kit networks all the monitors together, measuring the acoustic response of your room, and calibrates the speakers accordingly. The volume controller gives you control of the level. - 2 x Genelec 8330A 100W 5" Active 2-Way DSP Monitor Speaker (Dark Gray) The dark gray 8330A 100W 5" Active 2-Way DSP Monitor Speaker from Genelec is an advanced 2-way monitor speaker suitable for use in professional studios. The speaker has a Minimum Diffraction Enclosure that houses a 5" woofer and a 0.75" tweeter. A Directivity Control Waveguide works with the MDE enclosure to provide a flat frequency response, excellent imaging precision, and minimal listening fatigue. A flow-optimized bass-reflex port provides solid low frequency response without compression, distortion, or port noise. The bi-amplified design provides 100W of total output power for a strong, clear performance with exceptionally low distortion.The speaker features DSP crossover filters, magnetic shielding, and overload protection circuitry for smooth, reliable operation. Genelec Loudspeaker Manager software (sold separately) allows you to manage all of the speaker functions easily, such as level adjustment, distance delays, room EQ, and more. The speaker has both analog and digital inputs, plus a digital thru connector for flexibility. The included Iso-Pod base decouples the speaker from its mounting surface to eliminate coloration caused by vibrations and reflections. The speaker also has integrated rear support points for floor and wall stands, plus an M10 threaded mounting hole on the base.
- Compact design is suitable for limited-space environments such as music studios, post-production houses, digital edit suites, radio, TV, and outside broadcasting
- Rounded edges of the Minimum Diffraction Enclosure (MDE) work with the Directivity Control Waveguide (DCW) to provide a flat frequency response, imaging precision, and minimum listening fatigue
- Optimized bass reflex port provides clear and articulated bass without compression, distortion, or port noise
- 5" woofer and 0.75" metal dome tweeter provide accurate sound reproduction with a wide frequency response
- Bi-amplified design provides 100W of total output power for a strong, clear performance. The amplifiers have low distortion, thanks to the extremely steep crossover roll-off characteristics
- DSP crossover filters, magnetic shielding, overload protection circuitry, and versatile room response controls are provided for smooth, reliable operation
- Analog and digital inputs provide flexibility and compatibility with a variety of audio systems and devices. A digital thru connector is also provided
- Included Iso-Pod base decouples the speaker from its mounting surface to eliminate coloration caused by vibrations and reflections. It also allows you to angle the speaker for optimized listening
- Integrated rear support points allow convenient mounting on various floor and wall stands, while an M10 threaded mounting hold on the base provides additional mounting options
- Genelec 7350A SAM 150W 8" SAM-Series Studio Subwoofer Delivering a level of performance often associated with much larger enclosures, the Genelec 7350A SAM (Smart Active Monitoring) Subwoofer is an 8", 150W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7350A combines the Laminar Spiral Enclosure (LSE) technology with AutoCal and GLM control network technologies. Genelec's AutoCal allows the unit to automatically align multiple subwoofers for level, timing, crossover phase, and equalization of room response anomalies. Providing extended low-frequency performance, accurate tonal characteristics, and high dynamic capabilities, the 7350A supports a distributed bass management architecture. This subwoofer offers 5.1 channel analog XLR inputs and outputs together with stereo AES/EBU XLR inputs and outputs without the need for additional external AD converters. The 150W Class-D amplifier unit is integrated into the enclosure and contains DSP crossover filters, driver overload and protection circuitry. The Genelec 7350A is the low-frequency monitoring tool for music studios, mobile vans, digital workstations, radio and TV broadcasting, providing remarkable sound clarity, definition, and neutrality.
-
- Smart Active Monitor (SAM) systems
- Laminar Spiral Enclosure (LSE) technology
- Bass Management system
- Intelligent Signal Sensing (ISS) technology
- Optimized amplifiers
- Active crossovers
- Protection circuitry
- Genelec GLM 2.0 User Kit The GLM 2.0 User Kit from Genelec is an accessories kit designed for Genelec's GLM 2.0 networking system. It includes a GLM network adapter, a microphone with a holder, a USB cable, and a GLM network cable.
The GLM 2.0 Loudspeaker Manager Software is available for download with the purchase of a GLM 2.0 User Kit. GLM 2.0 is a monitor control networking system that manages connectivity with up to 30 SAM studio monitors and subwoofers. The GLM software is compatible with Windows and Mac and features level adjustment, distance delays, and flexible room response compensation equalization with the AutoCal automated calibration system. All parameters and settings are stored in system setup files or saved in each individual monitor or subwoofer if the GLM network needs to be disconnected. GLM 2.0 Loudspeaker Manager Software - Connectivity with up to 30 SAM monitors and subwoofers
- User interface designed for fast, easy setup
- Adapts SAM monitors to various environments
- Provides neutral sound reproduction via flat system frequency response for in-room calibration
- Automatic calibration of levels and distance-compensating delays for accurate and stable sound stage imaging
- Stores calibration settings for different listening positions and instantly recalls them during the production stage
- Symmetrical or individualized stereo pair equalization compensation
- Subwoofer crossover phase is set for all subwoofers on the network
- Each monitor group has its own AutoCal calibration file
- Groups contained in one GLM system setup file can use both analog and digital input
- Unlimited number of system setup files
- Volume control via external wired or wireless volume controller or GLM software master fader
- Real-time on-screen SPL reading of the active monitor group
GLM AutoCal Calibration Module - Provides an integrated process for complete automated measurement, analysis, and adjustment of every monitor on the GLM control network
- Aligns relative levels, compensates distance differences, and adjusts correct crossover phase for all subwoofers on the network
- Acoustic Response Editor provides graphical display of measured response, filter compensation, and system response for each monitor, with full manual control of acoustic settings
- SinglePoint and MultiPoint microphone positions provide measurements for one-, two-, or three-person mixing environments
- Uses a factory-calibrated Genelec 8300A acoustic measurement microphone (included)
- Genelec 9310A Volume Controller for GLM 2.0 The 9310A Volume Controller from Genelec provides wired volume control for all SAM studio monitors and subwoofers linked to the GLM 2.0 Network Adapter via the software volume fader. The controller connects to the GLM 2.0 interface using a built-in 3.5mm stereo male connector.
In the Box - 2 x 8330A 100W 5" Active 2-Way DSP Monitor Speaker (Dark Gray) brqrucbvaadfzxcbusyfdqywtdszdedsbeww
- Iso-Pod Stand
- Limited 2-Year Warranty
- 7350A SAM 150W 8" SAM-Series Studio Subwoofer
- 9310A Volume Controller for GLM 2.0
Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8330.LSE Triple SAM Kit - Two 8330APMs, One 7350A Subwoofer & GLM V2.0 Kit with Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Genelec 8330A 100W 5" Active 2-Way DSP Monitor Speaker (Dark Gray)
| | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 0.75" / 19.1 mm Metal Dome Tweeter
LF Driver: 1 x 5" / 127 mm Woofer | | Amplification | HF Amplifier: Class-D Rated at 50 W
LF Amplifier: Class-D Rated at 50 W | | | | Frequency Range | 45 Hz to 23 kHz (at -6 dB) | | Maximum Sound Pressure Level (SPL) | 104 dB | | | | Crossover Frequency | 3 kHz | | | | I/O | 1 x 3-Pin XLR Analog Input
1 x 3-Pin XLR AES/EBU Digital Input
1 x 3-Pin XLR AES/EBU Digital Output | | Computer Interface | 2 x RJ45 (Controller, Network) | | | | Dimensions (W x H x D) | 7.4 x 11.7 x 7.0" / 189.0 x 299.0 x 178.0 mm | | Weight | 12.1 lb / 5.5 kg | | | | Box Dimensions (LxWxH) | 17.4 x 11.8 x 11.7" | - Genelec 7350A SAM 150W 8" SAM-Series Studio Subwoofer
| | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 150 W | | Drivers | Subwoofer Driver: 1 x 8" / 203.2 mm Woofer | | | | Frequency Range | 22 Hz to 160 Hz (at -6 dB) | | Maximum Sound Pressure Level (SPL) | 104 dB | | Total Harmonic Distortion (THD) | 0.005% | | Maximum Input Level | +24 dBu | | Analog Input Sensitivity/Gain | +48 dBu to -6 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 5 dBA (at 3.28' / 1 m) | | | | Filters | Low-Pass at 85 Hz
High-Pass at 85 Hz 20 x Parametric Notch Filters in GLM Control; Input Low-Pass Selectable 50 to 100 Hz, No Output Filtering | | | | I/O | 6 x 3-Pin XLR Balanced Female Analog Input
6 x 3-Pin XLR Balanced Male Analog Output
1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms) | | Computer Interface | 2 x RJ45 (Controller, Network) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 0.5 W (Standby)
8.5 W (Idle)
150 W (Maximum) | | | | Dimensions (W x H x D) | 13.8 x 16.1 x 12.6" / 350.0 x 410.0 x 319.0 mm | | Weight | 41.9 lb / 19.0 kg | | | | Box Dimensions (LxWxH) | 19.6 x 16.7 x 15.7" | - Genelec GLM 2.0 User Kit
| | | Operating System | Windows 8 or 8.1 (32- or 64-bit), Windows 7 SP1 or newer (32- or 64-bit), Vista, XP | | Processor | Intel Pentium or compatible (1.6 GHz minimum) | | GPU | DirectX 11.0 class or better | | Minimum RAM | 2 GB | | Minimum Disk Capacity | 1 GB | | Display | 1024 x 768 or higher resolution | | Additional Requirements | Internet connection | | | | Operating System | OS X 10.10 Yosemite, OS X 10.9 Mavericks | | Processor | Any processor compatible with the above operating systems | | GPU | Any GPU compatible with the above operating systems | | Minimum RAM | 2 GB | | Minimum Disk Capacity | 1 GB | | Display | 1024 x 768 or higher resolution | | Additional Requirements | Internet connection | | | | Box Dimensions (LxWxH) | 9.9 x 4.8 x 2.3" | - Genelec 9310A Volume Controller for GLM 2.0
| | | Box Dimensions (LxWxH) | 4.4 x 4.4 x 2.0" |
