User Manual for Genelec 8330A 100W 5" Active 2-Way DSP Monitor Speaker Click to enlarge the picture
Contents of the user manual for the Genelec 8330A 100W 5" Active 2-Way
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec 8330A 100W 5" Active 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|

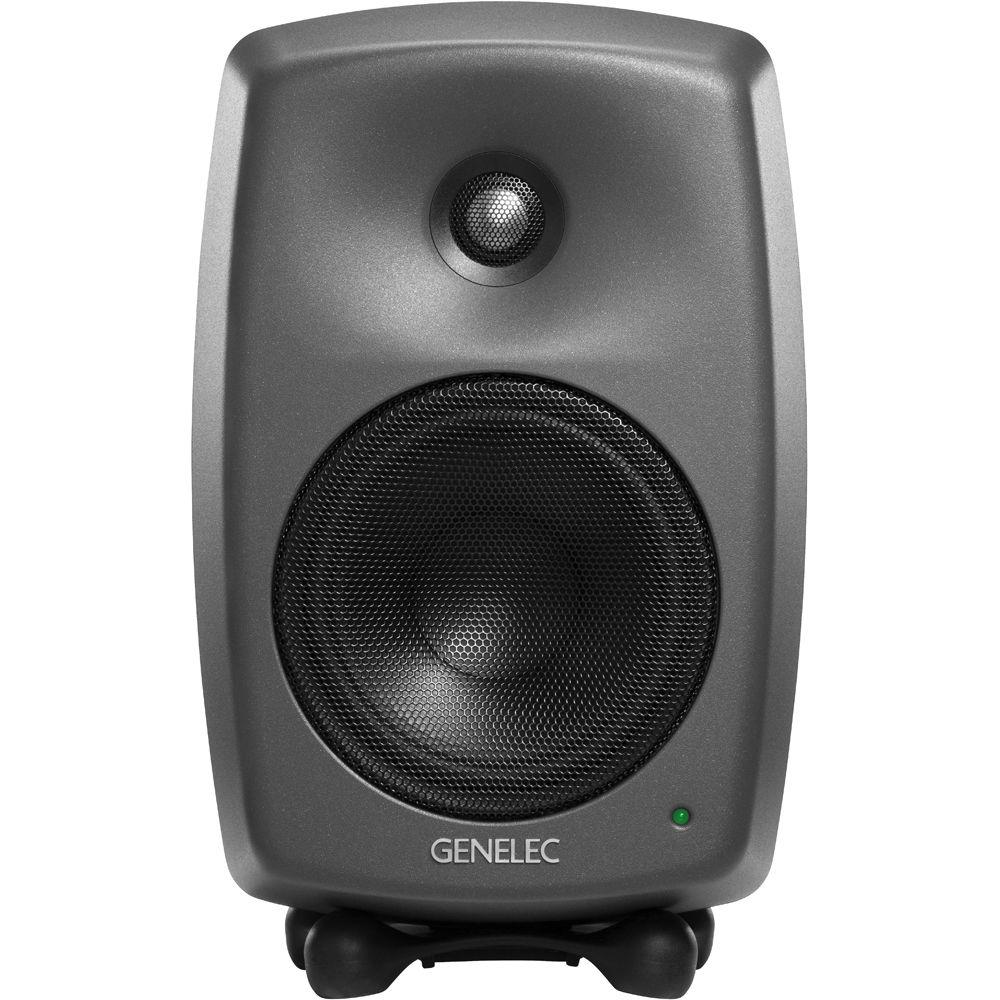

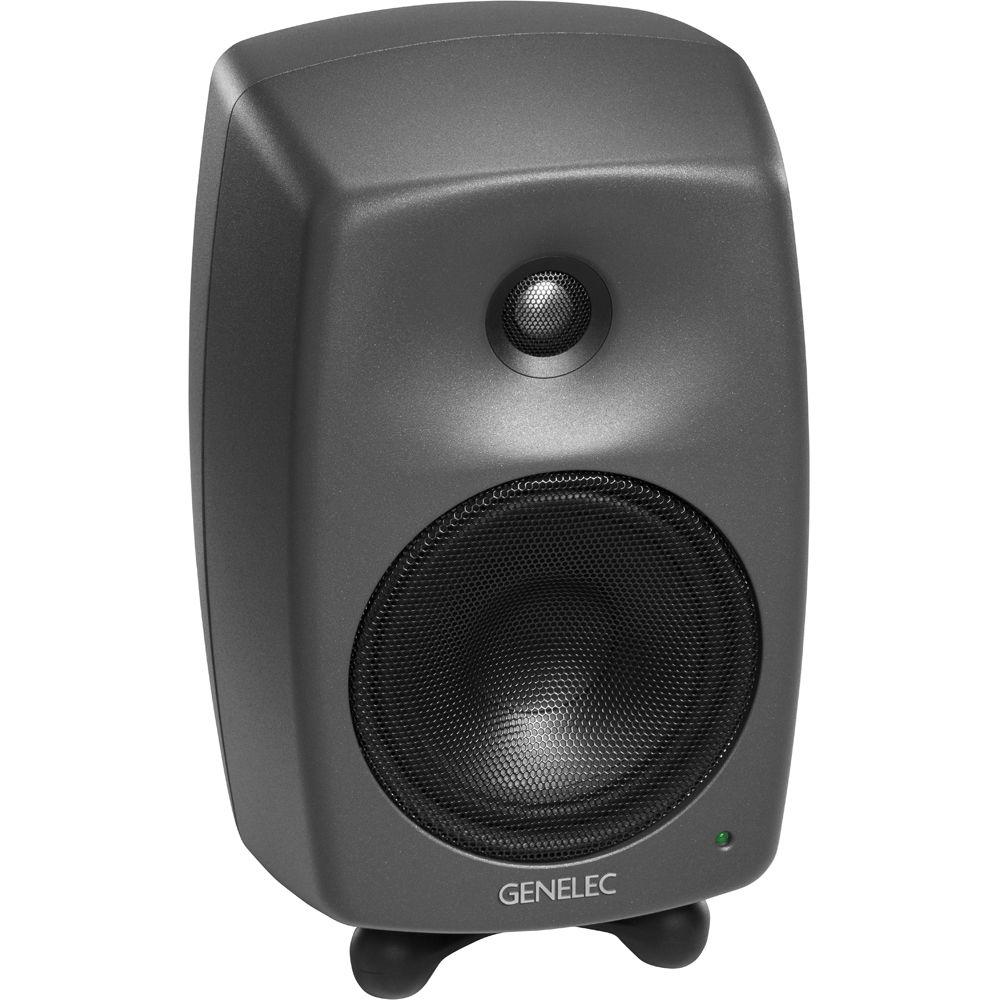

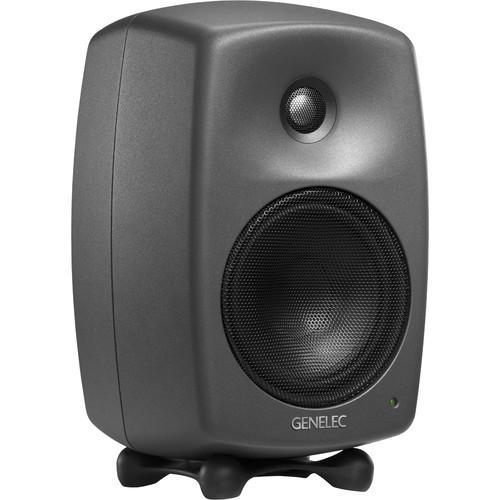

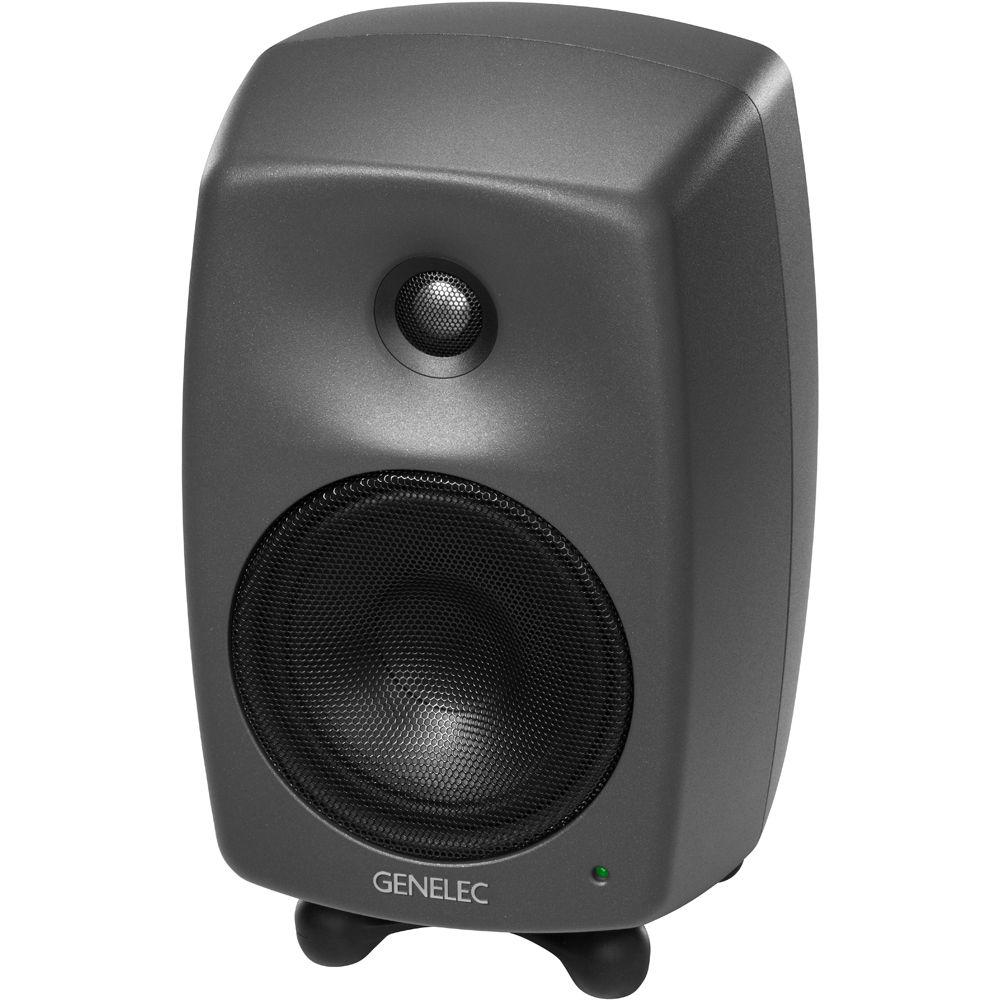

Product description The dark gray 8330A 100W 5" Active 2-Way DSP Monitor Speaker from Genelec is an advanced 2-way monitor speaker suitable for use in professional studios. The speaker has a Minimum Diffraction Enclosure that houses a 5" woofer and a 0.75" tweeter. A Directivity Control Waveguide works with the MDE enclosure to provide a flat frequency response, excellent imaging precision, and minimal listening fatigue. A flow-optimized bass-reflex port provides solid low frequency response without compression, distortion, or port noise. The bi-amplified design provides 100W of total output power for a strong, clear performance with exceptionally low distortion.The speaker features DSP crossover filters, magnetic shielding, and overload protection circuitry for smooth, reliable operation. Genelec Loudspeaker Manager software (sold separately) allows you to manage all of the speaker functions easily, such as level adjustment, distance delays, room EQ, and more. The speaker has both analog and digital inputs, plus a digital thru connector for flexibility. The included Iso-Pod base decouples the speaker from its mounting surface to eliminate coloration caused by vibrations and reflections. The speaker also has integrated rear support points for floor and wall stands, plus an M10 threaded mounting hole on the base. - Compact design is suitable for limited-space environments such as music studios, post-production houses, digital edit suites, radio, TV, and outside broadcasting
- Rounded edges of the Minimum Diffraction Enclosure (MDE) work with the Directivity Control Waveguide (DCW) to provide a flat frequency response, imaging precision, and minimum listening fatigue
- Optimized bass reflex port provides clear and articulated bass without compression, distortion, or port noise
- 5" woofer and 0.75" metal dome tweeter provide accurate sound reproduction with a wide frequency response
- Bi-amplified design provides 100W of total output power for a strong, clear performance. The amplifiers have low distortion, thanks to the extremely steep crossover roll-off characteristics
- DSP crossover filters, magnetic shielding, overload protection circuitry, and versatile room response controls are provided for smooth, reliable operation

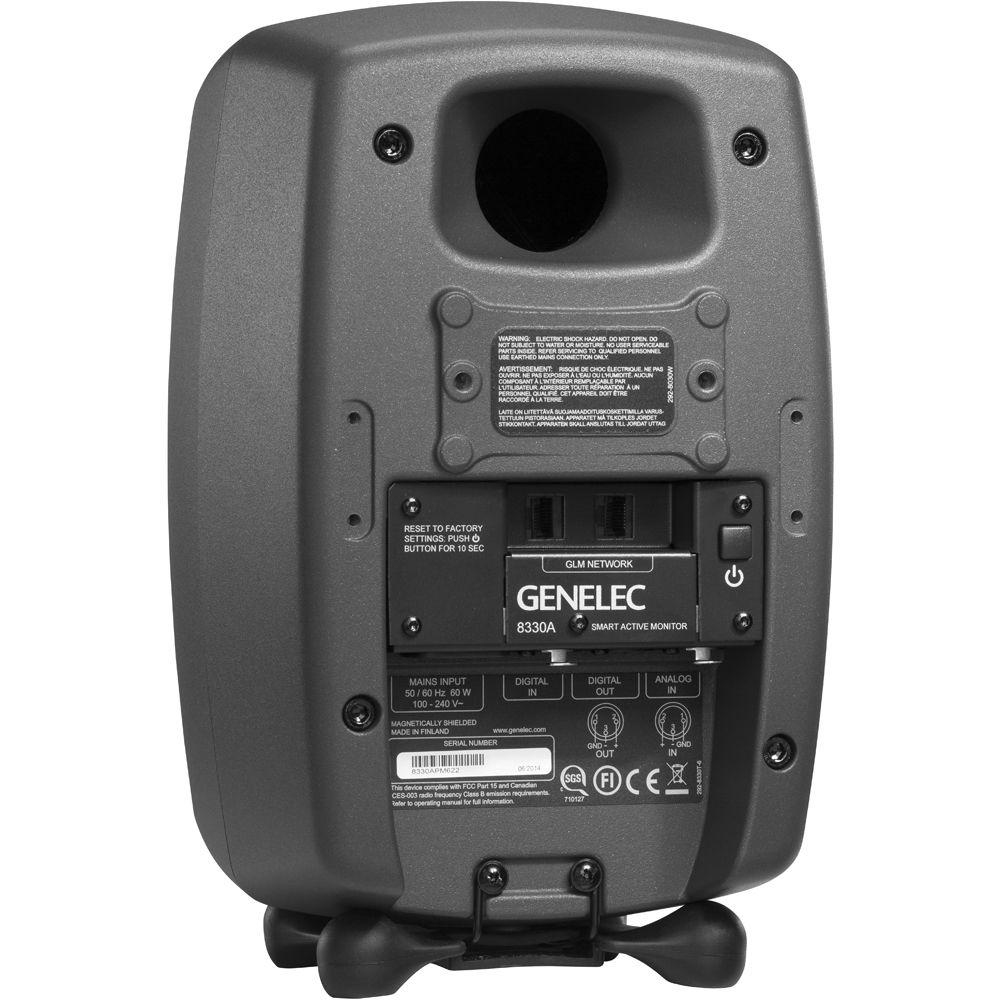

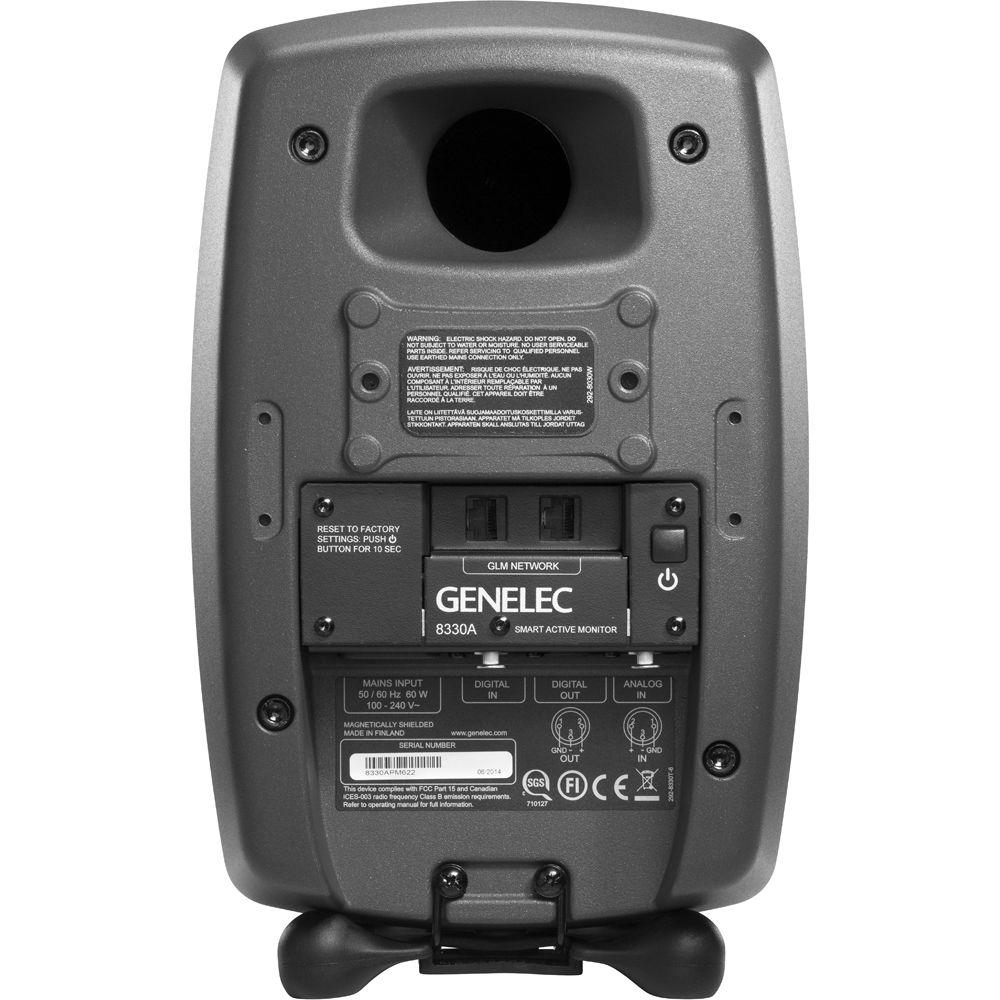

- Analog and digital inputs provide flexibility and compatibility with a variety of audio systems and devices. A digital thru connector is also provided
- Included Iso-Pod base decouples the speaker from its mounting surface to eliminate coloration caused by vibrations and reflections. It also allows you to angle the speaker for optimized listening
- Integrated rear support points allow convenient mounting on various floor and wall stands, while an M10 threaded mounting hold on the base provides additional mounting options
In the Box Genelec 8330A 100W 5" Active 2-Way DSP Monitor Speaker (Dark Gray) Iso-Pod Stand Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8330A 100W 5" Active 2-Way DSP Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8330A Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 0.75" / 19.1 mm Metal Dome Tweeter
LF Driver: 1 x 5" / 127 mm Woofer | | Amplification | HF Amplifier: Class-D Rated at 50 W
LF Amplifier: Class-D Rated at 50 W | | | | Frequency Range | 45 Hz to 23 kHz (at -6 dB) | | Maximum Sound Pressure Level (SPL) | 104 dB | | | | Crossover Frequency | 3 kHz | | | | I/O | 1 x 3-Pin XLR Analog Input
1 x 3-Pin XLR AES/EBU Digital Input
1 x 3-Pin XLR AES/EBU Digital Output | | Computer Interface | 2 x RJ45 (Controller, Network) | | | | Dimensions (W x H x D) | 7.4 x 11.7 x 7.0" / 189.0 x 299.0 x 178.0 mm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 17.4 x 11.8 x 11.7" |
