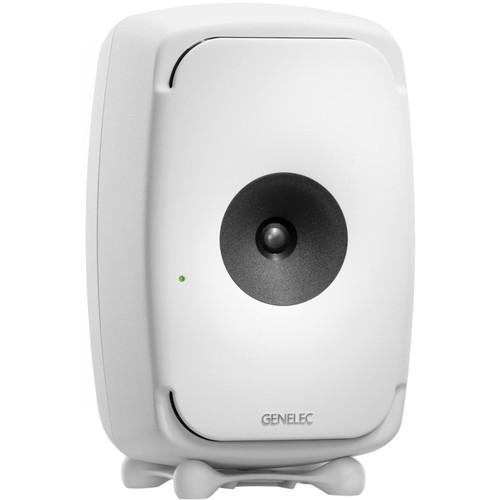

Product description The white Genelec 8351A is a single SAM-Series, 3-way active studio monitor designed to provide accurate mix referencing with extended low frequencies and software control capabilities for audio engineers, musicians, and producers in project studios, medium- to large-sized control rooms, commercial facilities, or mastering rooms. It features 360W of amplification driving two acoustically-concealed 8.5x4” oval woofers, a 5" midrange driver, and a 3/4” tweeter, producing a frequency response of 32 Hz to 35 kHz.A proprietary waveguide enhances imaging while the bass reflex port extends the low-frequency response. The die-cast aluminum enclosure is shaped to minimize diffraction and reflections. XLR connectors are provided for the balanced analog input and AES/EBU digital input and output. Built-in signal overload protection enhances dependability, and protects the speaker. Rear-panel room compensation controls include levels, and high- and low-frequency adjustments. Detailed frequency adjustments, and automatic calibration can be performed via GLM (Genelec Loudspeaker Manager) software, and the GLM User Kit (available separately). A selectable power-saving mode enables automatic power up/down via a signal-sensing circuit.The 8351A offers multiple mounting options including an Iso-Pod isolation stand, and threaded holes that are compatible with select K&M mounts, and various wall/ceiling brackets. -
- Dual 8.5x4" acoustically-concealed oval woofers
- 5" midrange driver, and 3/4" tweeter
- 150W LF amp, 120W MF amp, and 90W HF amp
- 32 Hz to 35 kHz frequency response (-6 dB), 38 Hz to 20 kHz frequency response (±1.5 dB)
- Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging, and a wider listening area
- Bass reflex port provides extended low-frequency response

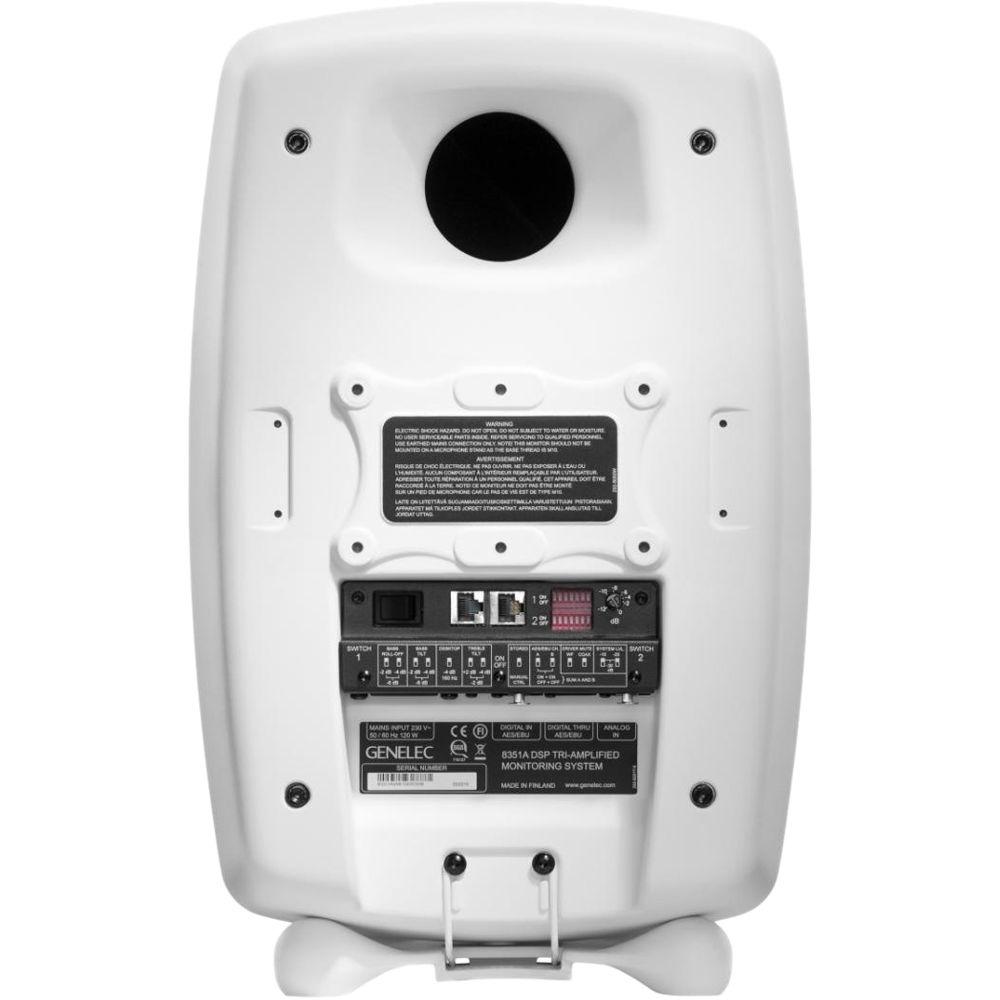

- Rear-panel room compensation controls including high- and low-frequency adjustments
- Supports automatic calibration via software control
- Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology
- XLR connections for balanced analog input, and digital AES/EBU input and output
- ISS (Intelligent Signal Sensing) automatic power-saving mode
- Multiple mounting options: Iso-Pod and threaded holes that are compatible with select K&M mounts, and various wall/ceiling brackets
- Includes Iso-Pod isolation stand for vibration decoupling
In the Box Genelec 8351A 3-Way 360W Active Studio Monitor (White) Iso-Pod Isolation Stand Power Cable 16.4' / 5m GLM (Genelec Loudspeaker Manager) Network Cable Limited 2-Year Warranty with 3-Year Extension upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec 8351A 3-Way 360W Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec 8351A Specs | Monitor Type | Active 3-Way | Enclosure | Bass-Reflex, Shielded | Drivers | HF Driver: 1 x 0.75" / 19 mm Tweeter MF Driver: 1 x 5" / 127 mm Cone LF Driver: 2 x 8.5" / 216 mm Oval Cone LF Drivers Full Dimensions Measure 8.5 x 4" / 216 x 102 mm | Amplification | HF Amplifier: Rated at 90 W MF Amplifier: Rated at 120 W LF Amplifier: Rated at 150 W | | Frequency Range | 32 Hz to 35 kHz (at -6 dB) | Frequency Response | 38 Hz to 20 kHz ± 1.5 dB | Maximum Sound Pressure Level (SPL) | 121 dB | Maximum Input Level | +21 dBu | Analog Input Sensitivity/Gain | -6 dBu (Continuously Variable) | Self-Generated Noise | Less Than 5 dBA (at 3.28' / 1 m) | | EQ | 4 x LF Notch/Peak dB 2 x HF Notch/Peak dB 2 x LF Shelf dB 2 x HF Shelf dB Via GLM Software | | Crossover Frequency | Low-Pass Frequency: 470 Hz High-Pass Frequency: 2.6 kHz | | I/O | 1 x 3-Pin XLR Female Analog Input (10 kOhms) 1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms) 1 x 3-Pin XLR AES/EBU Male Digital Output/Thru (110 Ohms) | Computer Interface | 2 x RJ45 (Controller, Network) | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | AC Input Power | 100 to 240 VAC at 50/60 Hz | Power Consumption | 20 W (Idle) 290 W (Maximum) | | Enclosure Material | Aluminum | Dimensions (W x H x D) | 11.3 x 17.8 x 10.9" / 286.0 x 452.0 x 278.0 mm Height Excluding Iso-Pod: 17" / 433 mm | Weight | 42.0 lb / 19.0 kg |
