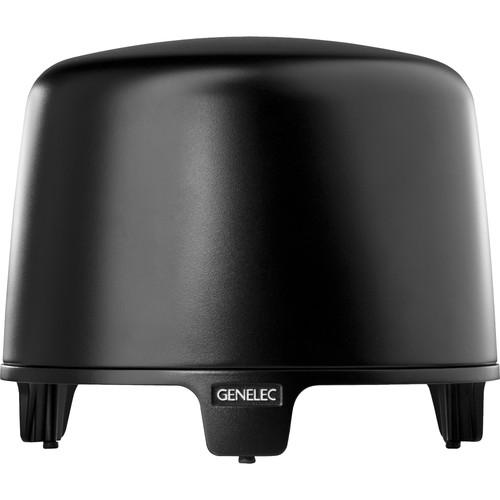

User Manual for Genelec F One 6.5" 40W Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Genelec F One 6.5" 40W Active
- Product category: Subwoofers Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Subwoofers
|
User manual for the Genelec F One 6.5" 40W Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description The black Genelec F One 6.5" 40W Active Subwoofer is a compact subwoofer that is designed to complement up to 5 Genelec One active loudspeakers or a pair of Genelec G Two or G Three speakers. This subwoofer features a 6.5" down-firing driver and is magnetically shielded for safe placement near monitors. The driver is powered by a 40W amplifier. Integrated bass management options allow you to customize output based on the subwoofer's location in your listening environment. The included remote control allows you to adjust the subwoofer's power and volume without being physically near the speaker. - Connecting a Stereo System
- The F One offers two methods for connecting stereo signals: use either the left and right stereo RCA inputs, or the the 3.5mm jack
- Connecting a Surround System
- The F One has an integrated crossover network for the five main channels, which directs the frequencies below 85 Hz to the subwoofer, and higher frequencies through the output connectors to the main speakers (sold separately)
- Bass Roll-Off Switches
- The roll-off switch allows you to match the acoustic response of the subwoofer to the characteristics of your listening environment
- Automatic Protection
- The F One has a built-in protection function that automatically reduces the playback volume to a safe level if the subwoofer is overloaded, overriding the volume commands transmitting via the remote control
- Additional Features
-
- Compact design at 9.9" high and 12" in diameter for easy placement
- Phase control setting for speaker matching
- 5.1-channel RCA inputs and 5-channel outputs for integrating into multi-channel systems
In the Box Genelec F One 6.5" 40W Active Subwoofer (Black) Power Cord Remote Control with Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec F One 6.5" 40W Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec F1AMM Specs | | | Frequency Response | Main Speaker: 35 to 85 Hz (±3 dB)
LFE: 35 to 120 Hz (±3 dB) | | Amplifier Power | 40 W (long-term power is limited by driver unit protection circuitry) | | SPL | 98 dB | | Self-Generated Noise Level | ≤15 dB SPL | | Driver Size | 6.5" / 165 mm | | Magnetically Shielded | Yes | | Total Harmonic Distortion | ≤0.05 % | | | | Subsonic Filter | 35 Hz (18 dB/octave) below | | Crossover Frequency | Subwoofer/Mains: 85 Hz
LFE Cutoff: 120 Hz | | Rejection | Midband Rejection >400 Hz: ≥50 dB | | Input Level | -9 dBu at level control max (90 dB SPL output at 1 m) | | Sensitivity Adjustment | 18 dB | | Enhancements | Bass Roll-Off Operating Range in 2 dB Steps: 0 to -6 dB at 35 Hz
Phase Matching Control in 90° Steps: 0 to -250° at 85 Hz | | | | Inputs | 1 x 1/8" / 3.5 mm
1 x RCA front left
1 x RCA front right
1 x RCA center
1 x RCA rear left
1 x RCA rear right
1 x RCA LFE | | Outputs | 1 x RCA front left
1 x RCA front right
1 x RCA center
1 x RCA rear left
1 x RCA rear right | | Other Connectors | 1 x AC power | | Input Impedance | 10 k ohm balanced | | Output Gain | Main Channel: 0 dB | | | | Remote Control | Yes | | Power Requirements | 120 VAC, 50/60 Hz | | Power Consumption | Standby: <0.5 W
Idle: 7 W
Full Output: 70 W | | Dimensions (H x Diam.) | 9.9 x 12.0" / 251.0 x 305.0 mm | | Weight | 13.9 lb / 6.3 kg | | | | Package Weight | 19.4 lb | | Box Dimensions (LxWxH) | 15.354 x 15.354 x 13.858" |
