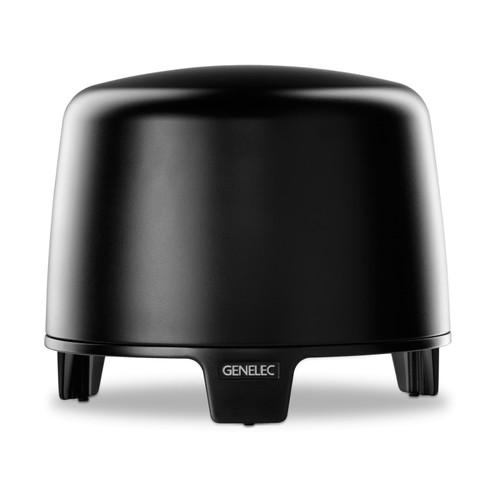

User Manual for Genelec F Two 8" Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Genelec F Two 8" Active Subwoofer
- Product category: Subwoofers Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Subwoofers
|
User manual for the Genelec F Two 8" Active Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description The mystic black F Two 8” Active Subwoofer from Genelec is designed to complement up to 5 Genelec G One or G Two or a pair of Genelec G Three or G Four systems. The Harri Koskinen industrial design provides bass extension down to 27 Hz without distortion and integrates with the main loudspeakers in any environment. The playback level for the whole audio system is conveniently controlled by the wireless volume control. In addition, the subwoofer comes with Link Out RCA connector for linking multiple subwoofers together, and 2 balanced male XLR connectors.
The F Two has an integrated bass management for the five main channels which directs the frequencies below 85 Hz to the subwoofer and higher frequencies through the output connectors to the main loudspeakers.
The ISS (Intelligent Signal Sensing) circuitry tracks the signal input of the loudspeaker and detects if it is in use. If the ISS circuit does not find any audio on the input for a period of time, it sets the loudspeaker to a low-power sleep state and the loudspeaker will consume less than 0.5W. When an input signal is detected, the loudspeaker immediately turns itself on. Basically, the loudspeaker system will start saving power as soon as work is interrupted. Technologies - Room Response Compensation
- Intelligent Signal Sensing
In the Box Genelec F Two 8" Active Subwoofer (Mystic Black) Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec F Two 8" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec F2AMM Specs | SPL | 102 dB | | Frequency Response ± 3dB | 27 Hz - 85 Hz
LFE: 27 Hz - 120 Hz | | Driver Size | 8" (203.2 mm) | | Connectors | 6 (5+LFE/LINK IN) x RCA input connectors
6 (5+LINK OUT) x RCA output connectors
2 x XLR input connectors
2 x XLR output connectors
Input Impedance: 10 kOhm | | Amplifier | Amplifier Short Term Output Power: 150 W (Long term output power is limited by driver unit protection circuitry)
Amplifier System THD at Nominal Output: ≤ 0.05 %
Mains Voltage: 100, 120 or 230 V
Power Consumption (Average): 0.5 W (standby), 12 W (idle), 120 W (full output) | | Crossover | Subsonic Filter (18 dB/octave) Below: 27 Hz
Crossover Frequency (Subwoofer/Main Channels): 85 HzLFE Channel Cutoff Frequency: 120 Hz
Midband Rejection (>400 Hz): ≥50 dB
Input Level for 90 dB SPL Output at 3.28' / 1 m: -18 dBu at level control maximum
Sensitivity Adjustment Range: 18 dB
Bass Roll-Off Control Operating Range in 2 dB steps: From 0 to -6 dB @ 27 Hz
Phase Matching Control in 90° Steps: From 0 to -270° @ 85 Hz | | System | Free Field Frequency Response (± 3 dB): Main 27 Hz...85 Hz, LFE 27 Hz...120 Hz
Maximum Short Term Sine Wave SPL Output Averaged from 30 to 85 Hz, Measured in Half Space at 3.28' / 1 m: 102 dB
Self Generated Noise Level in Half Space at 3.28' / 1 m on Axis (A-Weighted): ≤15 dB SPL | | Dimensions (Ø x H) | 14.25 x 11.81" (362 x 300 mm) | | Weight | 21.6 lb (9.8 kg) | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 15.5" |
