User Manual for Genelec G One 2-Way Active Speaker Click to enlarge the picture
Contents of the user manual for the Genelec G One 2-Way Active Speaker
- Product category: Bookshelf Speakers Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Bookshelf Speakers
 |
User manual for the Genelec G One 2-Way Active Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|

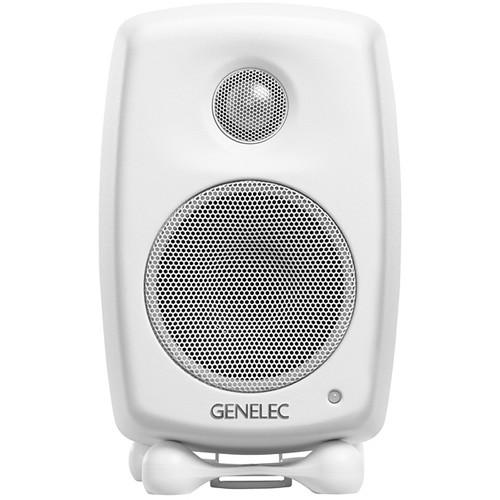

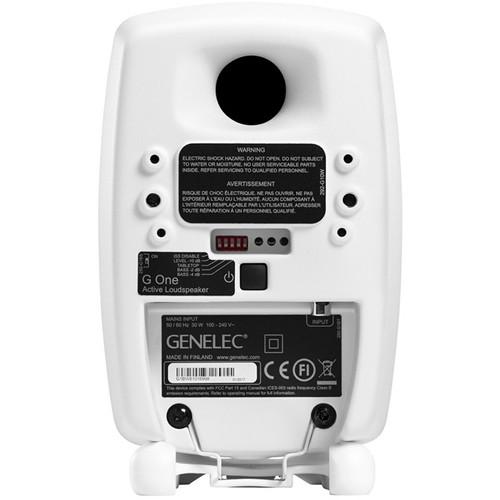

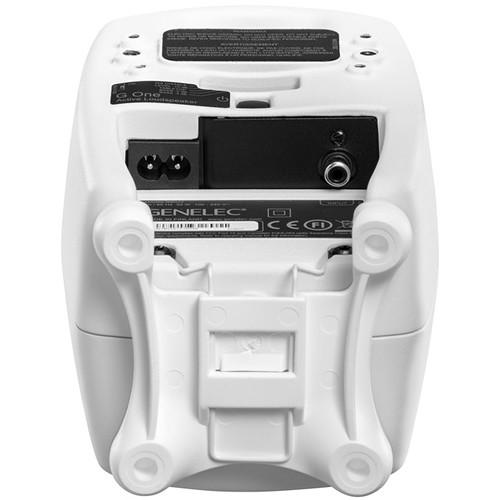

Product description The white G One 2-Way Active Speaker from Genelec is a compact two-way active loudspeaker designed to produce broad bandwidth sound with high output and low distortion. The G One can be used for music or home theater systems along with any type of audio source. An included Iso-Pod table stand isolates the speaker from vibration and enables you to tilt its position upward or downward. - Directivity Control Waveguide (DCW) technology for flat on- and off-axis response
- Each transducer is driven by its own optimized amplifier
- Precise room response compensation for optimizing in-room performance
- Intelligent Signal Sensing (ISS) technology for power consumption reduction in stand-by mode
- Advanced reflex port design for extended low-frequency response
- Sophisticated drive unit protection circuitry for safe operation
- Minimum Diffraction Enclosure (MDE) technology for uncolored sound reproduction
- Active crossover operating at low signal levels
- Versatile mounting options
In the Box Genelec G One 2-Way Active Speaker (White) Iso-Pod Table Stand RCA Audio Cable Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec G One 2-Way Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec G One Specs | Frequency Response | 67 Hz to 25 kHz @ -6 dB | | Maximum Sound Pressure Level (SPL) | ≥96 dB | | RMS Output | ≥91 dB SPL | | Noise Level | ≤5 dB | | Harmonic Distortion | 70 to 400 Hz: <3% @ 85 dB
>400 Hz: <0.5% @ 85 dB | | Input | 1 x RCA female | | Input Impedance | 7 kOhms | | Crossover Frequency | 3.0 kHz | | Operating Range | Tabletop Control: -4 dB at 200 Hz
Woofer Control in -2 dB Steps: 0 to -6 dB at 200 Hz | | Amplifier Power | Woofer: 25 W
Tweeter: 25 W | | Harmonic Distortion | Nominal Output THD+N: ≤0.08% | | Voltage | 100 to 240 VAC, 50-60 Hz
Operating Range: ±10% | | Power Consumption | Full Output: 30 W
Idle: 5 W
Standby: <0.5 W | | Operating Temperature | 50 to 95°F / 15 to 35°C | | Humidity | 20 to 80% | | Driver | Woofer: 3" / 76 mm
Tweeter: 3/4" / 19 mm | | Dimensions | With Iso-Pod Table Stand: 7.7 x 4.8 x 4.5" / 195 x 121 x 115 mm
Without Stand: 7.1 x 4.8 x 4.5" / 181 x 121 x 115 mm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 12.0 x 6.1 x 5.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
