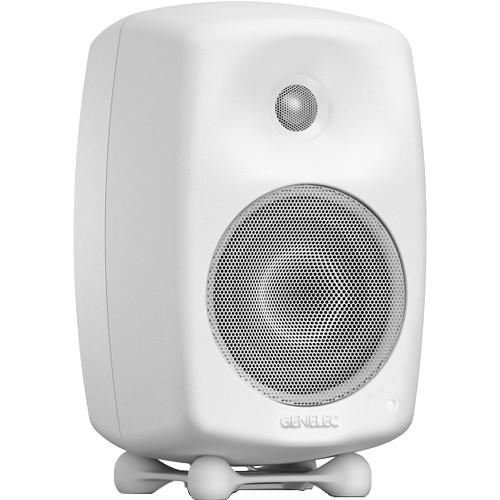

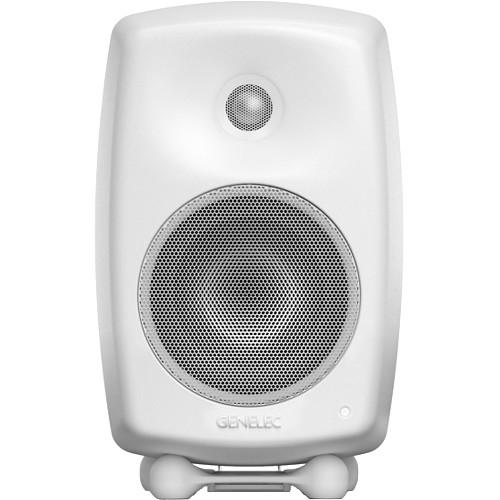

Product description The polar white G Three 2-Way Active Loudspeaker from Genelec is designed to produce broad bandwidth sound with high output and low coloration. The reflex port design helps in reducing the woofer’s displacement, improving the linear low frequency output capacity.
Audio input is via a 10 kOhm balanced female XLR connector or unbalanced RCA connector. Only line level audio signal from a preamplifier, computer sound card, or similar signal source can be connected. It is possible to connect two audio sources to the loudspeakers at the same time using both connectors, as long as only one source is used at a time. The playback level of the loudspeakers has two basic settings, normal and -10 dB. Bass and tone controls allow you to further customize or adjust the sound based on room placement.

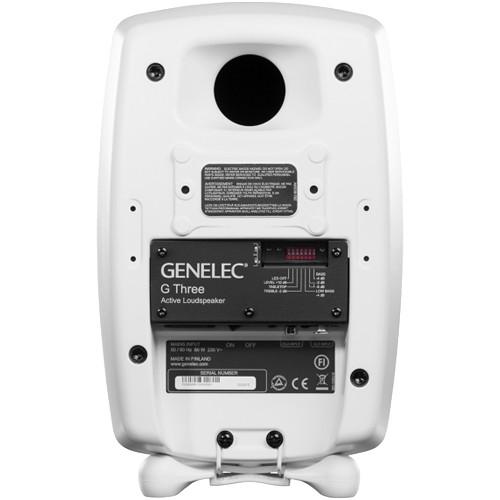

The Iso-Pod (Isolation Positioner/Decoupler) vibration insulating table stand allows tilting the loudspeaker for correct vertical alignment. There are 3 mounting points for the Iso-Pod on the back of the loudspeaker cabinet allowing vertical and symmetrical horizontal positioning. On the base of the loudspeaker is a 3/8” UNC threaded hole compatible with a standard microphone stand. On the rear there are two sets of threaded holes for Omnimount and König & Meyer brackets.
The signal sensing Autostart function of the loudspeakers powers them up when playback begins. Automatic powering down of the loudspeakers happens one hour after the playback has ended and the loudspeakers go to standby mode. The power consumption in standby mode is less than 0.5W. The loudspeaker will automatically and rapidly start once an input signal is detected from the source. Technologies - Directivity Control Waveguide (DCW)
- Room response compensation
- Minimum Diffraction Enclosure (MDE)
- Intelligent signal sensing
In the Box Genelec G Three 2-Way Active Loudspeaker (Polar White) Mains Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec G Three 2-Way Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec G Three Specs | SPL | 104 dB | | Frequency Response | 47 Hz to 25 kHz (-3 dB)
Accuracy: ± 2.5 dB (54 Hz to 20 kHz) | | Driver | Woofer: 5" / 127 mm
Tweeter: 0.75" / 19.5 mm metal dome | | Amplifier Power | Woofer 50 W + Tweeter 50 W | | Connections | 1 x RCA analog input
1 x XLR analog input | | Crossover | Input Impedance: 10 kOhm
Crossover frequency, Bass/Treble: 3 kHz
Treble Control Operating Range in 2 dB Steps: -2 dB @ 15 kHz
Tabletop Low Frequency Control Operating Range: -4 dB @ 200 Hz
Low Bass Control Operating Range: 4 dB @ 55 Hz
Bass Control Operating Range in 2 dB Steps: From 0 to -6 dB @ 100 Hz | | Amplifier | Bass/Treble Amplifier Short Term Output Power: 50 W each
Amplifier System Distortion at Nominal Output (THD/SMPTE-IM/CCIF-IM/DIM 100): ≤0.05 %
Signal to Noise Ratio, Referred to Full Output (Bass/Treble): ≥100 dB
Mains Voltage: 100-240 VAC, 50/60 Hz, ±10%
Power Consumption: <0.5 W (standby), 10 W (idle), 80 W (full output) | | Dimensions | Height (Without Table Support): 11.81"(300 mm)
Height (Including Table Support): 11.25"(285 mm)
Width: 7.43"(189 mm)
Depth: 7" (178 mm) | | Weight | 11.2 lb (5.1 kg) | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 17.4 x 11.8 x 11.7" |
