User Manual for Genelec G Three 50W Active Speaker - 5" Click to enlarge the picture
Contents of the user manual for the Genelec G Three 50W Active Speaker
- Product category: Bookshelf Speakers Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Bookshelf Speakers
 |
User manual for the Genelec G Three 50W Active Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|

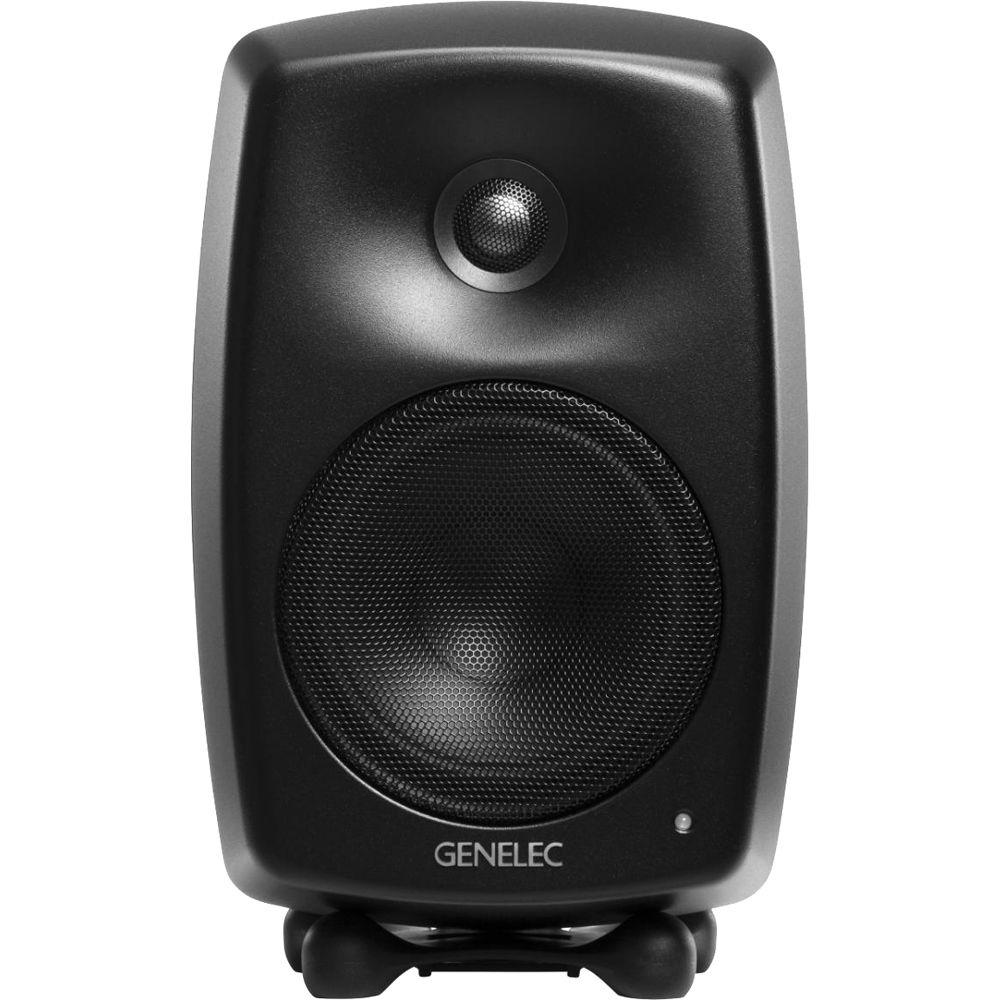

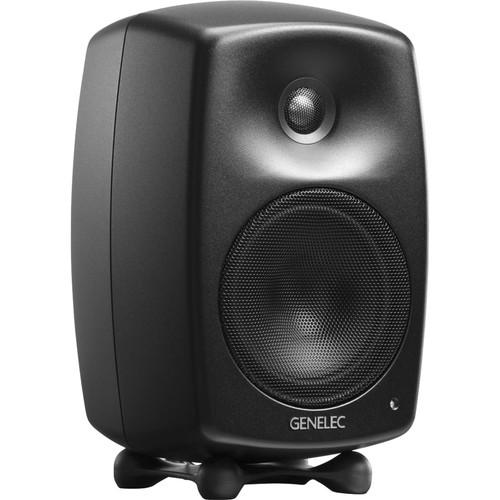

Product description The black Genelec G Three Active is a compact active loudspeaker designed for people looking for an unobtrusive design with high-performance. The speaker features a 50W + 50W amplifier, which powers a 5" woofer and a 0.75" tweeter. These combine to provide a frequency response of 54 Hz to 20 kHz, with an SPL of 104 dB. The onboard frequency controls provide adjustment possibilities and allow proper calibration of the active speaker in all types of rooms and acoustically challenging environments. -
- Directivity Control Waveguide (DCW) technology
- Minimum Diffraction Enclosure (MDE) technology
- Reflex port design
- Room response compensation
- Optimized amplifiers
- Active crossovers
- Protection circuitry
- Intelligent Signal Sensing (ISS) technology
- Iso-Pod stand
- Versatile mountings
In the Box Genelec G Three 50W Active Speaker - 5" (Black) Iso-Pod Stand Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec G Three 50W Active Speaker - 5" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec G Three Specs | SPL | 3.3' / 1 m: ≥104 dB
1.6' / 0.5 m: ≥110 dB
Long Term Acoustic Output: ≥96 dB at 3.3' / 1 m | | Cut-Off Frequency | 47 Hz to 25 kHz (-6 dB) | | Frequency Response | 54 Hz to 20 kHz (±2.5 dB) | | Self Noise | ≤5 dB | | Harmonic Distortion | Harmonic distortion at 1 m on axis at 85 dB SPL
Frequency 50 to 100 Hz: <2%
> 100 Hz: <0.5% | | Distortion | Amplifier System Distortion at Nominal Output:
THD: ≤0.05 %
SMPTE-IM: ≤0.05 %
CCIF-IM: ≤0.05 %
DIM 100: ≤0.05 % | | Signal-to-Noise Ratio (SNR) | ≥100 dB | | Driver Design | Woofer: 5.0" / 127.0 mm
Tweeter: 0.75" / 19.05 mm metal dome + DCW | | Amplifier Power | Class-D
Woofer 50 W + Tweeter 50 W | | Connector | 1 x RCA analog input

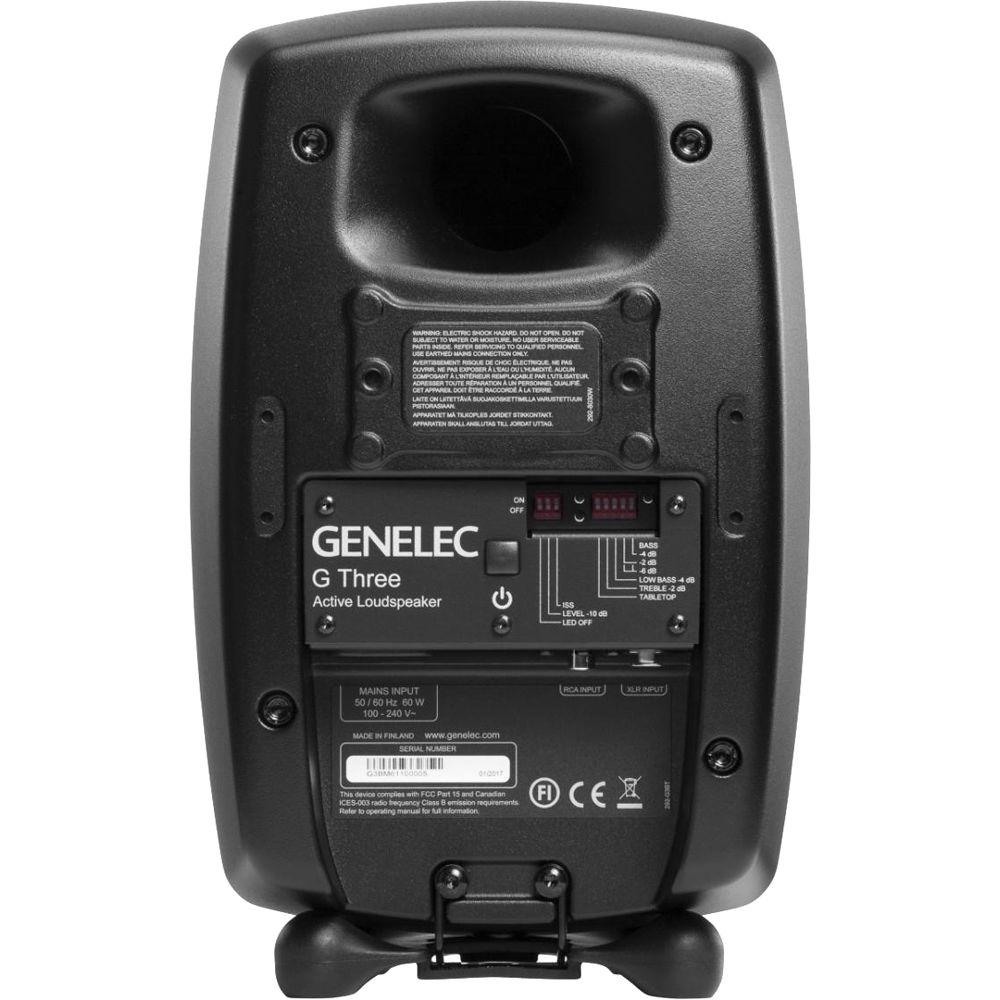

1 x XLR analog input | | Input Impedance | 10 kOhms | | Crossover | 3 kHz | | Tone Control (Treble / Bass) | Treble Control Operating Range in 2 dB Steps: -2 dB at 15 kHz
Tabletop Low Frequency Control Operating Range: -4 dB at 200 Hz
Low Bass Control Operating Range: -4 dB at 55 Hz
Bass Control Operating Range in 2 dB Steps: From 0 to -6 dB at 100 Hz
| | Power | Mains Voltage: 100 to 240 VAC, 50-60 Hz
Voltage Operating Range: ±10 %
Power Consumption:
Standby: <0.5 W
Idle: 3 W
Full Output: 60 W | | Dimensions (H x W x D) | 11.8 x 7.4 x 7.0" / 299.0 x 189.0 x 178.0 mm with Iso-Pod | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 17.0 x 11.8 x 11.8" |
