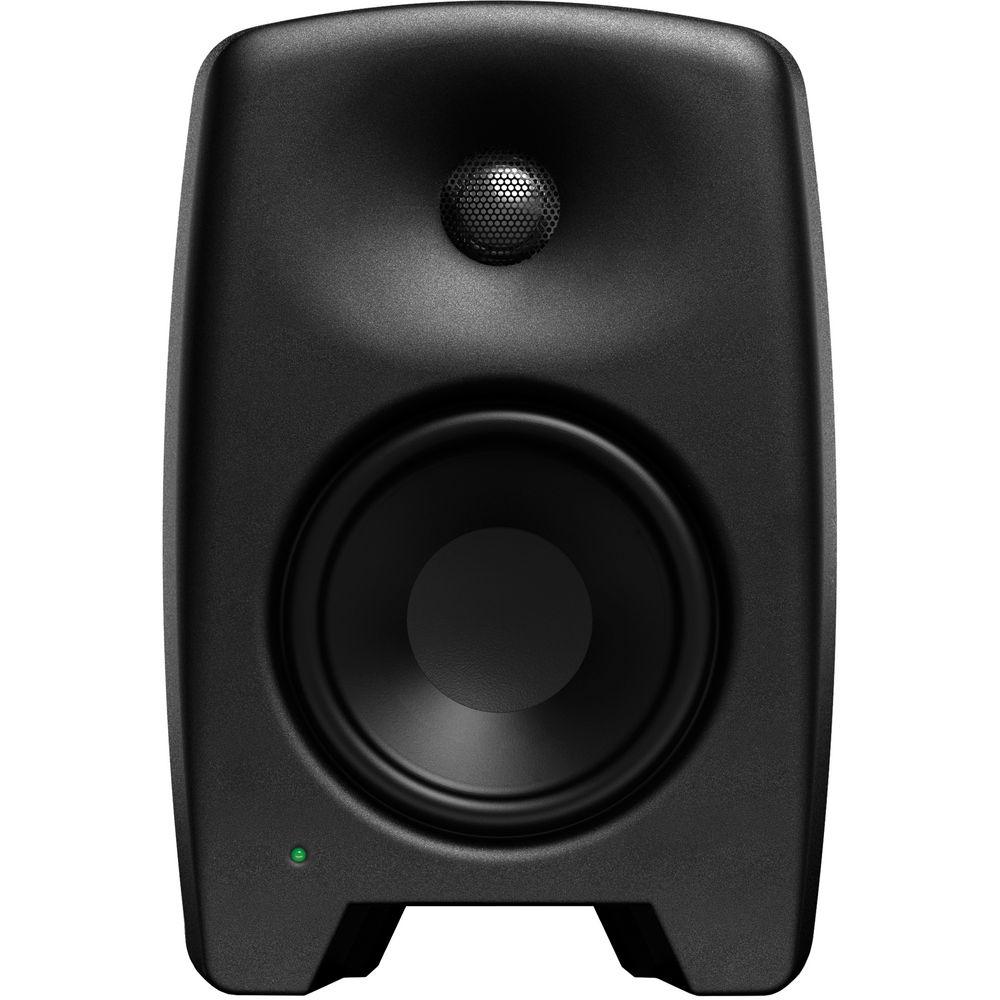

User Manual for Genelec M040 Active Two-Way 6.5" Studio Monitor Click to enlarge the picture
Contents of the user manual for the Genelec M040 Active Two-Way 6.5" Studio
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
 |
User manual for the Genelec M040 Active Two-Way 6.5" Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description - Genelec for Music Creation. Sound like the Professionals!

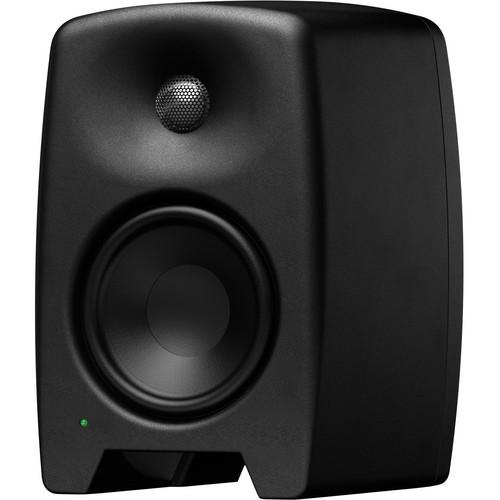

This black M040 Active Two-Way 6.5" Studio Monitor from Genelec offers a neutral and accurate reproduction of the source material, in a design that's committed to environmental sustainability. The cabinet of the M040 features rounded edges and a gently curved front and sides, which minimize edge diffraction and provide better imaging. It's made of a Natural Composite Enclosure, which is a compound of wood fiber and recyclable material. This is part of an initiative called Genelec Embedded Sustainability, where the products deliver a reduced carbon footprint, without sacrificing accuracy or performance.
Another attribute which adds to the inherent sustainability of the M040 are its built-in class D amplifiers, which are more power efficient, lightweight, and have a cooler operation than the class A/B amplifiers that are typically used in active near-field monitors. Its 1" metal dome tweeter and 6.5" woofer are powered by 50-watt and 80-watt class D amplifiers, respectively.

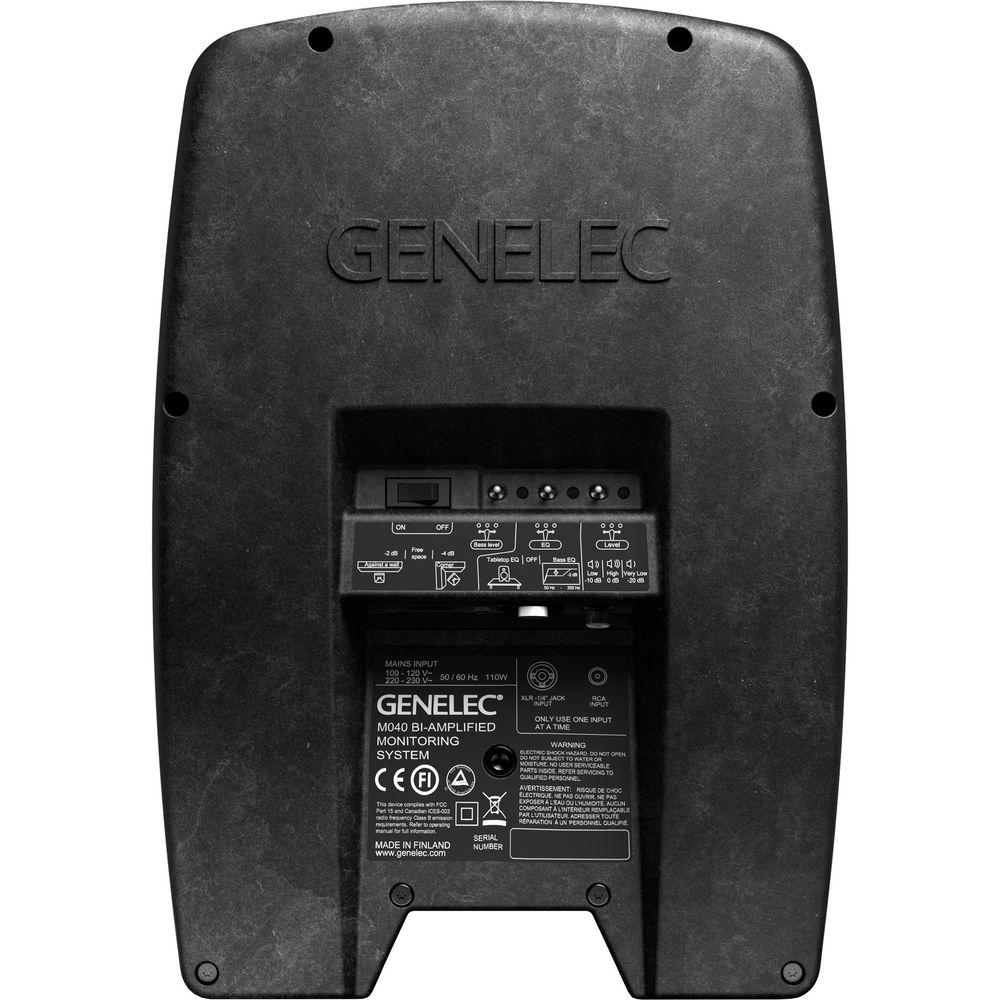

A feature called Intelligent Signal Sensing automatically puts the M040 into Standby mode, where it consumes less than 0.5 watts of power when an audio signal isn't present. When a signal is present, the M040 automatically powers on. A combo XLR and 1/4" TRS jack and an unbalanced RCA jack are provided for input. Room response controls optimize the EQ for bass and tabletop use. A dedicated Bass Control switch adjusts the response of even lower frequencies, to adapt the speaker to its environment. One position on the switch provides no bass EQ, for use when there is free space around the speaker. To compensate for surfaces near the speaker, the Bass Control switch enables you to roll off -2 or -4 dB. - Laminar Integrated Port minimizes vibration and provides accurate low frequency response
- Advanced Directivity Controlled Waveguide provides a flat frequency response for on and off-axis listening positions
- Voltage is selected automatically, making it possible to use the M040 all over the world
- Three output level control settings: Very Low (-20 dB), Low (-10 dB), and High (0 dB)
- Designed by Harri Koskinen
In the Box Genelec M040 Active Two-Way 6.5" Studio Monitor (Single, Black) Power Cable Limited 2-Year Warranty User Manual PDF 1.8mbtqceyccvcevcaadyfxaftbufxbefa Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec M040 Active Two-Way 6.5" Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec M040 Specs | Inputs | 1x Combo XLR and 1/4" TRS
1x Unbalanced RCA | | Frequency Response | 48 Hz to 20 kHz (-3 dB) | | Crossover Frequency | 2.5 kHz | | LF Amplifier | 80W, Class D | | HF Amplifier | 50W, Class D | | Maximum SPL | 107 dB | | Low Frequency Driver | 6.5" (16.5 cm) | | High Frequency Driver | 1" (2.54 cm) metal dome tweeter | | Controls | Room Response Controls: Tabletop EQ, Bass EQ, Off
Bass Controls: Free Space (no EQ), -2 dB, -4 dB
Output Level Controls: Very Low (-20 dB), Low (-10 dB), and High (0 dB) | | Enclosure Material | Natural Composite Enclosure, recyclable fiber composite material, 50% Finnish wood | | Dimensions (H x W x D) | 13.27 x 9.25 x 9.02" (337 x 235 x 229 mm) | | Weight | 15.4 lb (7.4 kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 16.5 x 11.6 x 11.2" |
