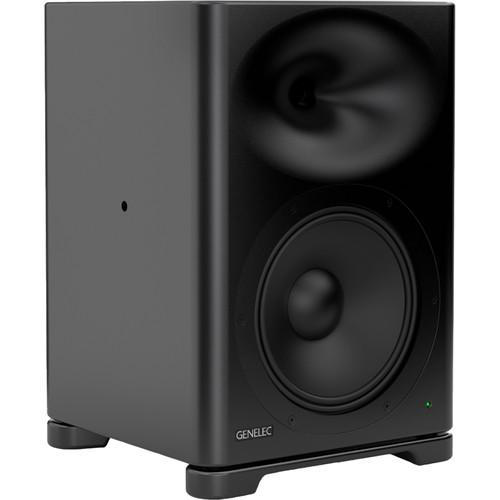

User Manual for Genelec S360 SAM Series 10" 2-Way 350W Studio Monitor Click to enlarge the picture
Contents of the user manual for the Genelec S360 SAM Series 10" 2-Way
- Product category: Studio Monitors Genelec
- Brand: Genelec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Genelec Studio Monitors
|
User manual for the Genelec S360 SAM Series 10" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Genelec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Genelec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Genelec product will considerably shorten its lifespan!
|
Product description The Genelec S360 is a precision SAM-Series, 2-way active studio monitor designed to provide reference-quality monitoring for applications where the requirement is high SPL for multiple listeners at a distance—from large, immersive setups in post-production studios or film-mixing stages to live monitoring for music-production playback.Housed in a compact, low-diffraction enclosure with quality Finnish woodwork, the S360 is equipped with a 10" woofer and an integrated, extended Directivity Control Waveguide (DCW) supporting its 1.7" titanium-diaphragm compression tweeter. Powered by 350W of Class-D amplification, the speaker delivers 118 dB of maximum SPL with excellent on-axis characteristics and uncolored 95° (horizontal) to 75° (vertical) dispersion.As part of the SAM Series of monitors, the S360 integrates with the Genelec Loudspeaker Manager (GLM) software (free download available separately), via which it can be calibrated, and incorporated into a system configurable from simple stereo to large immersive formats. The speaker comes with integrated DSP to compensate for detrimental room acoustic anomalies.The S360's enclosure offers versatile in-wall and on-wall mounting options, while down-firing, flow-optimized laminar integrated reflex ports (LIP) ensure accurate and noise-free bass output, great for in-wall and perforated-screen installation. When the monitor is used in free-standing mode, the proprietary Iso-Plate effectively decouples the monitor from its base, preventing coloration caused by conduction of unwanted vibration to the mounting surface. Note: Requires the GLM V2.0 User Kit (available separately) to integrate the speaker's Smart Active Monitoring (SAM) technology with the GLM monitor calibration software (free download available separately). - Key Features
-
- 2-way active monitor ideal for Dolby film mixing, post, and music production
- Compact, low-diffraction enclosure with premium quality Finnish woodwork
- 118 dB of maximum SPL with low distortion
- Smart Active Monitoring (SAM) technology integrates with Genelec Loudspeaker Manager (GLM) software (free download available separately)
- 10" high-efficiency woofer based on Genelec's Master Series
- 1.7" compression tweeter with titanium diaphragm, into 1" throat
- 250W woofer amp and 100W tweeter amp (all Class-D)
- 39 Hz to 19 kHz frequency response
- 95° (horizontal) to 75° (vertical) dispersion for accurate directivity control across the entire audio band
- Remains accurate at distances exceeding 33'
- 1.25"-thick front baffle and critical bracing minimize panel vibration for pristine sound quality
- Low-latency DSP
- Free-standing, in-wall, or on-wall mounting
- Made in Finland
- Directivity Control Waveguide (DCW) Technology
-
- Provides a wide and controlled listening area
- Minimizes early reflections for accurate sound reproduction on the acoustical axis and off-axis
- Genelec-Designed Class-D Amplifiers with SMPS Technology
-
- Produce high output and feature universal mains input voltage for convenient worldwide operation
- Quality electronic
- Quality Electronic Design
-
- Precision DSP algorithms ensure high dynamic range and low self-generated noise
- Integration with GLM Software
-
- For total system control and automated room-calibration features
- Down-Firing Reflex Ports
-
- Provide accurate and noise-free bass output
- Compatible with in-wall and perforated-screen installation
- Integrated Iso-Plate
-
- Effectively decouples the monitor from its base via lossy fixing
- Prevents coloration caused by conduction of unwanted vibrations to the mounting surface
- Sustainability and Green Values
-
- Efficient use of materials
- Low-energy consumption
- Long lifetime by design
In the Box Genelec S360 SAM Series 10" 2-Way 350W Studio Monitor (Single) Power Cord Limited 2-Year Warranty with an Additional 3 Years Upon Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Genelec S360 SAM Series 10" 2-Way 350W Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGenelec S360 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | LF Driver: 1 x 10" / 254 mm Woofer
HF Driver: 1 x 1.7" / 43.18 mm Tweeter | | Amplification | LF Amplifier: Class-D Rated at 250 W
HF Amplifier: Class-D Rated at 100 W | | | | Frequency Response | 39 Hz to 19 kHz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 118 dB | | Dispersion | 95 x 75° (Horizontal x Vertical) | | | | Crossover Frequency | 1400 Hz | | Crossover Type | Active | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input
1 x 3-Pin XLR Female Digital Input
1 x 3-Pin XLR Male Digital Output | | Computer Interface | 2 x RJ45 (Network) | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | | | Enclosure Material | Wood | | Dimensions (W x H x D) | 14.2 x 20.9 x 14.2" / 360.0 x 530.0 x 360.0 mm (Active Speaker) | | Weight | 66.1 lb / 30.0 kg (Active Speaker) |
